Hikvision AX PRO Wireless Alarm System: The 2026 UK Installer Guide

The Hikvision AX PRO wireless alarm range is Hikvision's two-way 868 MHz intruder platform, and it has matured into the system most UK installers reach for when they want a grade-compliant wireless alarm that talks to the same Hik-Connect app as their cameras. This guide is written for trade installers and informed end users: it walks through the three AX PRO control panels Netview stocks, the Tri-X wireless protocol, EN 50131 Grade 2 compliance, the full detector range, and how to specify a job so you order the right parts first time.

At a glance

Three hubs: DS-PWA64-L-WE (Hub-L, 64 zones, entry), DS-PWA96-M-WE (Hub-M, 96 zones, 3G/4G), DS-PWA96-M2H-WE (Hybrid, 96 zones + 16 wired inputs).
Wireless: Tri-X and Cam-X two-way protocol, 868 MHz, AES-128 encrypted, line-of-sight range up to roughly 2,000 m with repeaters.
Compliance: EN 50131 Grade 2, Environmental Class II — the right grade for most domestic and light-commercial UK installs under PD 6662.
Cloud: Hik-Connect for the end user, Hik Partner Pro (Hik-ProConnect) for the installer, dual-path IP + Wi-Fi + 3G/4G signalling.
Buy from Netview: Hikvision UK authorised wholesaler, same-day dispatch, trade desk 01163 800 838.

Hikvision AX PRO wireless alarm installer guide hero — Hikvision AX PRO wireless alarm: three hubs, one Hik-Connect app, EN 50131 Grade 2.

What is the Hikvision AX PRO wireless alarm system?

The Hikvision AX PRO is a professional two-way wireless intruder alarm built around a control panel (hub), wireless detectors and arming devices that all communicate on the 868 MHz band. Every device confirms its own state back to the hub, so the panel knows in real time whether a detector is armed, tampered, low on battery or out of range. Hikvision's AX PRO datasheet describes the radio as the Tri-X and Cam-X protocol with long RF transmission distance, two-way communication and AES-128 encryption. The whole family is certified to EN 50131 Grade 2, which makes it suitable for the bulk of UK residential and small-commercial work where a Grade 3 system would be over-specified.

The reason AX PRO has taken so much UK market share is integration: the panel lives in the same Hik-Connect ecosystem as Hikvision cameras and NVRs, so an installer who already fits Hikvision CCTV can add alarm to the same account, the same app and the same Hik Partner Pro portal without learning a second platform.

Which AX PRO hub should you fit?

Choose the hub by zone count, signalling path and whether the site has any wired devices you need to retain. Netview stocks the three current panels below.

Hub	Zones / outputs	Signalling	Best for
DS-PWA64-L-WE (Hub-L)	Up to 64 (incl. 48 PIRCAMs), 16 partitions, 4 sirens, 32 keyfobs, 32 users	Ethernet, Wi-Fi, 2G GPRS	Entry-level domestic, single dwellings
DS-PWA96-M-WE (Hub-M)	Up to 96 zones, 32 partitions, 6 sirens, 48 keyfobs, 48 users	Ethernet, Wi-Fi, 3G/4G LTE	Larger homes and light commercial needing 4G
DS-PWA96-M2H-WE (Hybrid)	Up to 96 zones + 16 wired inputs and 2 wired outputs onboard	Ethernet, Wi-Fi, 3G/4G LTE	Retrofits keeping legacy wired detectors

The DS-PWA96-M-WE is the volume seller: 96 zones, 6 sounders, 8 keypads and tag readers, 48 keyfobs and built-in 3G/4G give you headroom on almost any house or small unit, as listed on the Hikvision Hub-M product page. Step down to the DS-PWA64-L-WE when the site is a straightforward single dwelling and you do not need 4G; its datasheet lists 64 zones, 16 partitions and 2G GPRS backup. Reach for the DS-PWA96-M2H-WE hybrid whenever a customer has existing wired PIRs, contacts or a bell box worth keeping — its 16 onboard wired zone inputs let you re-land the old loops instead of re-cabling.

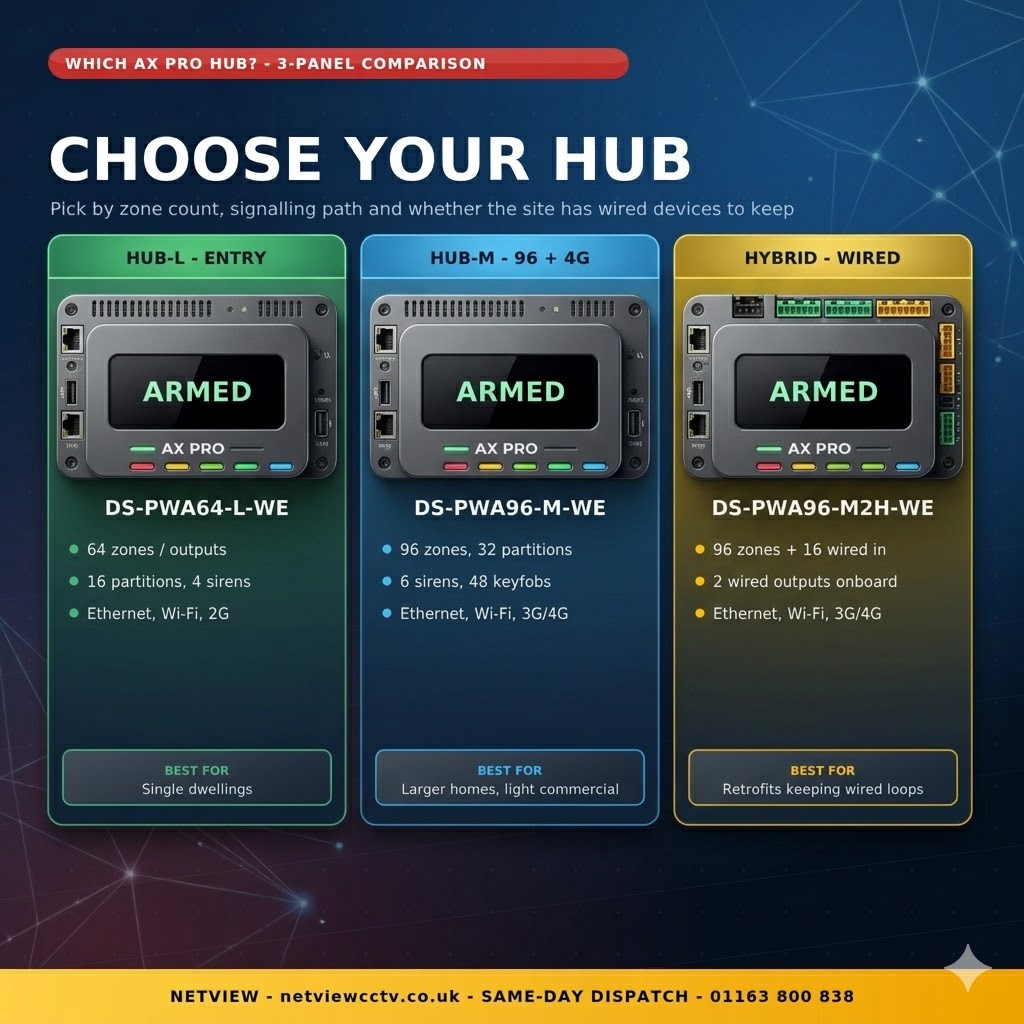

Hikvision AX PRO hub comparison and detector architecture — Three reference builds: entry domestic, 4G light-commercial, and a hybrid wired retrofit.

How the Tri-X wireless protocol and range work

AX PRO uses Hikvision's Tri-X two-way radio on 868 MHz, with a companion Cam-X channel for the PIRCAM image stream. Two-way communication means the hub and every device acknowledge each other, so supervision, remote firmware updates and battery reporting all happen over the air. The Hikvision datasheets quote a line-of-sight radio range up to roughly 2,000 m, and up to 4 wireless repeaters extend coverage through difficult structures such as steel-framed or thick-stone buildings. In practice you should always walk-test signal strength in the app before fixing a detector, because plasterboard, foil-backed insulation and metal cladding all attenuate 868 MHz. The Hub-M trade listing confirms the 868 MHz Tri-X two-way design and AES-128 encryption.

EN 50131 Grade 2 and PD 6662 compliance

Every AX PRO panel is certified to EN 50131 Grade 2, the grade that suits most UK homes and small businesses. Grade 2 assumes an intruder with some knowledge of alarm systems who may carry basic tools, which covers the overwhelming majority of domestic and light-commercial risk, as explained in this EN 50131 grading overview. For a UK install to be standards-compliant you also work to PD 6662 (the application of EN 50131) and BS 8243 for confirmed alarm signalling where police response is required. AX PRO supports sequential confirmation and dual-path Alarm Transmission System paths, so it can meet the confirmed-alarm requirements an Alarm Receiving Centre will expect. If a site genuinely needs Grade 3 — high-value commercial, or a risk assessment that calls for it — AX PRO is not the answer, and you should look at a Grade 3 hybrid or wired platform instead.

AX PRO detector range: PIRs, dual-tech and external

The detector that suits a zone depends on the environment, pet activity and false-alarm risk. Netview stocks the full current AX PRO sensor range:

DS-PDP15P-EG2-WE — standard 15 m PIR, the workhorse for hallways, landings and general rooms.
DS-PDD12P-EG2-WE — dual-tech (PIR + microwave) 12 m detector for areas prone to draughts, heat sources or false triggers where a single technology would nuisance-trip.
DS-PDCL12-EG2-WE — ceiling-mounted 360° PIR for open-plan rooms and stairwells where wall mounting leaves blind spots.
DS-PDPG12P-EG2-WE — combined PIR and glass-break detector, covering motion and perimeter breakage from one device.
DS-PDBG8-EG2-WE — dedicated acoustic break-glass detector for windowed frontages.
DS-PDTT15AM-LM-WE — tri-tech external detector with anti-mask, for perimeter and outbuilding detection ahead of the intruder reaching the building.

Door contacts, panic and life-safety devices

Beyond motion, AX PRO carries the contacts and life-safety sensors that round out a real install. The DS-PDMCS-EG2-WE slim magnetic contact suits doors and windows where you want the device as discreet as possible, while the DS-PDMCK-EG2-WE adds an onboard shock sensor for doors that need both opening and forced-entry detection. For panic and hold-up, the fixed DS-PDEB2-EG2-WE mounts under a counter or desk, and the portable DS-PDEBP2-EG2-WE can be worn or carried.

The same hub can also host life-safety detectors so the customer gets one app for intrusion and environmental alerts: the DS-PDSMK-S-WE photoelectric smoke detector, the DS-PDCO-E-WE carbon monoxide detector, and the DS-PDWL-E-WE water-leak detector for kitchens, utility rooms and plant cupboards. These are supervised over the same Tri-X link, so a low battery or lost device shows up in Hik-Connect rather than failing silently.

Keypads, keyfobs and arming

How the customer arms and disarms matters as much as detection. The DS-PK1-LT-WE wireless LCD keypad gives a clear status display and is the better choice where the end user wants to read messages and navigate menus at the door. The DS-PK1-E-WE touch-key LED keypad is a tidier, lower-cost option for straightforward set/unset. For quick perimeter arming, the DS-PKF1-WE keyfob is the standard hand-held remote — the Hub-M supports up to 48 of them, so multi-user households and small teams are easily covered. Most installs combine a keypad at the main entry with keyfobs for regular users and the Hik-Connect app for remote control.

How to specify a Hikvision AX PRO wireless alarm system step by step — Specify an AX PRO job in five steps and order the right parts first time.

Dual-path signalling, Hik-Connect and ARC monitoring

AX PRO signals over IP (wired or Wi-Fi) and mobile data simultaneously, giving the dual-path resilience an Alarm Receiving Centre expects. The end user controls the system through Hik-Connect, the same app they use for their Hikvision cameras, so arming, notifications and live video verification all sit in one place. Installers manage sites through Hik Partner Pro (formerly Hik-ProConnect), which handles remote programming, health monitoring and handover. For monitored installs, AX PRO can report to an ARC using standard alarm transmission protocols, and because the Hub-M and Hybrid carry 3G/4G alongside IP, the path stays up even if the broadband drops. Pair this with the customer's CCTV and you can offer genuine video-verified alarm response — see our Hik-Connect hub for app setup and account handover.

PIRCAM video verification — the AX PRO differentiator

AX PRO's stand-out feature against wireless rivals is the PIRCAM: a passive infrared detector with a built-in camera that captures a short image sequence the moment it triggers. According to the Hikvision M2H datasheet, the panels support up to 48 PIRCAM detectors with onboard buffering for up to 4 camera streams, so the monitoring station or end user sees what actually caused the activation. That turns an ambiguous 'zone 4 triggered' into a verified image of a person, which dramatically cuts false-alarm dispatch and is increasingly what insurers and ARCs want. Even on a wireless-only domestic system, video verification is the upgrade that justifies AX PRO over a budget bell-only kit.

How to specify an AX PRO system

Work through five questions and the bill of materials falls out:

Zone count and partitions — count doors, windows and rooms, then pick the hub. Under ~30 devices on a single dwelling, the DS-PWA64-L-WE is enough; larger or multi-area sites take the DS-PWA96-M-WE.
Wired legacy? — if the customer has wired detectors or a bell box worth keeping, specify the DS-PWA96-M2H-WE hybrid and re-land the loops on its 16 wired inputs.
Detection per zone — standard PIRs for clean rooms, dual-tech for difficult environments, ceiling PIRs for open-plan, external tri-tech for perimeter.
Arming — LCD keypad at the main door, keyfobs for users, Hik-Connect for remote.
Signalling — IP plus 3G/4G for any monitored or higher-risk site; add life-safety detectors to put smoke, CO and leak alerts in the same app.

Why buy your Hikvision AX PRO from Netview

Netview is a Hikvision UK authorised wholesaler based in Leicester, and we hold the fast-moving AX PRO lines — hubs, PIRs, contacts, keypads and life-safety sensors — in stock for same-day dispatch. Trade installers buy direct from our Leicester office or online, with live stock and trade pricing. If you want help speccing a panel or building a detector list for a particular site, call the trade desk on 01163 800 838 and we will put the right kit together. Browse the full range on our brands page, and pair your alarm work with our intruder guides below.

Frequently asked questions

Is the Hikvision AX PRO any good for professional installs?

Yes. AX PRO is EN 50131 Grade 2 certified, uses two-way supervised 868 MHz radio, and supports dual-path signalling and ARC monitoring, so it is a genuine professional platform for domestic and light-commercial work rather than a DIY kit.

What is the difference between the DS-PWA64-L-WE and DS-PWA96-M-WE?

The DS-PWA64-L-WE (Hub-L) supports up to 64 zones, 16 partitions and 2G GPRS backup; the DS-PWA96-M-WE (Hub-M) steps up to 96 zones, 32 partitions, 6 sirens and built-in 3G/4G LTE. Choose the Hub-M when you need more capacity or 4G signalling.

Can the AX PRO use my existing wired detectors?

Only the hybrid DS-PWA96-M2H-WE can. It has 16 onboard wired zone inputs and 2 wired outputs, so you can re-land legacy wired loops while adding AX PRO wireless devices alongside.

How far does the AX PRO wireless signal reach?

Hikvision quotes a line-of-sight Tri-X radio range of up to roughly 2,000 m, and the panels support up to 4 repeaters to extend coverage. Always walk-test signal strength in the app before fixing detectors, as building materials reduce real-world range.

Does AX PRO work with Hik-Connect and my Hikvision cameras?

Yes. AX PRO sits in the same Hik-Connect ecosystem as Hikvision cameras and NVRs, so the end user controls alarm and CCTV from one app, and installers manage both through Hik Partner Pro.

What grade is the Hikvision AX PRO certified to?

All current AX PRO panels are EN 50131 Grade 2, Environmental Class II. That suits most UK homes and small businesses; sites needing Grade 3 should use a Grade 3-rated platform instead.

Published 3 June 2026. Specifications are taken from Hikvision product datasheets and are correct at the time of writing; always confirm current figures against the latest Hikvision datasheet for your panel and firmware.
