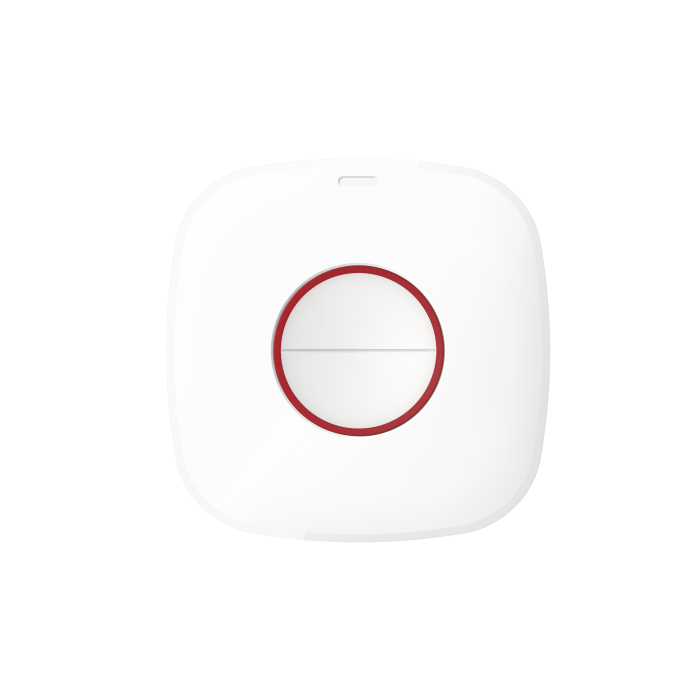

Panic Button Fixed Hikvision AX PRO DS-PDEB2-EG2-WE
The Hikvision AX PRO DS-PDEB2-EG2-WE is a wireless panic button — Fixed-position panic button with anti-tamper cover — for counters, under-desk and bedroom panic points.
Part of the Hikvision AX PRO two-way wireless range — 868 MHz Tri-X RF with AES-128 encryption, anti-jamming and signal-supervision across the full hub ecosystem. EN 50131 Grade 2 system support, Hik-Connect mobile app, Hik-ProConnect installer cloud and SIA-DC09 / Contact-ID ARC reporting.
Key Features
- Fixed wall panic button
- Battery: CR123A x 1, ~5 year life
- Two-way 868 MHz Tri-X RF — AES-128 encrypted, 1.6 km free-air range
- Anti-tamper protection on the wall plate
- Dual-button press required (prevents accidental activation)
- Status LED confirms successful transmission
- CE / UKCA / RED approved
Read the full installer guide — tiers, the four-layer Trigger → Alert → Response → Record design and in-stock BoMs. Read the guide →
Hikvision AX PRO DS-PDEB2-EG2-WE — Wireless Alarm Panic Button
Fixed-position panic button with anti-tamper cover — for counters, under-desk and bedroom panic points.
Overview
The Hikvision AX PRO DS-PDEB2-EG2-WE is a wireless panic button from the AX PRO professional wireless intruder-alarm range — two-way 868 MHz Tri-X RF with AES-128 encryption, full anti-jamming supervision and Hik-Connect mobile-app control. Fixed-position panic button with anti-tamper cover — for counters, under-desk and bedroom panic points.
Battery: CR123A x 1 with low-battery reporting. Mounting: Wall / under-desk. Two-way 868 MHz Tri-X RF — AES-128 encrypted with anti-jamming. Dual-button press prevents accidental activation; status LED confirms successful transmission to the hub.
Pairs with any AX PRO hub. Hold-up events are reported separately from intrusion events — they remain alarmed even when the system is disarmed, allowing 24-hour panic coverage for retail counters, lone workers and vulnerable residents.
Construction: tamper-protected enclosure with front and rear tamper switches. CE / UKCA / RED / RoHS approved. Same-day dispatch from Netview CCTV Leicester — authorised Hikvision wholesale distributor — with trade pricing on stocked AX PRO product.
Key Features
- Fixed wall panic button
- Battery: CR123A x 1, ~5 year life
- Two-way 868 MHz Tri-X RF — AES-128 encrypted, 1.6 km free-air range
- Anti-tamper protection on the wall plate
- Dual-button press required (prevents accidental activation)
- Status LED confirms successful transmission
- CE / UKCA / RED approved
Typical Applications
- Retail counters and tills
- Under-desk staff panic
- Reception areas
- Bedroom hold-up
- Pharmacy and high-street banking
- Trade installs requiring same-day stock — Netview CCTV Leicester ships from UK stock
Compatible Hikvision Devices
- Hikvision AX PRO Hubs — DS-PWA64-L-WE, DS-PWA96-M-WE, DS-PWA96-M2H-WE
- Hik-Connect app (iOS / Android) — remote arm / disarm / push events
- Hik-ProConnect installer cloud — remote programming and zone management
What's in the Box
- 1 × Hikvision AX PRO DS-PDEB2-EG2-WE
- 1 × mounting / wear accessory kit
- 1 × battery (pre-fitted)
- 1 × quick start guide
📄 Download: Hikvision AX PRO DS-PDEB2-EG2-WE Datasheet (PDF) — full technical specification, RF / battery / mechanical detail and approval certificates.
Detailed Specifications — Hikvision AX PRO DS-PDEB2-EG2-WE
Full technical specification for the Hikvision AX PRO DS-PDEB2-EG2-WE wireless panic button taken from the official Hikvision AX PRO datasheet.
| Identification | |
|---|---|
| SKU | DS-PDEB2-EG2-WE |
| MPN | 314300344 |
| EAN / GTIN-13 | 6931847155872 |
| Brand | Hikvision |
| Product Range | AX PRO |
| Product Type | Wireless Alarm Panic Button |
| RF & Wireless | |
| RF Frequency | 868 MHz Tri-X two-way |
| Transmission Method | Two-Way RF Wireless |
| Encryption | AES-128 |
| Free-air Range | 1.6 km |
| Frequency Hopping | Supported |
| Anti-Jamming Detection | Supported |
| Power | |
| Battery Type | CR123A x 1 |
| Typical Battery Life | 5 years |
| Low-Battery Reporting | Supported back to hub |
| Mechanical & Environment | |
| Mounting | Wall / under-desk |
| Tamper Protection | Front + Rear tamper switches |
| Operating Temperature | -10 °C to 55 °C |
| Operating Humidity | 10% to 90% non-condensing |
| Compatibility | |
| AX PRO Hubs | DS-PWA64-L-WE, DS-PWA96-M-WE, DS-PWA96-M2H-WE |
| End-User App | Hik-Connect (iOS / Android) |
| Installer Cloud | Hik-ProConnect |
| ARC Reporting | SIA-DC09 / Contact ID via the hub |
| Approvals | |
| Certifications | CE, UKCA, RED, RoHS |
| EN 50131 System Grade | Grade 2 compatible |
Documentation — Hikvision AX PRO DS-PDEB2-EG2-WE
Download the official Hikvision datasheet for the AX PRO DS-PDEB2-EG2-WE, plus browse related alarm-system categories on netviewcctv.co.uk.
| Document | Format | Link |
|---|---|---|
| DS-PDEB2-EG2-WE Product Datasheet | Download datasheet | |
| Browse all Hikvision AX PRO Arming Devices | Web | View AX PRO Arming Devices |
| Browse all Hikvision AX PRO products | Web | View AX PRO range |
| Browse all Alarm Systems at Netview CCTV | Web | View alarm systems |
| Contact Netview CCTV (trade pricing & support) | Web | Contact our trade team |
Netview CCTV — authorised Hikvision wholesale distributor (Leicester, UK). For trade pricing on AX PRO product, contact our trade team on 0116 3800 838 or [email protected].
