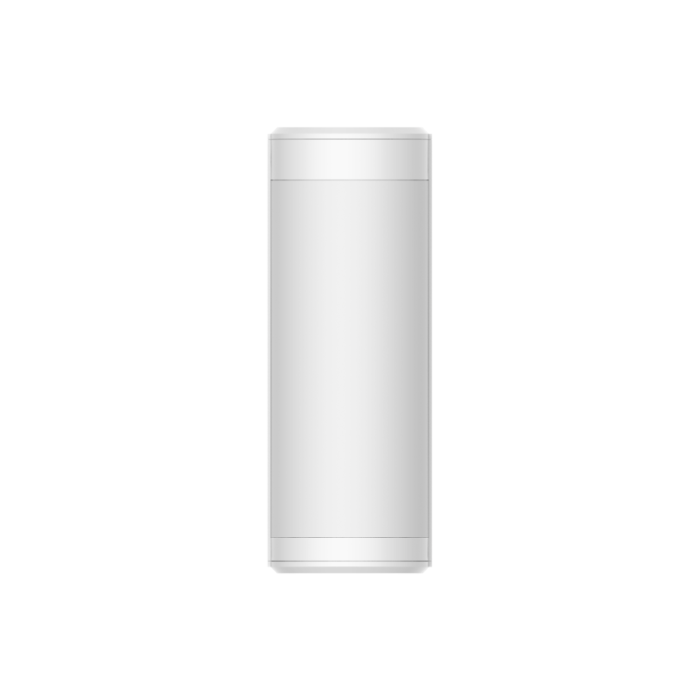

Tri-Tech External Detector Hikvision AX PRO DS-PDTT15AM-LM-WE
The Hikvision AX PRO DS-PDTT15AM-LM-WE is a wireless intrusion detector — Outdoor tri-tech detector — dual-PIR + microwave, anti-mask, IP65 for perimeter and forecourt protection.
Part of the Hikvision AX PRO two-way wireless range — 868 MHz Tri-X RF with AES-128 encryption, anti-jamming and signal-supervision across the full hub ecosystem. EN 50131 Grade 2 system support, Hik-Connect mobile app, Hik-ProConnect installer cloud and SIA-DC09 / Contact-ID ARC reporting.
Key Features
- Dual-PIR + Microwave Tri-Tech (outdoor)
- 15 m detection range, 110° field of view
- Pet immunity up to 30 kg
- Microwave frequency: 24 GHz
- Battery: CR123A x 4, ~3 year life
- Mounting: Wall (0.9 – 1.2 m for outdoor)
- IP rating: IP65 weatherproof
- Tamper protection (front + rear)
- Anti-masking signal-jamming detection
- Two-way 868 MHz Tri-X RF — AES-128 encrypted, 1.6 km free-air range
- Digital temperature compensation
- CE / UKCA / RED approved
Hikvision AX PRO DS-PDTT15AM-LM-WE — Wireless Alarm Detector
Outdoor tri-tech detector — dual-PIR + microwave, anti-mask, IP65 for perimeter and forecourt protection.
Overview
The Hikvision AX PRO DS-PDTT15AM-LM-WE is a wireless intrusion detector from the AX PRO professional wireless intruder-alarm range — two-way 868 MHz Tri-X RF with AES-128 encryption, full anti-jamming supervision and Hik-Connect mobile-app control. Outdoor tri-tech detector — dual-PIR + microwave, anti-mask, IP65 for perimeter and forecourt protection.
Detection: Dual-PIR + Microwave Tri-Tech (outdoor), 15 m range, 110° field of view with pet immunity up to 30 kg. Microwave: 24 GHz.
RF: two-way 868 MHz Tri-X with AES-128 encryption, up to 1.6 km free-air range and frequency-hopping anti-jamming. Power: CR123A x 4 giving typically 3 years of service in normal operation, with low-battery warning back to the hub. Mounting: Wall (0.9 – 1.2 m for outdoor).
Construction: tamper-protected enclosure with front and rear tamper switches. CE / UKCA / RED / RoHS approved. Same-day dispatch from Netview CCTV Leicester — authorised Hikvision wholesale distributor — with trade pricing on stocked AX PRO product.
Key Features
- Dual-PIR + Microwave Tri-Tech (outdoor)
- 15 m detection range, 110° field of view
- Pet immunity up to 30 kg
- Microwave frequency: 24 GHz
- Battery: CR123A x 4, ~3 year life
- Mounting: Wall (0.9 – 1.2 m for outdoor)
- IP rating: IP65 weatherproof
- Tamper protection (front + rear)
- Anti-masking signal-jamming detection
- Two-way 868 MHz Tri-X RF — AES-128 encrypted, 1.6 km free-air range
- Digital temperature compensation
- CE / UKCA / RED approved
Typical Applications
- External garden perimeter
- Garage and outbuilding doors
- Petrol-forecourt / yard zones
- Loading bays outside business hours
- Trade installs requiring same-day stock — Netview CCTV Leicester ships from UK stock
Compatible Hikvision Devices
- Hikvision AX PRO Hubs — DS-PWA64-L-WE, DS-PWA96-M-WE, DS-PWA96-M2H-WE
- Hik-Connect app (iOS / Android) — remote arm / disarm / push events
- Hik-ProConnect installer cloud — remote programming and zone management
What's in the Box
- 1 × Hikvision AX PRO DS-PDTT15AM-LM-WE detector
- 1 × mounting plate + screws
- 1 × battery (pre-fitted)
- 1 × quick start guide
📄 Download: Hikvision AX PRO DS-PDTT15AM-LM-WE Datasheet (PDF) — full technical specification, RF / battery / mechanical detail and approval certificates.
Detailed Specifications — Hikvision AX PRO DS-PDTT15AM-LM-WE
Full technical specification for the Hikvision AX PRO DS-PDTT15AM-LM-WE wireless intrusion detector taken from the official Hikvision AX PRO datasheet.
| Identification | |
|---|---|
| SKU | DS-PDTT15AM-LM-WE |
| MPN | 314300256 |
| EAN / GTIN-13 | 6931847146757 |
| Brand | Hikvision |
| Product Range | AX PRO |
| Product Type | Wireless Alarm Detector |
| Detection / Function | |
| Detection Method | Dual-PIR + Microwave Tri-Tech (outdoor) |
| Detection Range | 15 m |
| Detection Angle | 110° |
| Pet Immunity | up to 30 kg |
| Microwave Frequency | 24 GHz |
| RF & Wireless | |
| RF Frequency | 868 MHz Tri-X two-way |
| Transmission Method | Two-Way RF Wireless |
| Encryption | AES-128 |
| Free-air Range | 1.6 km |
| Frequency Hopping | Supported |
| Anti-Jamming Detection | Supported |
| Power | |
| Battery Type | CR123A x 4 |
| Typical Battery Life | 3 years |
| Low-Battery Reporting | Supported back to hub |
| Mechanical & Environment | |
| Mounting | Wall (0.9 – 1.2 m for outdoor) |
| Tamper Protection | Front + Rear tamper switches |
| IP Rating | IP65 weatherproof |
| Operating Temperature | -10 °C to 55 °C |
| Operating Humidity | 10% to 90% non-condensing |
| Compatibility | |
| AX PRO Hubs | DS-PWA64-L-WE, DS-PWA96-M-WE, DS-PWA96-M2H-WE |
| End-User App | Hik-Connect (iOS / Android) |
| Installer Cloud | Hik-ProConnect |
| ARC Reporting | SIA-DC09 / Contact ID via the hub |
| Approvals | |
| Certifications | CE, UKCA, RED, RoHS |
| EN 50131 System Grade | Grade 2 compatible |
