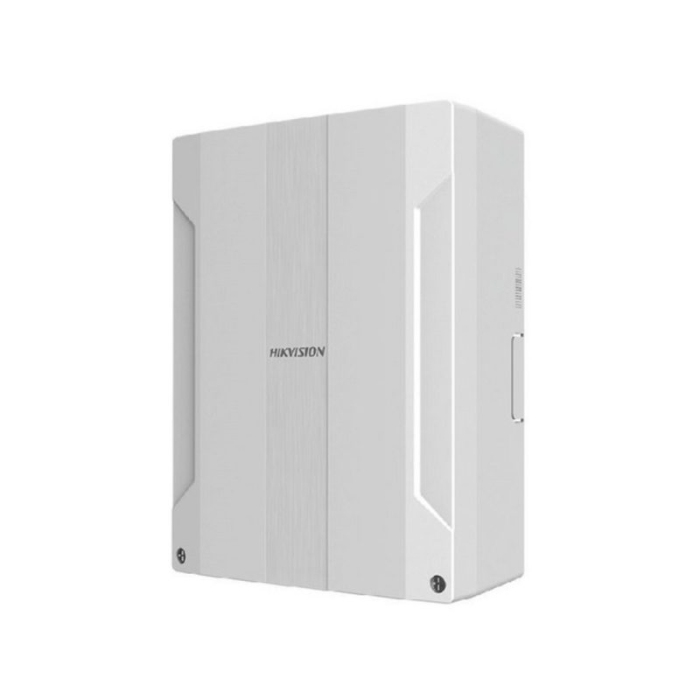

Hikvision Ax Pro DS-PWA96-M2H-WE Wireless 96 Zones Hybrid Alarm Control Panel
The Hikvision AX PROHikvision AX PRO Wireless Alarm System: The 2026 UK Installer Guide DS-PWA96-M2H-WE is a wireless alarm control hub — Hybrid M2H 96-zone hub — 8 onboard wired inputs plus full wireless device support.
Part of the Hikvision AX PRO two-way wireless range — 868 MHz Tri-X RF with AES-128 encryption, anti-jamming and signal-supervision across the full hub ecosystem. EN 50131 Grade 2 system support, Hik-Connect mobile app, Hik-ProConnect installer cloud and SIA-DC09 / Contact-ID ARC reporting.
Key Features
- 96 wireless zones + 8 onboard wired inputs
- 32 partitions, 50 users, 50 RFID tags supported
- Communications: Wi-Fi 2.4 GHz, Gigabit Ethernet LAN, Dual SIM 3G / 4G LTE
- 868 MHz Tri-X two-way RF — AES-128 encryption, 1.6 km free-air range
- Hik-Connect mobile app (iOS / Android) for remote arm, disarm, push events
- Built-in 12 h battery backup
- SIA-DC09 / Contact-ID ARC reporting + dual-path for grade-2 compliance
- EN 50131 Grade 2 certified
- Hosted on Hikvision Hik-Proconnect cloud for installer remote programming
- Voice prompts + LED status indicators
- Hot-swap PCB design for fast service swap-outs
- CE / UKCA / RED approved
Note: AX PRO is a wireless intruder-alarm platform — pair the hub with the relevant wireless detectors, keypads, sirens and accessories from the AX PRO range to build out a graded EN 50131 system. Hubs include built-in battery backup for mains-fail resilience.
Hikvision AX PROHikvision AX PRO Wireless Alarm System: The 2026 UK Installer Guide DS-PWA96-M2H-WE — Wireless Alarm Control Panel
Hybrid M2H 96-zone hub — 8 onboard wired inputs plus full wireless device support.
Overview
The Hikvision AX PROHikvision AX PRO Wireless Alarm System: The 2026 UK Installer Guide DS-PWA96-M2H-WE is a wireless alarm control hub from the AX PRO professional wireless intruder-alarm range — two-way 868 MHz Tri-X RF with AES-128 encryption, full anti-jamming supervision and Hik-Connect mobile-app control. Hybrid M2H 96-zone hub — 8 onboard wired inputs plus full wireless device support.
The HYBRID-HUB hub supports 96 wireless zones plus 8 onboard wired inputs, 32 partitions, 50 user codes and 50 RFID tags. Communications: Wi-Fi 2.4 GHz, Gigabit Ethernet LAN, Dual SIM 3G / 4G LTE — with dual-path SIA-DC09 / Contact-ID reporting to monitoring stations. Built-in battery backup gives up to 12 hours of mains-fail autonomy, and the hot-swap PCB design makes warranty replacement painless on the next service visit.The Hik-Connect mobile app gives end users full arm / disarm / partition control, push notifications on alarm events and intuitive bypass and zone-status visibility. The Hik-ProConnect installer cloud lets you commission, program zones, manage user permissions and run remote firmware updates without site visits — cutting down repeat callouts on a hub install.
Construction: tamper-protected enclosure with front and rear tamper switches. CE / UKCA / RED / RoHS approved. Same-day dispatch from Netview CCTV Leicester — authorised Hikvision wholesale distributor — with trade pricing on stocked AX PRO product.
Key Features
- 96 wireless zones + 8 onboard wired inputs
- 32 partitions, 50 users, 50 RFID tags supported
- Communications: Wi-Fi 2.4 GHz, Gigabit Ethernet LAN, Dual SIM 3G / 4G LTE
- 868 MHz Tri-X two-way RF — AES-128 encryption, 1.6 km free-air range
- Hik-Connect mobile app (iOS / Android) for remote arm, disarm, push events
- Built-in 12 h battery backup
- SIA-DC09 / Contact-ID ARC reporting + dual-path for grade-2 compliance
- EN 50131 Grade 2 certified
- Hosted on Hikvision Hik-Proconnect cloud for installer remote programming
- Voice prompts + LED status indicators
- Hot-swap PCB design for fast service swap-outs
- CE / UKCA / RED approved
Typical Applications
- Residential properties — homes, flats, HMOs needing certified intruder protection
- Small commercial / retail — independent shops, offices, salons
- Light industrial / warehouse — workshop and stock-room monitoring with app control
- HMO and lettings — landlord-controlled arming, tenant key tags
- Grade-2 commercial — sites with insurance-driven EN 50131 Grade 2 spec
- Trade installs requiring same-day stock — Netview CCTV Leicester ships from UK stock
Compatible Hikvision Devices
- Hik-Connect app (iOS / Android) — remote arm / disarm / push events
- Hik-ProConnect installer cloud — remote programming and zone management
- Full AX PRO wireless device range — PIR / dual-tech / contacts / smoke / CO / water / glass / sirens
- Wireless keypads, keyfobs, tag readers
- Hik-Central / ARC SIA-DC09 + Contact-ID monitoring stations
- 4G / 3G dual-SIM cellular backup (M and M2H hubs)
What's in the Box
- 1 × Hikvision AX PROHikvision AX PRO Wireless Alarm System: The 2026 UK Installer Guide DS-PWA96-M2H-WE hub control panel
- 1 × mounting plate + fixing kit
- 1 × AC power adaptor (UK plug)
- 1 × battery backup pack (where applicable)
- 1 × quick start guide
📄 Download: Hikvision AX PRO DS-PWA96-M2H-WE Datasheet (PDF) — full technical specification, RF / battery / mechanical detail and approval certificates.
Detailed Specifications — Hikvision AX PRO DS-PWA96-M2H-WE
Full technical specification for the Hikvision AX PRO DS-PWA96-M2H-WE wireless alarm control hub taken from the official Hikvision AX PRO datasheet.
| Identification | |
|---|---|
| SKU | DS-PWA96-M2H-WE |
| MPN | 302401941 |
| EAN / GTIN-13 | 6931847164270 |
| Brand | Hikvision |
| Product Range | AX PRO |
| Product Type | Wireless Alarm Control Panel |
| Detection / Function | |
| Wireless Zones | 96 |
| Onboard Wired Inputs | 8 |
| Partitions | 32 |
| Users | 50 |
| RFID Tags Supported | 50 |
| RF & Wireless | |
| RF Frequency | 868 MHz Tri-X two-way |
| Transmission Method | Two-Way RF Wireless |
| Encryption | AES-128 |
| Free-air Range | 1.6 km |
| Frequency Hopping | Supported |
| Anti-Jamming Detection | Supported |
| Hub Communications | Wi-Fi 2.4 GHz, Gigabit Ethernet LAN, Dual SIM 3G / 4G LTE |
| Mobile App | Hik-Connect |
| ARC Protocols | SIA-DC09 / SIA-Contact ID, ARC reporting, Dual-path comms |
| Power | |
| Internal Battery Backup | 12 hours |
| Low-Battery Reporting | Supported back to hub |
| Mechanical & Environment | |
| Tamper Protection | Front + Rear tamper switches |
| Operating Temperature | -10 °C to 55 °C |
| Operating Humidity | 10% to 90% non-condensing |
| Compatibility | |
| AX PRO Hubs | DS-PWA64-L-WE, DS-PWA96-M-WE, DS-PWA96-M2H-WE |
| End-User App | Hik-Connect (iOS / Android) |
| Installer Cloud | Hik-ProConnect |
| ARC Reporting | SIA-DC09 / Contact ID via the hub |
| Approvals | |
| Certifications | CE, UKCA, RED, RoHS |
| EN 50131 System Grade | Grade 2 compatible |
Frequently Asked Questions
What is the Hikvision AX PRO DS-PWA96-M2H-WE?
A hybrid 96-zone wireless alarm control hub — it has 8 onboard wired inputs in addition to full wireless device support.
Why hybrid?
It suits sites that mix existing wired detectors with new wireless devices on one panel.
How does it connect to the outside world?
4G, LAN and Wi-Fi for resilient signalling and remote control.
How do users control it?
Via the Hik-Connect app, keypads, keyfobs or tags.
How does it talk to devices?
Over Hikvision's two-way 868MHz Tri-X RF with AES-128 encryption, anti-jamming and signal supervision.
Do you stock it?
Yes — in stock at Netview CCTV, Leicester, with same-day dispatch for installers.
Documentation — Hikvision AX PRO DS-PWA96-M2H-WE
Download the official Hikvision datasheet for the AX PRO DS-PWA96-M2H-WE, plus browse related alarm-system categories on netviewcctv.co.uk.
| Document | Format | Link |
|---|---|---|
| DS-PWA96-M2H-WE Product Datasheet | Download datasheet | |
| Browse all Hikvision AX PRO Control Panels | Web | View AX PRO Control Panels |
| Browse all Hikvision AX PRO products | Web | View AX PRO range |
| Browse all Alarm Systems at Netview CCTV | Web | View alarm systems |
| Contact Netview CCTV (trade pricing & support) | Web | Contact our trade team |
Netview CCTV — authorised Hikvision wholesale distributor (Leicester, UK). For trade pricing on AX PRO product, contact our trade team on 0116 3800 838 or [email protected].
