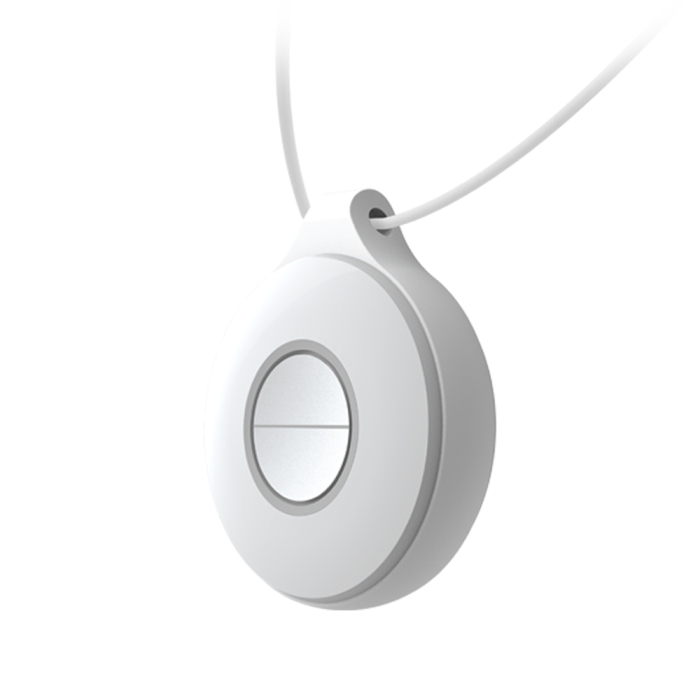

Hikvision AX PRO DS-PDEBP2-EG2-WE Portable Panic Button
The Hikvision AX PROHikvision AX PRO Wireless Alarm System: The 2026 UK Installer Guide DS-PDEBP2-EG2-WE is a wireless panic button — Portable dual-button panic — pendant-style emergency call for lone-worker and elderly-care use.
Part of the Hikvision AX PRO two-way wireless range — 868 MHz Tri-X RF with AES-128 encryption, anti-jamming and signal-supervision across the full hub ecosystem. EN 50131 Grade 2 system support, Hik-Connect mobile app, Hik-ProConnect installer cloud and SIA-DC09 / Contact-ID ARC reporting.
Key Features
- Portable pendant panic button
- Battery: CR2032 x 1, ~3 year life
- Two-way 868 MHz Tri-X RF — AES-128 encrypted, 1.6 km free-air range
- Wear on wristband, lanyard or belt clip — IP54 rated for everyday use
- Dual-button press required (prevents accidental activation)
- Status LED confirms successful transmission
- CE / UKCA / RED approved
Read the full installer guide — tiers, the four-layer Trigger → Alert → Response → Record design and in-stock BoMs. Read the guide →
Hikvision AX PROHikvision AX PRO Wireless Alarm System: The 2026 UK Installer Guide DS-PDEBP2-EG2-WE — Wireless Alarm Panic Button
Portable dual-button panic — pendant-style emergency call for lone-worker and elderly-care use.
Overview
The Hikvision AX PROHikvision AX PRO Wireless Alarm System: The 2026 UK Installer Guide DS-PDEBP2-EG2-WE is a wireless panic button from the AX PRO professional wireless intruder-alarm range — two-way 868 MHz Tri-X RF with AES-128 encryption, full anti-jamming supervision and Hik-Connect mobile-app control. Portable dual-button panic — pendant-style emergency call for lone-worker and elderly-care use.
Battery: CR2032 x 1 with low-battery reporting. Mounting: Lanyard / wristband / belt-clip. Two-way 868 MHz Tri-X RF — AES-128 encrypted with anti-jamming. Dual-button press prevents accidental activation; status LED confirms successful transmission to the hub.
Pairs with any AX PRO hub. Hold-up events are reported separately from intrusion events — they remain alarmed even when the system is disarmed, allowing 24-hour panic coverage for retail counters, lone workers and vulnerable residents.
Construction: tamper-protected enclosure with front and rear tamper switches. CE / UKCA / RED / RoHS approved. Same-day dispatch from Netview CCTV Leicester — authorised Hikvision wholesale distributor — with trade pricing on stocked AX PRO product.
Key Features
- Portable pendant panic button
- Battery: CR2032 x 1, ~3 year life
- Two-way 868 MHz Tri-X RF — AES-128 encrypted, 1.6 km free-air range
- Wear on wristband, lanyard or belt clip — IP54 rated for everyday use
- Dual-button press required (prevents accidental activation)
- Status LED confirms successful transmission
- CE / UKCA / RED approved
Typical Applications
- Lone-worker emergency call
- Elderly-care pendant
- Mobile staff in large premises
- Patient call-button in residential care
- Trade installs requiring same-day stock — Netview CCTV Leicester ships from UK stock
Compatible Hikvision Devices
- Hikvision AX PROHikvision AX PRO Wireless Alarm System: The 2026 UK Installer Guide Hubs — DS-PWA64-L-WE, DS-PWA96-M-WE, DS-PWA96-M2H-WE
- Hik-Connect app (iOS / Android) — remote arm / disarm / push events
- Hik-ProConnect installer cloud — remote programming and zone management
What's in the Box
- 1 × Hikvision AX PROHikvision AX PRO Wireless Alarm System: The 2026 UK Installer Guide DS-PDEBP2-EG2-WE
- 1 × mounting / wear accessory kit
- 1 × battery (pre-fitted)
- 1 × quick start guide
📄 Download: Hikvision AX PRO DS-PDEBP2-EG2-WE Datasheet (PDF) — full technical specification, RF / battery / mechanical detail and approval certificates.
Detailed Specifications — Hikvision AX PRO DS-PDEBP2-EG2-WE
Full technical specification for the Hikvision AX PRO DS-PDEBP2-EG2-WE wireless panic button taken from the official Hikvision AX PRO datasheet.
| Identification | |
|---|---|
| SKU | DS-PDEBP2-EG2-WE |
| MPN | 314300057 |
| EAN / GTIN-13 | 6941264054047 |
| Brand | Hikvision |
| Product Range | AX PRO |
| Product Type | Wireless Alarm Panic Button |
| RF & Wireless | |
| RF Frequency | 868 MHz Tri-X two-way |
| Transmission Method | Two-Way RF Wireless |
| Encryption | AES-128 |
| Free-air Range | 1.6 km |
| Frequency Hopping | Supported |
| Anti-Jamming Detection | Supported |
| Power | |
| Battery Type | CR2032 x 1 |
| Typical Battery Life | 3 years |
| Low-Battery Reporting | Supported back to hub |
| Mechanical & Environment | |
| Mounting | Lanyard / wristband / belt-clip |
| Tamper Protection | Front + Rear tamper switches |
| Operating Temperature | -10 °C to 55 °C |
| Operating Humidity | 10% to 90% non-condensing |
| Compatibility | |
| AX PRO Hubs | DS-PWA64-L-WE, DS-PWA96-M-WE, DS-PWA96-M2H-WE |
| End-User App | Hik-Connect (iOS / Android) |
| Installer Cloud | Hik-ProConnect |
| ARC Reporting | SIA-DC09 / Contact ID via the hub |
| Approvals | |
| Certifications | CE, UKCA, RED, RoHS |
| EN 50131 System Grade | Grade 2 compatible |
Frequently Asked Questions
What is the Hikvision AX PRO DS-PDEBP2-EG2-WE?
A portable, pendant-style dual-button panic alarm for lone-worker and elderly-care use.
Why two buttons?
Requiring two presses helps prevent accidental activation while keeping emergency calls quick.
How is it worn?
As a portable pendant; a compatible wristband strap is available separately.
How does it communicate?
Over Hikvision's two-way 868MHz Tri-X RF with AES-128 encryption, anti-jamming and signal supervision.
Which system does it work with?
The Hikvision AX PRO wireless hub ecosystem.
Do you stock it?
Yes — in stock at Netview CCTV, Leicester, with same-day dispatch for installers.
Documentation — Hikvision AX PRO DS-PDEBP2-EG2-WE
Download the official Hikvision datasheet for the AX PRO DS-PDEBP2-EG2-WE, plus browse related alarm-system categories on netviewcctv.co.uk.
| Document | Format | Link |
|---|---|---|
| DS-PDEBP2-EG2-WE Product Datasheet | Download datasheet | |
| Browse all Hikvision AX PRO Arming Devices | Web | View AX PRO Arming Devices |
| Browse all Hikvision AX PRO products | Web | View AX PRO range |
| Browse all Alarm Systems at Netview CCTV | Web | View alarm systems |
| Contact Netview CCTV (trade pricing & support) | Web | Contact our trade team |
Netview CCTV — authorised Hikvision wholesale distributor (Leicester, UK). For trade pricing on AX PRO product, contact our trade team on 0116 3800 838 or [email protected].
