Hub-M 96-Zone WiFi LAN & 3G/4G Hikvision AX PRO Ds-PWA96-M-WE

Overview

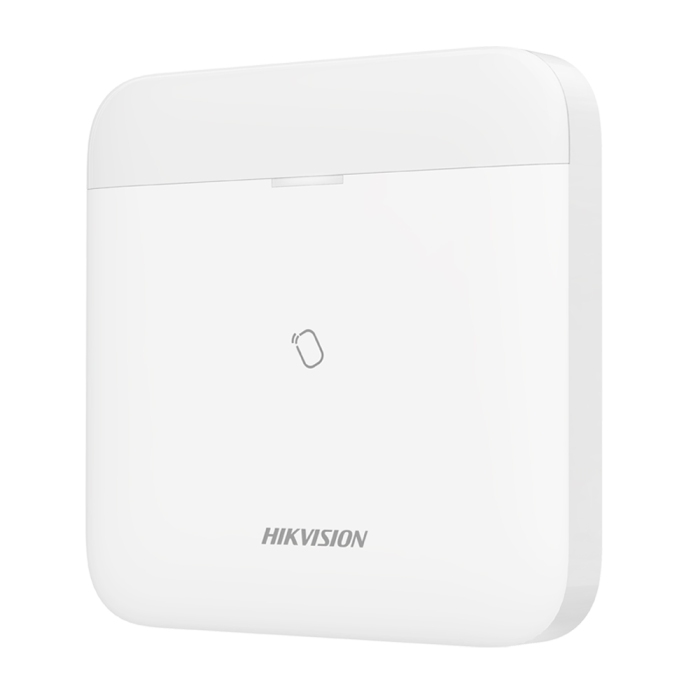

The Hikvision AX PRO DS-PWA96-M-WE is a wireless alarm control hub from the AX PRO professional wireless intruder-alarm range — two-way 868 MHz Tri-X RF with AES-128 encryption, full anti-jamming supervision and Hik-Connect mobile-app control. 96-zone M-tier wireless hub with dual-SIM 4G + LAN + Wi-Fi for mid-size commercial sites.

The M-HUB hub supports 96 wireless zones, 32 partitions, 50 user codes and 50 RFID tags. Communications: Wi-Fi 2.4 GHz, Gigabit Ethernet LAN, Dual SIM 3G / 4G LTE — with dual-path SIA-DC09 / Contact-ID reporting to monitoring stations. Built-in battery backup gives up to 12 hours of mains-fail autonomy, and the hot-swap PCB design makes warranty replacement painless on the next service visit.

The Hik-Connect mobile app gives end users full arm / disarm / partition control, push notifications on alarm events and intuitive bypass and zone-status visibility. The Hik-ProConnect installer cloud lets you commission, program zones, manage user permissions and run remote firmware updates without site visits — cutting down repeat callouts on a hub install.

Construction: tamper-protected enclosure with front and rear tamper switches. CE / UKCA / RED / RoHS approved. Same-day dispatch from Netview CCTV Leicester — authorised Hikvision wholesale distributor — with trade pricing on stocked AX PRO product.

Key Features

• 96 wireless zones
• 32 partitions, 50 users, 50 RFID tags supported
• Communications: Wi-Fi 2.4 GHz, Gigabit Ethernet LAN, Dual SIM 3G / 4G LTE
• 868 MHz Tri-X two-way RF — AES-128 encryption, 1.6 km free-air range
• Hik-Connect mobile app (iOS / Android) for remote arm, disarm, push events
• Built-in 12 h battery backup
• SIA-DC09 / Contact-ID ARC reporting + dual-path for grade-2 compliance
• EN 50131 Grade 2 certified
• Hosted on Hikvision Hik-Proconnect cloud for installer remote programming
• Voice prompts + LED status indicators
• Hot-swap PCB design for fast service swap-outs
• CE / UKCA / RED approved

Typical Applications

• Residential properties — homes, flats, HMOs needing certified intruder protection
• Small commercial / retail — independent shops, offices, salons
• Light industrial / warehouse — workshop and stock-room monitoring with app control
• HMO and lettings — landlord-controlled arming, tenant key tags
• Grade-2 commercial — sites with insurance-driven EN 50131 Grade 2 spec
• Trade installs requiring same-day stock — Netview CCTV Leicester ships from UK stock

Compatible Hikvision Devices

• Hik-Connect app (iOS / Android) — remote arm / disarm / push events
• Hik-ProConnect installer cloud — remote programming and zone management
• Full AX PRO wireless device range — PIR / dual-tech / contacts / smoke / CO / water / glass / sirens
• Wireless keypads, keyfobs, tag readers
• Hik-Central / ARC SIA-DC09 + Contact-ID monitoring stations
• 4G / 3G dual-SIM cellular backup (M and M2H hubs)

What's in the Box

• 1 × Hikvision AX PRO DS-PWA96-M-WE hub control panel
• 1 × mounting plate + fixing kit
• 1 × AC power adaptor (UK plug)
• 1 × battery backup pack (where applicable)
• 1 × quick start guide
