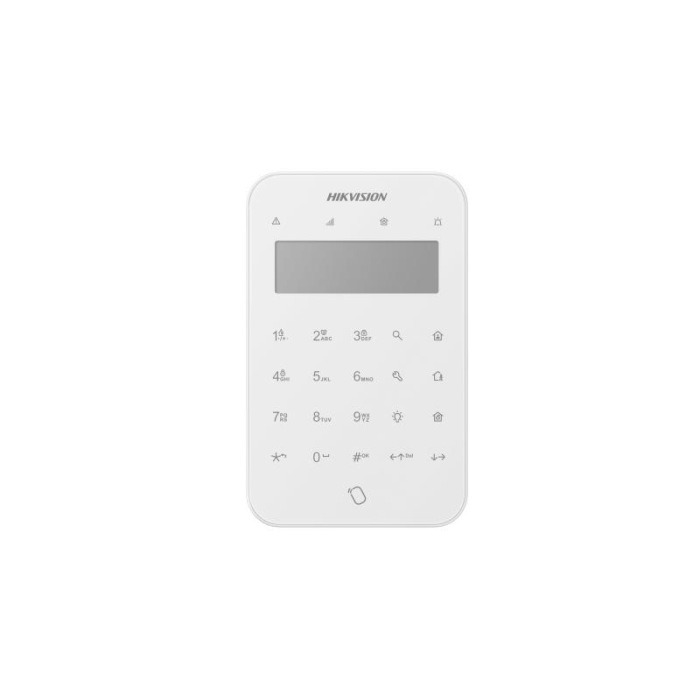

Hikvision AX PRO DS-PK1-LT-WE Wireless LCD Keypad
The Hikvision AX PROHikvision AX PRO Wireless Alarm System: The 2026 UK Installer Guide DS-PK1-LT-WE is a wireless arming keypad — Wireless LCD keypad with live zone status, partition arming and RFID tag entry.
Part of the Hikvision AX PRO two-way wireless range — 868 MHz Tri-X RF with AES-128 encryption, anti-jamming and signal-supervision across the full hub ecosystem. EN 50131 Grade 2 system support, Hik-Connect mobile app, Hik-ProConnect installer cloud and SIA-DC09 / Contact-ID ARC reporting.
Key Features
- Wireless arming keypad — pair with any AX PRO hub
- LCD display + tactile keys
- RFID tag entry — supports up to 32 tags
- Two-way 868 MHz Tri-X RF — AES-128 encrypted
- Battery: CR123A x 4, typical 3 year life
- Tamper-protected (front + rear) with anti-jamming RF
- Programmable function keys / panic combination
- Voice-prompted user feedback (multilingual)
- CE / UKCA / RED approved
Hikvision AX PROHikvision AX PRO Wireless Alarm System: The 2026 UK Installer Guide DS-PK1-LT-WE — Wireless Alarm Keypad
Wireless LCD keypad with live zone status, partition arming and RFID tag entry.
Overview
The Hikvision AX PROHikvision AX PRO Wireless Alarm System: The 2026 UK Installer Guide DS-PK1-LT-WE is a wireless arming keypad from the AX PRO professional wireless intruder-alarm range — two-way 868 MHz Tri-X RF with AES-128 encryption, full anti-jamming supervision and Hik-Connect mobile-app control. Wireless LCD keypad with live zone status, partition arming and RFID tag entry.
Battery: CR123A x 4 with typical 3 year life. Two-way 868 MHz Tri-X RF — AES-128 encrypted with anti-jamming detection. Pairs with any AX PRO hub via QR code or power-up enrolment.
The full AX PRO arming-device range includes touch-LED keypads, LCD keypads, 4-button keyfobs, standalone tag readers and spare tag packs — combine any of them on the same hub for multi-mode user access.
Construction: tamper-protected enclosure with front and rear tamper switches. CE / UKCA / RED / RoHS approved. Same-day dispatch from Netview CCTV Leicester — authorised Hikvision wholesale distributor — with trade pricing on stocked AX PRO product.
Key Features
- Wireless arming keypad — pair with any AX PRO hub
- LCD display + tactile keys
- RFID tag entry — supports up to 32 tags
- Two-way 868 MHz Tri-X RF — AES-128 encrypted
- Battery: CR123A x 4, typical 3 year life
- Tamper-protected (front + rear) with anti-jamming RF
- Programmable function keys / panic combination
- Voice-prompted user feedback (multilingual)
- CE / UKCA / RED approved
Typical Applications
- Daily user arming / disarming at the main entry door
- Multi-user properties needing per-person codes or tags
- Stay-arm / leave-arm partition control for homes
- HMO key-tag handover for tenant change-overs
- Lone-worker panic via hold-button combinations
- Trade installs requiring same-day stock — Netview CCTV Leicester ships from UK stock
Compatible Hikvision Devices
- Hikvision AX PROHikvision AX PRO Wireless Alarm System: The 2026 UK Installer Guide Hubs — DS-PWA64-L-WE, DS-PWA96-M-WE, DS-PWA96-M2H-WE
- Hik-Connect app (iOS / Android) — remote arm / disarm / push events
- Hik-ProConnect installer cloud — remote programming and zone management
What's in the Box
- 1 × Hikvision AX PROHikvision AX PRO Wireless Alarm System: The 2026 UK Installer Guide DS-PK1-LT-WE
- 1 × mounting plate / wall-fixing kit (where applicable)
- 1 × battery (pre-fitted)
- 1 × quick start guide
📄 Download: Hikvision AX PRO DS-PK1-LT-WE Datasheet (PDF) — full technical specification, RF / battery / mechanical detail and approval certificates.
Detailed Specifications — Hikvision AX PRO DS-PK1-LT-WE
Full technical specification for the Hikvision AX PRO DS-PK1-LT-WE wireless arming keypad taken from the official Hikvision AX PRO datasheet.
| Identification | |
|---|---|
| SKU | DS-PK1-LT-WE |
| MPN | 302402027 |
| EAN / GTIN-13 | 6931847166786 |
| Brand | Hikvision |
| Product Range | AX PRO |
| Product Type | Wireless Alarm Keypad |
| Detection / Function | |
| RFID Tags Supported | 32 |
| RF & Wireless | |
| RF Frequency | 868 MHz Tri-X two-way |
| Transmission Method | Two-Way RF Wireless |
| Encryption | AES-128 |
| Free-air Range | 1.6 km |
| Frequency Hopping | Supported |
| Anti-Jamming Detection | Supported |
| Power | |
| Battery Type | CR123A x 4 |
| Typical Battery Life | 3 years |
| Low-Battery Reporting | Supported back to hub |
| Mechanical & Environment | |
| Tamper Protection | Front + Rear tamper switches |
| Operating Temperature | -10 °C to 55 °C |
| Operating Humidity | 10% to 90% non-condensing |
| Compatibility | |
| AX PRO Hubs | DS-PWA64-L-WE, DS-PWA96-M-WE, DS-PWA96-M2H-WE |
| End-User App | Hik-Connect (iOS / Android) |
| Installer Cloud | Hik-ProConnect |
| ARC Reporting | SIA-DC09 / Contact ID via the hub |
| Approvals | |
| Certifications | CE, UKCA, RED, RoHS |
| EN 50131 System Grade | Grade 2 compatible |
Frequently Asked Questions
What is the Hikvision AX PRO DS-PK1-LT-WE?
A wireless LCD arming keypad for an AX PRO alarm system.
What does the LCD show?
Live zone status and partition arming, so users can see the system state and arm areas independently.
How do users arm/disarm?
By PIN on the keypad or by presenting an RFID tag.
How does it communicate?
Over Hikvision's two-way 868MHz Tri-X RF with AES-128 encryption, anti-jamming and signal supervision.
Which system does it work with?
The Hikvision AX PRO wireless hub ecosystem.
Do you stock it?
Yes — in stock at Netview CCTV, Leicester, with same-day dispatch for installers.
Documentation — Hikvision AX PRO DS-PK1-LT-WE
Download the official Hikvision datasheet for the AX PRO DS-PK1-LT-WE, plus browse related alarm-system categories on netviewcctv.co.uk.
| Document | Format | Link |
|---|---|---|
| DS-PK1-LT-WE Product Datasheet | Download datasheet | |
