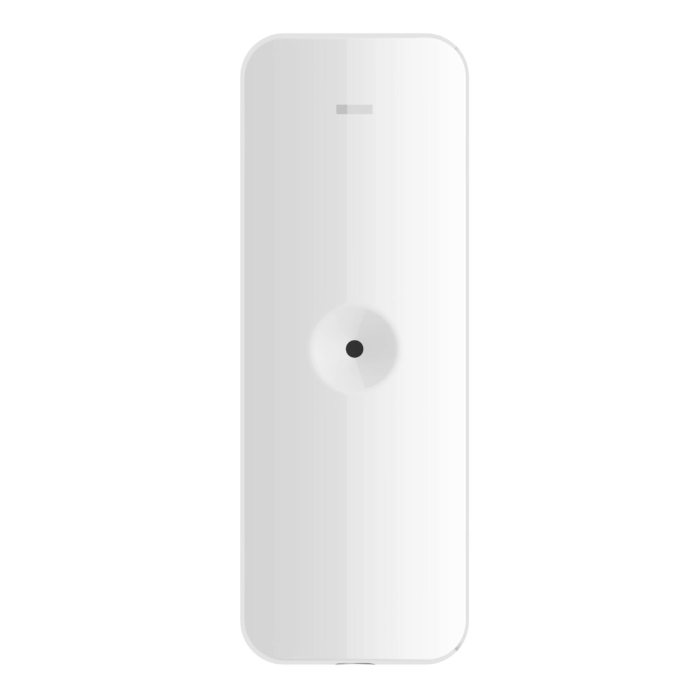

AX PRO DS-PDBG8-EG2-WE Wireless Break Glass Detector

Overview

The Hikvision AX PRO DS-PDBG8-EG2-WE is a wireless intrusion detector from the AX PRO professional wireless intruder-alarm range — two-way 868 MHz Tri-X RF with AES-128 encryption, full anti-jamming supervision and Hik-Connect mobile-app control. Acoustic break-glass detector — protects window perimeters up to 8 m from the sensor location.

Detection: Acoustic Glass-Break (low/high-frequency dual analysis), 8 m range.

RF: two-way 868 MHz Tri-X with AES-128 encryption, up to 1.6 km free-air range and frequency-hopping anti-jamming. Power: CR123A x 2 giving typically 5 years of service in normal operation, with low-battery warning back to the hub. Mounting: Wall / ceiling within 8 m of glass.

Construction: tamper-protected enclosure with front and rear tamper switches. CE / UKCA / RED / RoHS approved. Same-day dispatch from Netview CCTV Leicester — authorised Hikvision wholesale distributor — with trade pricing on stocked AX PRO product.

Key Features

• Acoustic Glass-Break (low/high-frequency dual analysis)
• 8 m detection range
• Battery: CR123A x 2, ~5 year life
• Mounting: Wall / ceiling within 8 m of glass
• IP rating: Indoor
• Tamper protection (front + rear)
• Anti-masking signal-jamming detection
• Two-way 868 MHz Tri-X RF — AES-128 encrypted, 1.6 km free-air range
• Digital temperature compensation
• CE / UKCA / RED approved

Typical Applications

• Shopfront windows
• Conservatories and glazed extensions
• Bay-window living rooms
• Showroom display windows
• Trade installs requiring same-day stock — Netview CCTV Leicester ships from UK stock

Compatible Hikvision Devices

• Hikvision AX PRO Hubs — DS-PWA64-L-WE, DS-PWA96-M-WE, DS-PWA96-M2H-WE
• Hik-Connect app (iOS / Android) — remote arm / disarm / push events
• Hik-ProConnect installer cloud — remote programming and zone management

What's in the Box

• 1 × Hikvision AX PRO DS-PDBG8-EG2-WE detector
• 1 × mounting plate + screws
• 1 × battery (pre-fitted)
• 1 × quick start guide
