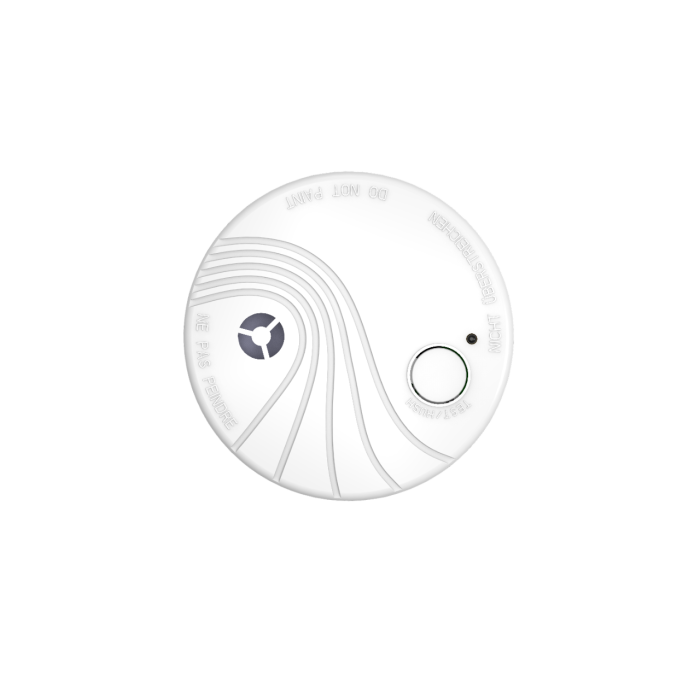

HIKVISION AX PRO DS-PDSMK-S-WE Wireless Photoelectric Smoke Detector
The Hikvision AX PROHikvision AX PRO Wireless Alarm System: The 2026 UK Installer Guide DS-PDSMK-S-WE is a wireless intrusion detector — S-series photoelectric smoke detector — slim wireless smoke point with 85 dB local sounder.
Part of the Hikvision AX PRO two-way wireless range — 868 MHz Tri-X RF with AES-128 encryption, anti-jamming and signal-supervision across the full hub ecosystem. EN 50131 Grade 2 system support, Hik-Connect mobile app, Hik-ProConnect installer cloud and SIA-DC09 / Contact-ID ARC reporting.
Key Features
- Photoelectric smoke chamber + 85 dB sounder
- Battery: CR123A x 2, ~5 year life
- Mounting: Ceiling
- IP rating: Indoor
- Tamper protection (front + rear)
- Anti-masking signal-jamming detection
- Two-way 868 MHz Tri-X RF — AES-128 encrypted, 1.6 km free-air range
- Digital temperature compensation
- CE / UKCA / RED approved
Hikvision AX PROHikvision AX PRO Wireless Alarm System: The 2026 UK Installer Guide DS-PDSMK-S-WE — Wireless Alarm Detector
S-series photoelectric smoke detector — slim wireless smoke point with 85 dB local sounder.
Overview
The Hikvision AX PROHikvision AX PRO Wireless Alarm System: The 2026 UK Installer Guide DS-PDSMK-S-WE is a wireless intrusion detector from the AX PRO professional wireless intruder-alarm range — two-way 868 MHz Tri-X RF with AES-128 encryption, full anti-jamming supervision and Hik-Connect mobile-app control. S-series photoelectric smoke detector — slim wireless smoke point with 85 dB local sounder.
Detection: Photoelectric smoke chamber + 85 dB sounder.
RF: two-way 868 MHz Tri-X with AES-128 encryption, up to 1.6 km free-air range and frequency-hopping anti-jamming. Power: CR123A x 2 giving typically 5 years of service in normal operation, with low-battery warning back to the hub. Mounting: Ceiling.
Construction: tamper-protected enclosure with front and rear tamper switches. CE / UKCA / RED / RoHS approved. Same-day dispatch from Netview CCTV Leicester — authorised Hikvision wholesale distributor — with trade pricing on stocked AX PRO product.
Key Features
- Photoelectric smoke chamber + 85 dB sounder
- Battery: CR123A x 2, ~5 year life
- Mounting: Ceiling
- IP rating: Indoor
- Tamper protection (front + rear)
- Anti-masking signal-jamming detection
- Two-way 868 MHz Tri-X RF — AES-128 encrypted, 1.6 km free-air range
- Digital temperature compensation
- CE / UKCA / RED approved
Typical Applications
- Life-safety on the alarm panel — combined intruder and fireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems reporting
- HMO and lettings compliance
- Hallways and landings
- Kitchens (away from steam)
- Trade installs requiring same-day stock — Netview CCTV Leicester ships from UK stock
Compatible Hikvision Devices
- Hikvision AX PROHikvision AX PRO Wireless Alarm System: The 2026 UK Installer Guide Hubs — DS-PWA64-L-WE, DS-PWA96-M-WE, DS-PWA96-M2H-WE
- Hik-Connect app (iOS / Android) — remote arm / disarm / push events
- Hik-ProConnect installer cloud — remote programming and zone management
What's in the Box
- 1 × Hikvision AX PROHikvision AX PRO Wireless Alarm System: The 2026 UK Installer Guide DS-PDSMK-S-WE detector
- 1 × mounting plate + screws
- 1 × battery (pre-fitted)
- 1 × quick start guide
📄 Download: Hikvision AX PRO DS-PDSMK-S-WE Datasheet (PDF) — full technical specification, RF / battery / mechanical detail and approval certificates.
Detailed Specifications — Hikvision AX PRO DS-PDSMK-S-WE
Full technical specification for the Hikvision AX PRO DS-PDSMK-S-WE wireless intrusion detector taken from the official Hikvision AX PRO datasheet.
| Identification | |
|---|---|
| SKU | DS-PDSMK-S-WE |
| MPN | 314300075 |
| EAN / GTIN-13 | 6941264068907 |
| Brand | Hikvision |
| Product Range | AX PRO |
| Product Type | Wireless Alarm Detector |
| Detection / Function | |
| Detection Method | Photoelectric smoke chamber + 85 dB sounder |
| RF & Wireless | |
| RF Frequency | 868 MHz Tri-X two-way |
| Transmission Method | Two-Way RF Wireless |
| Encryption | AES-128 |
| Free-air Range | 1.6 km |
| Frequency Hopping | Supported |
| Anti-Jamming Detection | Supported |
| Power | |
| Battery Type | CR123A x 2 |
| Typical Battery Life | 5 years |
| Low-Battery Reporting | Supported back to hub |
| Mechanical & Environment | |
| Mounting | Ceiling |
| Tamper Protection | Front + Rear tamper switches |
| IP Rating | Indoor |
| Operating Temperature | -10 °C to 55 °C |
| Operating Humidity | 10% to 90% non-condensing |
| Compatibility | |
| AX PRO Hubs | DS-PWA64-L-WE, DS-PWA96-M-WE, DS-PWA96-M2H-WE |
| End-User App | Hik-Connect (iOS / Android) |
| Installer Cloud | Hik-ProConnect |
| ARC Reporting | SIA-DC09 / Contact ID via the hub |
| Approvals | |
| Certifications | CE, UKCA, RED, RoHS |
| EN 50131 System Grade | Grade 2 compatible |
Frequently Asked Questions
What is the Hikvision AX PRO DS-PDSMK-S-WE?
A slim S-series wireless photoelectric smoke detector with an 85dB local sounder.
How does it differ from the E-series?
It's a slimmer smoke point for a more discreet finish, with the same photoelectric sensing and panel reporting.
Why connect it to the alarm panel?
Life-safety on the same system as intruder protection — events are logged, notified and (where monitored) escalated.
How does it communicate?
Over Hikvision's two-way 868MHz Tri-X RF with AES-128 encryption, anti-jamming and signal supervision.
Which system does it work with?
The Hikvision AX PRO wireless hub ecosystem.
Do you stock it?
Yes — in stock at Netview CCTV, Leicester, with same-day dispatch for installers.
Documentation — Hikvision AX PRO DS-PDSMK-S-WE
Download the official Hikvision datasheet for the AX PRO DS-PDSMK-S-WE, plus browse related alarm-system categories on netviewcctv.co.uk.
| Document | Format | Link |
|---|---|---|
| DS-PDSMK-S-WE Product Datasheet | Download datasheet | |
| Browse all Hikvision AX PRO Detectors | Web | View AX PRO Detectors |
| Browse all Hikvision AX PRO products | Web | View AX PRO range |
| Browse all Alarm Systems at Netview CCTV | Web | View alarm systems |
| Contact Netview CCTV (trade pricing & support) | Web | Contact our trade team |
Netview CCTV — authorised Hikvision wholesale distributor (Leicester, UK). For trade pricing on AX PRO product, contact our trade team on 0116 3800 838 or [email protected].
