HiLook NVR 4MP vs 8MP: Recording Limits and Budget Pairing for UK Installers
HiLook by Hikvision sells two recording families that UK installers spec every week: the HiLook NVR range for IP-camera installs and the HiLook DVR range for HD-TVI / AoC analogue installs. The question we get asked most often by the trade counter at Netview Leicester is simple — "if I'm putting in HiLook 4MP turrets, can I cane the NVR with eight cameras at full resolution, and what changes if I move up to 8MP?" This guide walks through the recording-side limits, the bandwidth maths, and the in-stock UK pairings we ship same day from Leicester.
At a glance
- HiLook IP cameras at 4MP typically run 4 Mbps per channel on H.265+; at 8MP / 4K they run 8–12 Mbps.
- An 8-channel HiLook NVR (NVR-108MH-C/8P class) carries 80 Mbps incoming — comfortably 8×4MP, but only ~6×8MP at full resolution and frame rate.
- A 4-channel HiLook NVR (NVR-104MH-C/4P class) carries 40 Mbps — 4×4MP fits cleanly; 4×8MP is borderline and needs sub-stream tuning.
- Netview ships HiLook IP cameras and HiLook DVRs from UK stock; for an in-stock NVR pairing we route to the Hikvision K-series AcuSense range (HiLook IP cameras pair plug-and-play because both run the Hikvision protocol stack).
- For analogue / AoC installs, the HiLook DVR-204U / 208U / 216U "U" series records 8MP HD-TVI; the "Q" series records 2MP / 3K Lite at lower cost.
- Phone us in Leicester on 01163 800 838 for a same-day budget pairing for any 4–32 channel HiLook job.

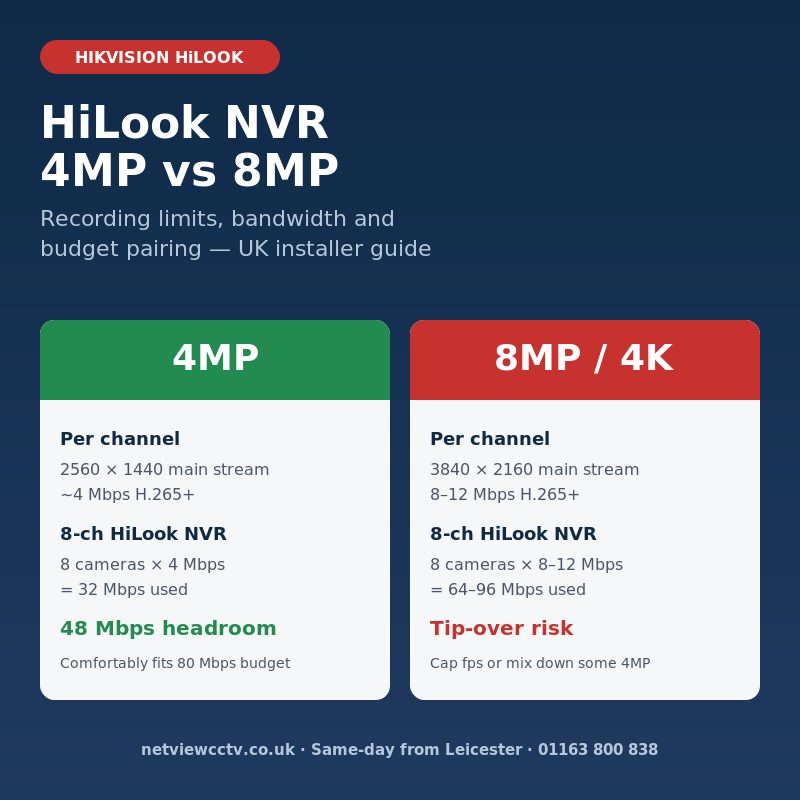

What "4MP vs 8MP" actually means for HiLook recording
4MP gives you 2560×1440 pixels per frame; 8MP / 4K doubles that to 3840×2160. Doubling the pixel count roughly doubles the data the camera has to push to the recorder, which is why an HiLook NVR specified for 8MP per channel usually halves its safe channel count compared with the same NVR running 4MP. Compression helps: Hikvision's HiLook range uses H.265+ on the main stream, which trims a typical 4K main-stream bitrate to around 8–12 Mbps depending on scene activity, vs. 4–6 Mbps for 4MP.
For an installer, this matters in three places: the NVR's total incoming bandwidth, the on-disk storage budget for the agreed retention window, and the network uplink from the camera switch back to the recorder. The first two are the ones we hear about the most and are what this guide focuses on.
The HiLook NVR range in 2026 — what's available globally
The HiLook NVR family Hikvision currently lists is built around three channel counts and one core platform:
- NVR-104MH-C and NVR-104MH-C/4P — 4 channels, 40 Mbps incoming, 4 PoE ports on the /4P, 1 SATA bay (up to 10TB), records up to 8MP per channel.
- NVR-108MH-C and NVR-108MH-C/8P(E) — 8 channels, 80 Mbps incoming, 8 PoE ports on the /8P(E), 1 SATA bay, records up to 8MP per channel.
- NVR-216MH-C and NVR-216MH-C/16P — 16 channels, 160 Mbps incoming, 16 PoE ports on the /16P, 2 SATA bays.
All three run H.265+ / H.265 / H.264+ / H.264, output 4K via HDMI, support Hik-Connect P2P and pair with the iVMS-4200 / Hik-Connect ecosystem. Hikvision's HiLook NVR-104MH-C product page confirms the 40 Mbps total incoming bandwidth and the 4-channel input.
UK stock note (2026-05-05): Netview Leicester does not currently warehouse the HiLook-branded NVR range. We hold deep stock of HiLook IP cameras and HiLook DVRs, and for the NVR side we pair HiLook IP cameras with the Hikvision K-series AcuSense range — same protocol, same Hik-Connect / iVMS-4200 onboarding, same overnight-from-Leicester logistics. We cover that pairing later in this guide. If you specifically need a HiLook-badged NVR call us on 01163 800 838 for a special-order quote.
4MP HiLook IP cameras — bitrate, bandwidth and channel headroom
The HiLook IP turret most installers know is the HiLook IPC-T249HA-LU 4MP Smart Hybrid Light ColorVu turret — 2560×1440 main stream, 30 fps, H.265+ compression, built-in mic and white-light Smart Hybrid mode. On a typical car-park or shopfront scene with moderate motion, the main stream settles at around 4 Mbps, with the sub-stream adding ~512 kbps for live monitoring. Hikvision's IPC-T249HA-LU product page documents the resolution and Smart Hybrid Light specs.
That means a 4-channel HiLook NVR (40 Mbps incoming, NVR-104MH-C/4P class) can comfortably handle 4×4MP cameras at full main-stream rate (4 cameras × 4 Mbps = 16 Mbps used, 24 Mbps headroom). An 8-channel NVR-108MH-C/8P at 80 Mbps will handle 8×4MP at full main stream (32 Mbps used, 48 Mbps headroom — plenty of room for the second sub-stream and burst encoding when the scene gets busy).
8MP HiLook IP cameras — bitrate, bandwidth and channel headroom
Step up to the HiLook IPC-T280HA-LUF/SL 8MP / 4K Smart Hybrid Liveguard turret and the picture changes. 3840×2160 main stream pushes around 8 Mbps on a quiet scene, climbing to 10–12 Mbps in busier scenes once H.265+ scene-adaptive encoding hands back bitrate to preserve detail in motion. The 4mm 90° variant behaves the same way; the 8MP panoramic IPC-T280HAD-LUF/SL sits at the same headline bitrate but has a wider scene area to encode, so installers should plan for the higher 12 Mbps end of the range.
That changes the channel maths. A 4-channel 40 Mbps HiLook NVR running 4×8MP main streams sits at 32–48 Mbps — right on the bandwidth ceiling and over it during busy scenes. An 8-channel 80 Mbps NVR running 8×8MP sits at 64–96 Mbps and will tip over its incoming budget in active scenes. Two practical choices: drop two cameras to 4MP main stream, or knock the 4K cameras down to 15 fps and a fixed 8 Mbps cap (still gives forensic-quality stills, frees ~30% of the bandwidth budget).

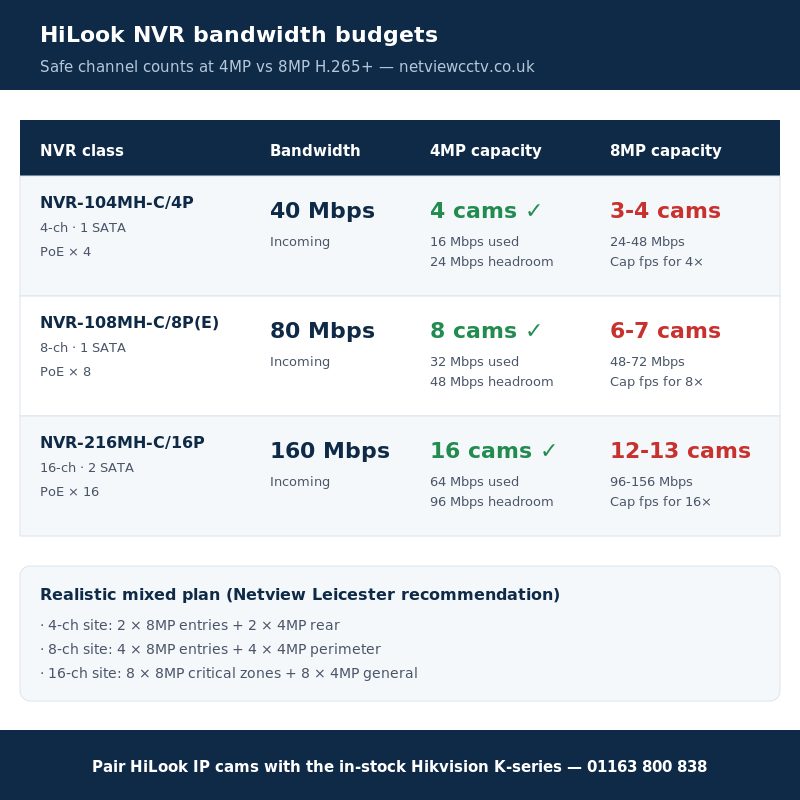

Side-by-side: HiLook NVR recording limits, 4MP vs 8MP
| HiLook NVR class | Incoming bandwidth | 4MP main-stream channels (~4 Mbps each) | 8MP main-stream channels (~8–12 Mbps each) | Realistic mixed plan |
|---|---|---|---|---|
| NVR-104MH-C/4P (4-ch, 1 SATA) | 40 Mbps | 4 cameras — 16 Mbps used, plenty of headroom | 3 cameras — 24–36 Mbps; 4×8MP only with 15 fps cap | 2×8MP front + 2×4MP rear |
| NVR-108MH-C/8P(E) (8-ch, 1 SATA) | 80 Mbps | 8 cameras — 32 Mbps used, 48 Mbps headroom | 6 cameras — 48–72 Mbps; 8×8MP needs frame-rate cap | 4×8MP entries + 4×4MP perimeter |
| NVR-216MH-C/16P (16-ch, 2 SATA) | 160 Mbps | 16 cameras — 64 Mbps used | 12–13 cameras — 96–156 Mbps; 16×8MP only with frame-rate cap | 8×8MP critical zones + 8×4MP general coverage |
The "realistic mixed plan" column is what we actually quote installers in Leicester: a couple of 4K turrets on the customer-facing entries, the rest on 4MP. It hits the bandwidth budget cleanly, keeps storage sensible, and matches how human-facing forensic capture actually works on a real site.
Storage planning — 30-day retention for 4MP vs 8MP
Storage budget is the second hard ceiling installers run into. Working from H.265+ at 4 Mbps for 4MP and 10 Mbps for 8MP, 24/7 continuous recording over 30 days lands at:
| Camera mix | Total bitrate | 30-day storage | Recommended HDD |
|---|---|---|---|
| 4 × 4MP HiLook (NVR-104) | 16 Mbps | ~5.2 TB | 1 × 6 TB Purple / SkyHawk |
| 4 × 8MP HiLook (NVR-104, 15 fps) | ~32 Mbps | ~10.4 TB | 2 × 6 TB — needs the 2-bay K-series Hikvision NVR |
| 8 × 4MP HiLook (NVR-108) | 32 Mbps | ~10.4 TB | 1 × 12 TB Purple Pro |
| 8 × 8MP HiLook (NVR-108, 15 fps) | ~64 Mbps | ~20.8 TB | 2 × 12 TB — needs a 2-bay 16-channel recorder |
| 16 × 4MP HiLook (NVR-216) | 64 Mbps | ~20.8 TB | 2 × 12 TB Purple Pro |
Real installs almost never run 24/7 at full main-stream bitrate — motion-triggered recording with 5-second pre-record buffer typically halves the storage. We use a 50% duty-cycle assumption for ballpark quotes and revise once we see the customer's first week of activity. SCW's CCTV storage calculator is a quick sanity check if you want to model a specific deployment before you order discs.

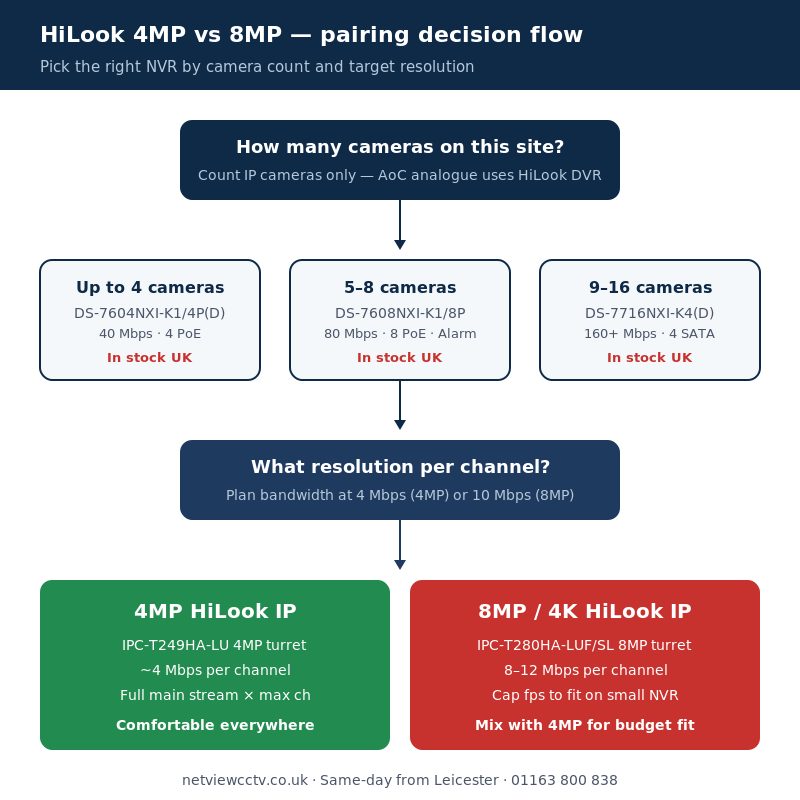

Budget pairing — the in-stock UK alternative
HiLook IP cameras run on the Hikvision protocol stack, which means any K-series Hikvision AcuSense NVR will plug-and-play onboard them via the dedicated PoE ports. Netview keeps the K-series in deep UK stock for same-day dispatch. The bandwidth budgets line up almost identically with the equivalent HiLook recorders, with the bonus of AcuSense false-alarm filtering on the NVR side:
| HiLook job size | In-stock NVR pairing | Why this combination |
|---|---|---|

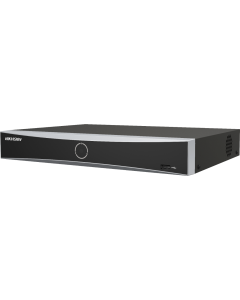

| 4 × HiLook 4MP / 8MP IP turrets | DS-7604NXI-K1/4P(D) | 4-ch PoE, 40 Mbps in / 80 Mbps out, AcuSense, 12MP capable |
| 8 × HiLook 4MP / 8MP IP turrets | DS-7608NXI-K1/8P(D)/Alarm4+1 | 8-ch PoE, 80 Mbps in, AcuSense, on-board alarm I/O for intruder cross-trigger |
| 8–16 × mixed HiLook + 4K mainstream needs | DS-7608NXI-I2/8P/VPRO | VPRO platform, 32MP per-channel decode ceiling, AcuSeek text-search |
| 16-channel HiLook IP installs | DS-7716NXI-K4(D) + external PoE switch | 16-ch K-series AcuSense, 4 SATA bays for high-retention sites |
| 16-channel with PoE built-in + AcuSeek | DS-7616NXI-I2/16P/VPRO or DS-7716NXI-I4/16P/VPRO | 16 PoE ports, AcuSeek text-search, 32MP per-channel decode |
| 32-channel HiLook IP install | DS-7732NXI-K4(D) or DS-7732NXI-I4/16P/VPRO | 32-ch K-series or VPRO; the I4 gives 16 PoE ports + AcuSeek |
Onboarding is identical to a HiLook-badged NVR — plug the camera into the dedicated PoE port and the NVR auto-detects and provisions it. Sub-stream config, motion zone setup, schedule and Hik-Connect P2P all work the same way. See our Hikvision AcuSense NVR sizing guide for a deeper sizing decision tree.
HiLook DVR alternatives — Turbo HD / AoC analogue installs
If the install is on legacy coax cable or the customer wants to keep their existing TVI cameras, HiLook's "Q" and "U" series DVRs cover the analogue side. Netview holds these in stock:
- HiLook DVR-204Q-M1(E) — 4-ch 2MP / 3K Lite DVR for budget 1080p analogue installs
- HiLook DVR-208Q-M1(E) — 8-ch 2MP / 3K Lite DVR
- HiLook DVR-216Q-M1/T — 16-ch 2MP / 3K Lite DVR
- HiLook DVR-204U-M1(E) — 4-ch 3K / 8MP Lite DVR for 4K analogue inputs
- HiLook DVR-208U-M1(C) — 8-ch 3K / 8MP Lite DVR
- HiLook DVR-216U-M2(C) — 16-ch 3K / 8MP Lite DVR with 2 SATA bays
The "Q" series is the budget pair for 2MP turrets like the HiLook ColorVu THC-T129-MS; the "U" series is what you want when you're recording at 5MP or 8MP TVI from cameras like the HiLook THC-T250-MS 5MP turret or the 3K ColorVu THC-T259-MS and THC-T159-MS. Note that "Lite" in the HiLook DVR series means full-resolution recording on a subset of channels — see the relevant HiLook datasheet for the per-channel split.
Pairing HiLook IP cameras with the right sub-stream
Out of the box, HiLook IP cameras stream a 1080p sub-stream alongside the main 4MP / 8MP stream. The sub-stream is what you want for live monitoring on a phone over Hik-Connect, and what the NVR uses for the multi-camera grid view. Three changes worth making during commissioning:
- Drop the sub-stream to 720p H.265 — halves the live-view bandwidth back to the NVR for free, no quality penalty on a 6-up grid.
- Set the main stream to VBR with a max ceiling rather than CBR — lets H.265+ throttle quiet scenes and protects you from bandwidth spikes.
- Match the main-stream I-frame interval to 2× frame rate — the H.265+ default. Don't drop it lower; you'll lose the bandwidth saving.
For a deeper walk-through of the iVMS-4200 settings, the Netview iVMS-4200 hub and the new iVMS-4200 V3.14 update guide cover client-side configuration in detail.
HiLook IP camera roster Netview ships from Leicester
| Resolution | Model | Lens / FOV | Typical main bitrate |
|---|---|---|---|
| 2MP IP | IPC-T229HA-LU(2.8mm) | 2.8 mm / 106° | ~2 Mbps |
| 4MP IP | IPC-T249HA-LU(2.8mm) | 2.8 mm / 96° | ~4 Mbps |
| 8MP / 4K IP | IPC-T280HA-LUF/SL(2.8mm) | 2.8 mm / 113° | 8–12 Mbps |
| 8MP / 4K IP (4mm) | IPC-T280HA-LUF/SL(4mm) | 4 mm / 90° | 8–12 Mbps |
| 8MP panoramic IP | IPC-T280HAD-LUF/SL(2mm) | 2 mm / 180° | 10–12 Mbps |
The 8MP Smart Hybrid Liveguard cameras add a built-in speaker and strobe for active deterrence, and run a Motion Detection 2.0 pipeline that drops the false alarms triggered by trees, headlights and reflective windows. They're our recommended pick on customer-facing entries even when most other cameras on the site are 4MP.
Common installer pitfalls when sizing a HiLook recorder
- Treating the NVR PoE budget as the same as the bandwidth budget. They're different ceilings. An 8-ch /8P NVR has 80 W of PoE budget across the 8 ports (split between cameras pulling 6–12 W each) and a separate 80 Mbps recording bandwidth budget. Either can be the bottleneck.
- Forgetting that AoC turrets do not run on an IP NVR. The HiLook THC-T-series cameras are HD-TVI / AoC analogue and need a HiLook Q-series or U-series DVR — they will not connect to a HiLook NVR or a Hikvision AcuSense NVR.
- Quoting a 1-bay NVR for an 8MP / 30-day install. Even four 8MP cameras at 24/7 push past a single 8 TB drive at 30 days. Move to a 2-bay K-series Hikvision NVR or trim retention to 14 days.
- Assuming the sub-stream is free. Sub-streams contribute to the recording bandwidth budget too — trim them at commissioning, not in three months when the customer asks why their NVR is dropping recording chunks.
- Skipping firmware on the NVR before camera onboarding. Always update the recorder first — see the Hikvision firmware hub for the current K-series and HiLook builds.
FAQ — HiLook NVR 4MP vs 8MP recording
Can a HiLook NVR-108 record eight 8MP / 4K cameras at once?
It can connect them, but you will need to drop the main stream to 15 fps (or apply a fixed 8 Mbps cap) to stay inside the 80 Mbps incoming bandwidth ceiling. At 30 fps and uncapped H.265+ VBR, eight 4K cameras typically push 80–96 Mbps in active scenes — over the recorder's budget.
Are HiLook IP cameras compatible with Hikvision NVRs?
Yes. HiLook IP cameras run the same Hikvision protocol stack and are auto-detected by Hikvision K-series and VPRO NVRs via the dedicated PoE ports. Netview pairs HiLook 4MP / 8MP turrets with the in-stock DS-7604NXI-K1/4P(D) for 4-channel jobs and the DS-7608NXI-K1/8P(D)/Alarm4+1 for 8-channel jobs.
Will a HiLook NVR record HD-TVI analogue cameras?
No. HiLook NVRs (NVR-104MH-C, NVR-108MH-C, NVR-216MH-C) are IP-only. For HD-TVI / AoC analogue inputs use the HiLook Q-series for 2MP / 3K cameras or the U-series for 5MP / 8MP cameras — both stocked at Netview Leicester.
What's the storage difference between 4MP and 8MP HiLook cameras over 30 days?
Roughly 2.5×. A single 4MP camera at H.265+ continuous 24/7 over 30 days uses ~1.3 TB; the equivalent 8MP camera uses ~3.2 TB. Motion-triggered recording typically halves both numbers in real installs.
Do I need an external PoE switch with a HiLook NVR-108MH-C/8P?
Not for an 8-camera install — the NVR's eight built-in PoE ports cover it. For larger installs with the NVR-216MH-C/16P or one of the Hikvision 16-channel non-PoE NVRs, pair with a Reyee or Hikvision PoE switch sized to the camera count and aggregate wattage.
Does the HiLook IPC-T280HA-LUF/SL really need 12 Mbps?
Only in active scenes — H.265+ scene-adaptive encoding drops to ~6 Mbps on a quiet warehouse aisle and climbs to 10–12 Mbps when motion fills the frame. Plan capacity around the 10 Mbps mark for safety, not the quiet-scene minimum.
Same-day dispatch from Leicester
Netview holds deep stock of the HiLook IP camera and HiLook DVR ranges plus the Hikvision K-series and VPRO AcuSense NVRs that pair with them. UK installers calling before 3pm on a working day get same-day dispatch on stocked lines. Phone our trade counter on 01163 800 838 for spec checking, channel-count sizing or a same-day budget pairing, or order online at netviewcctv.co.uk.
Last updated: 5 May 2026. Bitrate figures based on H.265+ scene-adaptive encoding on the Hikvision protocol stack and verified against Hikvision Global product datasheets for the cameras and recorders listed.
