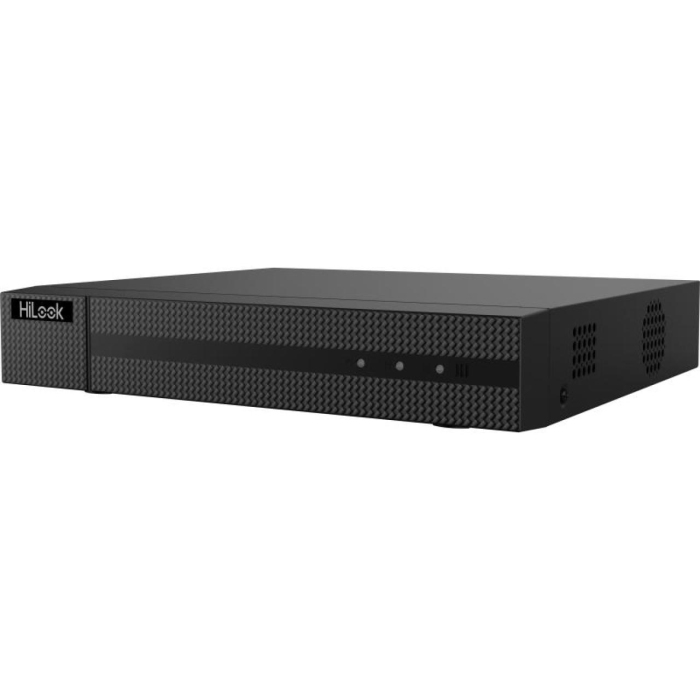

HiLook DVR-204U-M1/T 4 Channel AcuSense 4K/8MP DVR
As low as £110.64 £92.20
In stock
The HiLook DVR-204U-M1/T is a 4-channel 1U Turbo HD hybrid DVR recording up to 4K/8MP per channel, with AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide Motion Detection 2.0 human/vehicle classification, up to 8 IP channels, H.265 Pro+ and a single SATA bay up to 10 TB. Supplied with an optional pre-fitted surveillance hard drive (choose the size in the options above).
Key Features
- 4-channel 5-in-1 hybrid DVR — HD-TVI / AHD / HDCVI / CVBS analogue plus IP cameras
- AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide Motion Detection 2.0 — deep-learning human & vehicle classification on all analogue channels, far fewer false alarms from leaves, rain and lights
- Records up to 4K/8MP per channel — 8MP @ 8 fps, 3K / 5MP @ 12 fps, 4MP @ 15 fps
- Up to 8 IP cameras, each up to 8MP, by switching analogue inputs to IP
- H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 compression for long recording time on one drive
- Audio over coax and two-way audio on all HD-TVI channels
- 1 × SATA HDD bay, up to 10 TB
- 1080p HDMI + VGA outputs, simultaneous
- 10/100 Ethernet; remote viewing on the free HiLookVision app · ONVIF
- Compact 1U case 263 × 225 × 48 mm, 12 VDC, 1.5 A, ≤ 15 W (without HDD)
HiLook DVR-204U-M1/T — 4-ch 5MP 1U H.265 AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide DVR
4 channels and 1 HDD 1U DVR. Efficient H.265 pro+ compression technology. Encoding ability up to 4K/8MP @ 8fps(1-ch); 3K/5MP @12fps. Up to 8 channels IP camera inputs, each channel up to 8MP. 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP). Support All channels Motion Detection Technology. Support All channels HDTVI Two-Way Audio Technology
Overview
The HiLook DVR-204U-M1/T is a 4-channel Turbo HD DVR from HiLook by Hikvision. Every BNC input auto-detects HD-TVI, AHD, HDCVI and CVBS cameras, and the recorder also takes up to 8 IP cameras, so it suits new installs and upgrades of existing coax systems alike. Recording runs up to 4K/8MP per channel with H.265 Pro+ compression, and the single SATA bay takes a drive of up to 10 TB.
AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide Motion Detection 2.0 is on by default for all analogue channels: deep-learning analysis separates people and vehicles from leaves, rain and lighting changes, and playback can be searched by object type. Audio over coax and two-way audio work on all HD-TVI channels. Output is 1080p HDMI plus VGA, and remote viewing runs through the free HiLookVision app.
Supplied with an optional pre-fitted surveillance hard drive (choose the size in the options above). Genuine HiLook product, bought direct from Hikvision UK, with trade pricing and fast dispatch from Netview CCTV in Leicester.
Key Features
- 4-channel 5-in-1 hybrid DVR — HD-TVI / AHD / HDCVI / CVBS analogue plus IP cameras
- AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide Motion Detection 2.0 — deep-learning human & vehicle classification on all analogue channels, far fewer false alarms from leaves, rain and lights
- Records up to 4K/8MP per channel — 8MP @ 8 fps, 3K / 5MP @ 12 fps, 4MP @ 15 fps
- Up to 8 IP cameras, each up to 8MP, by switching analogue inputs to IP
- H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 compression for long recording time on one drive
- Audio over coax and two-way audio on all HD-TVI channels
- 1 × SATA HDD bay, up to 10 TB
- 1080p HDMI + VGA outputs, simultaneous
- 10/100 Ethernet; remote viewing on the free HiLookVision app · ONVIF
- Compact 1U case 263 × 225 × 48 mm, 12 VDC, 1.5 A, ≤ 15 W (without HDD)
Typical Applications
- Homes, shops and small offices with up to 4 analogue cameras
- Upgrading an existing coax CCTV system without re-cabling
- Mixed sites combining analogue and IP cameras on one recorder
- Trade installs needing UK stock — Netview CCTV Leicester
What's in the Box
- 1 × HiLook DVR-204U-M1/T DVR
- 1 × 12 VDC power adapter
- 1 × USB mouse
- HDD screws and SATA cables
- Quick start guide
Detailed Specifications — HiLook DVR-204U-M1/T
Full specification from the official HiLook product page.
| Identification | |
|---|---|
| Model | DVR-204U-M1/T |
| MPN (SAP code) | 300229691 |
| EAN | 6936422137410 |
| Brand | HiLook by Hikvision |
| Motion Detection 2.0 | |
| Human/Vehicle Analysis | Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights. Quick search by object or event type is supported. |
| Video and Audio | |
| IP Video Input | 2-ch (up to 6-ch) Enhanced IP mode on: 4-ch (up to 8-ch), each up to 4 Mbps Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras |
| Analog Video Input | 4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDTVI Input | 8 MP(3840 × 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps,3K(3328x1504)@20 fps,2K(2304x1296)@20 fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30 fps |
| AHD Input | 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
| HDCVI Input | 8 MP(3840 × 2160)@12/15 fps, 3K(2880×1620)@20/25 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30 fps |
| CVBS Input | PAL/NTSC |
| HDMI Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| Video Output Mode | HDMI/VGA simultaneous output |
| Audio Input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) 4-ch via coaxial cable |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
| Synchronous Playback | 4-ch |
| Recording | |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
| Frame Rate | Main stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
| Video Bitrate | 32 Kbps to 10 Mbps |
| Dual-stream | Support |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Network | |
| Total Bandwidth | 96 Mbps |
| Remote Connection | 32 |
| Network Protocol | TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP |
| Network Interface | 1, RJ45 10M/100M self-adaptive Ethernet interface |
| Wi-Fi | Connectable to Wi-Fi network by Wi-Fi dongle through USB interface |
| Auxiliary Interface | |
| SATA | 1 SATA interface |
| Capacity | Up to 10 TB capacity for each disk |
| Alarm In/Out | N/A |
| USB Interface | 2 × USB 2.0 |
| General | |
| Power Supply | 12 VDC, 1.5 A |
| Consumption | ≤ 15 W (without HDD) |
| Working Temperature | -10 °C to +55 °C (+14 °F to +131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 263 × 225 × 48 mm (10.3 × 8.8 × 1.9 inch) |
| Weight | ≤ 1.16 kg (without HDD, 2.6 lb.) — shipping weight may differ |
Frequently Asked Questions
How many cameras does the HiLook DVR-204U-M1/T support?
4 analogue (coax) cameras, plus up to 8 IP cameras.
What cameras can I connect?
HD-TVI, AHD, HDCVI and CVBS analogue cameras on every BNC input, plus IP cameras up to 8MP.
What resolution does it record?
Up to 4K/8MP per channel.
Does it detect people and vehicles?
Yes — AcuSense Motion Detection 2.0 classifies humans and vehicles on all analogue channels to cut false alarms.
How much storage does it take?
One SATA hard drive up to 10 TB. You can order it with a surveillance drive pre-fitted.
How do I view it remotely?
With the free HiLookVision app on iOS / Android.
