HiLook Turbo HD CCTV: DVR & Analogue Camera System Guide 2026
If you fit CCTV for UK homes, shops and small commercial sites, the HiLook Turbo HD range is the fastest, lowest-cost way to put 4K-class detail down a single coax run without re-cabling for IP. This guide is written for installers: it decodes the HiLook DVR line-up, explains AoC (Audio over Coax) and AcuSense Motion Detection 2.0, maps the Turbo HD camera families, and tells you exactly which recorder and camera to pull off the shelf. Everything below is in stock at Netview in Leicester for same-day dispatch.
At a glance
- HiLook Turbo HD is Hikvision's value analogue platform — HD-TVI cameras and 5-in-1 DVRs that send video (and audio) over standard coax.
- DVRs split into two tiers: U-series (8MP Lite / 4K) and Q-series (3K Lite / 2MP). All are 5-in-1 (TVI, AHD, CVI, CVBS and IP).
- AoC carries camera audio down the coax — no separate audio cable — on supported TVI cameras with a built-in mic.
- AcuSense Motion Detection 2.0 classifies humans and vehicles to cut false alarms, now built into the U and Q DVRs.
- ColorVu Turbo HD cameras give 24/7 colour with F1.0 optics and up to 40 m white light.
- Need help speccing a job? Call the Netview trade desk on 01163 800 838.
What is HiLook Turbo HD?
HiLook Turbo HD is Hikvision's budget analogue CCTV platform, built around HD-TVI cameras and 5-in-1 digital video recorders (DVRs) that send high-definition video over existing coaxial cable. It is the brand to reach for when a site already has coax, when the budget is tight, or when you need a quick analogue upgrade without running new Cat6 and standing up a PoE network. The cameras carry the THC- prefix and the recorders carry the DVR- prefix, all manufactured by Hikvision under the HiLook sub-brand.
The headline advantage is simplicity: power the camera locally with 12 V DC, run one coax back to the DVR for video, and you are recording. There is no IP addressing, no switch, and no PoE budget to calculate. For domestic and small-commercial work that is often all the customer needs.
Turbo HD vs IP: when should you choose analogue?
Choose HiLook Turbo HD when coax is already in the walls, the camera count is modest, and resolution beyond 8 MP is not required; choose IP when you need higher resolution, longer cable runs over a structured network, or advanced on-camera analytics. Analogue keeps the install fast and the bill low, which is why it still dominates retrofit and residential work in the UK.
Because every HiLook DVR is 5-in-1 — accepting TVI, AHD, CVI, CVBS (standard analogue) and IP cameras on one box — you are never locked in. You can start a site fully analogue and later add IP cameras to spare channels, making the recorder a genuine hybrid. If the job is leaning IP from the start, compare tiers in our HiLook vs Hikvision Pro guide and size the recorder with our HiLook NVR 4MP vs 8MP guide.

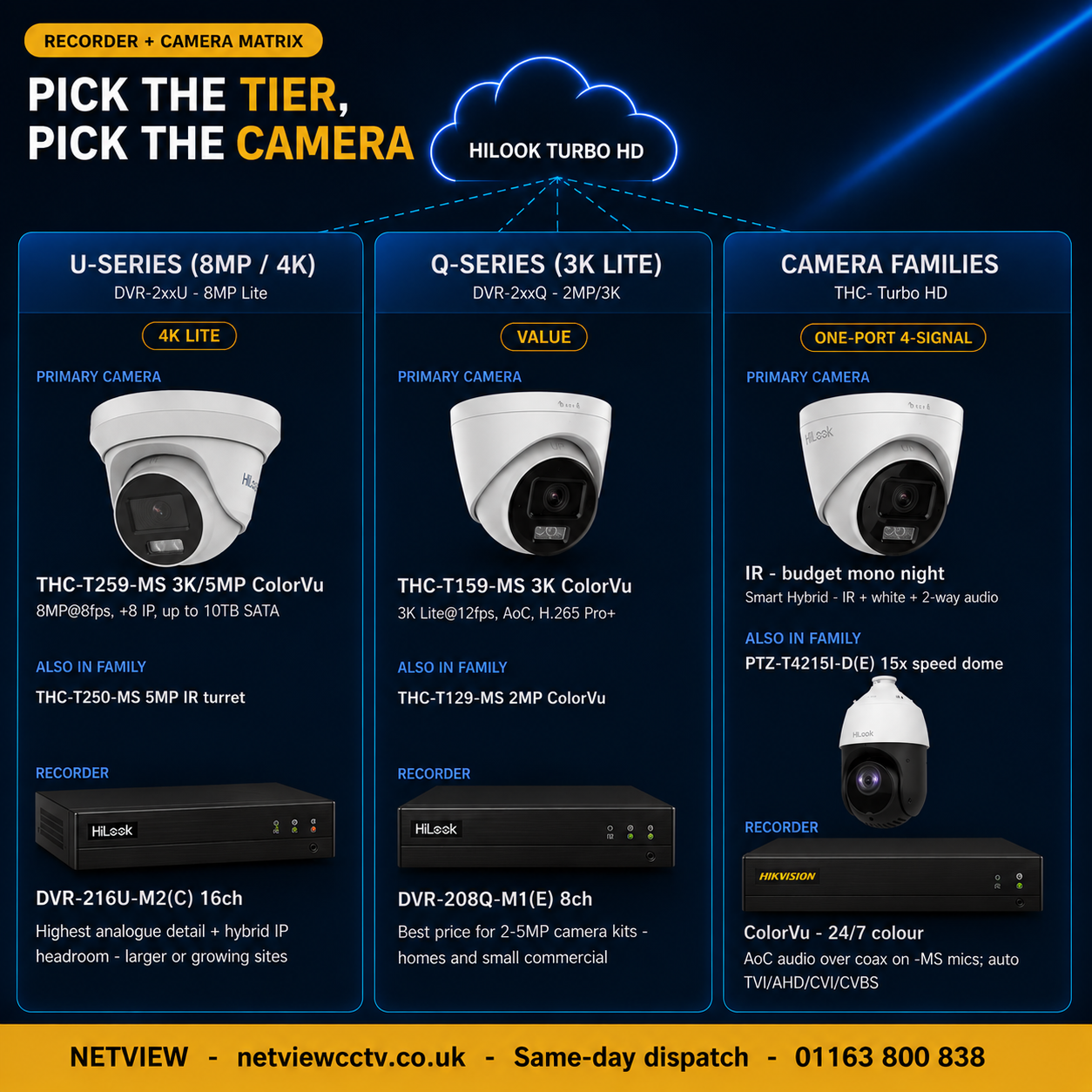

HiLook DVR range: U-series vs Q-series
The HiLook DVR range divides into the higher-resolution U-series (8MP Lite, marketed as 4K) and the value Q-series (3K Lite, up to 2MP live), each available in 4, 8 and 16 channels. The U-series records the highest analogue resolution Hikvision offers over coax; the Q-series is the sweet spot for 2–5 MP cameras at a lower price.
| Channels | U-series (8MP Lite / 4K) | Q-series (3K Lite / 2MP) |
|---|---|---|
| 4-channel | DVR-204U-M1(E) | DVR-204Q-M1(E) |
| 8-channel | DVR-208U-M1(C) | DVR-208Q-M1(E) |
| 16-channel | DVR-216U-M2(C) | DVR-216Q-M1/T |
The U-series records up to 8 MP @ 8 fps, 5 MP @ 12 fps, 4 MP @ 15 fps, 3 MP @ 18 fps and 2 MP @ 25 fps, and accepts up to 8 additional IP cameras for up to 16 channels total, with a single SATA bay supporting up to 10 TB (Hikvision DVR-208U-M1 spec). The Q-series tops out at 3K Lite @ 12 fps with 4 MP/1080p @ 15 fps and is the right pick for 2–5 MP camera kits (Hikvision DVR-204Q-M1 spec). Both tiers use H.265 Pro+ compression for roughly 50% storage savings over H.264.
What is AoC (Audio over Coax)?
AoC, or Audio over Coax, lets a HiLook DVR record a camera's audio down the same coaxial cable that carries the video, with no separate audio run. It works with TVI cameras that have a built-in microphone — look for -MS or audio in the model description — and is enabled per channel in the DVR menu. Both the U-series and Q-series DVRs support AoC on TVI inputs, so a camera such as the THC-T259-MS can deliver synchronised colour video and audio over one cable.
Before recording audio, remember the UK legal position: under UK GDPR and the ICO CCTV guidance, audio recording in public-facing areas is harder to justify than video and should be off by default unless there is a clear, signed purpose. AoC makes audio trivial to enable, so make it a conscious decision per channel, not an accident.
AcuSense on Turbo HD: Motion Detection 2.0
AcuSense brings deep-learning human and vehicle classification to the analogue world through the DVR, so motion alerts fire only for people and vehicles instead of every shadow, branch or cat. On HiLook this is branded Motion Detection 2.0 and it runs on the recorder, filtering events from any connected TVI camera. Hikvision quotes false-alarm reductions of over 80% versus conventional motion detection (Hikvision AcuSense overview).
The practical win for installers is fewer nuisance push notifications to the customer's phone and faster review — you can search recorded footage by "human" or "vehicle" target type. Because the analytics live in the DVR, you get AcuSense behaviour from standard Turbo HD cameras without paying for AI on every camera. For the IP equivalent, see our HiLook ColorVu & Smart Hybrid Light guide.
HiLook Turbo HD camera range explained
HiLook Turbo HD cameras split into three night-vision families: traditional IR, ColorVu (24/7 colour with white light), and Smart Hybrid (IR plus white light with switchable modes). All are one-port, four-signal cameras that auto-detect TVI, AHD, CVI or CVBS to match almost any existing DVR.
| Camera | Resolution | Night vision | Best for |
|---|---|---|---|
| THC-T120-MS | 2 MP | IR | Budget mono night view |
| THC-T129-MS | 2 MP | ColorVu | Entry 24/7 colour |
| THC-T229-MS | 2 MP | ColorVu | Colour with audio |
| THC-T159-MS | 3K (5 MP) | ColorVu | High-detail colour |
| THC-T259-MS | 3K (5 MP) | ColorVu + AoC | Colour + audio, top tier |
| THC-T250-MS | 5 MP | IR | 5 MP on a budget |
| THC-T227-LTS | 2 MP | Smart Hybrid + 2-way audio | Active deterrence |
The ColorVu flagship, the THC-T259-MS, uses a 3K (2960 × 1665) sensor with an F1.0 aperture, delivers up to 40 m of white light, and reaches 0.001 lux in colour (0 lux with the white light on), in an IP66 12 V DC turret (Hikvision THC-T259-MS spec). If you are weighing turret versus bullet bodies for a perimeter, our HiLook bullet vs turret guide covers the trade-offs.
Resolution tiers: 2MP, 3K and 8MP explained
HiLook quotes resolution in megapixels and the "3K" and "8MP Lite" labels confuse buyers, so here is the plain version: 2 MP is 1080p, 3K is 5 MP (2960 × 1665), and 8 MP is 4K (3840 × 2160). The word "Lite" on a DVR means the highest resolution is recorded at a reduced frame rate — 8 MP Lite, for example, records 4K at 8 fps, which is fine for evidential review but not for fast-motion scenes.
Match the recorder tier to the cameras: pair 2–5 MP cameras with a Q-series DVR, and reserve the U-series for sites that genuinely want 8 MP or want headroom to mix in IP cameras later. There is no benefit to a U-series DVR if every camera is 2 MP.
Cabling, power and PSU selection
Run RG59 coax for video and power each HiLook Turbo HD camera locally with a regulated 12 V DC supply, sized for the total camera load plus headroom. For multi-camera jobs a boxed PSU with individually fused outputs is cleaner than separate plug-tops, and keeps voltage stable on longer runs. As a rule of thumb, RG59 carries HD-TVI reliably to around 300 m for video, but voltage drop on the power conductor is usually the limiting factor on longer runs, so step up cable gauge or use a local supply.
Stick to genuine coax rather than shotgun cable with thin power cores for any run beyond a few tens of metres, and always test the full run before you trim and terminate. If you are adding IP cameras to spare DVR channels, you will need a separate PoE switch — there is no PoE on a DVR.
Sizing channels and storage
Pick the channel count one tier above the current camera count so the customer has room to grow, then size the hard drive around resolution, frame rate and retention. A typical 8-channel site of 5 MP ColorVu cameras at 12 fps with H.265 Pro+ will comfortably hold 30 days on a 4 TB surveillance drive, while 4K U-series channels need more. The U-series single SATA bay supports up to 10 TB, giving plenty of retention headroom.
Always fit a CCTV-rated (surveillance) drive, not a desktop drive — they are built for continuous write workloads. Netview stocks matched HiLook DVRs and surveillance drives so you can order the recorder pre-loaded; call 01163 800 838 to spec a bundle.
Need pan-tilt-zoom? The HiLook Turbo HD PTZ
For analogue sites that need active coverage of a yard or forecourt, the PTZ-T4215I-D(E) is a 2 MP HD-TVI speed dome with 15× optical zoom and 100 m IR, running on the same coax and DVR as your fixed cameras. It lets you add operator-controlled or preset-tour coverage to a Turbo HD system without moving to IP.
Remote viewing: Hik-Connect and iVMS-4200
Every HiLook DVR connects to the free Hik-Connect mobile app and the iVMS-4200 desktop client for remote viewing and playback, so the customer sees live footage on their phone and you can support the site from the office. Set up the P2P connection at commissioning and complete a clean handover — our Hik-Connect setup and handover guide and iVMS-4200 installer guide walk through both.
FAQ
Can I use my existing analogue cameras with a HiLook DVR?
Yes. Every HiLook DVR is 5-in-1, so it accepts old CVBS analogue cameras alongside HD-TVI, AHD and CVI, letting you reuse existing cameras while you upgrade.
Do HiLook Turbo HD cameras record audio?
Cameras with a built-in mic (such as the THC-T259-MS) send audio down the coax via AoC, which the DVR records per channel. Enable it deliberately and signpost it for UK GDPR compliance.
What is the difference between the U-series and Q-series DVR?
The U-series records up to 8 MP (4K Lite) and accepts more IP channels; the Q-series tops out at 3K Lite and suits 2–5 MP cameras at a lower price.
Does HiLook Turbo HD support AcuSense?
Yes. The U and Q DVRs run AcuSense Motion Detection 2.0, classifying humans and vehicles to cut false alarms by over 80% versus basic motion detection.
How far can I run coax for a HiLook Turbo HD camera?
Quality RG59 carries HD-TVI video to around 300 m; in practice the 12 V DC power run is usually the limit, so use a local supply or heavier-gauge cable on long runs.
Can I add IP cameras to a HiLook DVR later?
Yes. Spare channels on a 5-in-1 DVR accept Hikvision and HiLook IP cameras via a separate PoE switch, so a Turbo HD system can grow into a hybrid.
Order HiLook Turbo HD from Netview
Netview is a HiLook authorised wholesaler in Leicester. We hold the full Turbo HD DVR and camera range in stock for same-day dispatch, and can supply DVRs pre-loaded with surveillance drives. Browse the brands we stock or call the trade desk.
