Hikvision PTZ Camera Installer Guide 2026
Published 8 June 2026 · Last updated 8 June 2026 · By Netview
If you only ever fit fixed bullets and turrets, the first PTZ on your bench can feel like a different animal: 24 V AC versus PoE, optical zoom versus megapixels, laser IR versus white light, auto-tracking that either earns its keep or chases every fox across a car park. This guide is written for UK installers specifying and commissioning Hikvision PTZ cameras in 2026. It decodes the part numbers, walks the full in-stock range from the 3-inch ColorVu mini domes to the 8-inch 500 m laser units, and answers the questions that actually slow a job down — power, zoom choice, recorder pairing and which model tracks a target without false alarms.
At a glance
- What a PTZ is for: covering a large area with one camera that can pan, tilt and zoom to detail — car parks, yards, perimeters, town centres and live-monitored sites.
- Range structure: Hikvision IP PTZ runs Value (2-inch/4-inch mini), Pro (4/5/7-inch) and Ultra (8-inch laser), plus TandemVu dual-channel units and the analogue Turbo HD and HiLook lines for coax sites.
- Zoom: the two-digit code is the optical zoom — 4x for close detail, 15–25x for general site work, 32–48x for long perimeters.
- Low light: ColorVu gives 24/7 colour with white light; DarkFighter gives ultra-low-light mono with long IR. TandemVu combines a fixed panoramic view with the moving PTZ.
- Power: most Pro/Ultra PTZ need Hi-PoE or 24 V AC — standard 802.3af PoE will not run them. Budget your switch and cable run accordingly.
- Buying: Netview is a Hikvision UK authorised wholesaler holding PTZ stock for same-day dispatch — trade desk 01163 800 838.
What is a PTZ camera, and when does an installer actually need one?
A PTZ (pan-tilt-zoom) camera is a single motorised camera that can rotate horizontally, tilt vertically and zoom optically, so one unit can cover an area that would otherwise need several fixed cameras. The trade-off is that a PTZ only looks in one direction at a time — while it is zoomed onto a number plate at the gate, it is not watching the loading bay. That is why PTZ is the right tool for live-monitored sites, wide open spaces (car parks, yards, retail parks, marinas, town-centre schemes) and as a "detail" camera working alongside fixed ColorVu or AcuSense cameras that hold the wide context. For a fixed-coverage job where every approach must be recorded continuously, fixed cameras plus a good Hikvision NVR remain the better spend.
How to read a Hikvision PTZ part code
Hikvision PTZ model numbers are systematic once you know the fields. Reading left to right: DS-2 identifies Hikvision, D means network (IP), the next letter is the series (E, F or S for TandemVu), and the first digit is the dome size in inches — 2 (2.5-inch), 4, 5, 7 or 8. After that comes resolution (2 = 2MP, 4 = 4MP, 6 = 6MP, 8 = 8MP), the two-digit optical zoom, then the IR and power suffixes — I for IR, I5 for 500 m laser IR, A for 24 V AC and E for PoE/Hi-PoE (broadbandbuyer part-code guide; Hikvision naming-rule reference). So DS-2DE7A412MCG-EB reads as a 7-inch, 4MP, 12x IP PTZ; DS-2DF8C848I5XS-AELW is an 8-inch, 8MP, 48x dome with 500 m laser IR. Decode the code and you already know the size, resolution, reach and power class before you open the datasheet.
The Hikvision IP PTZ range explained
Hikvision splits its IP PTZ line by dome size, which maps neatly to job type. The table below is the in-stock Netview selection, smallest to largest.
| Model | Size / res | Optical zoom | Night tech / range | Best for |
|---|---|---|---|---|
| DS-2DE2A404IW-DE3 | 2-inch / 4MP | 4x | IR | Indoor / compact value PTZ |
| DS-2DE3A400BW-DE · ceiling | 3-inch / 4MP ColorVu | 4x | ColorVu white light | 24/7 colour, small forecourts & entrances |

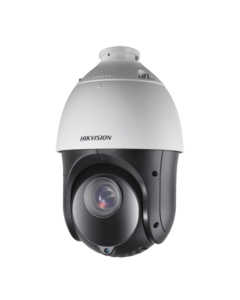

| DS-2DE4215IW-DE | 4-inch / 2MP | 15x | IR 100 m | General-purpose site PTZ |
| DS-2DE4425IW-DE | 4-inch / 4MP AcuSense | 25x | IR 100 m | Detail at distance, false-alarm filtering |
| DS-2DE4A425IWG-E | 4-inch / 4MP | 25x | IR + auto-tracking | Unmanned sites needing target follow |
| DS-2DE5425IW-AE | 5-inch / 4MP DarkFighter | 25x | IR 150 m | Low-light perimeters |
| DS-2DE7A220MCG-EB | 7-inch / 2MP ColorVu | 20x | ColorVu + IR 150 m | Smart-tracking colour at night |
| DS-2DE7A412MCG-EB | 7-inch / 4MP ColorVu | 12x | ColorVu + IR 150 m | 4MP colour deterrence with speaker |
| DS-2DE7A432IW-AEB | 7-inch / 4MP | 32x | IR 200 m | Long-reach 4MP detail |
| DS-2DF8C442IXG-ELW | 8-inch / 4MP DarkFighter | 42x | IR 400 m + smart tracking | Large perimeters, 2K |
| DS-2DF8C842IXG-ELW | 8-inch / 8MP 4K DarkFighter | 42x | IR 500 m + smart tracking | 4K long-range estate / industrial |
| DS-2DF8C848I5XS-AELW | 8-inch / 8MP 4K | 48x | 500 m laser IR + smart tracking | Maximum reach, dark sites |
TandemVu: two cameras in one
TandemVu cameras combine a fixed panoramic camera and a moving PTZ in a single housing, so you keep the wide context while the PTZ zooms in. According to Hikvision's TandemVu range page, the panoramic channel detects and the PTZ channel tracks — the bullet lens holds the overview while the dome lens pans, tilts or zooms onto a target, eliminating the classic PTZ blind spot. The 8-inch TandemVu delivers a 6MP, 20:9 panoramic image with a 190° horizontal and 80° vertical field of view, and combines ColorVu and DarkFighter so you get colour overnight with an F1.0 lens. The in-stock TandemVu line spans the compact DS-2SE3C404MWG-E/14 (4MP, 4x) and DS-2SE4C425MWG-E (4MP, 25x), the panoramic DS-2SE4C425MWG-E/26 (6MP + 4MP), the 32x DS-2SE7C144IW-AE and DS-2SE7C432MW-AEB with 200 m IR, the panoramic DS-2SE7C432MWG-EB/26, and the 180° 42x DS-2SF8C442MXG-ELW/26 for the widest one-point coverage.
ColorVu vs DarkFighter on a PTZ
ColorVu and DarkFighter solve night-time differently, and the right choice depends on whether you want colour or maximum sensitivity. ColorVu uses an F1.0 aperture and supplementary white light to deliver full-colour images in near-darkness — ideal where colour detail (clothing, vehicle colour) matters and a visible deterrent is welcome. DarkFighter prioritises ultra-low-light mono performance with long IR, so it sees further in genuinely dark conditions without throwing white light. On the 7-inch DS-2DE7A220MCG-EB, Hikvision combines ColorVu with a 150 m IR illuminator, deep-learning human/vehicle classification, 120 dB WDR and an integrated audio-visual deterrent, per Hikvision's product specification. For the technology behind colour-at-night across the wider camera range, see our Hikvision ColorVu complete guide.
Auto-tracking and AcuSense on a PTZ
Auto-tracking lets a PTZ lock onto and follow a moving target automatically, and on AcuSense models it does so only for people and vehicles — not headlights, rain or foliage. This is what makes a PTZ useful on an unmanned site: the DS-2DE4A425IWG-E will detect motion, classify it and follow it, while AcuSense filtering on models such as the DS-2DE4425IW-DE cuts the false alarms that plague basic motion detection. The 8-inch DarkFighter units (DS-2DF8C442IXG-ELW, DS-2DF8C842IXG-ELW) add smart tracking across long perimeters. To understand AcuSense target classification in depth, read our Hikvision AcuSense installer guide.
Choosing optical zoom
Optical zoom determines how much detail you can pull at distance, and over-spec'ing it wastes budget while under-spec'ing it loses the plate or the face. As a working rule, 4x suits a small forecourt or entrance, 15–25x covers most car parks and yards, and 32–48x is for long perimeters, estates and town-centre schemes. Remember that digital zoom adds nothing usable for evidential work — only the optical figure (the two-digit code) counts. The decision flow below maps a job to a model.
| Job type | Suggested optical zoom | Example model |
|---|---|---|
| Entrance / small forecourt | 4x | DS-2DE3A400BW-DE |
| Car park / yard | 15–25x | DS-2DE4425IW-DE / DS-2DE5425IW-AE |
| Large site / retail park | 20–32x | DS-2DE7A220MCG-EB / DS-2DE7A432IW-AEB |
| Long perimeter / estate | 42–48x | DS-2DF8C842IXG-ELW / DS-2DF8C848I5XS-AELW |
IR versus laser IR: night-time reach
Standard IR LEDs are fine to roughly 100–200 m, but beyond that you need laser IR. Laser illuminators are tighter and travel much further, which is why the long-range domes carry the I5 (500 m) suffix — the DS-2DF8C848I5XS-AELW pushes a 500 m laser IR beam to match its 48x optical reach. For a 100 m car park, the 100 m IR on a 4-inch unit is ample; for a 400 m field boundary, only laser IR will light the far end. Match the IR reach to the zoom reach — a 48x lens looking at something the IR cannot light is wasted.
Powering a Hikvision PTZ correctly
This is where PTZ jobs most often go wrong: most Pro and Ultra PTZ cameras need Hi-PoE or 24 V AC, and ordinary 802.3af PoE will not run them. Per Hikvision's datasheets, a 7-inch unit such as the DS-2DE7A812MCG-EB draws up to 42 W on 24 V AC (including 12 W for IR and 2 W for the heater) and supports Hi-PoE, and the DS-2DE7A825IW-AEB(T5) is the same 42 W class with up to 18 W for IR. The table summarises the power classes.
| PTZ class | Typical power | Supply | Installer note |
|---|---|---|---|
| 2/3-inch mini (e.g. DS-2DE3A400BW-DE) | ~12 W | PoE+ (802.3at) | Runs from a decent PoE+ switch port |
| 4/5-inch (e.g. DS-2DE5425IW-AE) | ~25–30 W | Hi-PoE or 24 V AC | Check the switch supports Hi-PoE, not just 802.3at |
| 7-inch (e.g. DS-2DE7A812MCG-EB) | up to 42 W | Hi-PoE or 24 V AC | 24 V AC for long cable runs; budget heater + IR load |
| 8-inch laser (e.g. DS-2DF8C848I5XS-AELW) | highest | Hi-PoE / 24 V AC | Use the manufacturer PSU; verify run length and gauge |
For PoE budgeting across a whole site — how many Hi-PoE PTZ ports your switch can actually sustain — see our Reyee PoE switch sizing guide. Over long runs, 24 V AC is often the safer choice because voltage drop on PoE can starve a high-draw dome at the end of a 90 m+ cable.
Turbo HD and HiLook PTZ: the coax and budget route
If a site already has coax, or the budget rules out IP, Hikvision Turbo HD and HiLook analogue PTZ keep the same pan-tilt-zoom benefit without re-cabling. The Turbo HD DS-2AE4225TI-D (2MP, 25x, 100 m IR) and DS-2AE5225TI-A (2MP, 25x, 150 m IR) run over existing coaxial cable into a Turbo HD DVR, while the HiLook PTZ-T4215I-D (2MP, 15x TVI) is the value entry point. These are ideal for analogue upgrades where ripping out cable is not viable. For the wider HiLook full-colour camera families, see our HiLook ColorVu and Smart Hybrid Light guide.
Controllers and joysticks
For live operators, a hardware joystick is far faster and more precise than dragging a mouse. Hikvision offers IP and analogue control surfaces: the DS-1200KI IP network keyboard with LCD, the DS-1600KI with a 10-inch touchscreen for larger control rooms, and the compact USB DS-1005KI 3D joystick that plugs straight into a PC running iVMS-4200. If your operators control PTZ from software rather than a desk keyboard, our iVMS-4200 installer guide covers PTZ presets, patrols and joystick mapping.
Mounting and brackets
A PTZ is heavier and more exposed than a fixed dome, so the bracket matters. Use a rated wall mount such as the DS-1602ZJ, or the DS-1604ZJ wall mount with a hinged junction box where you need to terminate cabling neatly behind the camera. Corner and pole variants exist in the same family for perimeter posts and building corners. Always mount a long-range dome on a rigid surface — flex in the mount shows up as wobble at full zoom.
Recording and NVR pairing
A PTZ records like any IP camera, but the bandwidth varies with movement, so plan headroom. Pair the camera resolution to a suitable AcuSense NVR and allow extra storage for the higher motion-driven bitrate when the camera is patrolling or tracking. Our Hikvision NVR buyer's guide 2026 walks the K-Series, VPRO and Ultra families and the channel/bandwidth maths, and the DS-7716 vs DS-7732 NXI comparison helps size the recorder for a mixed fixed-plus-PTZ install. For remote PTZ control and customer handover, see our Hik-Connect setup and handover guide.
Buying Hikvision PTZ from Netview
Netview is a Hikvision UK authorised wholesaler and we hold the fast-moving PTZ lines in stock in Leicester for same-day dispatch. Whether you need a single 3-inch ColorVu mini or a 48x laser dome for a perimeter scheme, our trade desk can confirm power class, bracket and recorder pairing before you order. Browse the full brands we stock or call the trade desk on 01163 800 838.
Frequently asked questions
Does a Hikvision PTZ work on standard PoE?
The 2/3-inch mini PTZ run on PoE+ (802.3at), but most 4-inch and larger Pro and Ultra PTZ need Hi-PoE or 24 V AC. Standard 802.3af PoE will not power them — check the datasheet power figure and your switch's Hi-PoE support before quoting.
What is the difference between ColorVu and DarkFighter on a PTZ?
ColorVu uses an F1.0 lens and white light to give full-colour images at night; DarkFighter prioritises ultra-low-light mono sensitivity with long IR. Choose ColorVu where colour detail and visible deterrence matter, DarkFighter where maximum reach in genuine darkness is the priority.
What does TandemVu do that a normal PTZ doesn't?
TandemVu adds a fixed panoramic camera alongside the PTZ in one housing, so the wide context is always recorded even while the PTZ zooms onto a target — removing the single-direction blind spot that affects ordinary PTZ cameras.
How much optical zoom do I need?
Roughly: 4x for entrances and small forecourts, 15–25x for car parks and yards, and 32–48x for long perimeters and town-centre schemes. Ignore digital zoom for evidential work — only optical zoom (the two-digit code) gives usable detail at distance.
What is the maximum night range of a Hikvision PTZ?
Standard IR reaches around 100–200 m; laser-IR models (the I5 suffix) reach up to 500 m, such as the DS-2DF8C848I5XS-AELW. Always match the IR reach to the optical zoom reach so the camera can see what it can zoom to.
Can I control a Hikvision PTZ from iVMS-4200?
Yes — iVMS-4200 supports PTZ control, presets and patrols, and a USB joystick such as the DS-1005KI makes live control far smoother. For dedicated control rooms, the DS-1200KI or DS-1600KI network keyboards are the better fit.
Will a PTZ replace several fixed cameras?
Only for live-monitored or wide-area roles. A PTZ looks one way at a time, so for continuous recording of every approach you still want fixed cameras for context plus a PTZ for detail — not a PTZ alone.
Can I run a Hikvision PTZ over existing coax?
Yes — the Turbo HD analogue PTZ (e.g. DS-2AE4225TI-D, DS-2AE5225TI-A) and HiLook PTZ-T4215I-D run over coaxial cable into a Turbo HD DVR, making them ideal for analogue upgrades without re-cabling.
