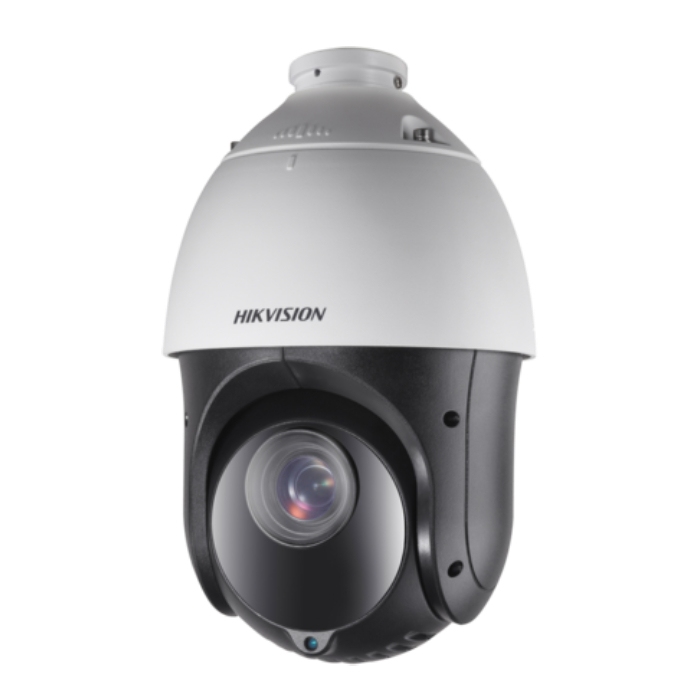

2MP DS-2DE4215IW-DE Hikvision 15× Zoom Ultra-Low Light PTZ IP Camera 100m IR
Hikvision DS-2DE4215IW-DE 2MP 15× Network IR Speed Dome adopts 1/2.8" progressive scan CMOS chip. With the 15× optical zoom lens, the camera offers more details over expansive areas. This series of cameras can be widely used for wide ranges of high-definition, such as the rivers, roads, railways, airports, squares, parks, scenic spots, and venues, etc.
Powered by Darkfighter TechnologyUltra-low Light Powered by Darkfighter Technology, Turning Night into day even faces can be clearly identified. Darkfighter technology enable Hikvision’s new Ultra Low Light cameras to provide exceptionally sharp images even in low-light conditions, whether during the day or at night. Combining outstanding performance and wide range with convenience and ease of use, these cameras are taking video surveillance to an entirely new level - the ideal security choice for warehouses, retail outlets, airports, and other sensitive sites.
Remote Monitoring & PTZ ControlConnection to the internet is a breeze with the Hik-Connect Setup without any technical or port forwarding knowledge or expertise required. FREE iPhone, iPad, Android, PC & MAC remote viewing software (iVMS 4200 & Hik-Connect). Pan Tilt & Zoom the camera remotely using the Hik-Connect App.
- High quality imaging with 2 MP resolution
- Clear imaging against strong back lighting due to DWDR technology
- Pan and tilt ability enables camera to monitor zones of interest
- 15x optical zoom allows for closer viewing of subjects in expansive areas
- Water and dust resistant (IP66)
- 1/2.8" progressive scan CMOS
- Up to 1920 × 1080@30fps resolution
- Min. illumination: Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR
- 15× optical zoom, 16× digital zoom
- WDR, HLC, BLC, 3D DNR, Defog, EIS, Regional Exposure, Regional Focus
- Up to 100 m IR distance
- Support H.265+/H.265 video compression
For bracket options available, see accessories tab below.
| Camera | |
| Image Sensor: | 1/2.8" Progressive Scan CMOS |
| Effective Pixels: | 1920(H)x1080(V) |
| Signal System: | PAL/NTSC |
| Minimum Illumination: | Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001Lux @(F1.6, AGC ON) 0 Lux with IR |
| White Balance: | Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
| AGC: | Auto/Manual |
| BLC: | ON/OFF |
| HLC: | Support |
| Smart defog: | Support |
| WDR: | 120dB |
| Shutter Time: | 50Hz: 1/1 s to 1/30,000 s 60Hz: 1/1 s to 1/30,000 s |
| Day& Night: | ICR |
| Digital Zoom: | 16X |
| Privacy Masking: | 24 programmable privacy masks |
| Auto Focus: | Auto / Semi-automatic / Manual |
|
Lens |
|
| Focal Length: | 5 mm to 75 mm, 15× optical zoom |
| Zoom Speed: | Approx. 2.3 s (optical lens, wide-tele) |
| Angle of View: | Horizontal field of view: 53.8° to 4° (Wide-Tele) Vertical field of view: 31.9° to 2.3° (Wide-Tele) Diagonal field of view: 60.4° to 4.6° (Wide-Tele) |
| Minimum Working Distance: | 10 mm to 1500 mm (wide-tele) |
| Aperture Range: | F1.6 to F2.8 |
|
Pan & Tilt |
|
| Pan Range: | 360°endless |
| Pan Speed: | Configurable, from 0.1°/s to 80°/s, Preset speed: 80°/s |
| Tilt Range: | -15°-90° (Auto Flip ) |
| Tilt Speed: | Configurable, from 0.1°/s to 80°/s, Preset speed: 80°/s |
| Number of Preset: | 300 |
| Patrol: | 8 patrols, up to 32 presets per patrol |
| Pattern: | 4 pattern scans, record time over 10 minutes for each scan |
| Power-off Memory: | Support |
| Park Action: | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
| PTZ Position Display: | ON/OFF |
|
Infrared |
|
| IR irradiation distance: | 100m |
| IR irradiation angle: | Adjustable by zoom |
|
Network |
|
| Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector |
| Max.Image Resolution: | 1920×1080 |
| Main Stream: | 50Hz:25fps (1920×1080,1280×960,1280×720), 50fps (1280×960,1280×720) ; 60Hz:30fps(1920×1080,1280×960,1280×720), 60fps (1280×960,1280×720) |
| Sub Stream: | 50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240) |
| Third Stream: | 50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288) 60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288) |
| Video Compression: | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG |
| ROI encoding: | Support 4 areas with adjustable levels |
| Protocols: | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| No. of Simultaneous Users: | Up to 20 channels |
| Three-Stream: | Support |
| Mini SD Card: | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB |
| User/Host Level: | Up to 32 users, 3 levels: Administrator, Operator and User |
| Security Measures: | User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering |
|
Client GUI |
|
| Client: | iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect |
| Web Browser: | IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51 |
|
General |
|
| Menu Language: | English |
| Power Consumption: | 12 VDC, 2.0A, PoE (802.3at), 42.5 to 57 VDC, 0.6A, Class4 Max.18 W, including Max.7W for IR |
| Working Temperature/Humidity: | -30°C to 65°C (-22°F to 149°F) 90% or less |
| Protection Level: | IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection |
| Material: | ADC 12, PC, PC+10%GF |
| Dimensions: | Φ 164.5 mm × 290 mm (Φ 6.48" × 11.42") |
| Weight (approx.): | Approx. 2 kg (4.41 lb) |
