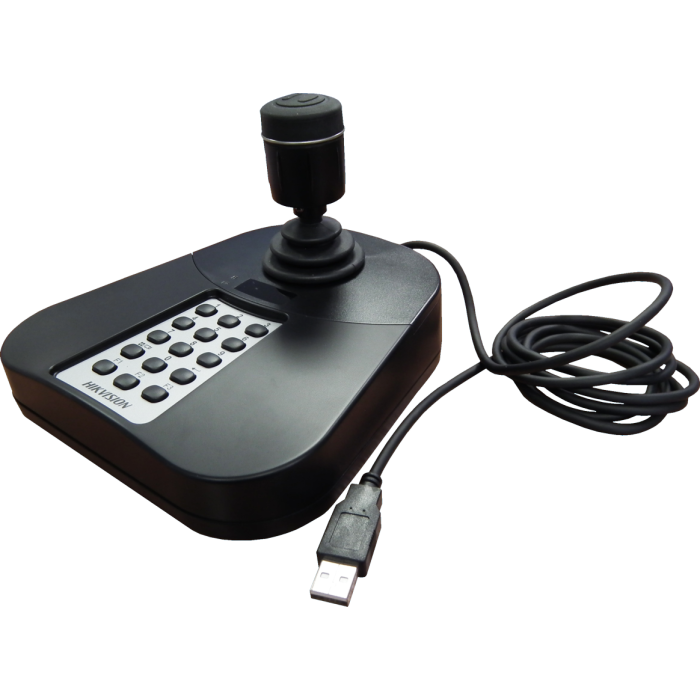

Hikvision USB 3D PTZ Keyboard with Joystick DS-1005KI
Hikvision DS-1005KI USB 3D PTZ Keyboard with Joystick
- Power supply and communication by USB port directly
- 3D PTZ control and 2 joystick control buttons
- Up to 15 programmable buttons are available
- Support digital tube to display the input content
- Support indicators to show the operation status of keyboard
- Compatible with a various kinds of client software and platform software
- Support USB HID protocol.
Hikvision DS-1005KI USB 3D PTZ Keyboard with Joystick
Can be accessed directly by the client software, platform software of iVMS series, DVR and PC-DVR, and can realize functions such as windows switching, PTZ control, picture capture, recording and etc.
DS-1005KI is compatible with the USB joystick via USB HID protocol, and can access to the third-party platform software. It provides amply programmable buttons for setting custom function and has the advantage of simple interface and easy operation.
- Power supply and communication by USB port directly
- 3D PTZ control and 2 joystick control buttons
- Up to 15 programmable buttons are available
- Support digital tube to display the input content
- Support indicators to show the operation status of keyboard
- Compatible with a various kinds of client software and platform software
- Support USB HID protocol.
| Compatible System | ||
|---|---|---|
| Compatible System: | | | Window XP/7/8/8.1 |
| Joystick | ||
| Joystick: | | | 3-axis control, rotating zoom |
| External Interface | ||
| Interface Type: | | | USB 2.0, DirectX |
| General | ||
| Working Temperature: | | | -10 ºC ~55 ºC |
| Working Humidity: | | | 10% ~ 90% (Non-condensing) |
| Power Supply: | | | 5V DC via USB |
| Power Consumption: | | | ≤ 5W |
| Dimension: | | | 167*177.5*116(mm) |
