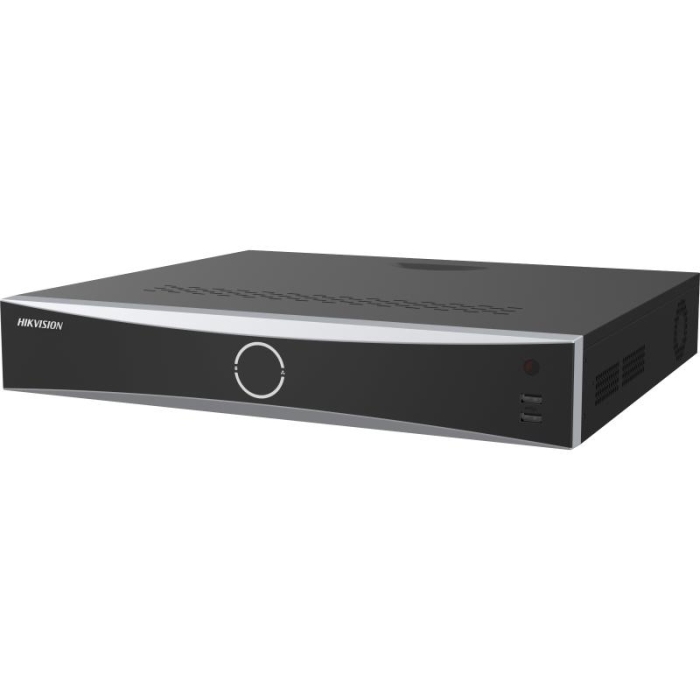

Hikvision DS-7716NXI-I4/16P/VPRO 16 Channel PoE 32MP AcuSeek NVR

Overview

The Hikvision DS-7716NXI-I4/16P/VPro is a 16-channel AcuSeek NVR powered by Hikvision's Guanlan Large-Scale AI Models — bringing on-NVR natural-language video search to the mid-range I-tier. Search using everyday English: “person in a red jacket walking towards reception after 4pm yesterday”, “white van parked near the loading bay”, “child running past the front door” — AcuSeek interprets the query and surfaces matching clips in seconds. Two dedicated AI engines run in parallel: one for facial recognition + AcuSearch, one for AcuSeek — modeling up to 300,000 targets per day.

Full 16-channel AcuSeek and AcuSearch coverage with 8-channel facial recognition across 16 face libraries holding up to 50,000 face pictures total (1 GB face-data capacity). H.265+ / H.265 / H.264+ / H.264 video formats with H.265+ compression reducing storage by up to 75%. DecodingWhat is Decoding Capability capability 32-ch @ 1080p (AI disabled) or 20-ch @ 1080p (AI enabled). Recording up to 32 MP per channel (NVR supports up to 4-ch > 12 MP), with 16-channel synchronous playback. Incoming bandwidth 192 Mbps / outgoing bandwidth 256 Mbps. Per-camera VCA events — line crossing, intrusion, region entrance / exit, scene change, ANPR, people counting — are recorded and searchable.

Storage: 4 × hot-plug SATA HDD bays accepting drives up to 20 TB each (80 TB total raw), dual-stream recording, ANR (Automatic Network Replenishment) to fill VMS gaps from camera-side SD on network recovery. Front panel USB 2.0 + rear panel USB 3.0 for backup, import and mouse. ANPR is available on all 16 channels when paired with AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide-capable cameras — capturing plate number, plate colour and type, plus vehicle brand, colour and type. SmartSearch + AcuSearch + AcuSeek are integrated in the playback workflow for fast forensic retrieval.

Network: built-in 16-port PoE switch (IEEE 802.3af/at, RJ-45 10/100 Mbps, total PoE power budget ≤ 200 W) plus 1 × RJ-45 10/100/1000 Mbps uplink — plug-and-play camera setup with no external PoE switch needed. Output: dual independent HDMI outputs (HDMI 1 up to 4K @ 30 Hz, HDMI 2 up to 1080p) plus independent VGA output (1080p @ 60 Hz) for multi-monitor video walls. 1-channel RCA audio output + 1-channel two-way audio (RCA, 2.0 Vp-p, 1 KΩ). 16 alarm inputs + 9 alarm outputs for siren, strobe and access-control integration; 2 × RS-485 (half-duplex), 1 × RS-232 serial interfaces. Power: 100–240 VAC, 50/60 Hz, single PSU rated ≤ 200 W (including PoE budget); chassis consumption ≤ 50 W (without HDD). 1.5U chassis 440 × 391 × 72 mm, approx. 5.0 kg (without HDD). Certified CE / CB / REACH / WEEE / UKCA / RCM / IC / LOA / KC.

Key Features

• 16-channel AcuSeek NVR — on-NVR natural-language video search powered by Hikvision Guanlan Large-Scale AI Models
• Search recordings using everyday English — “red car near loading bay”, “person in white shirt after 4pm”
• 2 AI engines running in parallel — 1 for facial recognition + AcuSearch, 1 for AcuSeek; up to 300,000 targets/day modeling capacity
• 16-channel AcuSearch coverage — semantic attribute search (clothing colour, vehicle type, behaviour) across every channel
• 8-channel facial recognition — 16 face libraries, up to 50,000 face pictures, 1 GB total face-data capacity
• ANPR on all channels — UK plate format supported (vehicle brand, colour and type also captured)
• Built-in 16-port PoE switch — IEEE 802.3af/at, RJ-45 10/100 Mbps, total PoE power budget ≤ 200 W
• Plug-and-play camera deployment — no external PoE switch needed for up to 16 Hikvision IP cameras
• 4 × hot-plug SATA HDD bays — drives up to 20 TB each (80 TB total raw)
• H.265+ / H.265 / H.264+ / H.264 compression — H.265+ saves up to 75% storage vs H.264
• DecodingWhat is Decoding Capability: 32-ch @ 1080p (AI off) / 20-ch @ 1080p (AI on); recording up to 32 MP per channel
• Incoming 192 Mbps / outgoing 256 Mbps bandwidth
• 16-channel synchronous playback — SmartSearch + AcuSearch + AcuSeek integrated playback workflow
• Dual independent HDMI outputs (HDMI 1 up to 4K @ 30 Hz, HDMI 2 up to 1080p) for video walls
• 1 × RJ-45 10/100/1000 Mbps Gigabit uplink interface
• 1-channel RCA audio output + 1-channel two-way audio (RCA, 2.0 Vp-p, 1 KΩ)
• 16 alarm inputs + 9 alarm outputs — siren, strobe, panic-button, access-control integration
• Serial: 2 × RS-485 (half-duplex), 1 × RS-232
• Per-camera VCA: motion / line crossing / intrusion / region entrance / region exit / scene change / heat map / ANPR / people counting
• POS information overlay on live view + playback, POS-triggered recording and alarm linkage
• ONVIF profile S/G + ISAPI + SDK API; Hik-Connect, DDNS, plug-in-free web access, Hik-Central enterprise VMS
• Front panel: 2 × USB 2.0; rear panel: 1 × USB 3.0
• Power: 100–240 VAC, 50/60 Hz; PSU rated ≤ 200 W (including PoE); chassis ≤ 50 W (without HDD or PoE)
• 1.5U chassis, 440 × 391 × 72 mm; ~5.0 kg without HDD
• Certified CE / CB / REACH / WEEE / UKCA / RCM / IC / LOA / KC

Typical Applications

• SMB sites with up to 16 IP cameras — retail, offices, schools, GP surgeries, factories, depots needing AI-on-NVR without per-camera AI licence costs
• Forensic-search-heavy sites where staff regularly retrieve specific events from hours/days of recording — AcuSeek delivers natural-language search across all channels
• Plate-recognition workflows on all channels — car parks, access control, fleet bays, small retail estates
• Face-recognition deployments up to 50,000-face library across 16 face groups — staff door access, VIP detection, watchlists
• Plug-and-play installations — 16 built-in PoE ports remove the need for an external PoE switch
• Multi-monitor reception or control-room setups — dual HDMI + VGA simultaneous output for main + auxiliary screens
• Higher-retention SMB installations needing 6–12 months on-site recording (up to 80 TB raw across 4 bays)

Compatible Hikvision Devices

• Hikvision AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide IP cameras — AcuSearch / AcuSeek are most powerful when paired with AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide-capable cameras (G3 ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026, AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide Darkfighter, AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide T-mount bullets, AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide turrets)
• Hikvision G3 ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 IP cameras (turret, T-mount, dome, mini-bullet) — full-colour 24/7 attribute capture for AcuSearch
• Hikvision ANPR IP cameras — plate recognition on the NVR is reinforced by camera-side ANPR for high-speed lanes
• Built-in 16-port PoE switch handles up to 16 Hikvision PoE IP cameras directly — no external switch required for up to 16 cameras
• iVMS-4200 desktop client (Windows / macOS) — centralised management
• Hik-Connect mobile app (iOS / Android) — remote view, playback, AcuSeek search and push notifications
• Hik-Central Professional — enterprise VMS for multi-site centralised management with AcuSeek federation
• ONVIF Profile S/G compatible third-party IP cameras — recording supported (AcuSearch/AcuSeek reduced for non-Hikvision cameras)
• Surveillance-grade HDDs — Seagate SkyHawk / WD Purple recommended (available pre-fitted in -BB bundle variants)

What's in the Box

• 1 × Hikvision DS-7716NXI-I4/16P/VPro NVR
• 1 × power cord
• 1 × USB mouse
• 1 × HDD mounting screws + rail kit
• 1 × quick start guide
• 1 × IR remote control (model dependent)
