Hikvision 16MP vs 12MP Turret: When to Spec the DS-2CD23166G3 Over the DS-2CD23126G3
The Hikvision DS-2CD23166G3 is the brand's first 16MP turret aimed at small-to-medium business CCTV — and it sits a few pounds above its 12MP sibling, the DS-2CD23126G3. Both are AcuSense 3.0 cameras Powered by DarkFighter, share the same 1/1.8" sensor footprint and have identical lens, IR and audio options. So when does the extra megapixel count actually earn its keep on a UK install — and when is the 12MP variant the smarter spec? This is the Netview installer's decision guide.
At a glance
- The Hikvision DS-2CD23166G3 (16MP) and DS-2CD23126G3 (12MP) share the same 1/1.8" CMOS sensor, AcuSense 3.0 stack and 130 dB true WDR.
- The key difference is aspect ratio: 16MP records 4608 × 3456 (4:3-style), 12MP records 4608 × 2592 (16:9). Same horizontal width — the 16MP simply keeps more vertical frame.
- Spec the 16MP when ceiling height, atrium coverage or floor-to-ceiling capture matter. Spec the 12MP for wide perimeters, driveways and standard 16:9 wall-display setups.
- Expect roughly 25–33% more bandwidth and storage on the 16MP at matched quality. Pair both with a VPRO AcuSense NVR for clean playback.
- Both cameras come in 2.8mm or 4mm lens, white or black housing, and a Smart Hybrid Light /SL strobe-and-siren variant for active deterrence.

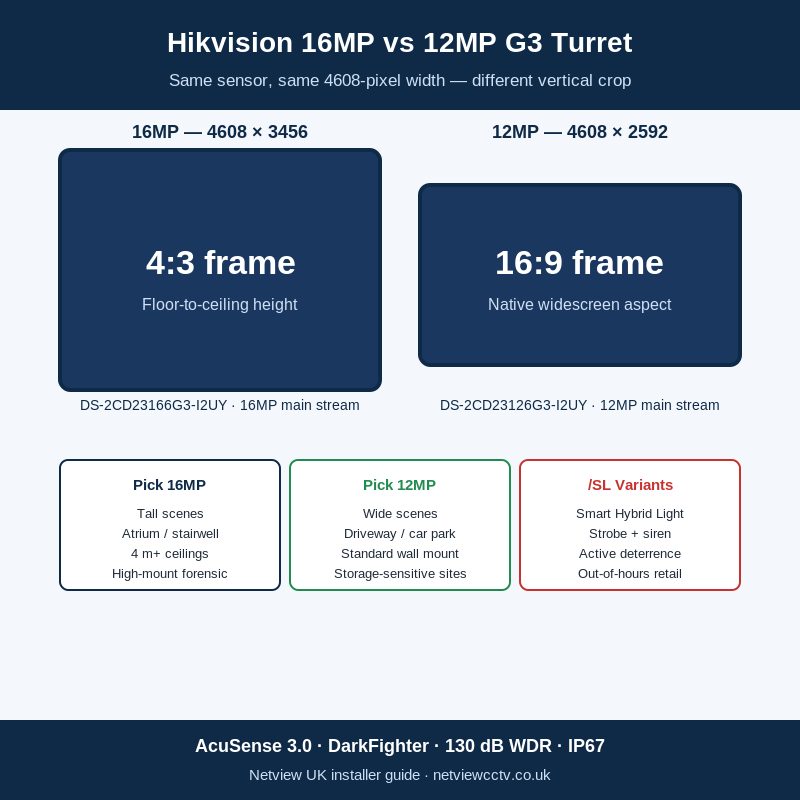

What actually changes when you go 16MP on the G3 chassis
The DS-2CD23166G3 captures 864 extra rows of pixels above and below the same frame the DS-2CD23126G3 produces — nothing more. Both cameras use a 1/1.8" Progressive Scan CMOS sensor and write a 4608-pixel-wide main stream; the 16MP keeps the full 3456-row sensor crop (4:3-style, 4608 × 3456), while the 12MP trims to a 2592-row 16:9 frame (4608 × 2592)[1]. The pixel density per square millimetre of sensor is therefore identical. You are not buying more detail per object — you are buying more height in the frame.
This single fact upends the usual “higher MP = sharper image” reflex. In bandwidth and storage terms you pay for those extra rows; in image-quality terms the only thing they buy you is the ability to see more of what is above and below the natural 16:9 letterbox.

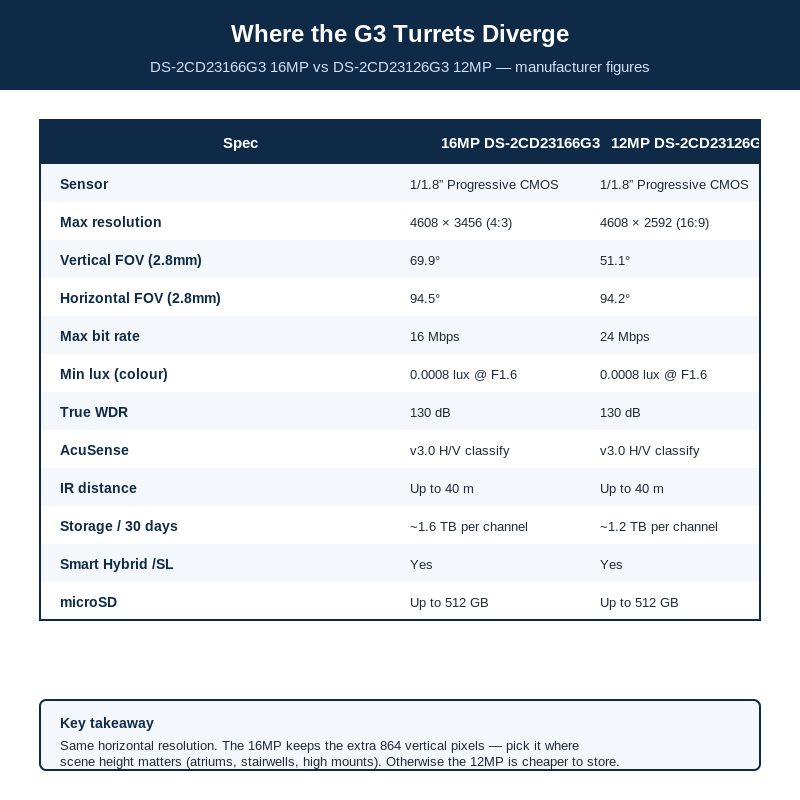

Head-to-head spec comparison
The table below pulls the manufacturer figures for both cameras side by side so you can see exactly where they diverge.
| Specification | DS-2CD23166G3 (16MP) | DS-2CD23126G3 (12MP) |
|---|---|---|
| Image sensor | 1/1.8" Progressive Scan CMOS | 1/1.8" Progressive Scan CMOS |
| Max resolution | 4608 × 3456 (4:3) | 4608 × 2592 (16:9) |
| Min. illumination (colour) | 0.0008 lux @ F1.6, AGC on | 0.0008 lux @ F1.6, AGC on |
| Max video bit rate | 16 Mbps | 24 Mbps |
| Video compression | H.265+/H.265/H.264+/H.264 | H.265+/H.265/H.264+/H.264 |
| True WDR | 130 dB | 130 dB |
| Lens (fixed) | 2.8 mm or 4 mm | 2.8 mm or 4 mm |
| 2.8 mm horizontal FOV | 94.5° | 94.2° |
| 2.8 mm vertical FOV | 69.9° | 51.1° |
| IR distance (I2 variants) | Up to 40 m | Up to 40 m |
| Audio | Built-in arrayed dual-mic | Built-in arrayed dual-mic |
| AcuSense analytics | Line crossing, intrusion, region entrance/exiting (human/vehicle) | Line crossing, intrusion, region entrance/exiting (human/vehicle) |
| Environmental | IP67, anti-corrosion (NEMA 4X) | IP67, anti-corrosion (NEMA 4X) |
| Power | 12 VDC ± / PoE (802.3af) | 12 VDC ± / PoE (802.3af) |
| Local storage | microSD up to 512 GB | microSD up to 512 GB |
| Smart Hybrid Light /SL variant | Yes — strobe + audible warning | Yes — strobe + audible warning |
Two figures stand out. First, the vertical FOV on the 2.8 mm 16MP variant is 69.9° versus 51.1° on the 12MP — that is the “extra height” in real measurement terms[2]. Second, the 12MP's 24 Mbps headroom is higher than the 16MP's 16 Mbps; that is the encoder ceiling for the main stream, not the typical operating rate. At default H.265+ settings both cameras will run well under those caps.
When the DS-2CD23166G3 (16MP) is the right call
Spec the 16MP whenever vertical frame coverage is critical to the brief. Five classic UK install scenarios where the extra 864 rows pay back the storage premium:
- High-ceiling retail and warehouses (3.5 m+): capture floor-to-ceiling without tilting the camera down and losing range. Useful when you also need to see top-of-shelf product theft and aisle activity in the same shot.
- Atriums and stairwells: the 4:3-style frame keeps both flights of a staircase visible, and you can see whether someone is approaching the camera vertically rather than just horizontally.
- Tall building lobbies and reception areas: the 16MP includes overhead signage, mezzanines and ceiling-mounted assets in the same shot that the 12MP truncates.
- Sites where one camera replaces two: a single high-mounted 16MP can replace a perimeter + ceiling pair on smaller footprints. With AcuSense 3.0 separating humans from vehicles on the same stream, NVR channel count drops.
- Forensic mounting positions: when the mount is well above face height (5 m+), the extra vertical pixels keep usable detail across the full standing height of a subject who walks under the camera.
When the DS-2CD23126G3 (12MP) is the smarter buy
Spec the 12MP whenever the scene is naturally wider than it is tall. The 16:9 sensor crop matches the way installers and end-users actually view footage on monitors and on Hik-Connect mobile, and it saves around a quarter of the bandwidth and storage:
- Perimeter and driveway scenes: 12MP's 16:9 frame fills a standard wall display without black bars or aggressive cropping. The 51° vertical FOV is plenty for any scene where the action is at ground level.
- Car parks and forecourts: wider matters more than taller. Plate-readable images are about horizontal pixel density at the subject distance — same on both cameras.
- Standard wall-mounted residential and SMB installs: 2.5 m mount, 4 mm lens, looking out across a garden or yard. The 12MP frame is already wider than most domestic gardens.
- Sites with tight storage budgets: running a fully populated 16-channel NVR with 24-camera continuous recording for 30 days is dramatically cheaper at 12MP than 16MP. See the storage maths section below.
- Mixed-aspect sites where you want consistency: if the rest of the camera fleet on site is 8MP ColorVu or 4MP turrets (which are 16:9 native), matching the 12MP keeps every channel showing the same aspect.
Lens choice: 2.8 mm or 4 mm on either chassis
Both G3 turrets ship with a fixed-focal lens — there is no motorised varifocal in this body. Pick the 2.8 mm where you need to cover a room or a doorway from close range, and the 4 mm where the camera sits 6–10 m back from the action and you want recognisable faces at the far end. The horizontal FOV gap between the two cameras is negligible — 94.5° on the 16MP at 2.8 mm versus 94.2° on the 12MP — so the same lens rules apply regardless of resolution choice.
A practical rule of thumb for both models: use 2.8 mm under 5 m subject distance, 4 mm beyond. Below the 5 m line the 4 mm lens crops too tightly and you lose situational context; above it, the 2.8 mm spreads pixels too thinly to reach Identification standard (250 px/m) on a face.
Smart Hybrid Light /SL: when to upgrade to active deterrence
The /SL variants (DS-2CD23166G3-IS2UY/SL and DS-2CD23126G3-IS2UY/SL) add three things on top of the standard turret: a Smart Hybrid Light combining IR with white-light, a built-in strobe, and an audible warning speaker for active deterrence[3]. Specify them where the brief calls for visible response to an AcuSense trigger — out-of-hours retail, yard sites, isolated rural homes — rather than silent recording.
The /SL premium adds roughly £30–£40 over the standard turret depending on the day's pricing — check the live DS-2CD23166G3-IS2UY/SL listing for the current rate. For installers running deterrent strategies wider than CCTV alone (think Ajax sirens, audible perimeter), the camera-side strobe is a useful belt-and-braces backup against connectivity failures: it triggers locally even if the hub or NVR is offline.
Bandwidth and storage: what the extra megapixels cost in practice
At H.265+ with default smart codec settings, a single 16MP turret produces roughly 5–6 Mbps on a typical scene and a 12MP turret produces 4–5 Mbps for the same activity. Over 30 days of continuous recording, that means roughly 1.6 TB for the 16MP versus 1.2 TB for the 12MP per channel — an extra 400 GB per camera per month.
| Channel count | All 12MP — 30-day store | All 16MP — 30-day store | Recommended NVR |
|---|---|---|---|
| 4-channel home/SMB | ~4.8 TB | ~6.4 TB | DS-7604NXI-K1/4P(D) |
| 8-channel SMB | ~9.6 TB | ~12.8 TB | DS-7608NXI-I2/8P/VPRO |
| 16-channel commercial | ~19 TB | ~26 TB | DS-7616NXI-I2/16P/VPRO |
| 32-channel large site | ~38 TB | ~52 TB | DS-7732NXI-I4/16P/VPRO |
The figures assume 24/7 continuous recording, H.265+ smart codec, no motion-only event recording. Switching to AcuSense-triggered event recording typically halves these numbers because the camera only writes when a person or vehicle is detected. For a full breakdown of NVR sizing, channel limits and HDD pairing options, see the AcuSense NVR sizing guide.
NVR pairing: which Hikvision recorder handles 16MP cleanly
Both cameras are H.265+ ONVIF devices and will plug-and-play into any K-series or VPRO NVR that supports up to 12MP recording. The K-series budget recorders cap each channel at 12MP, so they will downscale a 16MP stream to fit — fine for entry-level installs but you lose the extra vertical detail you paid for. To preserve the full 16MP record, use a VPRO NVR.
The VPRO range — DS-7608NXI-I2/8P/VPRO, DS-7616NXI-I2/16P/VPRO, DS-7716NXI-I4/16P/VPRO and DS-7732NXI-I4/16P/VPRO — supports 32MP/12MP recording with 256 Mbps incoming bandwidth and adds AcuSeek text-based footage search across up to 16 channels, which is the easiest way to pull a clip back from 30 days of 16MP archive without scrubbing[4]. Both cameras also work with the older K-series at 12MP cap if you are slotting them into an existing recorder.
For mixed installs — some 16MP, some 12MP, some 8MP — the VPRO works without re-channel-balancing. Add a 12MP camera now and switch it to a 16MP DS-2CD23166G3 next year and the NVR will keep recording without configuration change.

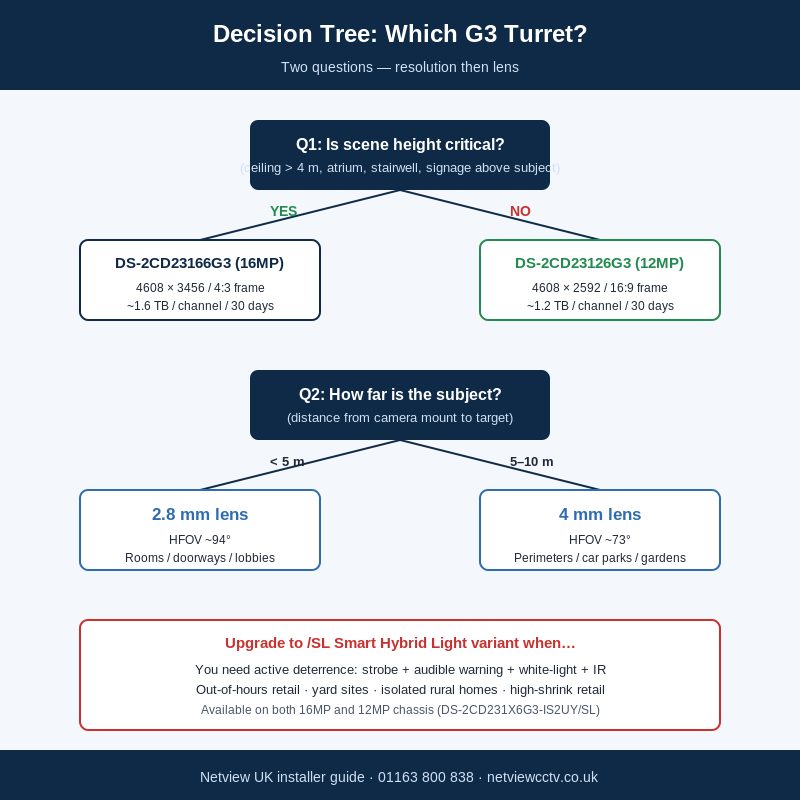

Quick decision matrix
| Site or scene | Recommended camera | Why |
|---|---|---|
| Warehouse / atrium (4 m+ ceilings) | 16MP DS-2CD23166G3 | Captures floor-to-ceiling in one stream |
| Reception with overhead signage | 16MP DS-2CD23166G3 | 4:3 frame keeps signage and visitors in shot |
| Stairwell (top mount looking down) | 16MP DS-2CD23166G3 | Extra vertical FOV covers two flights |
| Driveway / car park | 12MP DS-2CD23126G3 | 16:9 frame matches scene, saves storage |
| Residential garden / perimeter | 12MP DS-2CD23126G3 | Wider than tall, cheaper to store |
| Out-of-hours retail with active deterrent | /SL variant (either MP) | Smart Hybrid Light + strobe + audible warning |
| High-mount forensic recording (5 m+) | 16MP DS-2CD23166G3 | Vertical pixels stay usable when subject walks under |
| Mixed fleet replacing 8MP ColorVu | 12MP DS-2CD23126G3 | Same 16:9 aspect as existing fleet |
Commissioning notes — both cameras
Both G3 turrets onboard identically in iVMS-4200, the Hikvision Configuration Tool (HCP Pro) and a VPRO NVR's “Plug & Play” flow over PoE. The first-boot password setup follows the standard SADP route — see the Hikvision Tools Hub for SADP, Batch Config and Password Reset Tool downloads. Firmware comes from the standard Hikvision firmware portal — both cameras share the G3 family firmware branch, so they update together.
One installer tip: for the 16MP variant, drop the main-stream resolution to 4K (3840 × 2160) if your NVR only records up to 12MP. You lose the 4:3 height advantage but you get an even, 16:9 4K image that plays cleanly on every Hik-Connect client.
Pricing and availability at Netview
All 12 SKUs across the 16MP and 12MP G3 turret range — 2.8 mm and 4 mm lens options, white and black housings, standard and /SL Smart Hybrid Light variants — are stocked at Netview Leicester for same-day dispatch. Trade pricing for installers is set on a per-account basis; call 01163 800 838 or email the office for a quote on multi-camera installs.
For the full installer reference on this G3 family — including the model matrix, model-by-model SKU breakdown and the deeper commissioning sequence — see our Hikvision 16MP & 12MP AcuSense DarkFighter installer guide. To choose between AcuSense and ColorVu sister cameras, see the AcuSense vs ColorVu comparison. For the wider AcuSense story across cameras and NVRs, the AcuSense complete guide is the place to start.
FAQ — Hikvision 16MP vs 12MP G3 turret
Is the 16MP DS-2CD23166G3 worth the upgrade over the 12MP?
The 16MP turret is worth specifying when scene height matters — high ceilings, atriums, stairwells, lobbies with overhead signage. The extra megapixels do not improve detail at a given subject; they extend the frame vertically. On standard wall-mount perimeter shots the 12MP DS-2CD23126G3 is the better commercial choice.
Will the DS-2CD23166G3 work with my existing Hikvision NVR?
Any Hikvision K-series or VPRO NVR with 12MP-capable channels will accept the camera. K-series recorders downscale the 16MP main stream to 12MP, so to preserve full 16MP recording you need a VPRO model — DS-7608/7616/7716/7732NXI-I2/I4/VPRO are the current range. Both cameras are ONVIF-compliant if you are mixing with non-Hikvision recorders.
How much extra storage does a 16MP turret need over a 12MP?
At H.265+ default settings expect roughly 25–33% more storage on the 16MP. Per channel, 30 days of 24/7 recording is around 1.6 TB on the 16MP versus 1.2 TB on the 12MP. Switching to AcuSense-event-only recording typically halves both figures.
What is the difference between the /SL variant and the standard turret?
The /SL adds Smart Hybrid Light (IR plus white light), a strobe and an audible alarm speaker for active deterrence. Use the /SL where the brief requires visible response to a detection event — out-of-hours retail, yards, isolated rural sites. Use the standard turret where silent forensic recording is the goal.
Do I need a varifocal lens — neither of these is motorised?
Both cameras are fixed-focal lenses (2.8 mm or 4 mm). If you need motorised zoom or remote re-aiming, look at the DS-2CD2346G3-IZ2UY varifocal in the same G3 family. For the vast majority of fixed-mount installs the 2.8 mm covers under 5 m subject distance and the 4 mm covers 5–10 m comfortably.
What is the colour low-light performance like in practice?
Both share the 1/1.8" sensor and report 0.0008 lux colour minimum illumination at F1.6 — that is moonlight-level colour capture before IR cut-in. AcuSense Powered by DarkFighter holds usable colour down into deep dusk; below that, the camera switches to IR mono (the /SL variant can hold colour longer using its white-light supplement).
Can I order today and have it on site tomorrow?
Yes — all 12 G3 SKUs across the 16MP and 12MP range are held in stock at Netview Leicester. Orders placed before the cut-off ship same day for next-working-day delivery in the UK. For trade pricing or a quote on a multi-camera install, call 01163 800 838.
