Reyee Outdoor Access Points: The UK Installer's Guide to Outdoor Wi-Fi
Published 18 June 2026 · Last updated 18 June 2026 · Netview Technical Team
Reyee outdoor access points bring weatherproof, cloud-managed Wi-Fi to the places an indoor AP would not survive a week — car parks, builders' yards, holiday parks, loading bays and perimeter fence lines. For installers, that means one product family you can specify for site Wi-Fi, guest hotspots and wireless-camera backhaul, all managed free from the same Ruijie Cloud dashboard as the customer's switches and gateway. This guide walks through the full Reyee outdoor range, from the Wi-Fi 5 budget units to the new Wi-Fi 7 flagship, explains how to power and backhaul them, and shows where each model earns its place. Every access point linked below is held in stock at our Leicester trade counter for same-day dispatch.
At a glance
- What they are: sealed, high-gain Ruijie Reyee APs rated IP65 or IP68 for permanent outdoor use.
- The range: Wi-Fi 5 (RG-RAP52-OD) through Wi-Fi 6 (RG-RAP6262, RG-RAP6260(H)) to Wi-Fi 7 (RG-RAP72Pro-OD).
- Coverage: up to 300 m radius at 5 GHz and 100 m at 2.4 GHz on the high-gain RAP6260/6262 models.
- Built tough: IP68 sealing, 4 kV surge protection and a −30 °C to +65 °C operating range on the flagship omni units.
- Powering: 802.3af/at PoE in, with SFP fibre or a wireless bridge for backhaul where there is no cable run.
- Management: free lifetime Ruijie Cloud, Reyee Mesh and self-organising networking — no controller, no licence fees.
What are Reyee outdoor access points?
Reyee outdoor access points are weatherproof wireless APs from Ruijie's Reyee SMB range, built into sealed enclosures with high-gain antennas so they can deliver reliable Wi-Fi in open and exposed locations. Where an indoor ceiling AP is rated for a dry, climate-controlled room, an outdoor unit such as the RG-RAP6262 is completely sealed and tested waterproof, dustproof, moisture-proof and flame-retardant, with wide-temperature operation and 4 kV surge protection on the Ethernet port (Ruijie Reyee RG-RAP6262). That hardened build is what lets you mount one on a gable wall, a lamp post or a fence and forget about it. The whole range runs on Ruijie's free cloud platform, so an outdoor AP joins the same managed network as the customer's Reyee switches, gateway and indoor APs.

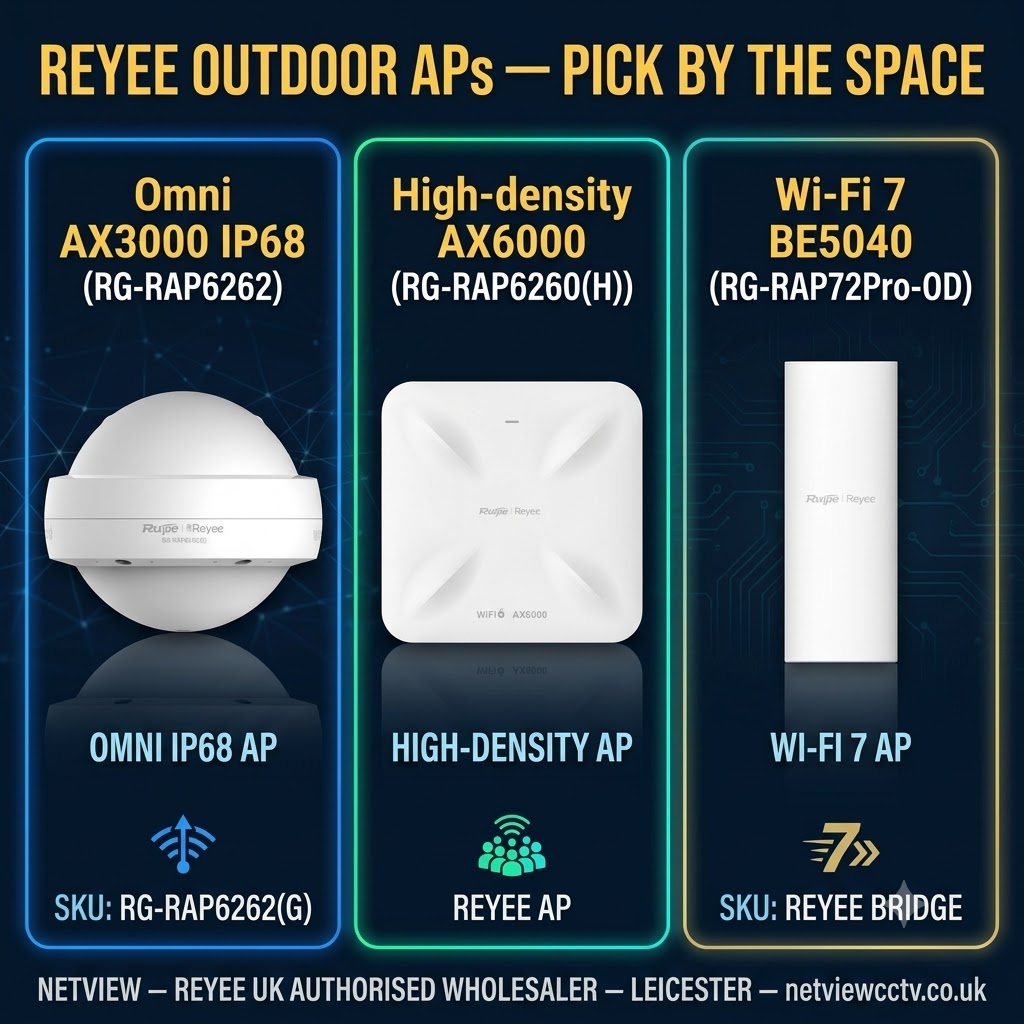

The Reyee outdoor AP range at a glance
The Reyee outdoor line spans entry-level Wi-Fi 5 right up to Wi-Fi 7, so there is a unit for everything from a small yard to a high-density public car park. The table below is the quick decision shortlist; each model links to the live stocked product page.
| Model | Wi-Fi | Peak rate | Sealing | Uplink | Best for |
|---|---|---|---|---|---|
| RG-RAP72Pro-OD | Wi-Fi 7 | 5040 Mbps | IP65 | 2.5 GbE PoE+ | Future-proofing a flagship outdoor space |
| RG-RAP6260(H) | Wi-Fi 6 | 5.95 Gbit/s | IP68 | 2.5 GbE + SFP | High-density crowds, omni-directional |
| RG-RAP6260(H)-D | Wi-Fi 6 | 5.95 Gbit/s | IP68 | 2.5 GbE + SFP | Long, narrow coverage — roads, fence lines |
| RG-RAP6262 | Wi-Fi 6 | 2.976 Gbit/s | IP68 | 1 GbE + SFP | The all-round omni workhorse |
| RG-RAP6260(G) | Wi-Fi 6 | AX1800 | IP68 | 1 GbE | Mid-range omni coverage on a budget |
| RG-RAP6262(G) | Wi-Fi 6 | AX1800 | IP68 | 2 GbE | Value IP68 omni with dual LAN |
| RG-RAP62-OD | Wi-Fi 6 | 2.974 Gbit/s | IP65 | 1 GbE | Compact mixed indoor/outdoor use |
| RG-RAP6202(G) | Wi-Fi 5 | AC1300 | IP68 | 2 GbE | Budget IP68 coverage, legacy clients |
| RG-RAP52-OD | Wi-Fi 5 | AC1300 | Weatherproof | 1 GbE | Lowest-cost outdoor coverage |
For the indoor ceiling and wall APs that sit alongside these outdoor units, see our companion Reyee Wi-Fi 7 AP guide, which covers the RG-RAP72, RG-RAP72Pro and RG-RAP73Pro indoor range.
Which Reyee outdoor AP should you choose?
Match the AP to the shape of the space and the client load, not just the headline speed. For an open car park, forecourt or yard where users are spread in all directions, the omni-directional RG-RAP6262 is the default — Wi-Fi 6 AX3000, IP68, and a fibre uplink option for long runs. Where the same open space gets genuinely busy, such as an event car park or a holiday park, step up to the AX6000 RG-RAP6260(H) for its 4×4 MU-MIMO capacity. For a long, narrow target — an access road, a quay, a run of fencing — the directional RG-RAP6260(H)-D focuses the same AX6000 radio down a beam instead of wasting it sideways. On tighter budgets the RG-RAP6262(G) and Wi-Fi 5 RG-RAP6202(G) keep the IP68 build, and the compact RG-RAP62-OD suits a small canopy, porch or covered loading bay that blurs the line between indoors and out.
Wi-Fi 6 vs Wi-Fi 7 outdoors: RG-RAP6262 vs RG-RAP72Pro-OD
Choose Wi-Fi 6 for proven value and a fibre uplink, and Wi-Fi 7 where the client wants the longest future-proofing and the fastest single links. The Wi-Fi 6 RG-RAP6262 delivers up to 2.976 Gbit/s (574 Mbps at 2.4 GHz plus 2402 Mbps at 5 GHz) from five built-in high-gain antennas, with a 100 m radius at 2.4 GHz and 300 m at 5 GHz, one Gigabit PoE-in port (802.3at) and one SFP slot that supports single-mode fibre up to 20 km (Ruijie Reyee RG-RAP6262). The Wi-Fi 7 RG-RAP72Pro-OD pushes to 5040 Mbps with five spatial streams and adds Multi-Link Operation (MLO), so a client can use the 2.4 GHz and 5 GHz bands at once for higher throughput and steadier connections, fed by a 2.5 GbE PoE+ port (Ruijie Reyee RG-RAP72Pro-OD). The trade-off is sealing: the RAP6262 is IP68 where the RAP72Pro-OD is IP65 — both fine for UK weather, but worth noting for fully exposed coastal or wash-down sites.
Omni-directional vs directional: covering a yard vs a fence line
Use an omni-directional AP to blanket an open area and a directional AP to project coverage along a line. The omni RG-RAP6260(H) carries eight built-in high-gain antennas and a dual-band 4×4 MU-MIMO radio rated at up to 5.95 Gbit/s (1148 Mbps at 2.4 GHz plus 4804 Mbps at 5 GHz), with both a 2.5 GbE copper uplink and an SFP fibre port so you can backhaul over copper or fibre up to 20 km (Ruijie Reyee RG-RAP6260(H)). Its directional twin, the RG-RAP6260(H)-D, runs the same AX6000 radio but concentrates the pattern, which is what you want pointing down a service road, along a perimeter or across a long thin compound where an omni would simply spill signal into neighbouring properties. Both share the same IP68 sealing and 4 kV surge protection as the rest of the high-end range.
IP65, IP68 and surviving the British weather
For permanent UK outdoor mounting you want at least IP65, and IP68 where the unit is fully exposed with no shelter. IP65 means the enclosure is dust-tight and protected against low-pressure water jets from any direction; IP68 adds protection against prolonged immersion, which is the rating Ruijie gives the RG-RAP6262 and RG-RAP6260(H) alongside a wide −30 °C to +65 °C operating range and 4 kV surge protection on the wired port (Ruijie Reyee RG-RAP6262). That surge rating matters in Britain as much as the waterproofing: an exposed AP on a long Cat 6 run is a lightning and transient magnet, and built-in surge protection plus a proper earth is your first line of defence. The compact RG-RAP62-OD is IP65 and accepts both 802.3af/at PoE and 24 V passive PoE, making it a flexible pick for covered but unheated spaces (Ruijie Reyee RG-RAP62-OD).
Powering and backhauling an outdoor AP
Most Reyee outdoor APs are powered over the data cable by 802.3at PoE, so the cleanest install is a single Cat 6 run from a PoE switch. A compact unit like the eight-port RG-ES110D-P powers a couple of APs and a few cameras from one box, and our Reyee PoE switch sizing guide helps you budget the watts. Where you only need to energise a single AP at the end of an existing data run, the RG-POE-AT30 Gigabit PoE+ injector does the job. Backhaul is the other half of the equation: the RAP6260 and RAP6262 omni units take an SFP module for fibre over distances a copper run cannot reach, while a site with no cable path at all can be fed by a wireless bridge such as the RG-EST350G — see our Reyee wireless bridges guide for the point-to-point options.
Reyee Mesh, Ruijie Cloud and free lifetime management
Every Reyee outdoor AP is managed free for life through Ruijie Cloud, with no controller hardware and no per-device licence. Ruijie offers free lifetime use of all Ruijie Cloud basic features on its cloud-managed devices, giving you remote multi-site visibility, alerts and firmware management from a browser or the mobile app (Ruijie Cloud). On site, Reyee Mesh lets you add an extra AP without pulling a new cable, and the self-organising network (SON) feature auto-configures a new unit into the existing wireless network so a second or third AP inherits the settings of the first. For installers running estates of small sites, that combination — free cloud, wireless mesh expansion and zero-touch onboarding — is the real reason to standardise on Reyee; our Reyee Cloud remote multi-site guide shows the dashboard in practice.
How outdoor Wi-Fi supports your CCTV installs
Outdoor Wi-Fi is a natural add-on for a CCTV installer, because the same sites that need cameras almost always need connectivity too. A reliable outdoor AP gives wireless cameras and temporary site cameras a solid link, provides the network behind gate intercoms and ANPR at the entrance, and offers guest or operational Wi-Fi for staff tablets, EPOS and access control on a yard or forecourt. Because Reyee APs, switches and gateways all share Ruijie Cloud, you can hand the customer one managed network instead of stitching together kit from three vendors — and you keep the maintenance relationship across all of it. Where the wider network needs VLAN segmentation and routing to keep cameras, guest Wi-Fi and the till system apart, the managed-switch and gateway side is covered in our Reyee managed switches guide and Reyee EG-series gateway guide.

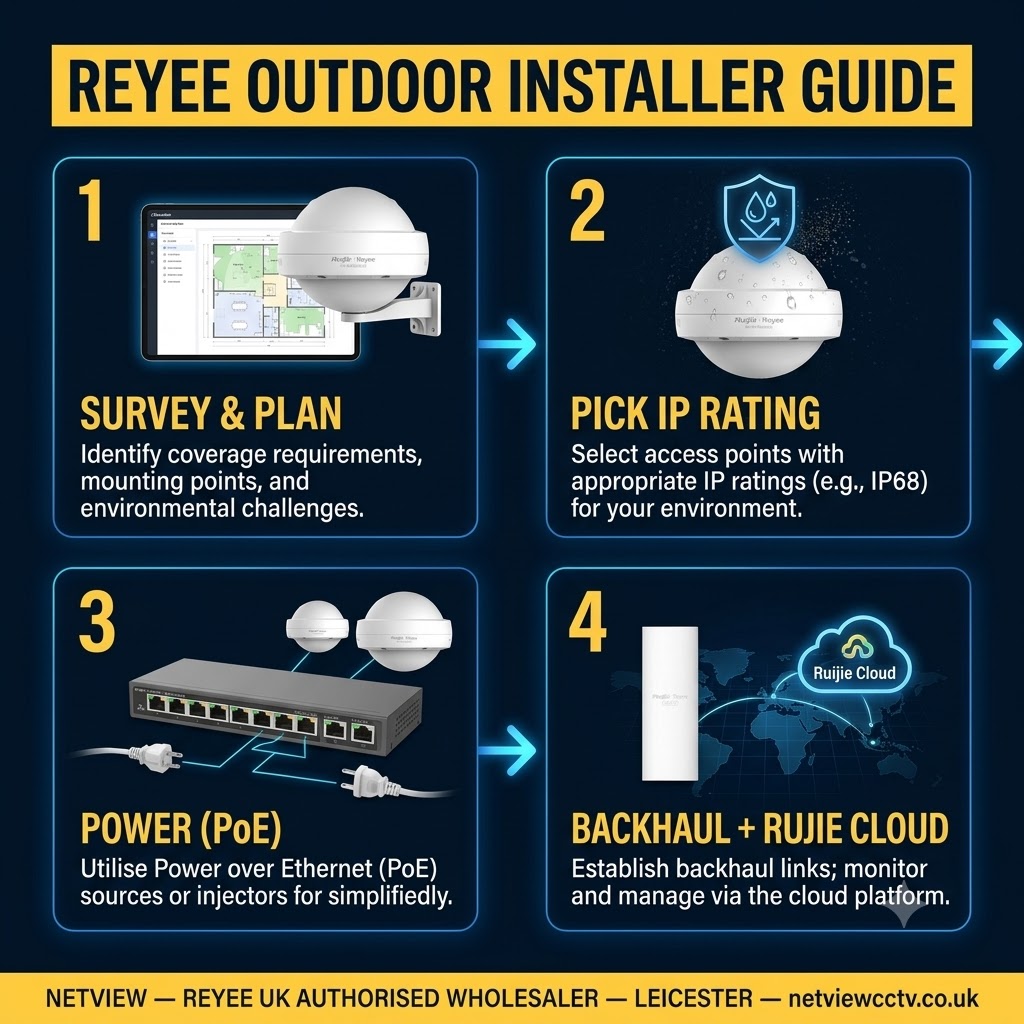

Outdoor AP installation best practice
A good outdoor AP install is as much about mounting and protection as it is about the radio. Mount the unit high enough to clear vehicles and obstructions but within the reach of your coverage plan, and angle a directional unit with a slight downtilt towards the users rather than over their heads. Earth the bracket and use an outdoor-rated, shielded cable with a weatherproof RJ45 boot at the AP, then drip-loop the cable so water runs away from the gland rather than into it. Keep PoE runs within the 100 m Ethernet limit — reach for fibre or a wireless bridge beyond that — and budget the switch's total PoE wattage to cover every powered device, not just the APs. Finally, plan channels: on a multi-AP site, fix non-overlapping channels and sensible transmit power in Ruijie Cloud rather than leaving everything on auto at full power, which only makes neighbouring APs shout over each other.
Frequently asked questions
What is the difference between an outdoor access point and a wireless bridge?
An outdoor access point serves Wi-Fi to phones, tablets, cameras and laptops in an area, whereas a wireless bridge carries a network link between two fixed points where you cannot run cable. You often use both together: a bridge backhauls the connection to a remote building, and an outdoor AP there provides the local Wi-Fi. Our Reyee wireless bridges guide covers the point-to-point side.
Can Reyee outdoor access points mesh wirelessly?
Yes. Reyee Mesh lets you add an extra AP without running a new cable, with the new unit linking back wirelessly and inheriting the network settings automatically through the self-organising network feature. A wired backhaul is always preferable for capacity, but mesh is useful for filling a gap quickly or where cabling is impractical.
Do I need a controller or a paid licence to manage them?
No. Reyee outdoor APs are managed free for life on Ruijie Cloud, with no separate controller appliance and no per-device subscription for the basic feature set. You can also manage a unit locally through its own web interface or the Reyee app if a site has no internet.
What IP rating do I need for UK outdoor use?
IP65 is the practical minimum for a permanently mounted outdoor AP, and it covers most sheltered and semi-exposed positions. Choose IP68 models such as the RG-RAP6262 or RG-RAP6260(H) for fully exposed mounting, coastal sites or anywhere standing water and driving rain are likely.
How far will a Reyee outdoor AP reach?
The high-gain RG-RAP6262 and RG-RAP6260(H) are rated for a coverage radius of up to 100 m at 2.4 GHz and 300 m at 5 GHz in open conditions. Real-world range depends on obstructions, interference and client device strength, so plan for less in built-up areas and validate coverage on site.
Can I power a Reyee outdoor AP from any PoE switch?
As long as the switch supplies the right standard and budget — most need 802.3at PoE+, and the Wi-Fi 7 RG-RAP72Pro-OD uses a 2.5 GbE PoE+ port. A Reyee PoE switch such as the RG-ES110D-P or a single RG-POE-AT30 injector is the simplest match, and you should always size the total switch PoE wattage against every device it powers.
Order Reyee outdoor APs from a UK authorised wholesaler
Netview is an authorised Ruijie Reyee wholesaler holding the outdoor access point range in stock in Leicester, with same-day dispatch on stocked lines for trade and retail customers. Browse APs, PoE switches and bridges and order online.
Shop the range at netviewcctv.co.ukPublished 18 June 2026. Specifications are drawn from the manufacturer datasheets and product pages linked above and were correct at the time of writing; always confirm current specifications against the latest Ruijie Reyee documentation before quoting.
