HiLook IPC-T240H & HiLook IPC-T249HA-LU 4MP Turret Camera: UK Installer Review
At a glance
- Camera: HiLook IPC-T240H — 4 MP fixed-lens IP turret, value tier of the HiLook range.
- Resolution: 1/3" CMOS, up to 2560 × 1440 at 20 fps, dual stream, H.265+/H.265/H.264+/H.264.
- Optics: Fixed 2.8 mm (≈98° HFoV) or 4 mm (≈79° HFoV); F2.0 aperture; ICR.
- Low-light: 0.01 lux colour, 0 lux with IR; smart IR up to 30 m at 850 nm.
- Build: IP67, 120 dB WDR, 3D DNR, PoE (802.3af, Class 3) or 12 VDC.
- UK availability: The classic IPC-T240H is end-of-line at Netview. We stock the direct successor — the HiLook IPC-T249HA-LU 4 MP Smart Hybrid ColorVu turret with built-in mic — same 30 m IR, lifted ColorVu/Hybrid Light, sharper low-light performance and human/vehicle classification.
This guide is written for UK CCTV installers and informed end users specifying budget 4 MP turrets in 2026. We cover the HiLook IPC-T240H spec sheet, where it still fits, where it falls short, and the in-stock alternatives Netview ships next-day from Leicester.
What is the HiLook IPC-T240H?
The HiLook IPC-T240H is a 4 MP outdoor IP turret camera in HiLook's "Value" range — Hikvision's sister brand for the SMB and residential market. It is the budget step up from the 2 MP IPC-T220H and sits below the 5 MP IPC-T250H and the newer 4 MP IPC-T249HA-LU Smart Hybrid version.
The "T" denotes a turret form factor (eyeball housing); "240" indicates 4 MP; the "H" suffix is HiLook's H.265 generation. Two variants exist by lens: IPC-T240H(2.8 mm) for wide indoor/perimeter coverage and IPC-T240H(4 mm) for narrower, longer-throw scenes. Both ship in white plastic with the same internal sensor and electronics.
For a long stretch the IPC-T240H was the default choice for low-cost 4 MP IP installs across UK SMB sites — schools, small retail, domestic boundary cameras. Hikvision has since refreshed the line with the IPC-T249HA-LU Hybrid ColorVu, which is now the active stock-line for installers who want like-for-like 4 MP coverage with modern features.
HiLook IPC-T240H specifications at a glance
Specifications below are drawn directly from the Hikvision HiLook IPC-T240H product page and the published European datasheet.
| Item | IPC-T240H specification |
|---|---|
| Image sensor | 1/3" progressive scan CMOS |
| Maximum resolution | 2560 × 1440 (4 MP) |
| Frame rate | 20 fps at 2560 × 1440 (main stream, 50 Hz / 60 Hz) |
| Lens options | 2.8 mm or 4 mm fixed; aperture F2.0 |
| Field of view (2.8 mm) | H 98.0°, V 53.1°, D 114.7° |
| Field of view (4 mm) | H 78.7°, V 43.1°, D 92.3° |
| Minimum illumination | 0.01 lux @ F2.0, AGC ON; 0 lux with IR |
| IR range | Up to 30 m, 850 nm, smart IR |
| WDR | 120 dB digital WDR |
| Codecs | H.265+ / H.265 / H.264+ / H.264, dual stream |
| Power | PoE (IEEE 802.3af, Class 3, 36–57 V) or 12 VDC |
| Weatherproofing | IP67 |
| Operating temperature | −30 °C to +60 °C (90% RH non-condensing) |
Frame rate is the headline limit installers must plan around: 4 MP at 20 fps, not 25 fps. For most UK monitoring scenes 20 fps is more than enough, but on access-control or ANPR-adjacent installs the lack of full-rate is a tangible downside that's been lifted on newer 4 MP HiLook cameras.
Image quality and night vision: what 30 m IR really delivers
The IPC-T240H pairs a 1/3" 4 MP CMOS with an 850 nm IR LED array rated for 30 m. In the field, useful identification range with default settings sits at around 12–18 m on a typical UK domestic boundary; 30 m is the detection ceiling, not an identification distance. Hikvision's smart IR throttles output as the subject approaches to prevent face wash-out, which works well for door-step and gate scenes.
120 dB digital WDR is the right thing to read carefully — this is image-stacking WDR, not the true-WDR sensor pipeline you get on Hikvision Pro AcuSense (DarkFighter) cameras. It handles backlit doorways and porch lights well; it does not solve direct-sun-into-lens scenes the way a Pro-tier camera does.
For UK installs where night colour is a deal-breaker (forecourts, car parks, hospitality venues), the IPC-T240H is the wrong starting point — its IR-only night mode produces a black-and-white image. The newer IPC-T249HA-LU Smart Hybrid ColorVu turret is the like-for-like 4 MP successor that adds full-colour 24/7 imagery, and the 8 MP IPC-T280HA-LUF/SL Live-Guard adds a strobe and audio warning for proactive deterrence.

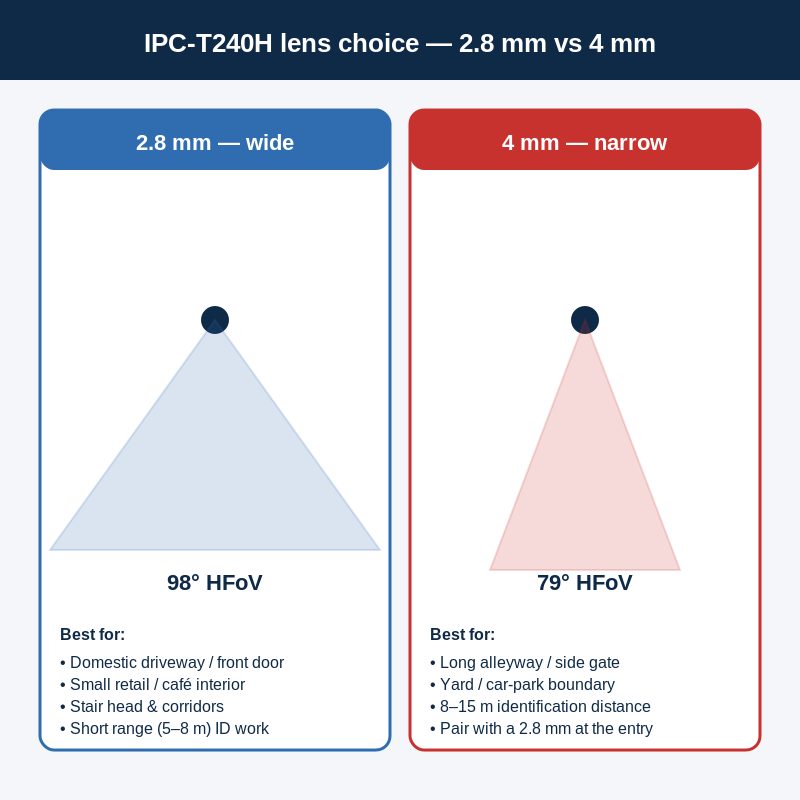

Lens choice — 2.8 mm vs 4 mm field of view
The two lens variants share identical electronics; the choice is purely about coverage geometry.
| Scene | Best lens | Why |
|---|---|---|
| Domestic driveway / front door (5–8 m) | 2.8 mm | ≈98° HFoV captures the whole front aspect; minimal blind spots. |
| Small retail / café interior | 2.8 mm | Wide coverage from a single corner mount. |
| Long alleyway / side gate (8–15 m) | 4 mm | Narrower 79° HFoV pushes pixel density to the far end of the scene. |
| Car park boundary or yard | 4 mm | Better number-plate readability at distance; pair with a second 2.8 mm at the entry. |
| Stair/corridor head | 2.8 mm | Vertical 53° catches face height even close to the camera. |
Rule of thumb: aim for 250–300 PPM (pixels per metre) at the identification zone. At 4 MP the IPC-T240H gives you roughly that range out to about 8 m on the 2.8 mm and 12 m on the 4 mm. Beyond that, step up to a 5 MP or 8 MP HiLook turret or move to a Hikvision Pro motorised varifocal.
Installation, PoE and weatherproofing
The IPC-T240H draws under 5 W on PoE — class 3 (12.95 W max). On a typical 8-channel DS-7608NXI-I2/8P-VPRO or HiLook DVR PoE port, headroom is comfortable; you can power eight T240Hs from the recorder's built-in switch without external injection.
Run lengths follow the standard 100 m Cat5e/Cat6 rule. For runs over 90 m we still recommend a Cat6 outdoor-rated cable and a verified PoE budget at the switch — the camera itself will negotiate down to 57 V minimum at the input, but cable resistance can push voltage at the camera below the spec window on long, thin or wet runs.
The turret housing is IP67. The supplied gland and base seal handle UK weather provided the cable tail is dressed downward and the plug is properly soaked in self-amalgamating tape on flush soffit installs. The plastic base is the weak point of the camera and breaks easily if over-tightened — torque the M4 base screws by hand, not with an impact driver.
Codecs, bandwidth and storage planning
H.265+ is the codec of choice on every modern install — it cuts bitrate roughly 50% versus H.264 at the same perceptual quality. At 4 MP / 20 fps / VBR / quality "Higher" the IPC-T240H sits around 2–3 Mbps average and 6–8 Mbps peak.
For a 4-camera install streaming 24/7 at H.265+ that's about 1.0–1.5 TB per camera per month; an 8 TB recorder gives you 60–80 days of footage with motion-event spikes. We size our DVR/NVR recommendations around 90 days as a UK installer baseline because that aligns with most insurer review windows.
One catch worth flagging: not every third-party VMS has full H.265+ decode without licensing. If you're feeding footage into Milestone, Genetec or Avigilon Unity, drop the cameras to plain H.265 to avoid headaches. For Hikvision-native recorders (NXI/HQHI series) and the free iVMS-4200 client, H.265+ runs without licensing.

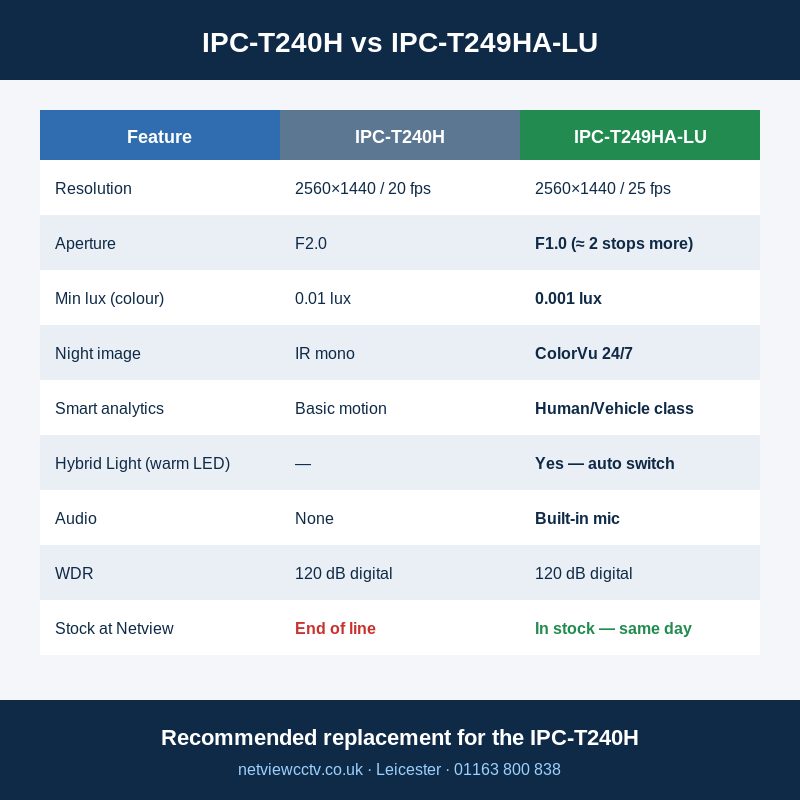

HiLook IPC-T240H vs IPC-T249HA-LU — the modern upgrade path
The IPC-T249HA-LU is the active replacement Netview supplies in 2026 when an installer asks for "the 4 MP HiLook turret". Same form factor, same mounting hole pattern, same RJ45 + PoE wiring — but a substantial step forward on imaging.
| Feature | IPC-T240H | IPC-T249HA-LU |
|---|---|---|
| Resolution | 4 MP (2560 × 1440 @ 20 fps) | 4 MP (2560 × 1440 @ 25 fps) |
| Aperture | F2.0 | F1.0 (≈ 2 stops more light) |
| Min. illumination (colour) | 0.01 lux @ F2.0 | 0.001 lux @ F1.0 (Smart Hybrid Light) |
| Night mode | IR only — black & white | ColorVu + IR + warm LED — full-colour 24/7 |
| Smart analytics | Basic motion + Region/Line cross | Smart human/vehicle classification |
| Audio | None on board | Built-in microphone |
| Hybrid light | — | Yes — switches IR ↔ warm LED on event |
| WDR | 120 dB digital | 120 dB digital |
| Stock at Netview | End-of-line | In stock, same-day dispatch |
The biggest practical jump is the F1.0 aperture and Smart Hybrid Light, which together turn the camera from a budget IR turret into a 24/7 colour camera that auto-switches to white light on a motion event. For domestic doorbell-replacement installs and small retail front-of-store, this is now the right specification at the same trade price band.
Recommended NVR pairings
The IPC-T240H is an IP camera (RJ45 + PoE), so it does not pair with HiLook DVRs — those take BNC AoC inputs. The right recorder companions are the Hikvision NXI NVR family or the older HiLook NVR range.
For UK SMB installs we standardise on three Hikvision NVR sizes:
- 4 cameras or fewer: DS-7604NXI-K1/4P/(D) — 4-channel, built-in 4-port PoE switch, AcuSense classification on board.
- 5–8 cameras: DS-7608NXI-I2/8P-VPRO — 8-channel VPRO with 8-port PoE, ANR, and dual SATA bays for 8 + 8 TB capacity.
- 9–16 cameras: DS-7616NXI-I2/16P-VPRO — 16-channel VPRO with 16-port PoE, dual SATA, full Smart Search and HCP Pro integration.
If the customer is staying on coax (existing AoC site refurb, no Cat6 pulled), drop the IPC-T240H entirely and specify the BNC HiLook ColorVu range — THC-T159-MS 3K ColorVu or THC-T250-MS 5 MP — paired with a DVR-208Q-M1(E) or DVR-216Q-M1/T recorder.
Where the IPC-T240H fits in the current Netview HiLook range
For 2026 we map it like this:
| Resolution / niche | In-stock HiLook turret |
|---|---|
| 2 MP entry-level IP | IPC-T229HA-LU |
| 4 MP value (T240H replacement) | IPC-T249HA-LU |
| 8 MP / 4K Live-Guard | IPC-T280HA-LUF/SL (2.8 mm) or 4 mm |
| 8 MP 180° panoramic | IPC-T280HAD-LUF/SL |
| 2 MP AoC ColorVu (BNC) | THC-T129-MS |
| 3K AoC ColorVu (BNC) | THC-T259-MS |
| 5 MP AoC (BNC) | THC-T250-MS |
The IPC-T240H itself can still be sourced from clearance channels, but Netview no longer carries it as an active line — the IPC-T249HA-LU is the priced-equivalent replacement and ships next-day from our Leicester warehouse.
Frequently asked questions
Is the HiLook IPC-T240H an AcuSense camera?
No. AcuSense is a Hikvision Pro-range feature that adds on-camera deep-learning classification of humans and vehicles. The HiLook value range — including the T240H — uses simpler motion detection and basic line/region rules. If you need installer-friendly false-alarm reduction, step up to a VPRO NVR running NVR-side AcuSense, or specify a Hikvision Pro AcuSense camera instead.
Does the IPC-T240H support ColorVu or Hybrid Light?
No. ColorVu and Hybrid Light land on the IPC-T249HA-LU and the 8 MP IPC-T280HA-LUF/SL Live-Guard. The T240H is monochrome at night, lit by the on-board IR LEDs only.
Can I use the IPC-T240H on a HiLook DVR?
No. HiLook DVRs accept analog/AoC inputs over coax. The IPC-T240H is an IP camera — you need a HiLook NVR or a Hikvision NXI NVR. For mixed-installation refits, swap the camera for a BNC equivalent like the THC-T159-MS.
What's the maximum micro SD card the IPC-T240H accepts?
The IPC-T240H supports a 256 GB micro SD card slot for on-board edge recording — useful for short-buffer event-only retention, not as a primary recorder.
Does the IPC-T240H support Hik-Connect P2P?
Yes — once it's added to a HiLook or Hikvision NVR, it surfaces in Hik-Connect for the customer's mobile app. Direct camera-to-app P2P also works for small standalone installs.
Is the IPC-T240H NDAA compliant?
No. Hikvision and HiLook fall inside the US NDAA Section 889 covered-list scope. For UK installers serving central-government-funded sites or US-hosted clients, see our NDAA UK installer guide for compliant alternatives.
Spec sheets, firmware and tools
Two housekeeping links UK installers ask for most often:
- HiLook & Hikvision firmware hub — current builds, regional notes and the SADP route for offline upgrades.
- Hikvision Tools Hub — SADP, Batch Config, password reset and the desktop tools you'll need to commission a HiLook fleet.
Buying from Netview
Netview is a Hikvision and HiLook authorised UK wholesaler. We hold every active HiLook IP turret line in stock at our Leicester warehouse for same-day dispatch on orders placed before 3 pm Mon–Fri.
Trade installer? Open a trade account online or call our team on 01163 800 838 for project pricing, BoM review or technical pre-sales support. Direct-to-public buyers — order from netviewcctv.co.uk and we'll ship next working day.
Last updated: 28 April 2026.
