Hikvision ANPR Cameras: 2026 UK Installer Guide
Hikvision ANPR cameras read vehicle number plates automatically and act on them in real time — opening a barrier, logging a visit, or triggering an alert against a watch list. This 2026 UK installer guide explains the current Hikvision ANPR camera range, from the DeepinView bullet cameras through the new Guanlan large-model models to the purpose-built iDS-TCM403 traffic series, and helps you match the right model to car parks, gated sites and access-control jobs. Every camera below is in stock at Netview for same-day dispatch.
At a glance
- What it is: a camera with a built-in number-plate recognition (ANPR/LPR) engine that reads plates on-board, no separate server needed.
- Best all-rounder: the 4MP iDS-2CD7A46G0/P-IZHSY DeepinView bullet — 2.8–12mm or 8–32mm lens, on-board list of up to 10,000 plates.
- Newest AI: the iDS-2CD7A46G2/LM-IZHSY DeepinViewX with Guanlan large-model algorithms for plates plus vehicle attributes.
- Traffic-grade: the iDS-TCM403-BI smart-monitoring camera (LPR accuracy >98%), with a radar-assisted iDS-TCM403-GIR variant.
- Trade desk: call Netview on 01163 800 838 for stock, pricing and spec advice.
What is a Hikvision ANPR camera?
A Hikvision ANPR camera is a network camera with an on-board automatic number-plate recognition engine that detects, reads and records vehicle registration plates without a separate recognition server. The camera captures the plate, converts it to text, and can match it against allow lists or block lists held locally — then output the result to an NVR, an access-control controller or a barrier via a relay or Wiegand connection. Hikvision builds ANPR into two product families: the AI-led DeepinView and DeepinViewX network cameras, and the dedicated iDS-TCM403 intelligent traffic cameras. Hikvision documents these capabilities on its DeepinView product pages.
The Hikvision ANPR range at a glance
Hikvision’s in-stock ANPR line-up splits into general-purpose DeepinView bullets and traffic-grade smart-monitoring cameras.
| Model | Resolution | Lens | Best for |
|---|---|---|---|
| iDS-2CD7A26G0/P-IZHSY | 2 MP | 2.8–12mm MZ | Entry ANPR, single lane, car-park entry |
| iDS-2CD7A46G0/P-IZHSY | 4 MP | 2.8–12mm / 8–32mm MZ | All-round ANPR, gates, longer ranges |
| iDS-2CD7A46G2/LM-IZHSY | 4 MP | 2.8–12mm / 8–32mm MZ | Plates + vehicle attributes (Guanlan AI) |
| iDS-TCM403-BI(G) | 4 MP | 2.8–12mm / 8–32mm / 10–50mm | Traffic-grade ANPR, entrances, toll lanes |
| iDS-TCM403-GIR | 4 MP | 8–32mm | Radar-assisted smart monitoring |
DeepinView ANPR bullets: the installer workhorse
The DeepinView bullet cameras are the models most UK installers reach for, and the 4MP iDS-2CD7A46G0/P-IZHSY (2.8–12mm) is the natural starting point. It uses a 1/1.8" progressive-scan CMOS sensor at up to 2688 × 1520, with a colour sensitivity of 0.0005 lux and 140 dB wide dynamic range — the DarkFighter low-light and WDR performance that matters when you are reading plates against headlights at night. The camera stores an on-board list of up to 10,000 plate numbers and supports H.265+ to keep bandwidth and storage down, and it is rated IP67 and IK10 for outdoor mounting.
For wider sites and longer approaches, the iDS-2CD7A46G0/P-IZHSY with the 8–32mm lens reaches further down a driveway or across a multi-lane entrance. Where budget is tight and the lane is short and single, the 2MP iDS-2CD7A26G0/P-IZHSY gives you the same DeepinView ANPR engine at a lower price point. Full specifications for the 4MP model are published on the Hikvision DeepinView page.
DeepinViewX Guanlan: plates plus vehicle attributes
The DeepinViewX iDS-2CD7A46G2/LM-IZHSY is Hikvision’s newest ANPR bullet and adds Guanlan large-model AI on top of plate reading. Alongside licence-plate recognition it can analyse vehicle attributes and supports perimeter protection, and it can load trained large-model algorithm packages from Hikvision’s AI training platform — useful where a site needs more than a plate, such as vehicle colour, type or make for audit and search. It keeps the same 4MP 1/1.8" sensor and 0.0005 lux low-light figure as the G0 model. Hikvision details the Guanlan model on its DeepinViewX product page. If you are weighing plain plate capture against full AI search, the G2/LM is the model to specify.
Traffic-grade ANPR: iDS-TCM403-BI and the radar-assisted GIR
When the job is a busy entrance, toll lane or estate road, the purpose-built iDS-TCM403-BI(G)/Y is the traffic camera to fit. It carries an AI ANPR engine quoting LPR accuracy greater than 98% and driving-direction accuracy greater than 98.5% under recommended conditions, and it recognises vehicle type, colour and manufacturer, captures no-plate vehicles and motorcycles, and detects driving direction. It offers 2.8–12mm, 8–32mm or 10–50mm motorised lens options, 140 dB WDR, built-in IR to around 40 m, and is powered by 12–24 VDC or PoE (802.3at) at up to 12 W. Hikvision lists it under its urban-road ANPR cameras.
For approaches where you also need to confirm vehicle presence and speed, the iDS-TCM403-GIR/POE/0832 adds radar-assisted smart monitoring to the same platform, reducing false triggers on quiet lanes and improving capture timing.

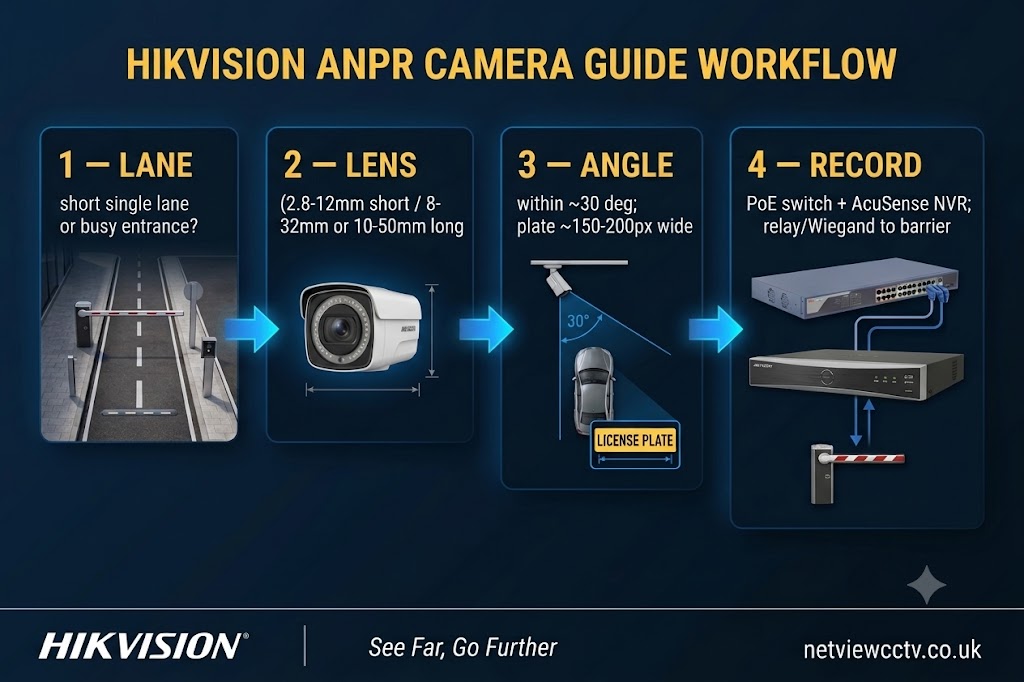

Choosing lens, mounting height and angle for reliable capture
The single biggest factor in ANPR reliability is geometry, not megapixels. Aim to keep the camera’s angle to the plate within roughly 30 degrees horizontally and 30 degrees vertically, and mount so the plate fills enough of the frame — a useful rule of thumb is around 150–200 pixels across the width of the plate at the capture point. Use the motorised varifocal lens to set the plate size for the actual capture distance: 2.8–12mm covers short single lanes and car-park entries, while 8–32mm (or the 10–50mm on the TCM403) reaches longer approaches. Where headlights wash out plates at night, the 140 dB WDR and supplemental IR on these models hold the plate readable. Mount rigidly — vibration blurs plates — and keep the lane lit or rely on the camera’s IR rather than ambient light alone.
Power, recording and storage
Plan power and recording around the camera’s PoE draw and the volume of capture events. The DeepinView and TCM403 ANPR cameras run on standard PoE (802.3at), so a Hi-PoE or gigabit switch such as the Hikvision DS-3E1326P-EI 24-port smart PoE switch keeps a multi-lane site on one managed switch. Record to an AcuSense NVR with the headroom for high-bitrate ANPR streams plus event metadata — the Hikvision DS-7616NXI-K2/16P(D) 16-channel NVR is a sensible match for a small-to-medium ANPR install. If you are sizing recording across a larger system, our Hikvision NVR buyer’s guide for 2026 walks through K-Series, VPRO and DeepinMind options, and the iVMS-4200 installer guide covers central management and search.
Where Hikvision ANPR cameras are used
Hikvision ANPR cameras suit any site where a vehicle’s plate should trigger an action or be logged. Common UK jobs include unmanned car parks (plate-based entry and stay logging), gated residential and commercial estates (allow-list barrier control), business yards and depots (recording every vehicle in and out), and dealership or fleet sites (vehicle search by plate or attribute). On access-control jobs the plate read can open a barrier directly, much as a credential would on an intruder or door system — if you are also fitting wireless intruder kit, see how Hikvision approaches detection in our Hikvision AcuSense installer guide.
Frequently asked questions
Do Hikvision ANPR cameras need a separate server or licence?
No. The recognition engine runs on the camera, and plate lists are held on-board (up to 10,000 plates on the DeepinView models), so no external recognition server or per-plate licence is required for the camera to read and match plates.
Which Hikvision ANPR camera should most installers fit?
The 4MP iDS-2CD7A46G0/P-IZHSY is the best all-rounder for car parks and gates — choose the 2.8–12mm lens for short lanes and the 8–32mm for longer approaches.
What is the difference between the DeepinView and the iDS-TCM403?
DeepinView bullets are general-purpose AI cameras with ANPR built in; the iDS-TCM403 is a dedicated traffic camera with a higher-grade ANPR engine (LPR accuracy >98%), vehicle attribute capture and direction detection for busy entrances and roads.
How far can a Hikvision ANPR camera read a plate?
It depends on lens and pixel density, not a fixed distance. Set the motorised lens so the plate is around 150–200 pixels wide at the capture point — a 2.8–12mm lens suits short lanes, 8–32mm or 10–50mm covers longer approaches.
Can a Hikvision ANPR camera open a barrier?
Yes. The camera can output a match result via relay or Wiegand to a barrier controller, so a recognised plate on the allow list opens the barrier automatically.
Do these cameras work at night?
Yes. The DeepinView and TCM403 models combine 0.0005 lux DarkFighter sensitivity, 140 dB WDR and built-in IR to keep plates readable against headlights and in darkness.
Buy Hikvision ANPR cameras from Netview
Netview is a Hikvision UK authorised wholesaler based in Leicester, and we hold the Hikvision ANPR range in stock for same-day dispatch. For help matching a model to your site, lens advice or trade pricing, call our team on 01163 800 838 or order online at netviewcctv.co.uk. Published 12 June 2026 · last updated 12 June 2026.
