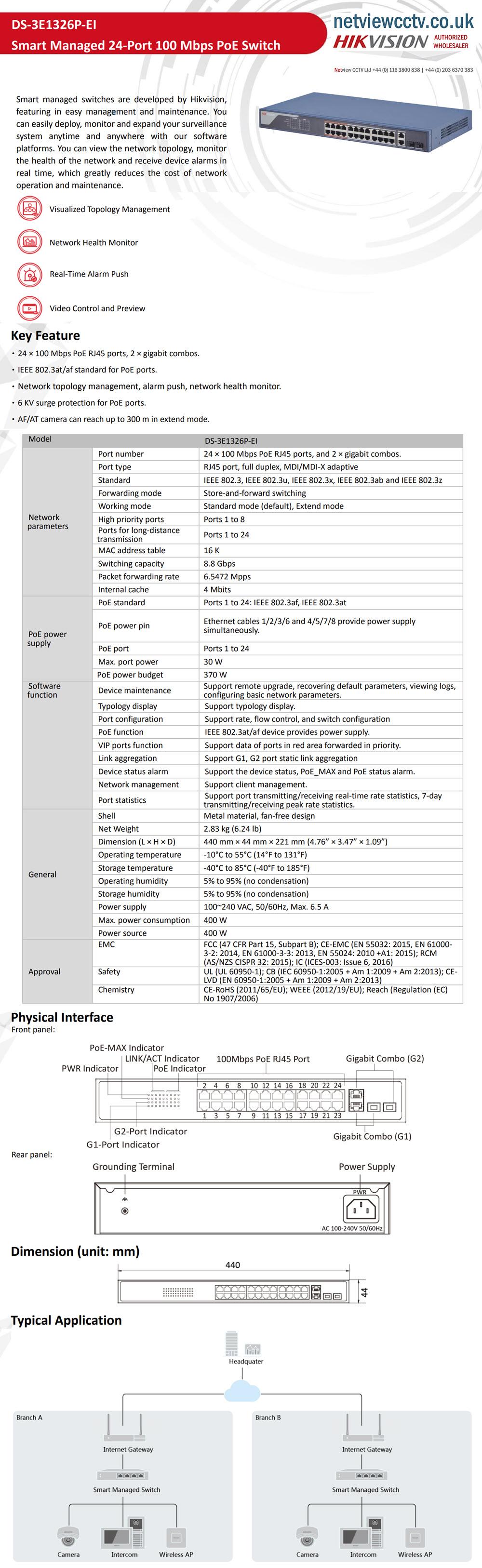

Hikvision 24-Port DS-3E1326P-EI Smart PoE Switch with 2x Gigabit Combo Ports
In stock
SKU
DS-3E1326P-EI
MPN: 301802305EAN: 6931847157166UPC: 6931847157166
Hikvision DS-3E1326P-EI 24-Port 100Mbps Smart PoE Switch
Smart managed switches are developed by Hikvision, featuring in easy management and maintenance. You can easily deploy, monitor and expand your surveillance
system anytime and anywhere with our software platforms. You can view the network topology, monitor the health of the network and receive device alarms in
real time, which greatly reduces the cost of network operation and maintenance
- 24 × 100Mbps PoE RJ45 ports
- 2 × Gigabit combo Ports
- IEEE 802.3at/af standard for PoE ports.
- 8.8 Gbps Switching Capacity
- 30W Power per port capability
- Network topology management, alarm push, network health monitor.
- 6 KV surge protection for PoE ports.
- AF/AT camera can reach up to 300 m in extend mode.
- Support G1, G2 port static link aggregation
- 370W Total PoE Power budget
MPN: 301802305EAN: 6931847157166UPC: 6931847157166
Key Feature
- Link Aggregation Support G1, G2 port static link aggregation
Network Parameters
- Port Number 24 × 100 Mbps PoE RJ45 ports, and 2 × gigabit combos.
- Port Type RJ45 port, full duplex, MDI/MDI-X adaptive
- Working Mode Standard mode (default), Extend mode
- Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab and IEEE 802.3z
- Forwarding Mode Store-and-forward switching
- MAC Address Table 16 K
- Internal Cache 4 Mbits
- Switching Capacity 8.8 Gbps
- Packet Forwarding Rate 6.5472 Mpps
Operation Management
- Device MaintenanceSupport remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters.
- Port ConfigurationSupport rate, flow control, and switch configuration
PoE Power Supply
- PoE Standard Ports 1 to 24: IEEE 802.3af, IEEE 802.3at
- PoE Power Pin Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.
- PoE Port Ports 1 to 24
- Max. Port Power 30 W
- PoE Power Budget 370 W
Software Function
- PoE Function IEEE 802.3at/af device provides power supply.
General
- Dimension (W × H × D)440 mm × 44 mm × 221 mm (4.76” × 3.47” × 1.09”)
- Storage Temperature -40°C to 85°C (-40°F to 185°F)
- Power Source 400 W
- Net Weight 2.83 kg (6.24 lb)
- Shell Metal material, fan-free design
- Operating Temperature -10°C to 55°C (14°F to 131°F)
- Operating Humidity 5% to 95% (no condensation)
- Power Supply 100~240 VAC, 50/60Hz, Max. 6.5 A
- Max. Power Consumption 400 W
