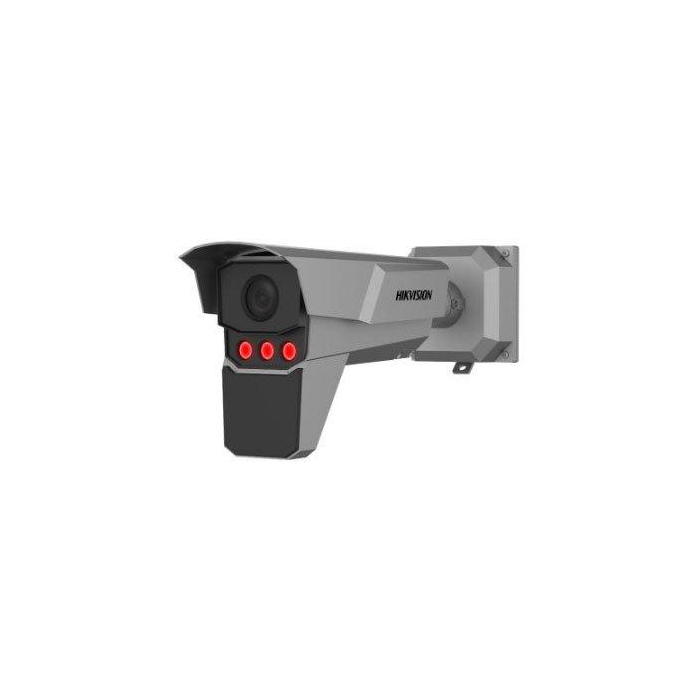

Hikvision iDS-TCM403-GIR/POE/0832 Radar-Assisted Smart Monitoring ANPR Camera
The Hikvision iDS-TCM403-GIR/POE/0832 is a dedicated traffic ANPR camera with 24 GHz millimetre-wave radar for vehicle detection and triggering. 2 MP (1920 x 1080) sensor with 8 mm - 32 mm motorised varifocal lens, supplementary IR + light-compensation flash for night plate capture, on-camera Hikvision plate-recognition algorithm (>=99.5% (optimal conditions) accuracy), and trigger-relay I/O for direct barrier control. Built for tolling, congestion-charge boundaries, traffic enforcement and managed-lane monitoring.
On-camera plate recognition with >=99.5% (optimal conditions) accuracy, 100,000 plates (black/white list) on-device, and selectable uk / eu / north american / row plate format libraries. up to 200 km/h vehicle capture speed with automatic plate-region detection. H.265+ compression for efficient storage, ONVIF Profile S/G/T conformant, compatible with Hik-Connect, Hik-Central, iVMS-4200 and ANPR-aware third-party VMS / tolling platforms over standard plate-event push (HTTP / TCP).
Key Features
- 2 MP (1920 x 1080) resolution
- 8 mm - 32 mm motorised varifocal lens (auto-focus)
- 50 m IR range
- F1.4 (motorised VF) super-aperture for low-light plate capture
- 1/1.8″ Progressive Scan CMOS sensor
- 140 dB true WDR — handles back-lit barriers and tunnel mouths
- 24 GHz millimetre-wave radar — vehicle detection and trigger
- Supplementary IR + light-compensation flash for night capture
- On-camera ANPR — >=99.5% (optimal conditions) plate recognition
- Capture speed: up to 200 km/h
- Capture distance: up to 50 m
- Plate library: 100,000 plates (black/white list)
- Plate regions: UK, EU, North America, ROW (user-selectable)
- Audio: 1-ch in / 1-ch out
- Alarm I/O: 4 in / 2 out (incl. barrier-control trigger relays) (trigger-relay output for barrier control)
- RS-485: 1 x RS-485 (configurable, for barrier / signal interface)
- Edge storage: microSD slot up to 256 GB
- H.265+ / H.265 / H.264+ / H.264 / MJPEG compression
- IP67 weatherproof, IK10 impact rating
- Built-in heater (cold-weather operation)
- Power: PoE+ 802.3at (~30 W max with radar)
- ONVIF Profile S/G/T, Hik-Connect P2P, Hik-Central, iVMS-4200
Note: the iDS-TCM403 family is Hikvision's dedicated traffic ANPR tier — significantly larger plate library (100,000 vs 10,000), higher accuracy ceiling and supplementary light compensation for retro-reflective UK plates. Suited to tolling, congestion-charge boundaries and managed-lane enforcement. The GIR radar variant adds independent vehicle detection — useful when image-based triggering is unreliable (heavy rain, fog, fast-moving traffic at night).
Hikvision iDS-TCM403-GIR/POE/0832 — Radar-Assisted Traffic ANPR Camera (GIR) - 8-32mm
2 MP (1920 x 1080) Traffic ANPR camera, 8 mm - 32 mm motorised VF lens, 50 m IR, on-camera plate recognition (>=99.5% (optimal conditions) accuracy, up to 200 km/h capture), IP67 + IK10, outdoor radar-assisted traffic / tolling ANPR camera.
Overview
The Hikvision iDS-TCM403-GIR/POE/0832 is part of Hikvision's iDS-TCM403 dedicated traffic ANPR family — the high-performance tier built for tolling, congestion-charge boundaries, managed-lane enforcement and traffic-monitoring applications. 2 MP (1920 x 1080) 1/1.8″ sensor optimised for high frame rate and motion-stop performance on moving vehicles. The GIR variant adds 24 GHz millimetre-wave radar for independent vehicle detection and speed measurement — reliable triggering when image-based detection struggles (heavy rain, fog, fast night-time traffic).
Plate recognition runs on-camera using Hikvision's traffic-grade ANPR engine, rated at >=99.5% (optimal conditions) accuracy in optimal conditions. The on-device plate library holds 100,000 plates (black/white list) — an order of magnitude larger than the standard DeepinView ANPR tier (10,000 plates), suitable for city-wide tolling and large fleet enforcement databases. Plate regions cover UK, EU, North American and ROW formats, user-selectable.
Vehicle capture speed: up to 200 km/h. Capture distance: up to 50 m. Supplementary IR + visible light-compensation flash deliver clean plate capture at night without overexposing UK retro-reflective plates — a common failure mode for standard IR cameras at tolling sites. Trigger-relay outputs drive barrier / signal hardware directly; plate-event push over HTTP / TCP integrates with tolling, fleet and access-control back-ends.
Construction: IP67 weatherproof, IK10 impact-rated. 305 x 130 x 130 mm, weight <= 2.5 kg. Power: PoE+ 802.3at (~30 W max with radar). Audio: 1-ch in / 1-ch out. Alarm I/O: 4 in / 2 out (incl. barrier-control trigger relays). RS-485 for serial integration with legacy traffic / tolling equipment. UK CE / UKCA certified. Same-day dispatch from Netview CCTV Leicester — authorised Hikvision wholesale distributor.
Key Features
- 2 MP (1920 x 1080) resolution
- 1/1.8″ Progressive Scan CMOS sensor
- 8 mm - 32 mm motorised varifocal lens (auto-focus)
- Aperture: F1.4 (motorised VF)
- Field of view: Horizontal 41.6deg-11.7deg; Vertical 23.1deg-6.7deg
- 50 m IR range
- 140 dB true WDR — handles back-lit barriers, tunnel mouths and forecourt-lit night scenes
- Shutter: 1 s to 1/100,000 s (high-speed shutter for motion-stop plate capture)
- IR-cut filter with auto-switch (day/night)
- 24 GHz millimetre-wave radar — independent vehicle detection and speed measurement; reliable triggering day/night, in rain, fog or low light
- Supplementary IR + visible light-compensation flash — clean plate capture at night without overexposing UK retro-reflective plates
- On-camera ANPR / LPR plate recognition — >=99.5% (optimal conditions) accuracy
- Capture speed: up to 200 km/h
- Capture distance: up to 50 m
- Plate library: 100,000 plates (black/white list) — black-list (alert) and white-list (auto-action) modes
- Plate regions: UK, EU, North America, ROW (user-selectable)
- Plate-event push: HTTP / TCP / ONVIF event to VMS, NVR or back-end system
- Audio: 1-ch in / 1-ch out
- Alarm I/O: 4 in / 2 out (incl. barrier-control trigger relays)
- RS-485: 1 x RS-485 (configurable, for barrier / signal interface)
- H.265+ / H.265 / H.264+ / H.264 / MJPEG video compression
- Dual-stream encoding (main + sub-stream); main up to 25 fps at full resolution
- Edge storage: microSD slot up to 256 GB
- IP67 weatherproof, IK10 impact rating
- Built-in heater — -30°C to 60°C operation
- Dimensions: 305 x 130 x 130 mm; weight <= 2.5 kg
- Power: PoE+ 802.3at (~30 W max with radar)
- ONVIF Profile S/G/T, Hik-Connect P2P, Hik-Central, iVMS-4200, plug-in-free web access
- HTTPS, IEEE 802.1X, IP filter, stream encryption, digest authentication
- UK CE / UKCA certified
Typical Applications
- Open-road tolling / enforcement in adverse weather — radar triggers ANPR independently when visibility-based detection fails (rain, fog, night-time fast traffic)
- Tolling boundaries — motorway / urban toll roads, free-flow and stop-and-pay tolling
- Congestion-charge boundaries — ULEZ / CAZ / city-centre charge perimeters
- Managed-lane enforcement — bus lanes, HOV / VIP lanes, high-occupancy lanes
- Traffic monitoring — junction load monitoring, traffic-light compliance, lane discipline
- Large-scale ANPR databases — 100,000 plates on-device library suits city-wide enforcement and large fleet whitelists
- Critical infrastructure perimeters with high-throughput vehicle logging requirements
- Trade installs needing same-day stock — Netview CCTV Leicester ships from UK stock
Compatible Hikvision Devices
- Hikvision NVR range — iDS-* AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide (Wave 5a), DS-9xxx-NI storage (5b), DS-9xxx VPro AcuSeekWhat is Hikvision AcuSeek (5c), DS-7xxxNI-M consumer storage (5d), DS-7xxxNXI-K AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide (5e), 4G cellular NVR (5f-1), DS-7xxx VPro I-tier (5f-2)
- Hikvision iVMS-4200 desktop client (Windows / macOS) with ANPR plate-event view, filter and search
- Hik-Connect mobile app (iOS / Android) for remote view and event push
- Hik-Central enterprise VMS / Hik-Central Professional with dedicated plate-event database
- Plate-event push to ANPR-aware third-party VMS, tolling and access-control back-ends over HTTP / TCP
- ONVIF Profile S/G/T compatible third-party VMS and NVR systems
- Barrier / gate controllers wired direct to the alarm-relay output for plate-driven access
What's in the Box
- 1 × Hikvision iDS-TCM403-GIR/POE/0832 Radar-Assisted Traffic ANPR Camera (GIR) - 8-32mm
- 1 × wall-mount bracket / hardware kit
- 1 × waterproof RJ-45 connector
- 1 × cable / connector accessory bag
- 1 × quick start guide
📄 Download: Hikvision iDS-TCM403-GIR/POE/0832 Datasheet (PDF) — full technical specification including plate-recognition configuration, capture geometry diagrams, I/O wiring and approval certificates.
Detailed Specifications — Hikvision iDS-TCM403-GIR/POE/0832
Full technical specification taken from the official Hikvision iDS-TCM403-GIR/POE/0832 Radar-Assisted Traffic ANPR Camera (GIR) - 8-32mm datasheet.
| Camera & Image | |
|---|---|
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Resolution | 2 MP (1920 x 1080) (max 1920 × 1080 @ 25 fps (high frame rate for motion-stop plate capture)) |
| Minimum Illumination | 0.002 lux @ F1.4 (Colour); 0 lux with IR + supplementary flash |
| WDR | 140 dB true WDR (3D-DNR) |
| Shutter | 1 s to 1/100,000 s (high-speed shutter for motion-stop plate capture) |
| Day & Night | IR-cut filter with auto-switch |
| IR Range | 50 m (Smart IR) |
| Supplementary Light | Built-in IR + visible light-compensation flash — balanced exposure on UK retro-reflective plates at night |
| Lens & Optical | |
| Lens Type | Motorised varifocal, auto-focus |
| Focal Length | 8 mm - 32 mm |
| Aperture | F1.4 (motorised VF) |
| Field of View | Horizontal 41.6deg-11.7deg; Vertical 23.1deg-6.7deg |
| Lens Mount | Integrated (sealed) |
| IR Cut Filter | Yes — auto-switch |
| ANPR & Plate Recognition | |
| Plate Recognition | On-camera deep-learning ANPR / LPR engine |
| Recognition Accuracy | >=99.5% (optimal conditions) |
| Max Capture Speed | Up to 200 km/h |
| Max Capture Distance | Up to 50 m |
| Plate Library (on-device) | 100,000 plates (black/white list) |
| Supported Plate Regions | UK, EU, North America, ROW (user-selectable) |
| List Modes | Black-list (alert on match) and white-list (auto-action / barrier-open on match) |
| Event Push | HTTP / TCP / ONVIF event with plate text, timestamp, image snapshot |
| Radar | |
| Radar Type | 24 GHz millimetre-wave radar |
| Detection Range | Up to 30 m (vehicle), adjustable |
| Speed Measurement | Yes — vehicle speed estimate independent of camera image |
| Trigger Mode | Radar-triggered ANPR capture (works in rain, fog, low light) |
| Network & Compression | |
| Network Interface | 1 × RJ-45 10/100 Mbps self-adaptive |
| Compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Dual Streaming | Yes (main stream + sub-stream) |
| Network Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS |
| Cloud / VMS | Hik-Connect P2P, ONVIF Profile S/G/T, Hik-Central, Hik-Central Professional, iVMS-4200, plug-in-free web access |
| Security | HTTPS, IEEE 802.1X, IP filter, stream encryption, digest authentication |
| Storage & I/O | |
| Edge Storage | microSD slot up to 256 GB |
| Audio I/O | 1-ch in / 1-ch out |
| Alarm I/O | 4 in / 2 out (incl. barrier-control trigger relays) |
| RS-485 | 1 x RS-485 (configurable, for barrier / signal interface) |
| Reset Button | Yes |
| General | |
| Power Supply | PoE+ 802.3at (~30 W max with radar) |
| Heater | Built-in heater for cold-weather operation |
| Body / Form Factor | outdoor radar-assisted traffic / tolling ANPR camera |
| Dimensions | 305 x 130 x 130 mm |
| Weight | <= 2.5 kg |
| Operating Temperature | -30 °C to 60 °C |
| Operating Humidity | ≤ 95% (non-condensing) |
| IP Rating | IP67 |
| IK Rating | IK10 |
| Approvals | FCC Part 15 Subpart B, CE (EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3), UKCA, RoHS, REACH, WEEE |
Frequently Asked Questions
What is the Hikvision iDS-TCM403-GIR/POE/0832?
A dedicated traffic ANPR camera with built-in 24GHz millimetre-wave radar that detects approaching vehicles and triggers capture.
What does the radar add?
Reliable vehicle detection and triggering without relying on ground loops, improving capture timing and accuracy.
What lens does this version have?
An 8–32mm motorised varifocal lens.
How accurate is the plate recognition?
The on-camera Hikvision algorithm achieves ≥99.5% accuracy in optimal conditions, with supplementary IR and light-compensation flash for night capture.
Can it control a barrier directly?
Yes — it has trigger-relay I/O for direct barrier or gate control.
What is it used for?
Tolling, congestion-charge boundaries, traffic enforcement and managed-lane monitoring.
How is it powered?
Via PoE.
