Hikvision AcuSense DVRs: The UK Installer's Guide
Hikvision AcuSense DVRs put deep-learning analytics on the coax you already have in the ground. This guide is for UK installers weighing up the iDS Turbo HD range: which of the HQHI, HUHI and HTHI lines records at what resolution, what Motion Detection 2.0 and AcuSearch actually do on an analogue site, and when the PoC (PXT) models earn their premium. Every model named below is stocked in Leicester with same-day dispatch on stocked lines from netviewcctv.co.uk.
At a glance
- AcuSense iDS DVRs classify humans and vehicles in the recorder — your existing analogue cameras become AI cameras without being replaced.
- HQHI = 1080p/3K Lite value line, HUHI = 5 MP/8 MP Lite mid line, HTHI = true 4K at 15 fps.
- XT models take audio over coax (AoC); PXT models add Power over Coax, so one RG59 run carries video, audio and power.
- AcuSearch filters recorded footage by human/vehicle target so operators find an event in seconds, not hours.
- All lines accept five signal types adaptively — HDTVI, AHD, CVI, CVBS and IP — on the same channels.
What is a Hikvision AcuSense DVR?
A Hikvision AcuSense DVR is a Turbo HD recorder from the iDS-7200/7300 series that runs deep-learning human and vehicle classification inside the recorder itself, so ordinary analogue cameras trigger AI-filtered alarms. On the iDS-7208HQHI-M1/XT product page Hikvision confirms that deep-learning Motion Detection 2.0 is enabled by default on every analogue channel, classifying people and vehicles and heavily cutting false alarms from leaves, headlights and shadows. For an installer, that changes the economics of an upgrade: the AI lives in one box in the comms cupboard, and the cameras — Hikvision or otherwise — stay on the wall.

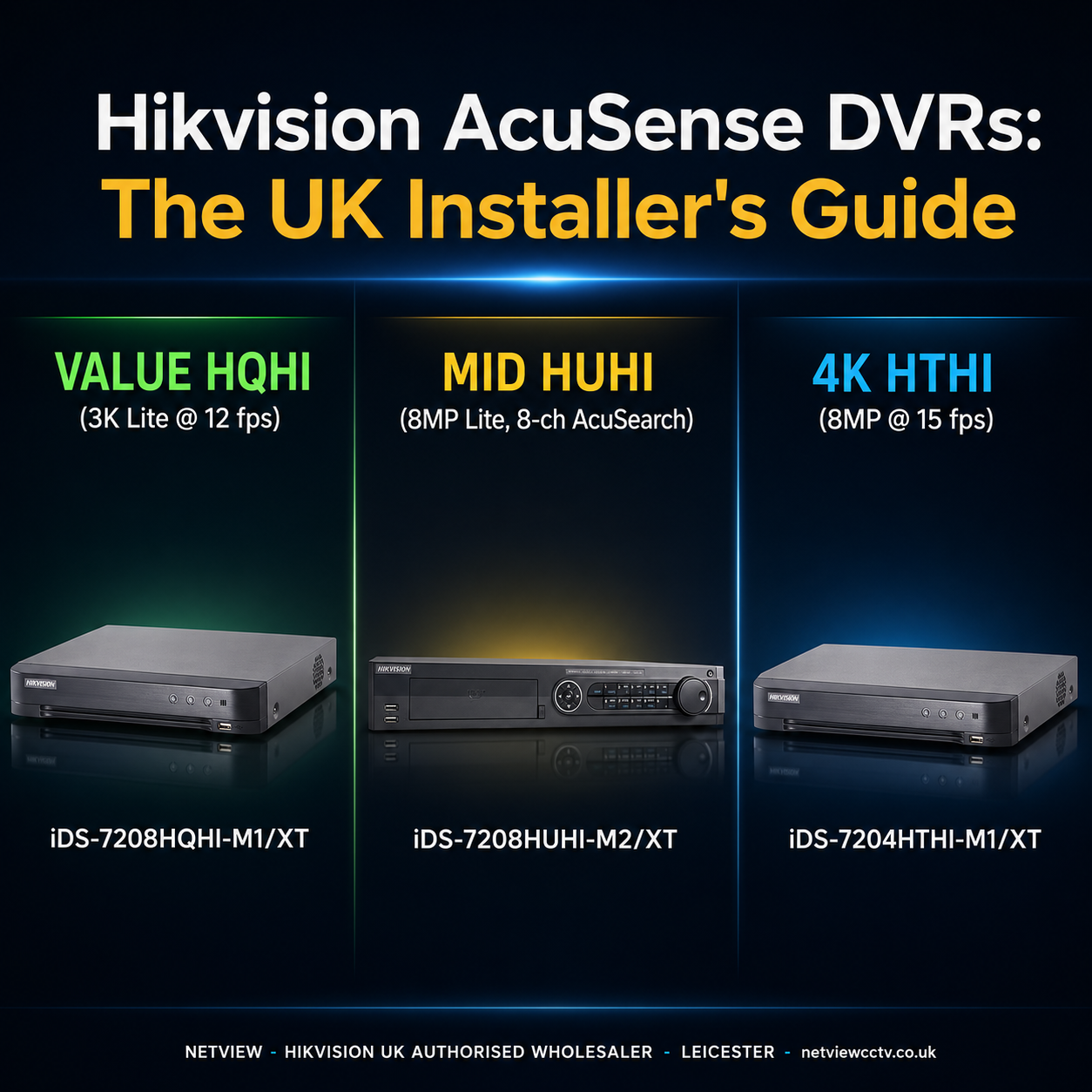

HQHI vs HUHI vs HTHI: which iDS line records what?
The three letters after the channel count set the recording ceiling: HQHI tops out at 3K Lite, HUHI records 5 MP with an 8 MP Lite option, and HTHI is the true 4K line. Hikvision's spec sheets pin the numbers down: the iDS-7208HQHI-M1/XT encodes up to 3K/5 MP Lite at 12 fps, the iDS-7208HUHI-M2/XT reaches 8 MP at 8 fps and 3K/5 MP at 12 fps, and the iDS-7204HTHI-M1/XT encodes genuine 4K/8 MP at 15 fps with a native 4K HDMI output. All three lines compress with H.265 Pro+ to keep storage budgets sane.
| Line | Recording ceiling | AI capacity (8-ch class) | Best fit |
|---|---|---|---|
| HQHI (value) | 3K/5 MP Lite @ 12 fps | 2-ch face or 4-ch perimeter; 4-ch AcuSearch | Price-led domestic and retail, mostly 1080p estates |
| HUHI (mid) | 8 MP @ 8 fps; 3K/5 MP @ 12 fps (M2) | 4-ch face or 8-ch perimeter; 8-ch AcuSearch (M2) | Commercial sites running 3K/5 MP ColorVu cameras |
| HTHI (4K) | 4K/8 MP @ 15 fps | 2-ch face or 4-ch perimeter; 4-ch AcuSearch (M1) | 8 MP Turbo HD cameras, evidential detail jobs |
Motion Detection 2.0, perimeter protection and facial recognition
Every iDS AcuSense DVR offers three deep-learning modes, but only one can run at a time — Hikvision states on the iDS-7208HQHI-M1/XT spec that face picture comparison, Motion Detection 2.0 and perimeter protection cannot be enabled simultaneously. Motion Detection 2.0 is the everyday workhorse: it runs on all analogue channels by default and simply tells the DVR to record and push notifications when a person or vehicle appears, not when a fox does. Perimeter protection adds line-crossing and intrusion rules with human/vehicle filtering for driveways and yards, and face picture comparison matches captured faces against a loaded library on selected channels. Pick the mode per site at commissioning — it is a five-minute menu job, but explain the trade-off to the customer before you leave.
AcuSearch: find a person or a vehicle in seconds
AcuSearch is the playback side of AcuSense: it filters recorded footage by human or vehicle targets so an operator jumps straight to the events that matter rather than scrubbing a timeline. The iDS-7208HUHI-M2/XT runs AcuSearch across 8 channels, while the value-line iDS-7208HQHI-M1/XT covers 4. On a break-in review, that is the difference between handing the customer a clip before you have finished your brew and losing an afternoon. It is also a genuinely sellable feature on handover day — demonstrate it once and the customer understands what they paid for.
XT and PXT explained: audio over coax and Power over Coax
The suffix tells you what travels down the RG59: XT models take audio over coax (AoC) from microphone-equipped Turbo HD cameras, and PXT models add Power over Coax so a single cable run carries power, video and audio. Hikvision lists the iDS-7208HUHI-M2/PXT as a PoC AcuSense DVR, and on the audio side the iDS-7208HQHI-M1/XT accepts 8 channels of coaxial audio alongside HDTVI two-way audio on all channels. Practically, PoC removes the local PSU at every camera position — a big win on fascia-mounted domestic jobs and anywhere the power run is the expensive half of the install. The PoC picks at Netview are the iDS-7204HUHI-M1/PXT, iDS-7208HUHI-M2/PXT and iDS-7216HUHI-M2/PXT.
Which AcuSense DVR for which job?
Match the channel count to the site today and the recording line to the cameras you are fitting, then leave one spare channel for the extension the customer always asks for. These are the stocked picks by job size:
- 4-camera domestic: iDS-7204HQHI-M1/XT on a 1080p estate, or iDS-7204HUHI-M1/XT where 3K/5 MP cameras are going in. Stepping up to true 4K detail? Fit the iDS-7204HTHI-M1/XT.
- 8-camera retail/small commercial: iDS-7208HQHI-M1/XT for value, iDS-7208HUHI-M1/XT for 5 MP estates, or the dual-HDD iDS-7208HTHI-M2/XT where the client wants 4K on the tills and doors.
- 16-camera commercial: iDS-7216HQHI-M1/XT or the two-bay iDS-7216HUHI-M2/XT for longer retention at 5 MP.
- 32-camera estate: iDS-7232HQHI-M2/XT keeps a large legacy analogue estate on one box with AcuSense filtering.
When to step up to the 7300 Ultra series
Move to the iDS-7300 Ultra chassis when the job needs four HDD bays for retention, or the RAID-class resilience a 1U single-bay box cannot give. The iDS-7316HQHI-M4/S and iDS-7316HUHI-M4/S carry 16 channels on four bays, and the 32-channel iDS-7332HQHI-M4/S and iDS-7332HUHI-M4/S are the standard swap-in for ageing 32-way analogue sites in logistics yards and schools where 30-day retention is contractual. Same AcuSense toolset, more spindles.
Can I run IP cameras on an iDS AcuSense DVR?
Yes — every iDS AcuSense DVR is a hybrid recorder that accepts IP cameras on top of its analogue channels, which makes phased analogue-to-IP migrations painless. Hikvision rates the iDS-7208HUHI-M2/XT for up to 16 IP camera inputs at up to 8 MP each, and even the 4-channel iDS-7204HTHI-M1/XT takes up to 8 IP channels at 8 MP. The playbook: keep the coax cameras running today, add IP cameras to the spare capacity as budget allows, and only swap the recorder for an NVR when the last analogue camera dies. If the site is already majority-IP, read our Hikvision NVR Buyer's Guide instead.
Cameras to pair with an AcuSense DVR
Pair the recorder with 3K Smart Hybrid ColorVu Turbo HD cameras and the whole system stays full-colour at night with audio on the same coax. The DS-2CE72KF0T-LTS 3K ColorVu turret with built-in mic is the standard body for XT recorders, the compact DS-2CE10KF0T-LTS mini bullet covers doorways and soffits, and on PXT jobs the PoC-native DS-2CE12KF3T-LSYE 3K PoC bullet completes the single-cable install. For a deeper dive on 3K resolution over coax, see our guide What Is 3K CCTV?, and if the job needs pan-tilt coverage, the Turbo HD PTZ guide covers PTZ over coax.
Installer setup tips

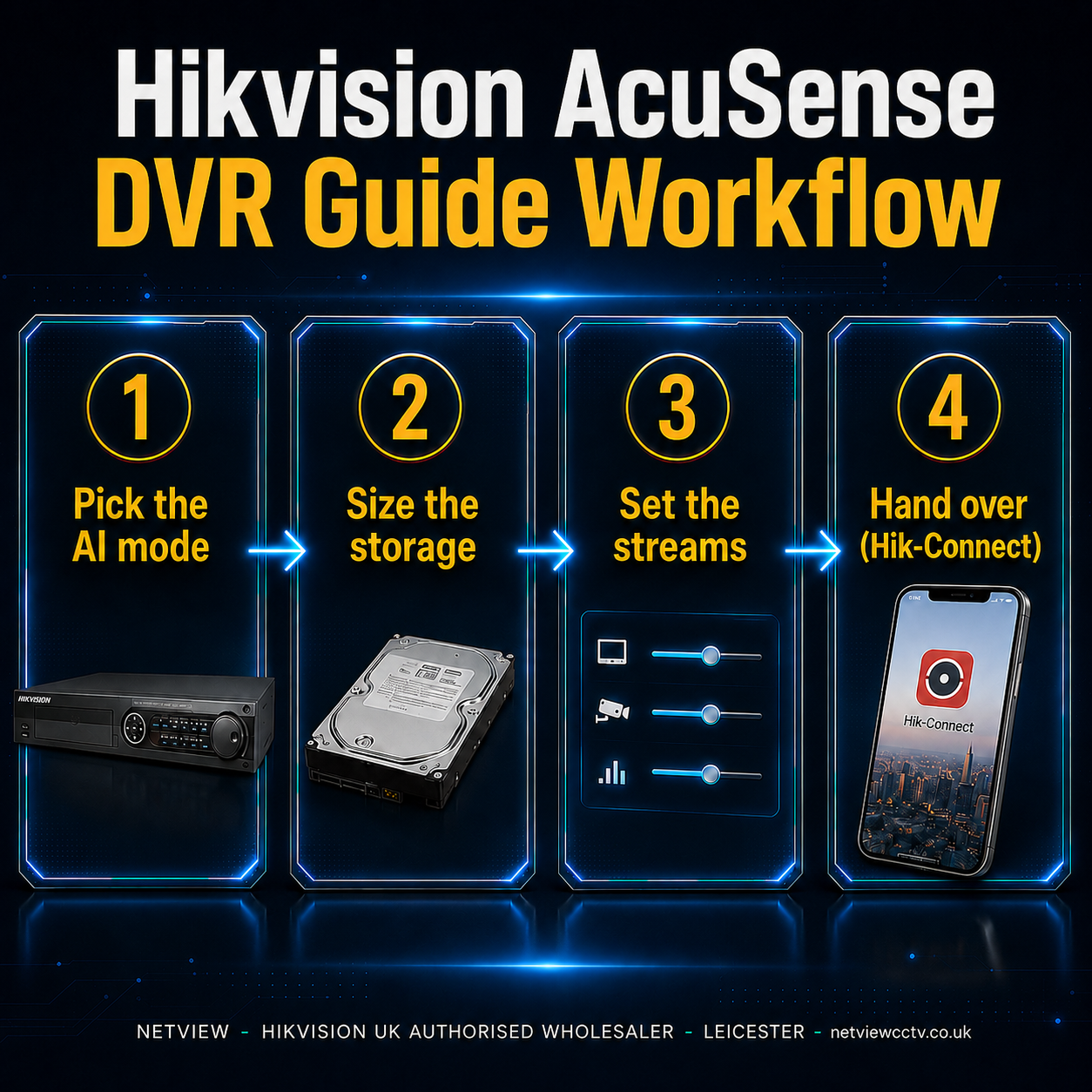

Commissioning an AcuSense DVR well takes four decisions: pick the AI mode, size the storage, set the stream profile and sort remote access. Motion Detection 2.0 is on by default for analogue channels, so if the site needs line-crossing rules, switch that channel group to perimeter protection deliberately. Storage-wise the 1U M1 boxes carry a single SATA bay rated to 10 TB per Hikvision's spec, so a 16-channel 5 MP site with long retention belongs on a two-bay M2 or a four-bay 7300. Record H.265 Pro+ from day one, keep 1080p Lite mode off unless you genuinely need the frame rate, and enrol the recorder in Hik-Connect before you leave site — our Hik-Connect setup and handover guide walks through the clean way to do it. Keep firmware current from our Hikvision firmware hub, and manage multi-site estates centrally with iVMS-4200.
Hikvision AcuSense DVR FAQ
Can an AcuSense DVR record in 4K?
Yes — the HTHI line records true 4K/8 MP at 15 fps (iDS-7204HTHI-M1/XT), while HUHI M2 models reach 8 MP at a reduced 8 fps and HQHI models cap at 3K/5 MP Lite.
Will AcuSense work with my existing non-Hikvision cameras?
Yes for the core features — the deep-learning analysis runs in the recorder, and the DVR accepts HDTVI, AHD, CVI, CVBS and IP signals adaptively, so mixed-brand analogue estates still get human/vehicle filtered alarms.
Can I run facial recognition and Motion Detection 2.0 at the same time?
No — Hikvision confirms face picture comparison, Motion Detection 2.0 and perimeter protection are mutually exclusive; enabling one disables the other two, so choose per site at commissioning.
What is the difference between XT and PXT?
XT models support audio over coax from mic-equipped Turbo HD cameras; PXT models add Power over Coax on top, so one RG59 run carries power, video and audio with no PSU at the camera.
How many IP cameras can I add to an iDS DVR?
It varies by model — the iDS-7208HUHI-M2/XT accepts up to 16 IP inputs at up to 8 MP, the 4-channel iDS-7204HTHI-M1/XT up to 8. Check the model's spec before promising a hybrid migration path.
Do I need a special monitor for a 4K DVR?
Only for native 4K live view — the iDS-7204HTHI-M1/XT outputs 4K (3840 × 2160) over HDMI, but it will happily drive a 1080p screen while still recording at full resolution.
Order Hikvision AcuSense DVRs from Netview
Netview is a Hikvision UK authorised wholesaler holding the full iDS AcuSense DVR range in stock in Leicester, with same-day dispatch on stocked lines and trade pricing for installers. Browse the range, check live stock and order online at netviewcctv.co.uk — and if you are specifying a mixed coax-and-IP estate, our team can spec the recorder, cameras and storage from one call-off.
