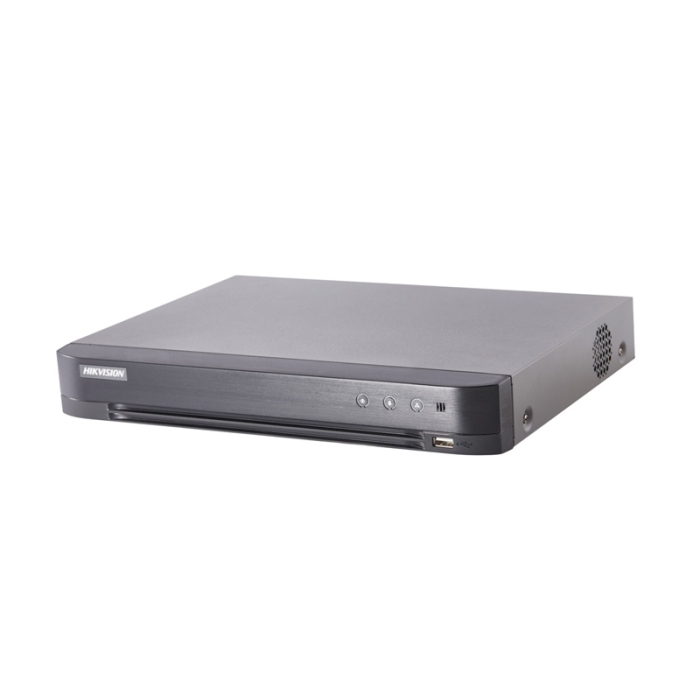

Hikvision iDS-7216HUHI-M2/PXT 16 Channel 3K/8MP Lite AcuSense PoC DVR
In stock
The Hikvision iDS-7216HUHI-M2/PXT is a 16-channel Pro Series AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide PoCWhat is Hikvision PoC DVR — HD-TVI/AHD/HDCVI/CVBS/IP hybrid with Power-over-Coax on every BNC input, so PoCWhat is Hikvision PoC-compatible Hikvision cameras are powered down the same coax that carries video. Up to 8 MP (3K Lite) per channel, 2 × SATA bays, H.265 Pro+, 4K HDMI + VGA output.
On-DVR AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide delivers up to 16-channel human/vehicle classification (advanced mode), filtering false alarms from animals, foliage and weather across Perimeter Protection, Line Crossing, Intrusion and Region Entrance/Exit events. 4 alarm inputs / 1 alarm output, 1 × RS-485, ONVIF + Hik-Connect P2P + Hik-Central + iVMS-4200.
Key Features
- 16-channel BNC analogue input with Power-over-Coax (PoCWhat is Hikvision PoC) on every input
- 5-in-1 hybrid: HD-TVI / AHD / HDCVI / CVBS auto-detect
- Up to 8 MP (3K Lite) HD-TVI per channel
- Up to 16-channel on-DVR AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide human/vehicle classification (advanced mode)
- 2 × SATA 3.5″ HDD bays, up to 10 TB capacity each
- H.265 Pro+ / H.265 / H.264+ / H.264 compression
- Dual output: 1 × HDMI (4K @ 30 Hz) + 1 × VGA (1080p @ 60 Hz)
- 1 × RJ-45 10/100/1000 Mbps Gigabit Ethernet
- 4 alarm inputs / 1 alarm output, 1 × RS-485 keyboard / PTZ control
- 380 × 320 × 48 mm chassis, ≤ 2 kg (without HDD), 12 VDC PSU
Note: PoCWhat is Hikvision PoC variants are the simplest installs — one coax run per camera delivers both power and video, no separate PSU at the camera. Use with PoCWhat is Hikvision PoC-compatible Turbo HD cameras. For non-PoCWhat is Hikvision PoC versions, see the matching /XT (standard) variant.
Need help choosing the right Hikvision NVR?
Read the full Hikvision NVR Buyer's GuideHikvision NVR Buyer's Guide 2026: K-Series, VPRO, Ultra, DeepinMind 2026 - K-Series, VPRO/AcuSeekWhat is Hikvision AcuSeek, Ultra, DeepinMind and HUHI compared by channel count, bandwidth and AI tier.
Hikvision iDS-7216HUHI-M2/PXT — 16-Channel AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide PoCWhat is Hikvision PoC DVR
16-channel 5-in-1 hybrid DVR (HD-TVI / AHD / HDCVI / CVBS / IP), up to 8 MP (3K Lite) per channel, 2 × SATA HDD bays (up to 10 TB each), 4K HDMI + VGA, on-recorder AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide human / vehicle classification.
Overview
The Hikvision iDS-7216HUHI-M2/PXT is a 16-channel Pro Series AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide PoCWhat is Hikvision PoC (Power-over-Coax) DVR — HD-TVI / AHD / HDCVI / CVBS / IP hybrid with PoCWhat is Hikvision PoC on every BNC input, so PoCWhat is Hikvision PoC-compatible Hikvision Turbo HD cameras get both power and video down a single coax cable. Up to 8 MP (3K Lite) per channel, 2 × SATA bays up to 10 TB, H.265 Pro+ compression.
On-DVR AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide delivers up to 16-channel human / vehicle classification (advanced mode) — filtering false alarms from animals, foliage movement and weather across Perimeter Protection, Line Crossing, Intrusion and Region Entrance / Exit events. Available across both analogue and IP channels.
PoCWhat is Hikvision PoC simplifies installation: one coax run per camera carries both power and video, eliminating the need for a separate camera-side PSU. Compatible with PoCWhat is Hikvision PoC Hikvision Turbo HD AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide bullet/turret/dome cameras. Output: 4K HDMI + 1080p VGA; Network: 1 × Gigabit RJ-45; 4 alarm inputs / 1 alarm output; 1 × RS-485 for keyboard / PTZ control.
Form factor: 1U rack-mountable chassis (380 × 320 × 48 mm, ≤ 2 kg without HDD), 12 VDC PSU at ≤ 30 W. UK CE / UKCA certified. For non-PoCWhat is Hikvision PoC versions of this configuration, see the matching /XT (standard) variant. For 4-HDD enterprise storage, see the iDS-73xx M4/S Ultra range.
Key Features
- 16-channel BNC input — HD-TVI / AHD / HDCVI / CVBS auto-detect (5-in-1 hybrid)
- Up to 8 MP (3K Lite) HD-TVI per channel; 4 MP / 3 MP / 1080p / 720p downscaling
- Power-over-Coax (PoCWhat is Hikvision PoC) on all 16 BNC inputs — one cable for power + video
- Up to 16-channel on-DVR AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide human / vehicle classification (advanced mode)
- Perimeter Protection, Line Crossing, Intrusion, Region Entrance / Exit — all classifiable by target type
- 2 × SATA 3.5″ HDD bays, up to 10 TB each
- H.265 Pro+ / H.265 / H.264+ / H.264 compression — up to 75% storage saving vs H.264
- 4K HDMI (3840 × 2160 @ 30 Hz) + 1 × VGA (1920 × 1080 @ 60 Hz) outputs
- HDMI / VGA simultaneous or independent (dual-monitor)
- 1 × RJ-45 10/100/1000 Mbps self-adaptive Gigabit Ethernet
- Adds up to 8 IP channels via re-allocation (24 total inputs)
- 1-ch RCA audio in / 1-ch RCA audio out + 1-ch two-way audio (uses audio input)
- 4 alarm inputs / 1 alarm output, 1 × RS-485 half-duplex for keyboard / PTZ control
- Front: 2 × USB 2.0 for mouse / backup; rear: 1 × USB 3.0 for fast HDD backup
- POS information overlay on live view + playback; POS-triggered recording and alarm
- ONVIF Profile S / G / T, Hik-Connect P2P, Hik-Central, iVMS-4200, plug-in-free web access
- Stream-over-TLS encryption; HTTPS, IP filter, digest auth
- 1U rack-mountable chassis (380 × 320 × 48 mm, ≤ 2 kg without HDD), 12 VDC PSU at ≤ 30 W
- UK CE / UKCA certified
Typical Applications
- Mixed-tech sites — legacy HD-TVI / AHD / CVI analogue cameras alongside newer Hikvision IP cameras on a single recorder
- Upgrades from older 2 MP DVRs — per-channel resolution up to 8 MP (3K Lite) without recabling
- Sites needing on-recorder AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide AI — false-alarm filtering without per-camera licensing
- Single-cable installs — PoCWhat is Hikvision PoC removes the need for camera-side PSU on Turbo HD cameras
- SMB retail, hospitality, offices — up to 16 cameras with POS overlay for till integration
- Perimeter / line-crossing applications where analogue cameras are already in place
- Trade installs needing same-day stock — Netview CCTV Leicester ships from UK stock
Compatible Hikvision Devices
- Hikvision Turbo HD AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide bullet / turret cameras — DS-2CE7xDxT-LTS series (matches AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide classification with on-camera analytics)
- Hikvision Turbo HD ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 cameras — DS-2CE7xDxT-LFS / LMFS for 24/7 colour analogue
- Standard Turbo HD bullet / turret / dome cameras — 2 MP / 5 MP / 8 MP across the -E / -F / -PIRXO model lines
- Hikvision Pro Series IP cameras — G3 ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026, AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide, DarkFighter — up to 8 channels via re-allocation
- Hikvision PoE switches — DS-3E0xxxP / DS-3E1xxxP for IP-camera supply
- Hikvision PTZ cameras — HD-TVI Turbo PTZ via coax (DS-2AE / PTZ-T) or IP PTZ via the Gigabit uplink
- Hik-Connect mobile (iOS / Android) for remote view, playback and push alerts
- iVMS-4200 desktop client (Windows / macOS) — multi-site centralised management
- Hik-Central VMS / Hik-Central Professional for enterprise deployments
- Surveillance-grade HDDs — Seagate SkyHawk / WD Purple recommended; available pre-fitted in the iDS-7216HUHI-M2/PXT-BB bundle SKU
What's in the Box
- 1 × Hikvision iDS-7216HUHI-M2/PXT 16-channel AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide PoCWhat is Hikvision PoC DVR
- 1 × power adapter + UK power cord
- 1 × USB mouse
- 1 × HDD mounting screws + cable harness
- 1 × quick start guide
- 1 × IR remote (model-dependent)
📄 Download: Hikvision iDS-7216HUHI-M2/PXT AcuSense PoC DVR Datasheet (PDF) — full technical specification including I/O diagrams, recording-resolution matrix, accessory list and approval certificates.
Detailed Specifications — Hikvision iDS-7216HUHI-M2/PXT
Full technical specification taken from the official Hikvision iDS-7216HUHI-M2/PXT AcuSense PoC DVR datasheet.
| Video & Audio | |
|---|---|
| Analogue Video Input | 16 × BNC (1.0 Vp-p, 75 Ω) — HD-TVI / AHD / HDCVI / CVBS auto-detect (5-in-1) |
| HD-TVI Input | 8 MP / 3K Lite / 5 MP / 4 MP / 3 MP / 1080p25 / 1080p30 / 720p25 / 720p30 / 720p50 / 720p60 |
| AHD Input | 8 MP / 4 MP / 3 MP / 1080p / 720p |
| HDCVI Input | 8 MP / 4 MP / 1080p / 720p |
| CVBS Input | PAL / NTSC |
| IP Video Input | Up to 8 channels via re-allocation (24 total inputs) |
| HDMI Output | 4K (3840 × 2160) @ 30 Hz / 2K (2560 × 1440) @ 60 Hz / 1920 × 1080 @ 60 Hz / 1280 × 1024 @ 60 Hz / 1024 × 768 @ 60 Hz |
| VGA Output | 1920 × 1080 @ 60 Hz / 1280 × 1024 @ 60 Hz / 1024 × 768 @ 60 Hz |
| Video Output Mode | HDMI + VGA simultaneous or independent (dual-monitor) |
| Audio Input | 1-channel RCA (2.0 Vp-p, 1 KΩ) + coaxial audio (per HD-TVI channel) |
| Audio Output | 1-channel RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-channel (uses audio input) |
| Recording & Playback | |
| Compression | H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
| Recording Resolution | 8 MP / 3K Lite / 5 MP / 4 MP / 3 MP / 1080p / 720p / WD1 / 4CIF / VGA / CIF |
| Frame Rate | Main stream: 8 MP @ {12,15,25} fps / 1080p @ 25 fps / 720p @ 25 fps. Sub-stream: WD1 / 4CIF / CIF @ 25 fps |
| Bit Rate | 32 Kbps to 10 Mbps per channel |
| Synchronous Playback | 16-channel |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / AAC |
| Smart Function (AcuSense) | |
| Human / Vehicle Classification | Up to 16-channel on-DVR (advanced AcuSense mode) — filters false alarms from animals, foliage, weather |
| Perimeter Protection | Line Crossing / Intrusion / Region Entrance / Region Exit — classifiable by target type |
| Facial Detection | Up to 1-channel face capture (analogue or IP) |
| VCA Events | Motion / Tampering / Video Loss / PIR (with PIR cameras) / Sudden Scene Change |
| POS Function | POS information overlay on live view + playback, POS-triggered recording and alarm |
| Power-over-Coax (PoC) | Supported on all 16 BNC inputs — powers PoC-compatible Hikvision Turbo HD cameras down the same coax cable |
| Network | |
| Network Interface | 1 × RJ-45 10/100/1000 Mbps self-adaptive Gigabit Ethernet |
| Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Remote Connections | 128 |
| Cloud / VMS | Hik-Connect P2P, ONVIF Profile S/G/T, Hik-Central, Hik-Central Professional, iVMS-4200, plug-in-free web access |
| Security | HTTPS, stream encryption, digest authentication, IP address filter |
| Storage | |
| SATA Bays | 2 × SATA 3.5″ (hot-swap) |
| Max HDD Capacity | 10 TB per HDD (raw 20 TB) |
| HDD Quota | Per-channel quota (capacity or duration based) |
| ANR (Auto Network Replenishment) | Yes — fills recording gaps from camera-side SD on network recovery (IP channels) |
| Interfaces | |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Alarm I/O | 4 in / 1 out |
| Serial Interface | 1 × RS-485 (half-duplex) |
| General | |
| Power Supply | 12 VDC adapter |
| Power Consumption | ≤ 30 W (without HDD) |
| Chassis | 1U rack-mountable |
| Dimensions (W × D × H) | 380 × 320 × 48 mm |
| Weight | ≤ 2 kg (without HDD) |
| Operating Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Operating Humidity | 10% to 90% (non-condensing) |
| Approvals | FCC, CE, UKCA, RoHS, REACH, WEEE |
Documentation — Hikvision iDS-7216HUHI-M2/PXT AcuSense PoC DVR
Download the official Hikvision datasheet for the iDS-7216HUHI-M2/PXT AcuSense PoC DVR, plus browse related categories on netviewcctv.co.uk.
| Document | Format | Link |
|---|---|---|
| iDS-7216HUHI-M2/PXT Product Datasheet | Download datasheet | |
| Browse all 16-Channel DVRs at Netview CCTV | Web | View 16-channel DVR range |
| Browse all DVRs at Netview CCTV | Web | View all DVRs |
| Contact Netview CCTV (trade pricing & support) | Web | Contact our trade team |
Netview CCTV — authorised Hikvision wholesale distributor (Leicester, UK). For trade pricing on the iDS-7216HUHI-M2/PXT and the matching HDD-bundle (-BB) variant, contact our trade team on 0116 3800 838 or [email protected].
