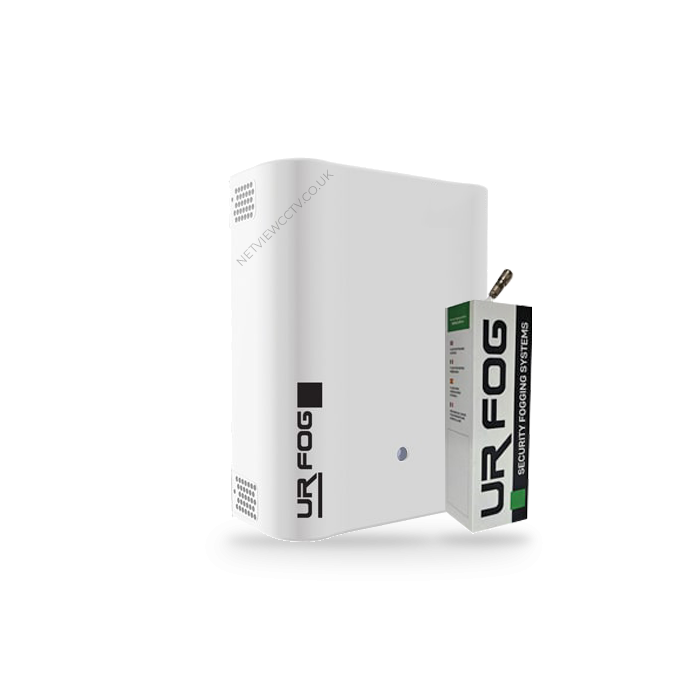

UR Fog Modular 800 Ajax Ready Fog Generator + 1000 ml Fluid Bag Kit
The UR Fog Modular 800 Ajax Ready Fog Generator + 1000 ml Fluid Bag Kit is a complete anti-intrusion fog package: the Modular 800 Ajax Ready generator plus its 1000 ml food grade fluid bag, ready to install and fireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems on day one.
✓ UR Fog 2 year Warranty — view warranty terms (PDF)
Genuine UR Fog product from the official Ajax Ready programme.
Key Features
- Complete ready-to-fireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems package: Modular 800 generator + 1000 ml food grade fluid bag
- 2 factory-fitted Ajax relays - wireless pairing with any Ajax hub
- Fills 800 m³ to zero visibility in 69 seconds
- Food grade fluid - safe for kitchens, food retail and pharmacies
- Everything needed for a working install on day one
UR Fog Modular 800 Ajax Ready Fog Generator + 1000 ml Fluid Bag Kit
The complete package - generator plus fluid, ready to install and fireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems.
Overview
This kit pairs the UR Fog Modular 800 Ajax Ready fog generator with its matching 1000 ml food grade fluid bag (FFLXTRC8FG), so the system is ready to protect from the moment it's installed. UR Fog machines ship without fluid as standard - this kit saves a second order and gets the install done in one visit. Recommended for up to 800 m³ premises (warehouses, large retail).
Kit Contents
- 1x UR Fog Modular 800 Ajax Ready fog generator (FPU03ESM082WNFE//)
- 2x Ajax relays (factory fitted)
- 1x 1000 ml food grade fluid bag (FFLXTRC8FG)
- Mounting fixings, retainers and manuals
Key Features
- Complete ready-to-fireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems package: Modular 800 generator + 1000 ml food grade fluid bag
- 2 factory-fitted Ajax relays - wireless pairing with any Ajax hub
- Fills 800 m³ to zero visibility in 69 seconds
- Food grade fluid - safe for kitchens, food retail and pharmacies
- Everything needed for a working install on day one
Three Wireless Activation Modes
1. Automatic: fog fires on motion detection or door/window opening via your Ajax detectors. 2. Photo verification: Ajax MotionCam sends animated snapshots so the fog can be triggered remotely only on a confirmed intrusion — no false-alarm discharges. 3. Anti-panic: manual activation from SpaceControl keyfob, Button or DoubleButton, even when the system is disarmed.
Safe, Certified Fog
The fog is EUROFINS-certified non-toxic to people and animals, leaves no residue and no odour. Food-grade fluid (tested to Regulation (EC) No 1935/2004) makes the system suitable for kitchens, restaurants, food retail and pharmacies. Fluid bags have no hard shelf life — UR Fog recommends replacement roughly every 3 years if unused. EN 50131-8 compliant.
Why Buy From Netview CCTV
Netview CCTV is a UK stockist of the UR Fog Ajax Ready range. Trade prices for installers, same-day dispatch on stocked lines from our Leicester warehouse, and free technical support on Ajax integration. Pair with our full Ajax alarm range.
Detailed Specifications — UR Fog Modular 800 Ajax Ready Fog Generator + 1000 ml Fluid Bag Kit
| Identification | |
|---|---|
| SKU | FPU03ESM082WNFE-KIT |
| Kit contents | FPU03ESM082WNFE + FFLXTRC8FG |
| EAN | Not issued by manufacturer |
| Brand | UR Fog |
| Product Type | Ajax Ready Fog Generator Kit |
| Performance | |
| Zero-visibility coverage | 800 m³ |
| 1 m visibility coverage | 2,400 m³ |
| Max shot time | 69 seconds |
| Total per bag | 1,700 m³ zero visibility / 5,100 m³ at 1 m visibility |
| Integration | |
| Ajax relays | 2 factory-fitted (arm + shoot) |
| Frequency | Jeweller - UK/EU band |
| General | |
| Standards | EN 50131-8 compliant; food grade fluid (Reg (EC) No 1935/2004) |
| Country of manufacture | Italy |
| Supplied by | Netview CCTV, Leicester - trade prices available |
Frequently Asked Questions
How much does the UR Fog Modular 800 cover?
See the specification table above - coverage is quoted both at zero visibility and at 1 m visibility. Choose the model that covers your room volume at zero visibility for full protection.
Is the fog fluid included?
This kit includes the 1000ml food grade fluid bag (FFLXTRC8FG) - it arrives ready to install and fire.
How does it connect to my Ajax system?
Two Ajax relays come factory-fitted inside the machine. You add them to your hub in the Ajax app by QR code (one relay arms with the system, one fires the fog) - typically a 10-minute job. Full step-by-step instructions are in the configuration manual on the Documents tab.
Is the security fog safe for people, pets and stock?
Yes. The fog is EUROFINS-certified non-toxic to humans and animals, leaves no residue and no odour, and will not damage stock, electronics or furnishings. The food grade fluid is additionally tested to Regulation (EC) No 1935/2004 for use around open food.
What about false alarms?
You choose the activation logic: instant firing from detectors, or photo-verified firing where an Ajax MotionCam image is checked before the fog is triggered remotely - so the fog only ever fires on a confirmed intrusion.
What happens after the fog fires?
The fog holds at zero visibility, then disperses naturally over roughly 30-60 minutes with normal ventilation, leaving no residue to clean up. Fit a replacement fluid bag and the system is ready to protect again.
Does it still work in a power cut?
Yes, with the optional backup battery fitted the machine stays armed and can fire for around an hour without mains power. The Ajax hub's own battery keeps the wireless link alive.
Are security fog systems legal in the UK?
Yes. Anti-intrusion fog generators are legal and widely used in UK homes and businesses. UR Fog systems comply with EN 50131-8, the European standard for security fog devices. Many insurers look favourably on fog protection for high-value stock; check your policy for any certification requirements.
How long does a fluid bag last?
Fluid bags are single-tank, multi-shot and have no hard expiry - UR Fog recommends replacing an unused bag roughly every 3 years. After any discharge, check remaining fluid; the machine reports fluid status.
Documentation — UR Fog Modular 800 Ajax Ready Fog Generator + 1000 ml Fluid Bag Kit
Official UR Fog documentation, manuals and resources.
| Document | Format | Link |
|---|---|---|
| Product datasheet — Modular 800 datasheet (Oct 2024) | Download datasheet | |
| Ajax alarm configuration manual (relay setup) | Download manual | |
| Keyfob & receiver manual (anti-panic activation) | Download manual | |
| UR Fog Ajax Ready brochure (UK) | Download brochure | |
| UR Fog Modular & Compact Ajax Ready catalogue 2024 | Download catalogue | |
| Manufacturer product page | Web | UR Fog Ajax Ready systems |
| Official Ajax Ready programme listing | Web | UR Fog on ajax.systems |
| UR Fog video channel (demos & installs) | Video | UR Fog on YouTube |
| Browse all security fog systems | Web | Security Fog Systems at Netview |
| Browse the Ajax alarm range | Web | Ajax at Netview CCTV |
Need help choosing or configuring a fog system? Call our Leicester trade counter on 0116 3800 838.
