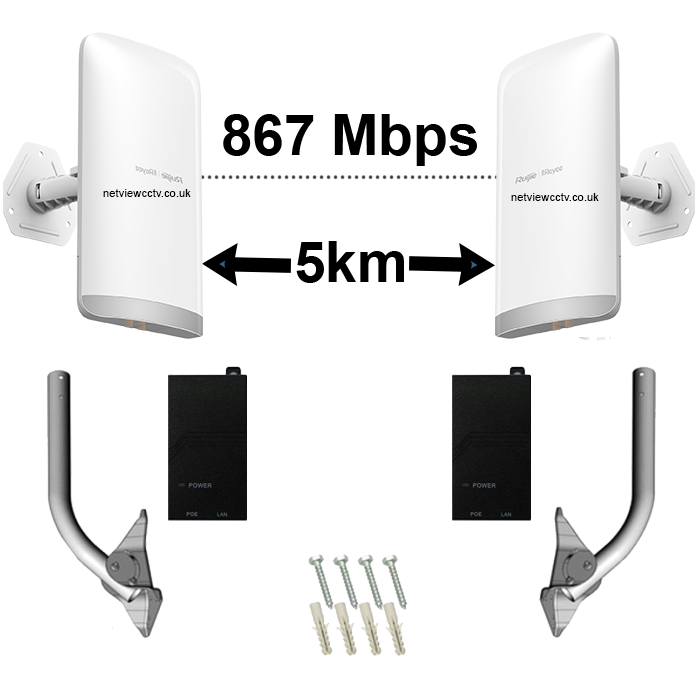

Ruijie RG-EST350 V2 Wireless Bridge Kit (x2) 5GHz 867Mbps Dual-Stream 5km Long Range P2MP

Ruiji RG-EST350 V2 Wireless Bridge Kit (x2) 5GHz 867Mbps Dual-Stream 5km Long Range  P2MP

Optional Universal Arm Bracket are not included but can be purchased HERE if required

RG-EST350 V2 5GHz Dual-stream 802.11ac Next-generation Wireless Bridge with long range
High-speed wireless data transmission at 5KM range. High Capacity 45 cameras maximum at 3KM, 20 cameras maximum at 5KM. Convenient & easy to install Zero configuration automatic pairing Plug and Play

CCTV Cameras throughput guide :
4MP : 30 cameras @1Km / 25 cameras @3Km / 15 cameras @1km
8MP : 15 cameras @1Km / 12 cameras @3Km / 6 cameras @5km

To guarantee the transmission quality, the environment should be kept as open as possible to reduce the interference. At the same time, it is recommended to adjust it to the best alignment angle with the signal strength indicator or Ruijie Cloud APP.

• RG-EST350 V2 can easily transmit data from 5KM away in real time
• Factory-paired bridges for long-distance installation, without complex alignment
• IP54 Weatherproof, -30℃~65℃ guarantee stable operating
• Support maximum 45 * 2MP cameras loading at 3KM, 20 * 2MP cameras loading at 5KM
• Visually Intuitive statistics monitoring on Ruijie cloud, easy maintenance at remotely

Manufacturer Product Listing
RG-EST350 V2 Wireless Bridge Installation Guide.pdf
RG-EST350 V2 User Manual
RG-AirMetro - EST Series - Wireless Bridges Configuration Guide

Easy Set-Up : Self-Organizing Networking (SON) eliminates product limitations and realizes auto-discovery, auto-networking, and auto-configuration between routers, switches, and wireless APs without the need for controllers or Internet access. The mobile app allows you to quickly complete device deployment and configuration, remote management, operation and maintenance (O&M) of the entire network, which greatly reduces the investment of device, labour, and time cost during wireless network construction

The Ruiji Reyee bridge points support both web interface management and remote management through life- time-free Ruijie Cloud App and Ruijie Cloud platform. You can view the network status, modify the configuration, and troubleshoot faults easily.
