External Sounder Siren & Strobe BLUE Hikvision AX PRO DS-PS1-E-WE
The Hikvision AX PRO DS-PS1-E-WE/BLUE is a wireless siren / sounder — External wireless bellbox — 100 dB piezo + blue strobe, IP65, 2-year primary battery.
Part of the Hikvision AX PRO two-way wireless range — 868 MHz Tri-X RF with AES-128 encryption, anti-jamming and signal-supervision across the full hub ecosystem. EN 50131 Grade 2 system support, Hik-Connect mobile app, Hik-ProConnect installer cloud and SIA-DC09 / Contact-ID ARC reporting.
Key Features
- 100 dB piezo siren + Blue strobe
- Mounting: External wall (eaves)
- IP rating: IP65 weatherproof
- Battery: Lithium battery pack 2 yr
- Two-way 868 MHz Tri-X RF — AES-128 encrypted
- Anti-tamper / anti-removal foam-back protection for outdoor mounting
- Low-power LED outage warning back to the hub
- CE / UKCA / RED approved
Read the full installer guide — tiers, the four-layer Trigger → Alert → Response → Record design and in-stock BoMs. Read the guide →

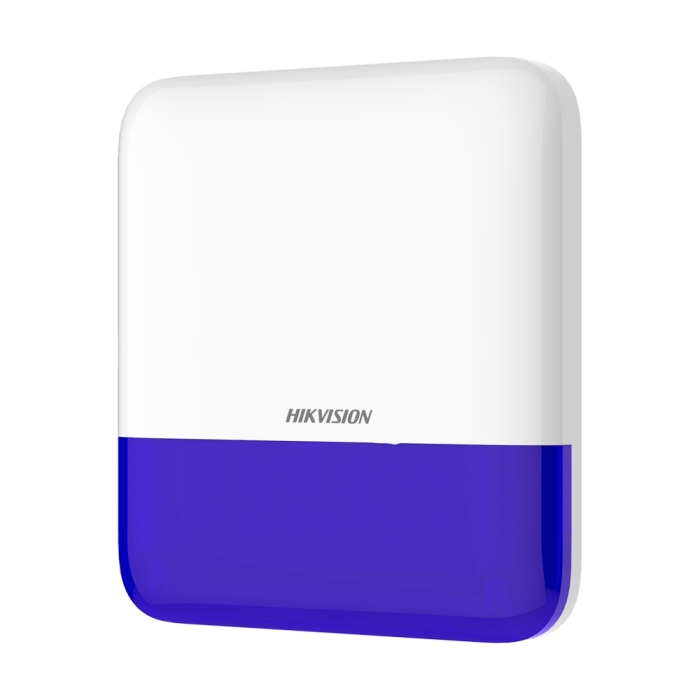

Hikvision AX PRO DS-PS1-E-WE/BLUE — Wireless Alarm Siren / Sounder
External wireless bellbox — 100 dB piezo + blue strobe, IP65, 2-year primary battery.
Overview
The Hikvision AX PRO DS-PS1-E-WE/BLUE is a wireless siren / sounder from the AX PRO professional wireless intruder-alarm range — two-way 868 MHz Tri-X RF with AES-128 encryption, full anti-jamming supervision and Hik-Connect mobile-app control. External wireless bellbox — 100 dB piezo + blue strobe, IP65, 2-year primary battery.
Sounder output: 100 dB piezo with synchronised Blue strobe. Mounting: External wall (eaves), IP rating: IP65 weatherproof. Battery: Lithium battery pack 2 yr with low-battery reporting to the hub.
RF: two-way 868 MHz Tri-X with AES-128 encryption, anti-jamming detection. The siren is a visible deterrent — its presence on the exterior of a property is itself a documented factor in burglary risk reduction, before the alarm is even tripped.
Construction: tamper-protected enclosure with front and rear tamper switches. CE / UKCA / RED / RoHS approved. Same-day dispatch from Netview CCTV Leicester — authorised Hikvision wholesale distributor — with trade pricing on stocked AX PRO product.
Key Features
- 100 dB piezo siren + Blue strobe
- Mounting: External wall (eaves)
- IP rating: IP65 weatherproof
- Battery: Lithium battery pack 2 yr
- Two-way 868 MHz Tri-X RF — AES-128 encrypted
- Anti-tamper / anti-removal foam-back protection for outdoor mounting
- Low-power LED outage warning back to the hub
- CE / UKCA / RED approved
Typical Applications
- External bellbox — main visible deterrent
- Front elevation for visibility from the street
- Eaves / fascia mounting
- Sites with insurance-spec external sounder
- Trade installs requiring same-day stock — Netview CCTV Leicester ships from UK stock
Compatible Hikvision Devices
- Hikvision AX PRO Hubs — DS-PWA64-L-WE, DS-PWA96-M-WE, DS-PWA96-M2H-WE
- Hik-Connect app (iOS / Android) — remote arm / disarm / push events
- Hik-ProConnect installer cloud — remote programming and zone management
- Indoor / outdoor siren can be added to any AX PRO zone
What's in the Box
- 1 × Hikvision AX PRO DS-PS1-E-WE/BLUE siren
- 1 × mounting bracket + fixings
- 1 × tamper-back protection
- 1 × quick start guide
📄 Download: Hikvision AX PRO DS-PS1-E-WE/BLUE Datasheet (PDF) — full technical specification, RF / battery / mechanical detail and approval certificates.
Detailed Specifications — Hikvision AX PRO DS-PS1-E-WE/BLUE
Full technical specification for the Hikvision AX PRO DS-PS1-E-WE/BLUE wireless siren / sounder taken from the official Hikvision AX PRO datasheet.
| Identification | |
|---|---|
| SKU | DS-PS1-E-WE/BLUE |
| MPN | 302401665 |
| EAN / GTIN-13 | 6941264054146 |
| Brand | Hikvision |
| Product Range | AX PRO |
| Product Type | Wireless Alarm Siren / Sounder |
| Detection / Function | |
| Sounder Output | 100 dB piezo |
| Strobe Colour | Blue |
| RF & Wireless | |
| RF Frequency | 868 MHz Tri-X two-way |
| Transmission Method | Two-Way RF Wireless |
| Encryption | AES-128 |
| Free-air Range | 1.6 km |
| Frequency Hopping | Supported |
| Anti-Jamming Detection | Supported |
| Power | |
| Battery Type | Lithium battery pack 2 yr |
| Low-Battery Reporting | Supported back to hub |
| Mechanical & Environment | |
| Mounting | External wall (eaves) |
| Tamper Protection | Front + Rear tamper switches |
| IP Rating | IP65 weatherproof |
| Operating Temperature | -10 °C to 55 °C |
| Operating Humidity | 10% to 90% non-condensing |
| Compatibility | |
| AX PRO Hubs | DS-PWA64-L-WE, DS-PWA96-M-WE, DS-PWA96-M2H-WE |
| End-User App | Hik-Connect (iOS / Android) |
| Installer Cloud | Hik-ProConnect |
| ARC Reporting | SIA-DC09 / Contact ID via the hub |
| Approvals | |
| Certifications | CE, UKCA, RED, RoHS |
| EN 50131 System Grade | Grade 2 compatible |
Documentation — Hikvision AX PRO DS-PS1-E-WE/BLUE
Download the official Hikvision datasheet for the AX PRO DS-PS1-E-WE/BLUE, plus browse related alarm-system categories on netviewcctv.co.uk.
| Document | Format | Link |
|---|---|---|
| DS-PS1-E-WE/BLUE Product Datasheet | Download datasheet | |
| Browse all Hikvision AX PRO Sounders | Web | View AX PRO Sounders |
| Browse all Hikvision AX PRO products | Web | View AX PRO range |
| Browse all Alarm Systems at Netview CCTV | Web | View alarm systems |
| Contact Netview CCTV (trade pricing & support) | Web | Contact our trade team |
Netview CCTV — authorised Hikvision wholesale distributor (Leicester, UK). For trade pricing on AX PRO product, contact our trade team on 0116 3800 838 or [email protected].
