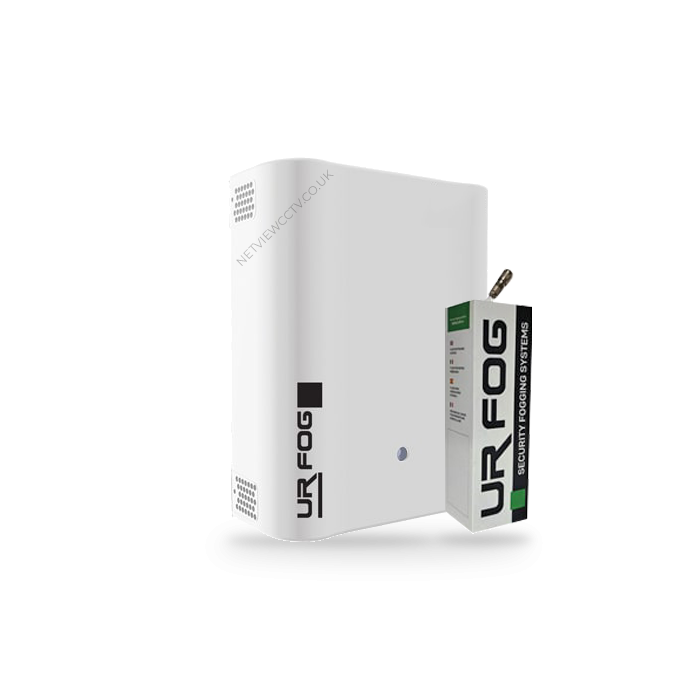

UR Fog Modular 800 Standard Fog Generator + 1000 ml Fluid Bag Kit
The UR Fog Modular 800 Standard Fog Generator + 1000 ml Fluid Bag Kit is a complete anti-intrusion fog package: the standard Modular 800 generator plus its 1000 ml food grade fluid bag - wires to any intruder alarm panel and fires on day one.
✓ UR Fog 2 year Warranty — view warranty terms (PDF)
Genuine UR Fog product.
Key Features
- Complete ready-to-fireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems package: standard Modular 800 generator + 1000 ml food grade fluid bag
- Wired connection to ANY intruder alarm panel - Ajax, AX PRO, Pyronix, Texecom and more
- Fills 800 m³ to zero visibility in 69 seconds
- Food grade fluid - safe for kitchens, food retail and pharmacies
- Everything needed for a working install on day one
UR Fog Modular 800 Standard Fog Generator + 1000 ml Fluid Bag Kit
The complete package - generator plus fluid, ready to install and fireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems on any alarm system.
Overview
This kit pairs the UR Fog Modular 800 standard fog generator with its matching 1000 ml food grade fluid bag (FFLXTRC8FG), so the system is ready to protect from the moment it's installed. UR Fog machines ship without fluid as standard - this kit saves a second order and gets the install done in one visit. Recommended for up to 800 m³ premises (warehouses, large retail).
Kit Contents
- 1x UR Fog Modular 800 standard fog generator (FPU03ESM082WNF///)
- 1x 1000 ml food grade fluid bag (FFLXTRC8FG)
- Mounting fixings, retainers and manuals
Key Features
- Complete ready-to-fireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems package: standard Modular 800 generator + 1000 ml food grade fluid bag
- Wired connection to ANY intruder alarm panel - Ajax, AX PRO, Pyronix, Texecom and more
- Fills 800 m³ to zero visibility in 69 seconds
- Food grade fluid - safe for kitchens, food retail and pharmacies
- Everything needed for a working install on day one
Connects To Any Intruder Alarm
The standard version has an open PCB with wired arm and shoot inputs plus status outputs (failure, fluid level), so it wires directly to any intruder alarm panel — Ajax, Hikvision AX PROHikvision AX PRO Wireless Alarm System: The 2026 UK Installer Guide, Pyronix, Texecom, Honeywell and more — or to a relay output on your control equipment. Want wireless triggering instead? Choose the Ajax Ready kit with two Ajax relays factory-fitted.
Safe, Certified Fog
The fog is EUROFINS-certified non-toxic to people and animals, leaves no residue and no odour. Food-grade fluid (tested to Regulation (EC) No 1935/2004) makes the system suitable for kitchens, restaurants, food retail and pharmacies. Fluid bags have no hard shelf life — UR Fog recommends replacement roughly every 3 years if unused. EN 50131-8 compliant.
Why Buy From Netview CCTV
Netview CCTV is a UK stockist of the UR Fog range. Trade prices for installers, same-day dispatch on stocked lines from our Leicester warehouse, and free technical support on alarm integration. We also stock the Ajax Ready kits with factory-fitted Ajax relays.
Detailed Specifications — UR Fog Modular 800 Standard Fog Generator + 1000 ml Fluid Bag Kit
| Identification | |
|---|---|
| SKU | FPU03ESM082WNF-KIT |
| Kit contents | FPU03ESM082WNF + FFLXTRC8FG |
| EAN | Not issued by manufacturer |
| Brand | UR Fog |
| Product Type | Security Fog Generator Kit (Standard) |
| Performance | |
| Zero-visibility coverage | 800 m³ |
| 1 m visibility coverage | 2,400 m³ |
| Max shot time | 69 seconds |
| Total per bag | 1,700 m³ zero visibility / 5,100 m³ at 1 m visibility |
| Integration | |
| Alarm connection | Wired PCB: arm + shoot inputs; failure & fluid status outputs |
| Compatible panels | Any intruder alarm (Ajax, AX PRO, Pyronix, Texecom, Honeywell...) |
| General | |
| Standards | EN 50131-8 compliant; food grade fluid (Reg (EC) No 1935/2004) |
| Country of manufacture | Italy |
| Warranty | 2 years (UR Fog) - machine; fluid is a consumable |
| Supplied by | Netview CCTV, Leicester - trade prices available |
Frequently Asked Questions
What is the difference between the Standard and Ajax Ready kits?
Identical machine and fluid - the Ajax Ready kit adds two factory-fitted Ajax relays for wireless pairing with an Ajax hub. The standard kit leaves the PCB contacts free for wired connection to any alarm panel.
Which alarm systems does it work with?
Any intruder alarm with a programmable output: Ajax, Hikvision AX PRO, Pyronix, Texecom, Honeywell and others - wired to the arm and shoot inputs.
Is the fog fluid included?
Yes - this kit includes the 1000 ml food grade fluid bag (FFLXTRC8FG), so it arrives ready to install and fire.
Is the security fog safe for people, pets and stock?
Yes. The fog is EUROFINS-certified non-toxic, leaves no residue and no odour, and will not damage stock or electronics. Food grade fluid is tested to Regulation (EC) No 1935/2004.
What happens after the fog fires?
The fog disperses naturally over roughly 30-60 minutes with normal ventilation, leaving nothing to clean up. Fit a replacement fluid bag and the system is ready again.
Are security fog systems legal in the UK?
Yes - EN 50131-8 compliant and widely used in UK homes and businesses. Many insurers look favourably on fog protection for high-value stock.
Documentation — UR Fog Modular 800 Standard Fog Generator + 1000 ml Fluid Bag Kit
Official UR Fog documentation, manuals and resources.
| Document | Format | Link |
|---|---|---|
| Product datasheet — Modular 800 datasheet (Oct 2024) | Download datasheet | |
| UR Fog Modular & Compact catalogue 2024 | Download catalogue | |
| UR Fog 2 year warranty terms | Download warranty | |
| Video: machine without relays (standard version) | Video | Watch on YouTube |
| UR Fog video channel (demos & installs) | Video | UR Fog on YouTube |
| Browse all security fog kits | Web | Security Fog Kits at Netview |
| Browse all security fog systems | Web | Security Fog Systems at Netview |
Need help choosing or configuring a fog system? Call our Leicester trade counter on 0116 3800 838.
