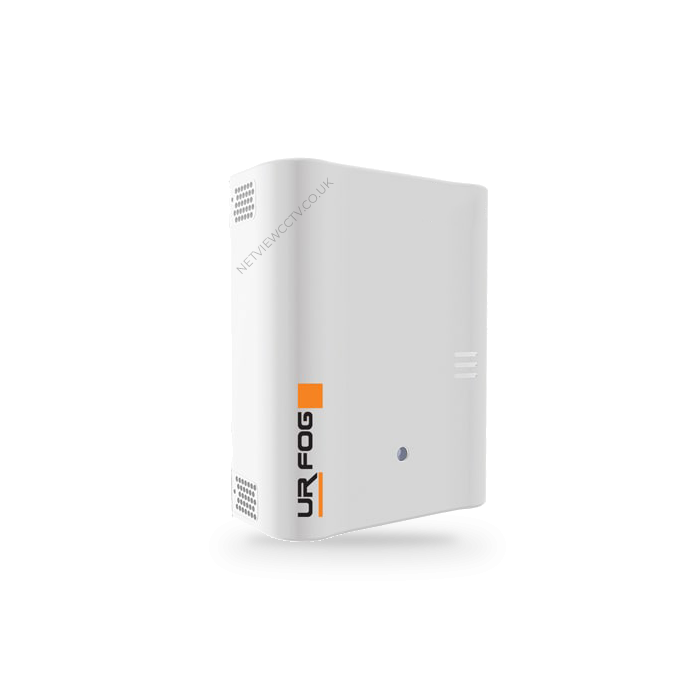

UR Fog Modular 300 Ajax Ready Anti-Intrusion Fog Generator
The UR Fog Modular 300 Ajax Ready Anti-Intrusion Fog Generator is an official Ajax Ready anti-intrusion fog generator that fills 300 m³ with impenetrable fog in 40 seconds. Two Ajax relays come factory-fitted for wireless pairing with any Ajax hub.
✓ UR Fog 2 year Warranty — view warranty terms (PDF)
Genuine UR Fog product from the official Ajax Ready programme.
Key Features
- 2 factory-fitted Ajax relays (arm + shoot) - fully wireless commissioning in minutes
- Fills 300 m³ to zero visibility in 40 seconds (900 m³ at 1 m visibility)
- Three activation modes: automatic, MotionCam photo-verified, or anti-panic keyfob
- EUROFINS-certified non-toxic fog - no residue, food-grade fluid compatible
- UK/EU Jeweller frequency - works with every Ajax hub
- Battery backup option (12V/2Ah (optional)) keeps protection through power cuts
UR Fog Modular 300 Ajax Ready Anti-Intrusion Fog Generator
Official Ajax Ready fog generator - if they can't see, they can't steal.
Overview
The UR Fog Modular 300 Ajax Ready Anti-Intrusion Fog Generator (order code FPU03ESM032WNFE//, also known as FPU03ESM300A) floods 300 m³ with dense, harmless fog in 40 seconds, stopping a burglary the moment it starts. It ships with two Ajax relays factory-fitted, so it pairs wirelessly with any Ajax hub through the Ajax app — no panel wiring, no third-party interfaces. Recommended for up to 300 m³ rooms (larger shops, small warehouses).
Key Features
- 2 factory-fitted Ajax relays (arm + shoot) - fully wireless commissioning in minutes
- Fills 300 m³ to zero visibility in 40 seconds (900 m³ at 1 m visibility)
- Three activation modes: automatic, MotionCam photo-verified, or anti-panic keyfob
- EUROFINS-certified non-toxic fog - no residue, food-grade fluid compatible
- UK/EU Jeweller frequency - works with every Ajax hub
- Battery backup option (12V/2Ah (optional)) keeps protection through power cuts
- Fog fluid bag NOT included - add the 500ml Food Grade Fluid Bag or choose the KIT version
Three Wireless Activation Modes
1. Automatic: fog fires on motion detection or door/window opening via your Ajax detectors. 2. Photo verification: Ajax MotionCam sends animated snapshots so the fog can be triggered remotely only on a confirmed intrusion — no false-alarm discharges. 3. Anti-panic: manual activation from SpaceControl keyfob, Button or DoubleButton, even when the system is disarmed.
Specifications
| Performance | |
|---|---|
| Fog coverage (zero visibility) | 300 m³ |
| Fog coverage (1 m visibility) | 900 m³ |
| Maximum shot time | 40 seconds |
| Total capacity per full bag | approx. 1,000 m³ zero visibility per full bag |
| Reaction time | 200 ms |
| Heating time | under 60 minutes |
| System | |
| Ajax relays | 2 pre-installed (arming + shooting) |
| Fluid tank | 0.5 L (500 ml bag) |
| Refill bag | 500ml Food Grade Fluid Bag (FFLXRC2-3FG) - not included |
| Backup battery | 12V/2Ah (optional) |
| Power | AC 220-240 V, approx. 170 W heating / 37 W armed |
| Outputs | Failure, fluid status, 12VDC 300mA aux |
| Physical | |
| Dimensions (H x W x D) | 390 x 300 x 130 mm |
| Weight | 7.5 kg |
| Mounting | Vertical or horizontal, wall or ceiling |
| Colour | White |
What's in the Box
- 1x UR Fog Modular 300 Ajax Ready fog generator
- 2x Ajax relays (factory fitted)
- Mounting fixings and retainers
- Installation and user manual
- Fog fluid bag NOT included - order the 500ml Food Grade Fluid Bag (FFLXRC2-3FG) separately or buy the KIT
Safe, Certified Fog
The fog is EUROFINS-certified non-toxic to people and animals, leaves no residue and no odour. Food-grade fluid (tested to Regulation (EC) No 1935/2004) makes the system suitable for kitchens, restaurants, food retail and pharmacies. Fluid bags have no hard shelf life — UR Fog recommends replacement roughly every 3 years if unused. EN 50131-8 compliant.
Why Buy From Netview CCTV
Netview CCTV is a UK stockist of the UR Fog Ajax Ready range. Trade prices for installers, same-day dispatch on stocked lines from our Leicester warehouse, and free technical support on Ajax integration. Pair with our full Ajax alarm range.
Detailed Specifications — UR Fog Modular 300 Ajax Ready Anti-Intrusion Fog Generator
| Identification | |
|---|---|
| SKU | FPU03ESM032WNFE |
| MPN / Order code | FPU03ESM032WNFE// |
| Legacy code | FPU03ESM300A |
| EAN | Not issued by manufacturer |
| Brand | UR Fog |
| Product Type | Ajax Ready Security Fog Generator |
| Performance | |
| Zero-visibility coverage | 300 m³ |
| 1 m visibility coverage | 900 m³ |
| Max shot time | 40 seconds |
| Total per bag | approx. 1,000 m³ zero visibility per full bag |
| Reaction time | 200 ms |
| Heating time | under 60 minutes |
| Integration | |
| Ajax relays | 2 factory-fitted (arm + shoot) |
| Frequency | Jeweller - UK/EU band |
| Activation | Auto (detectors), photo-verified (MotionCam), anti-panic (keyfob/Button) |
| Serial | 2x RS232 standard protocol (Active Cloud ready) |
| Electrical | |
| Power | AC 220-240 V |
| Consumption | approx. 170 W heating / 37 W armed |
| Backup battery | 12V/2Ah (optional) |
| Physical | |
| Dimensions | 390 x 300 x 130 mm |
| Weight | 7.5 kg |
| Tank | 0.5 L (500 ml bag) |
| Colour | White |
| Mounting | Vertical/horizontal, wall/ceiling |
| General | |
| Standards | EN 50131-8 compliant; EUROFINS-certified fluid |
| Country of manufacture | Italy |
| Warranty | 2 years (UR Fog) |
| Supplied by | Netview CCTV, Leicester - trade prices available |
Frequently Asked Questions
How much does the UR Fog Modular 300 cover?
See the specification table above - coverage is quoted both at zero visibility and at 1 m visibility. Choose the model that covers your room volume at zero visibility for full protection.
Is the fog fluid included?
No - like all UR Fog machines, the Modular 300 ships without fluid. Add the 500ml food grade fluid bag (FFLXRC2-3FG) or choose the KIT version which includes it.
How does it connect to my Ajax system?
Two Ajax relays come factory-fitted inside the machine. You add them to your hub in the Ajax app by QR code (one relay arms with the system, one fires the fog) - typically a 10-minute job. Full step-by-step instructions are in the configuration manual on the Documents tab.
Is the security fog safe for people, pets and stock?
Yes. The fog is EUROFINS-certified non-toxic to humans and animals, leaves no residue and no odour, and will not damage stock, electronics or furnishings. The food grade fluid is additionally tested to Regulation (EC) No 1935/2004 for use around open food.
What about false alarms?
You choose the activation logic: instant firing from detectors, or photo-verified firing where an Ajax MotionCam image is checked before the fog is triggered remotely - so the fog only ever fires on a confirmed intrusion.
What happens after the fog fires?
The fog holds at zero visibility, then disperses naturally over roughly 30-60 minutes with normal ventilation, leaving no residue to clean up. Fit a replacement fluid bag and the system is ready to protect again.
Does it still work in a power cut?
Yes, with the optional backup battery fitted the machine stays armed and can fire for around an hour without mains power. The Ajax hub's own battery keeps the wireless link alive.
Are security fog systems legal in the UK?
Yes. Anti-intrusion fog generators are legal and widely used in UK homes and businesses. UR Fog systems comply with EN 50131-8, the European standard for security fog devices. Many insurers look favourably on fog protection for high-value stock; check your policy for any certification requirements.
How long does a fluid bag last?
Fluid bags are single-tank, multi-shot and have no hard expiry - UR Fog recommends replacing an unused bag roughly every 3 years. After any discharge, check remaining fluid; the machine reports fluid status.
Documentation — UR Fog Modular 300 Ajax Ready Anti-Intrusion Fog Generator
Official UR Fog documentation, manuals and resources.
| Document | Format | Link |
|---|---|---|
| Product datasheet — Modular 300 datasheet (Oct 2024) | Download datasheet | |
| Ajax alarm configuration manual (relay setup) | Download manual | |
| Keyfob & receiver manual (anti-panic activation) | Download manual | |
| UR Fog Ajax Ready brochure (UK) | Download brochure | |
| UR Fog Modular & Compact Ajax Ready catalogue 2024 | Download catalogue | |
| Manufacturer product page | Web | UR Fog Ajax Ready systems |
| Official Ajax Ready programme listing | Web | UR Fog on ajax.systems |
| UR Fog video channel (demos & installs) | Video | UR Fog on YouTube |
| Browse all security fog systems | Web | Security Fog Systems at Netview |
| Browse the Ajax alarm range | Web | Ajax at Netview CCTV |
Need help choosing or configuring a fog system? Call our Leicester trade counter on 0116 3800 838.
