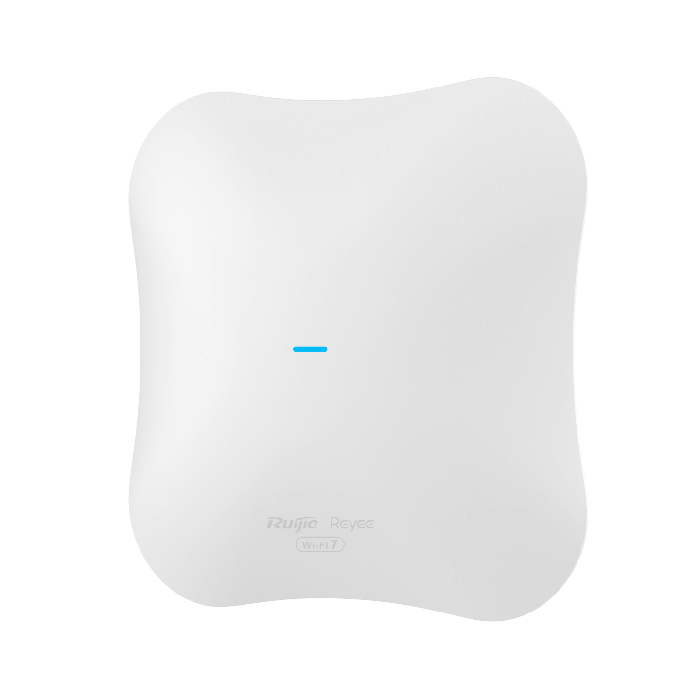

Ruijie RG-RAP72PRO WiFi-7 Wireless Ceiling Access Point BE5040 5Gbps
Ruiji RG-RAP720PRO Wi-Fi 7 BE5040 5Gbps Dual-Band Wireless Ceiling Access Point
The Ruijie Reyee RG-RAP72Pro Dual-Band WiFi 7 Access Point is a next-generation WiFi 7 ceiling access point designed to deliver exceptional wireless performance and coverage. Ideal for use in hotels, offices, and other enterprise environments, this access point ensures seamless connectivity and superior data transmission speeds. The RG-RAP72Pro leverages the latest WiFi 7 technology to provide unparalleled wireless speeds and performance. With its exclusive Multi-Link Operation (MLO) feature, users can enjoy superior streaming experiences without buffering or delays. The access point's 4K-QAM technology further enhances data transmission, making it ideal for high-density environments.
- Next-generation performance with Wi-Fi 7, delivering extra-high wireless speeds
- Superior streaming with Wi-Fi 7's exclusive MLO feature
- Compact design and easy installation
- Enhanced data transmission with 4K-QAM for faster speeds
- Ideal for integrating with enterprise switches to create a robust office network
Manufacturer Product Listing
Ruijie Reyee RG-RAP72Pro Access Point Installation Guide
Ruijie Reyee RG-RAP72Pro Access Point Quick Start Guide
Easy Set-Up : Self-Organizing Networking (SON) eliminates product limitations and realizes auto-discovery, auto-networking, and auto-configuration between routers, switches, and wireless APs without the need for controllers or Internet access. The mobile app allows you to quickly complete device deployment and configuration, remote management, operation and maintenance (O&M) of the entire network, which greatly reduces the investment of device, labour, and time cost during wireless network construction
The Ruiji Reyee access points support both web interface management and remote management through life- time-free Ruijie Cloud App and Ruijie Cloud platform. You can view the network status, modify the configuration, and troubleshoot faults easily.
Read the full Reyee CloudReyee Cloud Remote Multi-Site CCTV: Installer Guide multi-site CCTV guide
How UK installers manage Reyee gateways, PoE switches and APs across every customer site from one dashboard — no VPN, no port forwarding.
| Hardware | |
| Wi-Fi Protocols | 5 GHz Wi-Fi4: IEEE 802.11a/n Wi-Fi5: IEEE 802.11ac Wave2 Wi-Fi6: IEEE 802.11ax Wi-Fi7: IEEE 802.11be |
| 2.4 GHz Wi-Fi4: IEEE 802.11b/g/n Wi-Fi6: IEEE 802.11ax Wi-Fi7: IEEE 802.11be |
|
| Operating Frequency Bands (country-specific restrictions apply) |
5 GHz 5.150 GHz to 5.350 GHz 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz |
| 2.4 GHz 2.400 GHz to 2.4835 GHz |
|
| Spatial Streams | 5 GHz 3 spatial streams, 3x3 MIMO |
| 2.4 GHz 2 spatial streams, 2x2 MIMO |
|
| Antenna | Omni-directional |
| 5 GHz Antenna Gain 2.0dBi |
|
| 2.4 GHz Antenna Gain 3.0dBi |
|
| Channel Width | 5 GHz Auto/20/40/80/160 MHz |
| 2.4 GHz Auto/20/40 MHz |
|
| Data Rate | Max Throughput 5011Mbps |
| 5 GHz 4323Mbps |
|
| 2.4 GHz 688Mbps |
|
| Max. Transmit Power | 5 GHz 25dBm |
| 2.4 GHz 24dBm |
|
| Modulation | OFDM: BPSK @ 6/9 Mbps, QPSK @ 12/18 Mbps, 16-QAM @ 24 Mbps, and 64-QAM @ 48/54 Mbps DSSS: DBPSK @ 1 Mbps, DQPSK @ 2 Mbps, and CCK @ 5.5/11 Mbps MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, and 4096-QAM OFDMA |
| Receiver Sensitivity | 11b: -91dBm(1Mbps):-88dBm(5.5Mbps):- 85dBm(11Mbps) 11a/g: -89dBm(6Mbps):-80dBm(24Mbps):- 76dBm(36Mbps):-71dBm(54Mbps) 11n: -83dBm(MCS0):-65dBm(MCS7):- 83dBm(MCS8):-65dBm(MCS15) 11ac: 20MHz: -83dBm(MCS0), -57dBm(MCS9) 11ac: 40MHz: -79dBm(MCS0), -57dBm(MCS9) 11ac: 80MHz: -76dBm(MCS0), -51dBm(MCS9) 11ac: 160MHz: -76dBm(MCS0), -50dBm(MCS9) 11ax: 20MHz: -85dBm(MCS0), -58dBm(MCS11) 11ax: 40MHz: -82dBm(MCS0), -54dBm(MCS11) 11ax: 80MHz: -79dBm(MCS0), -52dBm(MCS11) 11ax: 160MHz: -76dBm(MCS0), -49dBm(MCS11) 11be: 20MHz: €“85dBm(MCS0), €“52dBm(MCS13) 11be: 40MHz: €“82dBm(MCS0), €“49dBm(MCS13) 11be: 80MHz: €“82dBm(MCS0), €“46dBm(MCS13) 11be: 160MHz: €“79dBm(MCS0), €“44dBm(MCS13) |
| Dimensions (W x D x H) | 208 mm x 208 mm x 40 mm (8.19 in. x 8.19 in. x 1.57 in.) |
| Weight | = 0.65 kg (1.43 lbs.) |
| Number of 10/100/1000 BASE-T Ports | 1 |
| Number of 10/100/1000/2500 BASE-T Ports | 1 |
| Number of 100/1000/2.5G/5G/10G BASE-T Ethernet Ports | 0 |
| DC (Local Power) | Yes (12V/2.5A) |
| DC Port Dimensions | Outer Diameter: 5.5 mm Inner Diameter: 2.1 mm Length: 10 mm |
| 802.3af | Yes (1T1R) |
| 802.3at | Yes |
| Max. PoE Wattage by PSE | No |
| Power Consumption | < 30W |
| Power Adapter | No |
| Buttons | 1 x Factory reset |
| LEDs | 1 x System LED indicator(blue) |
| Operating Temperature | 0°C to +40°C (32°F to +104°F) |
| Storage Temperature | €“40°C to +70°C (€“40°F to +158°F) |
| Operating Humidity | 5% to 95% (non-condensing) |
| Storage Humidity | 5% to 95% (non-condensing) |
| Ceiling-mount | Yes |
| Wall-mount | Yes |
| Pole-mount | No |
| Health | EN IEC 62311:2020 |
| Spectrum | EN 300 328 V2.2.2.2.2 EN 301 893 V2.1.1 EN 300 440 V2.2.1 Draft EN 303 687 V1.0.0 |
| IP Rating | IP41 |
| Lightning Protection/Surge | ±2 KV |
| Software Specifications | |
| Operating Mode (AP Mode and Router Mode) | Router Mode AP Mode |
| WLAN | |
| Recommended Number of Clients | BW160 11BE/AX:16(2.4G)+94(5G)=110 BW80 11AX：16(2.4G)+84(5G)=100 11AC：16(2.4G)+64(5G)=80 |
| Max. Number of SSIDs | 8 |
| Radio-based STA Limit | Yes |
| Layer 2 Client Isolation | Yes |
| OFDMA Subcarrier | Yes |
| OFDMA | Yes |
| Target Wake Time (TWT) | No |
| Wi-Fi Multimedia (WMM) | Yes |
| 802.1Q VLAN | Yes |
| Multi-Link Operation (MLO) | Yes |
| 4K-QAM | Yes |
| Same SSID for Different VLANs | Yes |
| Roaming | |
| 802.11k/v | Yes |
| 802.11r | Yes |
| Layer 2 Roaming | Yes |
| Layer 3 Roaming | Yes |
| AI Roaming | Yes |
| Security | |
| PSK Authentication | Yes |
| Static Blocklist and Allowlist | Yes |
| WPA (TKIP), WPA2 (AES), and WPA-PSK | Yes |
| Security | |
| OWE (Enhanced Open) WPA3-SAE WPA2-PSK/WPA3-SAE | Yes |
| 802.1X | Yes |
| ARP Check | No |
| IP Source Guard | No |
| LLDP | No |
| Static ARP Binding | Yes |
| Proxy ARP | No |
| Ping | Yes |
| Traceroute | Yes |
| Routing | |
| NAT | Yes |
| Static IP Address | Yes |
| DHCP Server | Yes |
| PPPoE Client PPPoE Dial-up | Yes |
| AP Mesh | |
| Mesh Management | Yes |
| Reyee Mesh | Yes |
| Standalone Portal | |
| Captive Portal | Yes |
| Bandwidth Limit | Yes |
| Data Quota | Yes |
| Management and Maintenance | |
| Default Access/Password | Yes |
| No. of APs on a Self-Organizing Network | 300 |
| Unified Networking for All Network Equipment | Yes |
| Local or Remote Management via Ruijie Reyee App | Yes |
| Local Management via the Web Interface | Yes |
| Remote Management via Ruijie Cloud | Yes |
| SNMP | Yes |
| Platform Management Features | |
| Optimization of Channel, Transmit Power, and Management Frame Power Settings. Both Pre- and Pro- Optimization Settings are Displayed. |
Yes |
| Unified Configuration via Ruijie Cloud | Yes |
| Unified Monitoring via Ruijie Cloud | Yes |
| Other | |
| Flash | 256MB |
| Memory | 512MB |
| Colour of AP Enclosure | Warm White |
