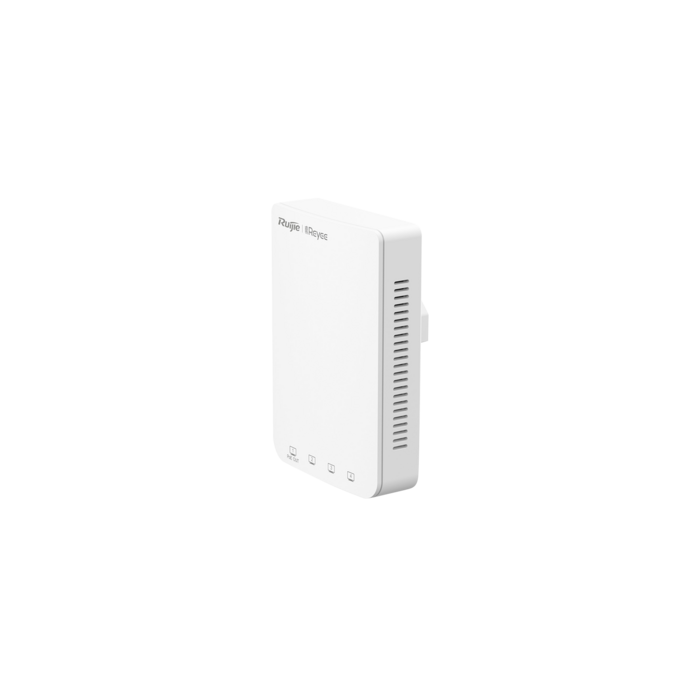

Wi-Fi 5 1267Mbps Ruijie RG-RAP1200(P) AC1300 Dual-Band Wall-Plate Access Point with 4xGb LAN (1xPoE)

Wi-Fi 5 1267Mbps Ruijie RG-RAP1200(P) AC1300 Dual-Band Wall-Plate Access Point with 4xGb LAN (1xPoE)

The Ruijie RG-RAP1200(P) is a wall mounted 1267Mbps access point which features 4 x 10/100/1000Base-T Ports (LAN1 supports IEEE.802.3af PoE OUT), and 1 x 10/100/1000Base-T (PoE in) at the rear. It supports 2.4GHz and 5GHz dual-band communication, providing the rate of 400 Mbit/s at 2.4 GHz, 867 Mbit/s at 5 GHz, and up to 1,267 Mbit/s per AP. The Reyee cloudReyee Cloud Remote Multi-Site CCTV: Installer Guide-managed series APs support Multi-user Multiple Input, Multiple Output (MU-MIMO) dual-stream technology and seamless layer 3 roaming

• Dual-radio performance, full gigabit wall-mounted access point
• Better experience with MU-MIMO under 802.11ac Wave2
• Multi-service support with full gigabit ports
• Easy installation and full compatibility
• Optimization in one-click mode, achieving better Wi-Fi experience
• Easy Wi-Fi network construction within 3 minutes
• Layer 3 roaming
• Support AP/ routing mode
• Ruijie Cloud app management

Manufacturer Product Listing
Ruijie Reyee RG-RAP1200(P) Access Point Installation Guide (V1.4)
RG-RAP1200(P) Access Point User Manual (V1.1)
RG-RAP1200(P)-MNT V1.00_Hardware User Guide
RG-RAP1200(P) Mounting Bracket Quick Installation Guide

Easy Set-Up : Self-Organizing Networking (SON) eliminates product limitations and realizes auto-discovery, auto-networking, and auto-configuration between routers, switches, and wireless APs without the need for controllers or Internet access. The mobile app allows you to quickly complete device deployment and configuration, remote management, operation and maintenance (O&M) of the entire network, which greatly reduces the investment of device, labour, and time cost during wireless network construction

The Ruiji Reyee access points support both web interface management and remote management through life- time-free Ruijie Cloud App and Ruijie Cloud platform. You can view the network status, modify the configuration, and troubleshoot faults easily.
