Ruijie RG-ES207GS-HP 7-Port Gigabit PoE++ Smart Cloud Managed Switch 2xPoE++ (90W) 2xPoE+ (60W) 2xGE + 1xSFP Uplink

Overview

The Ruijie RG-ES207GS-HP is a compact Gigabit PoE switch from Ruijie’s Reyee Smart CCTV range, for sites that mix standard IP cameras with high-power PoE devices. Ruijie lists it for CCTV, offices, hotels, factories and retail.

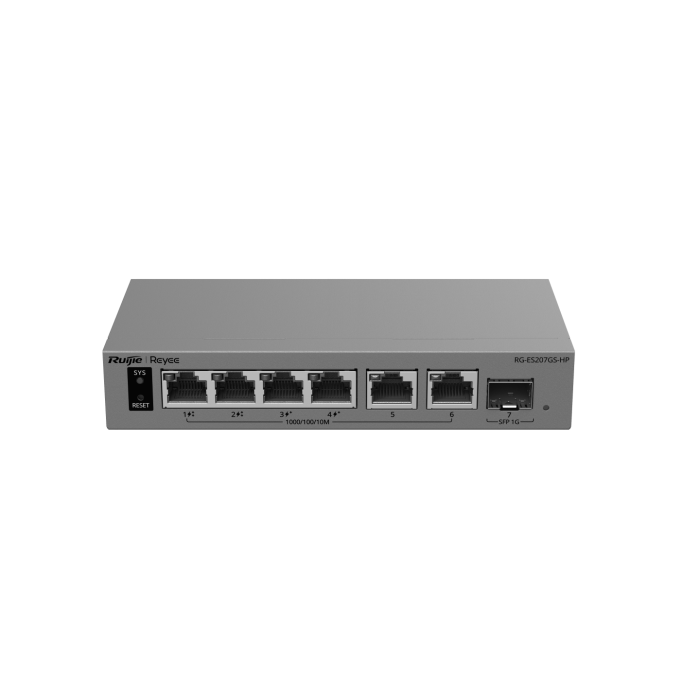

It has six Gigabit RJ45 ports and one 1G SFP port. Ports 1 and 2 support PoE++ (IEEE 802.3bt) with power on all four pairs, and are backward-compatible with PoE and PoE+ devices; ports 3 and 4 supply PoE/PoE+ (IEEE 802.3af/at). The four PoE ports share a 120 W PoE budget. Ports 5 and 6 are Gigabit ports without PoE for the NVR, router or another switch, and the SFP port takes a 1G fibre module (not included) for longer uplinks. Power comes from an external 54 V DC power adapter (100–240 V AC input).

Manage it free through Ruijie Cloud, the Reyee app or the built-in eWeb page: IPC (camera) recognition, PoE watchdog, cable test, Perpetual PoE through a warm restart, one-click Smart Protection (IP-conflict and loop prevention, DHCP snooping), 802.1Q VLANs (up to 32), static link aggregation, storm control and port mirroring. The fanless metal case measures 155 × 78 × 28 mm, with ±6 kV surge protection on the service ports and a DIP switch that sets the port LEDs to show traffic or PoE status. Netview CCTV in Leicester is a UK Ruijie reseller — call 0116 3800 838 for trade pricing.

Key Features

• 2× Gigabit PoE++ ports (IEEE 802.3bt, four-pair power) for high-power devices — also PoE/PoE+ compatible
• 2× Gigabit PoE/PoE+ ports (IEEE 802.3af/at) for IP cameras
• 120 W PoE budget shared across the four PoE ports
• 2× Gigabit RJ45 + 1× 1G SFP for NVR, router or fibre uplinks
• Ruijie Cloud / Reyee app / eWeb management with camera (IPC) recognition, PoE watchdog and cable test
• Perpetual PoE — cameras stay powered through a warm restart of the switch
• One-click Smart Protection in the app: IP-conflict prevention, loop prevention and DHCP snooping
• ±6 kV surge protection on the service ports; fanless metal case for wall or desk mounting
• 14 Gbps switching capacity, 10.42 Mpps forwarding, 3-year warranty

Port Layout

Source: Ruijie RG-ES207GS-HP datasheet (2026-07-16).

Typical Applications

• Mixed CCTV systems — high-power PoE++ devices on ports 1–2, standard IP cameras on ports 3–4
• PTZ and other high-power cameras that specify IEEE 802.3bt PoE
• Powering a remote switch over one cable — e.g. the Ruijie RG-ES207GS-PI-OD outdoor switch, which accepts PoE++ on its PoE-in port
• Small sites — offices, shops, hotels and factories (Ruijie’s listed applications)
• Trade installs — Netview CCTV Leicester supplies the Ruijie / Reyee range

Compatible Devices

• IP cameras with PoE / PoE+ (IEEE 802.3af/at) — Hikvision, HiLook and other standards-based cameras
• PoE++ (IEEE 802.3bt) powered devices on ports 1–2 — check the device’s PoE standard and power class
• The Ruijie RG-ES207GS-PI-OD outdoor switch, powered over PoE++ on its PoE-in port
• 1G SFP modules — e.g. Ruijie RG-MINI-GBIC or RG-NIS-GE-SFP modules for fibre uplinks
• Ruijie Cloud and the Reyee app (free) for remote management

What’s in the Box

• 1 × Ruijie RG-ES207GS-HP switch
• 1 × power cord (0.8 m, 1 m, 1.2 m or 1.5 m — length varies by shipment)
• 1 × user manual
• 1 × warranty card
