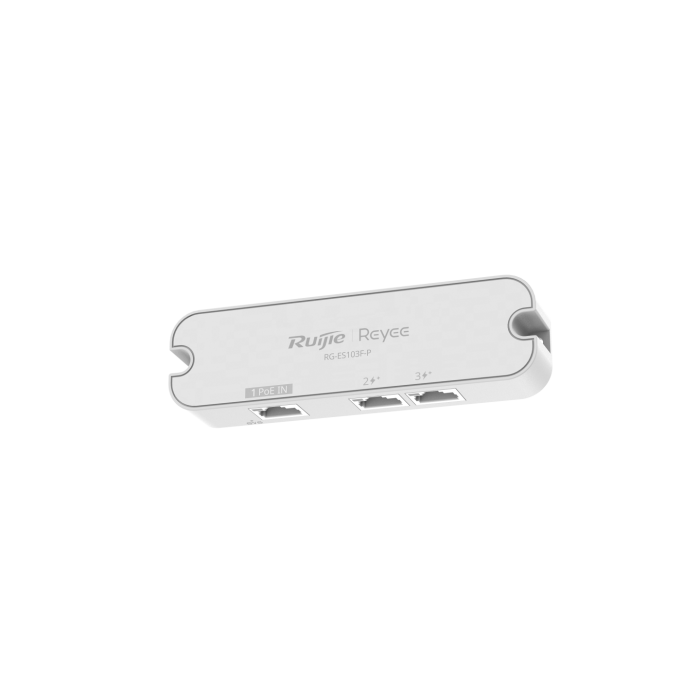

Ruijie RG-ES103F-P 3-Port 10/100 PoE-In Unmanaged Switch, 2xPoE+ Out, 30W PoE Extender
The Ruijie RG-ES103F-P is a compact 3-port 10/100 switch that runs entirely on PoE. Its PoE-in port takes power and data from the upstream switch, and its two PoE+ ports power and connect two IP cameras — no power supply needed at the camera position.
Plug and play with a 30 W PoE budget, ±4 kV surge protection and a fanless case just 120 × 34 × 20.5 mm. Trade pricing from Netview CCTV Leicester.
Key Features
- 1× 10/100 PoE-in port (IEEE 802.3af/at) — powered by the upstream switch, no power supply needed
- 2× 10/100 PoE/PoE+ out ports with a 30 W PoE budget
- Connects up to two IP cameras — Ruijie quotes up to 2× 4 MP cameras
- Coverage up to 350 m with a long-distance-capable uplink (one camera recommended at that distance)
- Plug and play unmanaged switch — no configuration
- Compact fanless plastic case, 120 × 34 × 20.5 mm, 50 g, wall or desk mounting
- ±4 kV surge protection, 3-year warranty
📖 Read the full guide: Reyee Networking for CCTV — The Complete UK Buyer’s Guide 2026 — RG-ES, RG-NBS and RG-NIS PoE switches, RG-EG routers, Wi-Fi 6/7 APs, EST bridges, PoE sizing and free Ruijie Cloud management.
Ruijie RG-ES103F-P 3-Port 10/100 PoE-In Unmanaged Switch, 2xPoE+ Out, 30W PoE Extender
3-port 10/100 switch powered by PoE: 1× PoE in, 2× PoE+ out, 30 W budget, plug and play.
Overview
The Ruijie RG-ES103F-P is a pocket-sized three-port 10/100 switch from the Reyee range that is powered entirely by PoE. Connect its PoE-in port to a PoE or PoE+ (IEEE 802.3af/at) switch port and its two PoE/PoE+ output ports power and connect two IP cameras — a quick way to add a second camera at the end of an existing cable run, or to split one PoE feed between two cameras, without a mains supply at the camera position.
It has a 30 W PoE budget across the two outputs, which Ruijie rates for up to two 4 MP cameras, and needs no configuration. Ruijie quotes coverage of up to 350 m when the uplink device supports long-distance transmission, with one downlink camera recommended at that distance; actual reach depends on the cable and the environment.
The fanless plastic case measures just 120 × 34 × 20.5 mm and weighs 50 g, mounts on a wall or desk, and carries ±4 kV surge protection on the service ports. It is rated 0°C to 40°C, and Ruijie covers it with a 3-year warranty. Netview CCTV in Leicester is a UK Ruijie reseller — call 0116 3800 838 for trade pricing.
Key Features
- 1× 10/100 PoE-in port (IEEE 802.3af/at) — powered by the upstream switch, no power supply needed
- 2× 10/100 PoE/PoE+ out ports with a 30 W PoE budget
- Connects up to two IP cameras — Ruijie quotes up to 2× 4 MP cameras
- Coverage up to 350 m with a long-distance-capable uplink (one camera recommended at that distance)
- Plug and play unmanaged switch — no configuration
- Compact fanless plastic case, 120 × 34 × 20.5 mm, 50 g, wall or desk mounting
- ±4 kV surge protection, 3-year warranty
Typical Applications
- Adding a second camera at the end of an existing PoE cable run
- Splitting one PoE port between two cameras — e.g. front and side of a building
- Extending PoE beyond 100 m with a long-distance-capable uplink (up to 350 m quoted by Ruijie)
- Retrofits where there is no mains power at the camera position
- Trade installs — Netview CCTV Leicester supplies the Ruijie / Reyee range
Compatible Devices
- Upstream PoE / PoE+ (IEEE 802.3af/at) switches and injectors — e.g. Ruijie Reyee RG-ES PoE switches
- IP cameras with PoE / PoE+ (IEEE 802.3af/at) — Hikvision, HiLook and other standards-based cameras, up to two per switch
- Standard Cat5e / Cat6 network cable
What’s in the Box
- 1 × Ruijie RG-ES103F-P switch
- 1 × user manual
- 1 × warranty card
Detailed Specifications — Ruijie RG-ES103F-P
Full specification from the official Ruijie datasheet and reyee.ruijie.com product page.
| Identification | |
|---|---|
| SKU | RG-ES103F-P |
| MPN | RG-ES103F-P |
| Brand | Ruijie (Reyee) |
| Series | Reyee unmanaged switch — plastic casing |
| Product type | PoE-in unmanaged switch (PoE extender) |
| Ports | |
| RJ45 ports | 3 × 10/100BASE-T |
| PoE in port | 1, IEEE 802.3af/at (PoE / PoE+) |
| PoE out ports | 2, PoE/PoE+ (IEEE 802.3af/at) |
| Power | |
| PoE budget | 30 W |
| PoE power pins | 1–2 (+), 3–6 (−) |
| Power input | PoE / PoE+ (IEEE 802.3af/at) Ethernet power supply |
| Maximum power consumption | 2.5 W with no PoE load; 32.5 W with full PoE load |
| Performance | |
| Switching capacity | 0.6 Gbps |
| Forwarding rate | 0.45 Mpps |
| Cameras | Up to 2 concurrent camera connections (up to 2 × 4 MP, per Ruijie) |
| Coverage | Up to 350 m with long-distance transmission support on the uplink device; one downlink camera recommended at 350 m |
| Physical | |
| Casing | Plastic |
| Dimensions (W × D × H) | 120 × 34 × 20.5 mm |
| Weight | 0.05 kg (0.11 lb); 0.114 kg shipping weight |
| Cooling | Fanless, natural cooling |
| Mounting | Wall or desk |
| Environment & protection | |
| Operating temperature | 0°C to 40°C |
| Storage temperature | −40°C to 70°C |
| Humidity | 10% to 90% RH operating; 5% to 95% RH storage (non-condensing) |
| Altitude | −500 m to +5,000 m |
| Surge protection | ±4 kV common mode (service ports) |
| ESD protection | 6 kV air, 4 kV contact |
| MTBF | 200,000 hours |
| Compliance & warranty | |
| Certification | CE, CB |
| EMC | EN 55032, EN IEC 61000-3-2, EN 61000-3-3, EN 55035, EN 300 386 |
| Safety | EN 62368-1, IEC 62368-1 |
| Warranty | 3 years |
Specifications are taken from Ruijie published product data and may be updated by the manufacturer.
Frequently Asked Questions
What is the Ruijie RG-ES103F-P?
A compact 3-port 10/100 switch powered by PoE: one PoE-in port and two PoE/PoE+ output ports, so one PoE cable can serve two IP cameras.
Does it need a power supply?
No — it is powered over its PoE-in port (IEEE 802.3af/at) by the upstream PoE switch or injector.
How many cameras can it run?
Two. The two output ports share a 30 W PoE budget, and Ruijie rates it for up to two 4 MP cameras.
How far can it extend PoE?
Ruijie quotes coverage of up to 350 m when the uplink device supports long-distance transmission, with one downlink camera recommended at that distance. Actual reach depends on the cable and the environment.
Can it be used outdoors?
It has a plastic casing rated 0°C to 40°C, so mount it indoors or inside a suitable weatherproof enclosure.
How do I order it?
Order online at netviewcctv.co.uk or call our trade team on 0116 3800 838 for trade pricing and availability.
Documentation — Ruijie RG-ES103F-P 3-Port 10/100 PoE-In Unmanaged Switch, 2xPoE+ Out, 30W PoE Extender
Official Ruijie datasheet and product page, plus related Ruijie networking categories on netviewcctv.co.uk.
