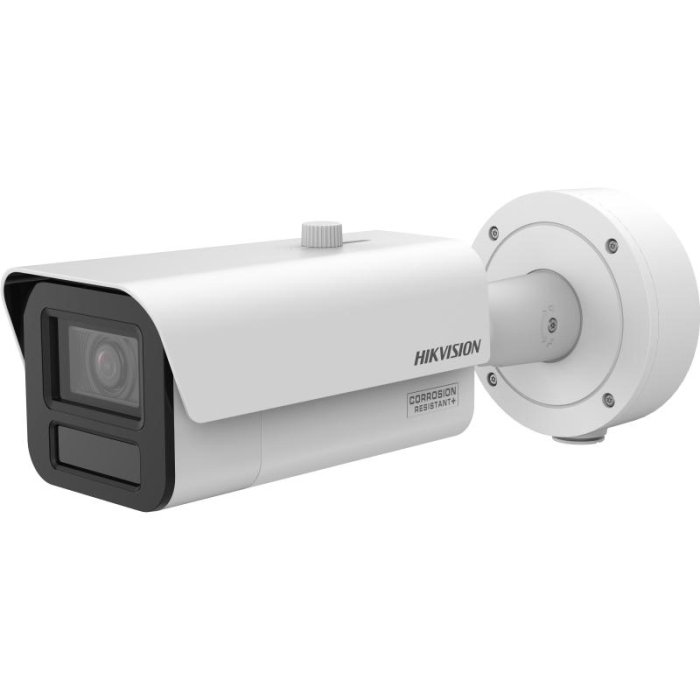

Hikvision iDS-2CD7A46G2/LM-IZHSY(8~32mm) 4MP DeepinViewX Guanlan VF ANPR Bullet Camera

Overview

The Hikvision iDS-2CD7A46G2/LM-IZHSY(8-32mm)UK ANPR is the new-generation 4 MP DeepinView ANPR bullet camera, the direct successor to the popular iDS-2CD7A46G0/P-IZHSY(8-32mm). It is built on Hikvision’s new G2/LM (Large Vision) platform and is powered by the Guanlan Large Vision Model — a major step forward in licence-plate recognition robustness, image quality and on-camera vehicle analytics.

Per Hikvision’s Q2 2026 product-transition notice, the short- and medium-focal-length G0/P ANPR cameras enter phase-out and migrate to the corresponding G2/LM Large Vision ANPR models. Long-focal-length and dome variants within the iDS-7 Series ANPR range remain on the G0/P platform for now.

Guanlan Large Vision Model — What’s New

The G2/LM Large Vision platform is Hikvision’s deepest-learning ANPR camera engine to date. Compared with the outgoing G0/P:

• More robust ANPR recognition across diverse UK and Ireland plate formats, with stronger adaptability to dirty/damaged/angled plates.
• Motorcycle plate recognition (checkpoint scenario) — was not supported on the G0/P short-range models.
• Special-character plate recognition in selected regions and countries.
• 9 vehicle types detected on-camera: Car, Van, Bus, Truck, Light Truck, SUV/MPV, Pickup Truck, Motorcycle, Tricycle.
• 11 vehicle colours: red, yellow, green, blue, pink, purple, cyan, brown, white, grey, black.
• 200+ vehicle makes & models recognised on-camera.
• DarkFighter 2.0 + AI-ISP — cleaner low-light imagery, sharper motion capture (HFR), F1.0-class large-aperture optics for low-light plate reads.
• Dual AI on the AI Open Platform — ANPR and perimeter protection run simultaneously (not just one or the other).

Key Features

• 4 MP resolution (2688 × 1520 @ 25 fps)
• 1/1.8″ Progressive Scan CMOS sensor
• 8 mm – 32 mm motorised varifocal lens (P-iris, auto-focus)
• Aperture: F1.7
• Field of view: Horizontal 42.5° – 15.2°; Vertical 23.4° – 8.7°
• 100 m IR range with Smart Supplement Light (850 nm)
• 150 dB WDR — back-lit barriers, tunnel mouths, forecourt-lit night scenes
• DarkFighter 2.0 + AI-ISP low-light and motion-clarity engine
• Min illumination: 0.0005 lux @ F1.2 colour; 0.0001 lux B/W; 0 lux with IR
• Shutter: 1 s to 1/100,000 s — high-speed shutter for motion-stop plate capture
• EIS image stabilisation, BLC/HLC/3D-DNR/Distortion correction/Defog
• Guanlan Large Vision Model ANPR — capture rate > 98%, vehicle direction accuracy > 96%, mistaken capture < 2% (entry/exit) and < 5% (checkpoint)
• 9 vehicle types, 11 colours, 200+ makes/models, motorcycle plate recognition (checkpoint)
• Blocklist/allowlist: 10,000 records on-device, captures vehicles without licence plates
• Dual AI: ANPR + perimeter protection simultaneously (line crossing, intrusion, region entrance/exit)
• Audio: 2 built-in microphones, 1 built-in speaker, 1 line-in / 1 line-out (3.5 mm)
• Alarm I/O: 2 in / 2 out (max. 24 VDC/24 VAC, 1 A)
• RS-485 (HIKVISION/Pelco-P/Pelco-D self-adaptive)
• Edge storage: microSD/microSDHC/microSDXC up to 1 TB, ANR, encryption, health detection
• H.265+/H.265/H.264+/H.264/MJPEG, main + sub + third stream
• 1 RJ45 10/100/1000 Mbps self-adaptive Ethernet
• ONVIF Profile S/G/T/M, ISAPI, SDK, ISUP, OTAP
• Power: 12 VDC, 24 VAC, PoE IEEE 802.3at Type 2 (max ~25 W)
• Body: aluminium alloy, IP67 + IK10, −40 °C to 65 °C, built-in heater + demist
• Security: TPM 2.0 (FIPS 140-2 L2, CC EAL4+), AES 128/256, TLS 1.3, 802.1X, HTTPS
• UK CE / UKCA approvals (CE-EMC, CE-LVD, RoHS, REACH, WEEE), NEMA 4X anti-corrosion (-Y)
• OODPCVS classified to IEC/EN 62676-4:2025 — Tele Validate 20 m, Scrutinize 6.7 m

Typical Applications

• Lane/approach-road anpr, mid-range checkpoint capture, perimeter anpr and long-throw barrier monitoring
• Plate-driven barrier control — white-list auto-open for permit holders, black-list alert on flagged plates
• Fleet entry/exit logging — HGV depots, courier hubs, wholesale yards
• Private estate, business park, depot and secure-compound gate access
• Drive-through — QSR / coffee chains capturing plates for loyalty / order routing
• Motorcycle-aware ANPR checkpoints (new on G2/LM)
• Combined ANPR + perimeter detection on a single camera (dual AI)

Predecessor & Transition

The iDS-2CD7A46G2/LM-IZHSY(8-32mm) supersedes the iDS-2CD7A46G0/P-IZHSY(8-32mm) — the outgoing 4 MP DeepinView ANPR bullet on the G0/P platform. Hikvision’s Q2 2026 transition notice confirms: “Short- and medium-focal-length ANPR G0/P models will enter the phase-out period from Q2 2026 and transition to the corresponding G2/LM Large Vision ANPR models. Long-focal-length and dome variants within the 7 Series ANPR range will remain on the G0/P platform.” If you need ANPR stock now, the G0/P remains available from Netview CCTV until phase-out completes.

Compatible Hikvision Systems

• Hikvision NVRs — iDS AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide, VPro AcuSeekWhat is Hikvision AcuSeek, K-series and Pro-series ranges (ISAPI / OTAP plate-event push)
• Hik-Central Professional — dedicated ANPR / plate-event database, allow/blocklist, integration with access control
• Hik-Connect mobile (iOS / Android) and iVMS-4200 desktop (Windows / macOS)
• Plate-event push to ANPR-aware third-party VMS, tolling and access-control back-ends over HTTP / TCP / ONVIF
• DS-FM2466 alarm-extension box for +6 in / +6 out alarm channels
• Barrier / gate controllers wired direct to the alarm-relay output for plate-driven access

What's in the Box (Expected)

• 1 × Hikvision iDS-2CD7A46G2/LM-IZHSY(8-32mm)UK ANPR bullet camera
• 1 × mounting template & hardware kit
• 1 × waterproof RJ-45 connector
• 1 × cable / connector accessory bag
• 1 × quick start guide
