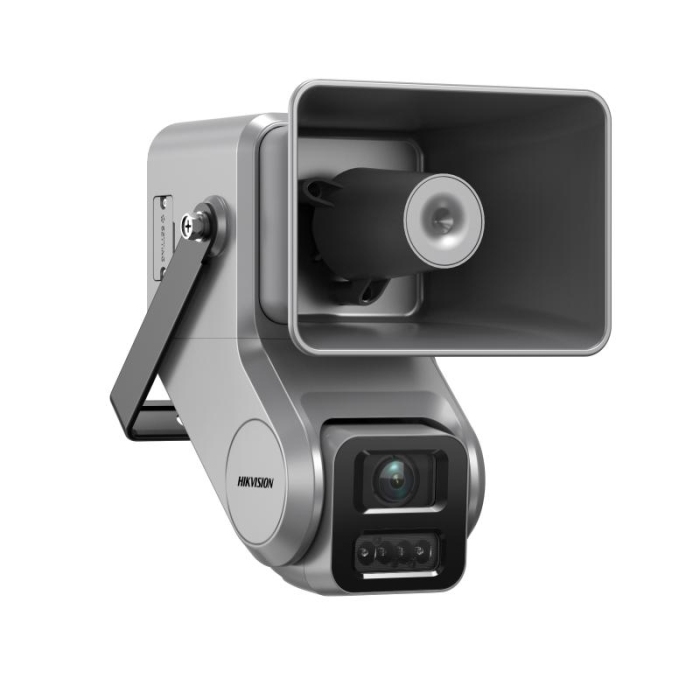

Hikvision DS-QACAM07G1-4LIZSU 4MP DeepinView 7W Motorised Visible Horn Camera + Speaker

Overview

The Hikvision DS-QACAM07G1-4LIZSU is the headline model in Hikvision’s Visible Horn range — a single PoE+ device that combines a professional 4 MP motorised varifocal IP camera with an integrated 7 W IP horn speaker and dual electret microphones. Designed for sites that need both surveillance and active audio deterrent without running two separate cable drops, two power supplies and two RJ45 ports.

Internally the camera is built on Hikvision’s embedded open platform — the same architecture used on the iDS DeepinView range — meaning professional image effects, on-camera AI inference and a dedicated large-scale model for perimeter protection. Hikvision quotes a 90 % reduction in false alarms compared with conventional AI cameras for the same line-crossing, intrusion and region-entrance/exit events, with built-in target filtering by human and vehicle.

The integrated horn is a true 7 W dome-tweeter speaker, 8 Ω impedance, 107 dB sensitivity at 1 m/1 W, 115 dB maximum SPL and a 500 Hz – 6 kHz frequency response tuned for voice broadcast and audible deterrent. Hikvision rates the outdoor loudspeaker distance at up to 100 m, making it suitable for forecourts, builders’ yards, perimeters and large car-parks.

Why the Visible Horn?

• One device, two functions. Replace a separate IP camera + IP horn speaker stack with a single PoE+ install — halves your cable runs, switch ports and mount points.
• AI-triggered live audio deterrent. Perimeter-protection alarms can fireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems a live or pre-recorded announcement out the integrated horn — intruder hears a real warning the moment they cross the line, not after the event reaches a remote monitoring station.
• True 100 m outdoor reach. The dome tweeter is voiced for outdoor projection — not the “ish” 2–3 m chirp you get from a built-in speaker on a standard camera.
• Hybrid IR + white-light supplement. 50 m IR for night identification or full-colour 20 m white light when an alarm event triggers — combined optical + audio deterrent in a single trigger.
• Dual microphones for two-way talk-down, with AEC/NS/AGC/DRC echo cancellation and noise filtering tuned for outdoor conditions.

Key Features

• 4 MP resolution (2560 × 1440), 25/30 fps real-time
• 1/3″ Progressive Scan CMOS sensor
• 2.8 mm – 12 mm motorised varifocal lens, auto-focus, F1.6 fixed iris
• FOV: H 99° – 30.4°, V 52.9° – 17.2°, D 117.7° – 34.9°
• Min illumination: 0.005 lux colour @ F1.6, 0 lux with IR
• Shutter: 1 s to 1/100,000 s
• Hybrid supplement light — IR up to 50 m + white light up to 20 m, 850 nm IR wavelength, smart supplement light
• Image enhancement: BLC, HLC, 3D-DNR, defog, EIS, wide dynamic range, backlight compensation
• Built-in 7 W horn speaker — 8 Ω impedance, 107 dB sensitivity (1 m/1 W), 115 dB SPL maximum, 500 Hz – 6 kHz, 5 % THD, dome tweeter, up to 100 m outdoor reach
• 2× built-in electret microphones — 100 Hz – 20 kHz, -32 dBV/Pa sensitivity, 48 kHz sampling, 16-bit quantisation
• Two-way audio with AEC, NS, AGC, DRC
• Audio compression: G.711a/u, G.722.1, G.726, MP2L2, PCM, AAC-LC, MP3
• Environment noise filtering
• Dedicated large-scale AI perimeter-protection model — 90 % fewer false alarms vs conventional AI cameras
• Perimeter rules: line crossing, intrusion, region entrance/exit (human + vehicle target filter)
• Metadata: intrusion / line-crossing / region-entrance / region-exit
• Smart events: scene change, audio exception, defocus detection
• Basic events: motion, tamper, alarm input, exception, video diagnostics
• Linkage: FTP/NAS/SD upload, surveillance centre, email, alarm output, recording, audible warning, white-light flashing
• 1 alarm in / 1 alarm out, 1 RS-485, reset button
• Local storage: 8 GB eMMC + microSD/microSDHC/microSDXC up to 512 GB with ANR and memory-card encryption / health detection
• Encoding: H.265+ / H.265 / H.264+ / H.264 (Main / High / Baseline profiles)
• 5 simultaneous output streams (main, sub, third, fourth, fifth) — up to 20 concurrent live-view channels
• ROI: 4 fixed regions per stream, SVC scalable video coding, target cropping
• Network: 1 RJ45 10/100/1000 Mbps, IPv4/IPv6, TCP/IP, HTTPS, RTSP, RTP, RTCP, FTP, DHCP, DNS, DDNS, PPPoE, NTP, UPnP, SMTP, SNMP, 802.1X, QoS, WebSocket(s)
• API: ISAPI, ISUP 5.0, ONVIF (Open Network Video Interface)
• Security: HTTPS, 802.1X (EAP-TLS / EAP-LEAP / EAP-MD5), IP filter, watermark, TLS 1.2, security audit log
• Clients: iVMS-4200, Hik-Connect, HikCentral Professional
• Power: PoE+ IEEE 802.3at Type 2 Class 4 (42.5 V – 57 V) / 12 VDC 2.125 A, max 25.5 W
• Body: metal, grey, 338 × 244.9 × 190.1 mm, 3.8 kg
• Operating: −30 °C to 60 °C, ≤ 95 % RH (non-condensing)
• IP67 protection, EMC Class B, CE / RoHS / WEEE / REACH compliant
• Bracket adjustment angle: −53° to 165°

Typical Applications

• Perimeter audio deterrent — AI perimeter rule triggers live or pre-recorded talk-down out the integrated horn
• Builders’ yards, plant-hire depots, scrap yards, scaffold yards — visible camera + loud audio deterrent in one unit
• Car-park entry/exit and forecourt monitoring with public-address capability
• Schools, colleges and public buildings — out-of-hours intruder detection with verbal warning
• Retail loading bays and delivery yards — two-way talk-down to staff or drivers without an additional intercom
• Anti-loitering / hostile-vehicle protection on supermarket forecourts, drive-throughs and QSR sites
• Replacement for legacy camera + standalone IP horn (e.g. DS-PA0103-B) installs — reduces cable + switch port count

Compatible Hikvision Systems

• HikCentral Professional — full visible-audio integration including AI-triggered audio broadcast rules
• iVMS-4200 desktop client (Windows / macOS) for live view, two-way audio, audio file upload and playback
• Hik-Connect mobile app (iOS / Android) for live view and remote talk-down
• Hikvision NVR ranges — iDS AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide / VPro / K-series / Pro-series (ISAPI / ONVIF stream + audio)
• Third-party VMS / NVR over ONVIF Profile S/G/T with two-way audio
• External alarm panels / access control via 1-in / 1-out alarm contact and RS-485

What's in the Box

• 1 × Hikvision DS-QACAM07G1-4LIZSU 4 MP Visible Horn camera + speaker
• 1 × wall-mount bracket / hardware kit
• 1 × waterproof RJ-45 connector
• 1 × cable / connector accessory bag
• 1 × quick start guide
