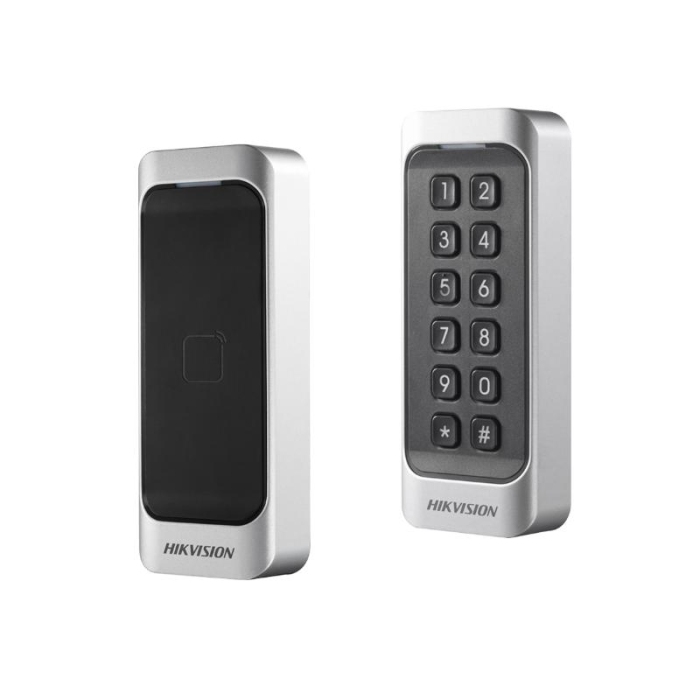

Hikvision DS-K1107MK Mifare Card Reader with Keypad
The Hikvision DS-K1107MK is a slim mullion-mount Mifare card reader with an integrated 12-key keypad — supporting card, PIN or card-plus-PIN authentication for access control doors.
Operating at 13.56 MHz to the ISO 14443-A standard, it connects to Hikvision and third-party controllers over RS-485 or Wiegand, selectable by DIP switch, and includes a tamper alarm and buzzer / LED status feedback.
- 13.56 MHz Mifare card reader, ISO 14443-A compliant
- Integrated 12-key keypad (0–9, *, #) for PIN entry
- RS-485 or Wiegand output, selectable by DIP switch
- Reading range up to 50 mm; 32-bit processor
- Tamper alarm, buzzer and LED status indication
- Online upgrade function
- Slim mullion form factor; 12 VDC, ≤ 2 W power draw
- Wide operating range: -20 °C to +65 °C
A neat, reliable reader for new installs and reader upgrades on Hikvision access control systems. See the accessories tab for compatible controllers, cards and exit buttons.
Hikvision DS-K1107MK Mifare Card Reader with Keypad
Slim 13.56MHz mullion reader with 12-key keypad and RS-485 / Wiegand output for card and PIN authentication. In stock at Netview CCTV, Leicester, with same-day dispatch and trade pricing.
| Reader | |
|---|---|
| Card Type | Mifare (13.56 MHz) |
| Standard | ISO 14443-A |
| Reading Range | Up to 50 mm |
| Processor | 32-bit |
| Communication | |
| Output Interface | RS-485 / Wiegand — selectable via DIP switch |
| Input & Output | |
| Keypad | 12 keys (0–9, *, #) |
| Audible Indication | Built-in buzzer |
| Visual Indication | LED indicator |
| Tamper | Tamper alarm supported |
| Upgrade | Online upgrade function |
| General | |
| Power Supply | 12 VDC |
| Power Consumption | ≤ 2 W |
| Working Temperature | -20 °C to +65 °C |
| Working Humidity | 10% to 90% (non-condensing) |
| Dimensions | 115 mm × 44 mm × 22 mm |
| Form Factor | Slim mullion mount |
