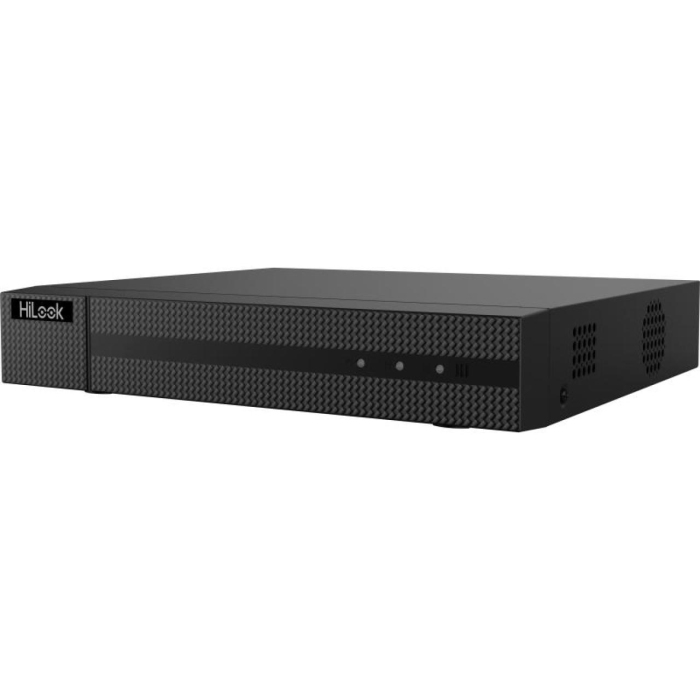

HiLook DVR-204G-M1/T 4 Channel 1080p Lite DVR
As low as £64.00 £53.33
In stock
The HiLook DVR-204G-M1/T is a 4-channel 1U Turbo HD hybrid DVR recording up to 1080p Lite per channel, with Motion Detection 2.0 human/vehicle classification, up to 5 IP channels, H.265 Pro+ and a single SATA bay up to 4 TB. Supplied with an optional pre-fitted surveillance hard drive (choose the size in the options above).
Key Features
- 4-channel 5-in-1 hybrid DVR — HD-TVI / AHD / HDCVI / CVBS analogue plus IP cameras
- Motion Detection 2.0 — deep-learning human & vehicle classification on all analogue channels, with quick search by object or event
- Records up to 1080p Lite per channel — 1080p Lite / 720p on all channels in real time
- Up to 5 IP cameras, each up to 2MP, by switching analogue inputs to IP
- H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 compression for long recording time on one drive
- Audio over coax and two-way audio on all HD-TVI channels
- 1 × SATA HDD bay, up to 4 TB
- 1080p HDMI + VGA outputs, simultaneous
- 10/100 Ethernet; remote viewing on the free HiLookVision app
- Compact 1U case 263 × 225 × 48 mm, 12 VDC, 1.5 A, ≤ 10 W (without HDD)
HiLook DVR-204G-M1/T — 4-ch 1080p Lite 1U H.265 DVR
Support all channels motion detection technology. H.265 Pro+/H.265 Pro/H.265 video compression. HDTVI/CVI/AHD/IP/CVBS video inputs. Audio over coaxial cable. Support all channels HDTVI two-way Audio technology. Up to 5-ch IP camera inputs
Overview
The HiLook DVR-204G-M1/T is a 4-channel Turbo HD DVR from HiLook by Hikvision. Every BNC input auto-detects HD-TVI, AHD, HDCVI and CVBS cameras, and the recorder also takes up to 5 IP cameras, so it suits new installs and upgrades of existing coax systems alike. Recording runs up to 1080p Lite per channel with H.265 Pro+ compression, and the single SATA bay takes a drive of up to 4 TB.
Motion Detection 2.0 is on by default for all analogue channels: deep-learning analysis separates people and vehicles from leaves, rain and lighting changes, and playback can be searched by object type. Audio over coax and two-way audio work on all HD-TVI channels. Output is 1080p HDMI plus VGA, and remote viewing runs through the free HiLookVision app.
Supplied with an optional pre-fitted surveillance hard drive (choose the size in the options above). Genuine HiLook product, bought direct from Hikvision UK, with trade pricing and fast dispatch from Netview CCTV in Leicester.
Key Features
- 4-channel 5-in-1 hybrid DVR — HD-TVI / AHD / HDCVI / CVBS analogue plus IP cameras
- Motion Detection 2.0 — deep-learning human & vehicle classification on all analogue channels, with quick search by object or event
- Records up to 1080p Lite per channel — 1080p Lite / 720p on all channels in real time
- Up to 5 IP cameras, each up to 2MP, by switching analogue inputs to IP
- H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 compression for long recording time on one drive
- Audio over coax and two-way audio on all HD-TVI channels
- 1 × SATA HDD bay, up to 4 TB
- 1080p HDMI + VGA outputs, simultaneous
- 10/100 Ethernet; remote viewing on the free HiLookVision app
- Compact 1U case 263 × 225 × 48 mm, 12 VDC, 1.5 A, ≤ 10 W (without HDD)
Typical Applications
- Homes, shops and small offices with up to 4 analogue cameras
- Upgrading an existing coax CCTV system without re-cabling
- Mixed sites combining analogue and IP cameras on one recorder
- Trade installs needing UK stock — Netview CCTV Leicester
What's in the Box
- 1 × HiLook DVR-204G-M1/T DVR
- 1 × 12 VDC power adapter
- 1 × USB mouse
- HDD screws and SATA cables
- Quick start guide
Detailed Specifications — HiLook DVR-204G-M1/T
Full specification from the official HiLook product page.
| Identification | |
|---|---|
| Model | DVR-204G-M1/T |
| MPN (SAP code) | 300229565 |
| EAN | 6936422117047 |
| Brand | HiLook by Hikvision |
| Motion Detection 2.0 | |
| Human/Vehicle Analysis | Deep learning based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; |
| Video and Audio | |
| IP Video Input | 1-ch (up to 5-ch) Up to 2MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras |
| Analog Video Input | 4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDMI Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| CVBS Input | Support |
| HDTVI Input | 1080p25, 1080p30, 720p25, 720p30 |
| Synchronous playback | 4-ch |
| AHD Input | 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI Input | 1080p25, 1080p30, 720p25, 720p30 |
| Video Output Mode | HDMI/VGA simultaneous output |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Audio Input | 1-ch RCA (2.0 Vp-p, 1 KΩ) 4-ch via coaxial cable |
| Two-Way Audio | Reuse the first audio input |
| Recording | |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For SD stream access: WD1/4CIF/VGA/CIF |
| Frame Rate | Main stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N) For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N) For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: 4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N) |
| Video Bitrate | 32 Kbps to 4 Mbps |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Network | |
| Total Bandwidth | 64 Mbps |
| Network Protocol | TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS |
| Remote Connection | 32 |
| Network Interface | 1, RJ45 10/100 Mbps self-adaptive Ethernet interface |
| Auxiliary Interface | |
| SATA | 1 SATA interface |
| Capacity | Up to 4 TB capacity for each disk |
| USB Interface | Rear panel: 2 × USB 2.0 |
| Alarm In/Out | N/A |
| General | |
| Power Supply | 12 VDC, 1.5 A |
| Consumption | ≤ 10 W (without HDD) |
| Working Temperature | -10 °C to 55 °C (14 °F to +131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 263 × 225 × 48 mm (10.3 × 8.8 × 1.9 inch) |
| Weight | ≤ 0.8 kg (without HDD, 1.8 lb.) — shipping weight may differ |
Frequently Asked Questions
How many cameras does the HiLook DVR-204G-M1/T support?
4 analogue (coax) cameras, plus up to 5 IP cameras.
What cameras can I connect?
HD-TVI, AHD, HDCVI and CVBS analogue cameras on every BNC input, plus IP cameras up to 2MP.
What resolution does it record?
Up to 1080p Lite per channel.
Does it detect people and vehicles?
Yes — Motion Detection 2.0 classifies humans and vehicles on all analogue channels to cut false alarms.
How much storage does it take?
One SATA hard drive up to 4 TB. You can order it with a surveillance drive pre-fitted.
How do I view it remotely?
With the free HiLookVision app on iOS / Android.
Documentation — HiLook DVR-204G-M1/T
| Document | Format | Link |
|---|---|---|
| Official product page (HiLook UK) | Web | Open |
| HiLook DVR user manual | Open | |
| DVR / NVR GUI 4.0 quick guide | Open | |
| All 4-channel DVRs at Netview CCTV | Web | Open |
| Contact Netview CCTV (trade pricing & support) | Web | Open |
Netview CCTV (Leicester) — trade pricing: 0116 3800 838 or [email protected].
