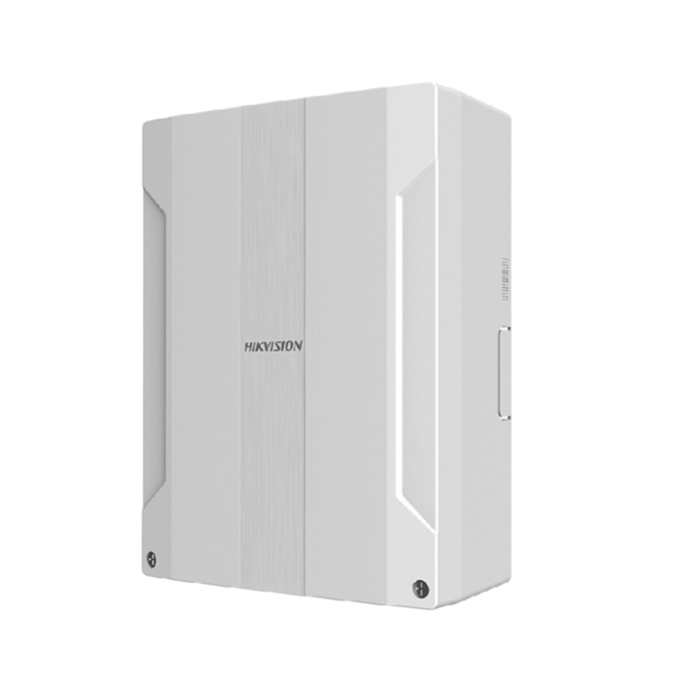

Hikvision AX Pro DS-PM1-I16O2-WE Multi I/O transmitter with 16 Wired Inputs
The Hikvision AX PROHikvision AX PRO Wireless Alarm System: The 2026 UK Installer Guide DS-PM1-I16O2-WE is a wireless expansion module — 16-input / 2-output wireless bridge — pulls 16 wired contacts onto a wireless AX PRO hub.
Part of the Hikvision AX PRO two-way wireless range — 868 MHz Tri-X RF with AES-128 encryption, anti-jamming and signal-supervision across the full hub ecosystem. EN 50131 Grade 2 system support, Hik-Connect mobile app, Hik-ProConnect installer cloud and SIA-DC09 / Contact-ID ARC reporting.
Key Features
- 16 wired inputs + 2 relay outputs
- 2 × 12 V auxiliary for powering wired detectors
- Power: 12 VDC PSU
- Bridges legacy wired contacts onto a wireless AX PRO hub
- LED status display per input
- Two-way 868 MHz Tri-X RF — AES-128 encrypted
- Tamper-protected enclosure
- CE / UKCA / RED approved
Hikvision AX PROHikvision AX PRO Wireless Alarm System: The 2026 UK Installer Guide DS-PM1-I16O2-WE — Wireless Alarm Expansion Module
16-input / 2-output wireless bridge — pulls 16 wired contacts onto a wireless AX PRO hub.
Overview
The Hikvision AX PROHikvision AX PRO Wireless Alarm System: The 2026 UK Installer Guide DS-PM1-I16O2-WE is a wireless expansion module from the AX PRO professional wireless intruder-alarm range — two-way 868 MHz Tri-X RF with AES-128 encryption, full anti-jamming supervision and Hik-Connect mobile-app control. 16-input / 2-output wireless bridge — pulls 16 wired contacts onto a wireless AX PRO hub.
Communications module. Power: 12 VDC PSU. Mounting: Indoor enclosure. Two-way 868 MHz Tri-X RF — AES-128 encrypted with anti-jamming detection.
Programmed via the Hik-ProConnect installer app and Hik-Connect end-user app. Automation rules can fireAjax Fire Alarm vs Intruder Alarm: UK Compliance for Combined Systems the module on arm / disarm, individual zone events, time-of-day schedules or app-initiated commands.
Construction: tamper-protected enclosure with front and rear tamper switches. CE / UKCA / RED / RoHS approved. Same-day dispatch from Netview CCTV Leicester — authorised Hikvision wholesale distributor — with trade pricing on stocked AX PRO product.
Key Features
- 16 wired inputs + 2 relay outputs
- 2 × 12 V auxiliary for powering wired detectors
- Power: 12 VDC PSU
- Bridges legacy wired contacts onto a wireless AX PRO hub
- LED status display per input
- Two-way 868 MHz Tri-X RF — AES-128 encrypted
- Tamper-protected enclosure
- CE / UKCA / RED approved
Typical Applications
- Retrofit installations with legacy wired detectors
- Hybrid systems mixing wired contacts with wireless devices
- Industrial loop monitoring
- Multi-zone outbuilding monitoring
- Trade installs requiring same-day stock — Netview CCTV Leicester ships from UK stock
Compatible Hikvision Devices
- Hikvision AX PROHikvision AX PRO Wireless Alarm System: The 2026 UK Installer Guide Hubs — DS-PWA64-L-WE, DS-PWA96-M-WE, DS-PWA96-M2H-WE
- Hik-Connect app (iOS / Android) — remote arm / disarm / push events
- Hik-ProConnect installer cloud — remote programming and zone management
What's in the Box
- 1 × Hikvision AX PROHikvision AX PRO Wireless Alarm System: The 2026 UK Installer Guide DS-PM1-I16O2-WE
- 1 × mounting bracket / DIN-rail clip (where applicable)
- 1 × quick start guide
📄 Download: Hikvision AX PRO DS-PM1-I16O2-WE Datasheet (PDF) — full technical specification, RF / battery / mechanical detail and approval certificates.
Detailed Specifications — Hikvision AX PRO DS-PM1-I16O2-WE
Full technical specification for the Hikvision AX PRO DS-PM1-I16O2-WE wireless expansion module taken from the official Hikvision AX PRO datasheet.
| Identification | |
|---|---|
| SKU | DS-PM1-I16O2-WE |
| MPN | 302401916 |
| EAN / GTIN-13 | 6931847131166 |
| Brand | Hikvision |
| Product Range | AX PRO |
| Product Type | Wireless Alarm Expansion Module |
| Detection / Function | |
| Wired Inputs | 16 |
| Wired Outputs | 2 |
| Auxiliary Voltage Outputs | 2 × 12 V auxiliary |
| RF & Wireless | |
| RF Frequency | 868 MHz Tri-X two-way |
| Transmission Method | Two-Way RF Wireless |
| Encryption | AES-128 |
| Free-air Range | 1.6 km |
| Frequency Hopping | Supported |
| Anti-Jamming Detection | Supported |
| Power | |
| Mains Power | 12 VDC PSU |
| Auxiliary 12 V Outputs | 2 × 12 V auxiliary |
| Low-Battery Reporting | Supported back to hub |
| Mechanical & Environment | |
| Mounting | Indoor enclosure |
| Tamper Protection | Front + Rear tamper switches |
| Operating Temperature | -10 °C to 55 °C |
| Operating Humidity | 10% to 90% non-condensing |
| Compatibility | |
| AX PRO Hubs | DS-PWA64-L-WE, DS-PWA96-M-WE, DS-PWA96-M2H-WE |
| End-User App | Hik-Connect (iOS / Android) |
| Installer Cloud | Hik-ProConnect |
| ARC Reporting | SIA-DC09 / Contact ID via the hub |
| Approvals | |
| Certifications | CE, UKCA, RED, RoHS |
| EN 50131 System Grade | Grade 2 compatible |
Frequently Asked Questions
What is the Hikvision AX PRO DS-PM1-I16O2-WE?
A wireless expansion module that bridges 16 wired inputs and 2 outputs onto a wireless AX PRO hub.
Why use it?
It lets you bring existing wired detectors/contacts (e.g. from a previous system) onto a new AX PRO wireless hub without rewiring them back to the panel.
How does it communicate?
Over Hikvision's two-way 868MHz Tri-X RF with AES-128 encryption, anti-jamming and signal supervision.
Which system does it work with?
The Hikvision AX PRO wireless hub ecosystem.
Do you stock it?
Yes — in stock at Netview CCTV, Leicester, with same-day dispatch for installers.
