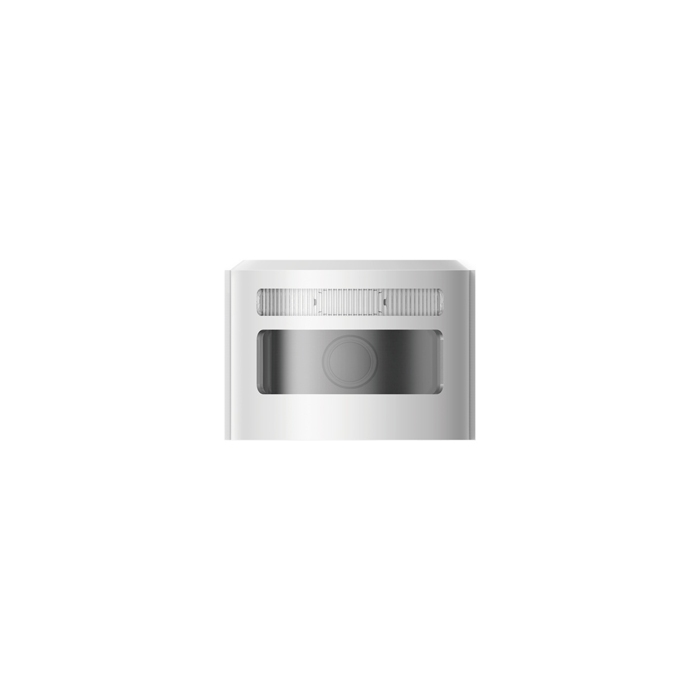

RF Camera Module for Video Verification AX PRO DS-PDCM15PF-IR
The Hikvision AX PROHikvision AX PRO Wireless Alarm System: The 2026 UK Installer Guide DS-PDCM15PF-IR is a wireless RF camera module — Wireless IR camera module — adds visual verification to any zone on an AX PRO hub.
Part of the Hikvision AX PRO two-way wireless range — 868 MHz Tri-X RF with AES-128 encryption, anti-jamming and signal-supervision across the full hub ecosystem. EN 50131 Grade 2 system support, Hik-Connect mobile app, Hik-ProConnect installer cloud and SIA-DC09 / Contact-ID ARC reporting.
Key Features
- Wireless RF IR camera module — adds visual verification to any AX PRO zone
- Captures on alarm trigger and pushes via the hub to ARC / app
- Battery: CR123A x 4, ~3 year life
- Mounting: Wall (1.8 – 2.4 m)
- Tamper-protected with anti-masking
- Two-way 868 MHz Tri-X RF — AES-128 encrypted
- CE / UKCA / RED approved
Hikvision AX PROHikvision AX PRO Wireless Alarm System: The 2026 UK Installer Guide DS-PDCM15PF-IR — Wireless Alarm Camera Module
Wireless IR camera module — adds visual verification to any zone on an AX PRO hub.
Overview
The Hikvision AX PROHikvision AX PRO Wireless Alarm System: The 2026 UK Installer Guide DS-PDCM15PF-IR is a wireless RF camera module from the AX PRO professional wireless intruder-alarm range — two-way 868 MHz Tri-X RF with AES-128 encryption, full anti-jamming supervision and Hik-Connect mobile-app control. Wireless IR camera module — adds visual verification to any zone on an AX PRO hub.
The RF camera module captures a short visual sequence on alarm trigger and pushes the imagery through the hub to the Hik-Connect app and (if subscribed) to the ARC. AES-128 encrypted 868 MHz Tri-X RF — no IP infrastructure required.
Battery powered for full wireless install. Pairs natively with the AX PRO PIR-camera detectors (DS-PDPC12P-EG2-WE and DS-PDPC12PF-EG2-WE) for second-angle alarm verification.
Construction: tamper-protected enclosure with front and rear tamper switches. CE / UKCA / RED / RoHS approved. Same-day dispatch from Netview CCTV Leicester — authorised Hikvision wholesale distributor — with trade pricing on stocked AX PRO product.
Key Features
- Wireless RF IR camera module — adds visual verification to any AX PRO zone
- Captures on alarm trigger and pushes via the hub to ARC / app
- Battery: CR123A x 4, ~3 year life
- Mounting: Wall (1.8 – 2.4 m)
- Tamper-protected with anti-masking
- Two-way 868 MHz Tri-X RF — AES-128 encrypted
- CE / UKCA / RED approved
Typical Applications
- Adds visual verification to any AX PRO zone
- Pairs with the DS-PDPC12P / PDPC12PF PIR cams for second-angle coverage
- ARC verification to reduce false dispatches
- Retail and stockroom zones
- Trade installs requiring same-day stock — Netview CCTV Leicester ships from UK stock
Compatible Hikvision Devices
- Hikvision AX PROHikvision AX PRO Wireless Alarm System: The 2026 UK Installer Guide Hubs — DS-PWA64-L-WE, DS-PWA96-M-WE, DS-PWA96-M2H-WE
- Hik-Connect app (iOS / Android) — remote arm / disarm / push events
- Hik-ProConnect installer cloud — remote programming and zone management
What's in the Box
- 1 × Hikvision AX PROHikvision AX PRO Wireless Alarm System: The 2026 UK Installer Guide DS-PDCM15PF-IR camera module
- 1 × mounting plate + screws
- 1 × battery (pre-fitted)
- 1 × quick start guide
📄 Download: Hikvision AX PRO DS-PDCM15PF-IR Datasheet (PDF) — full technical specification, RF / battery / mechanical detail and approval certificates.
Detailed Specifications — Hikvision AX PRO DS-PDCM15PF-IR
Full technical specification for the Hikvision AX PRO DS-PDCM15PF-IR wireless RF camera module taken from the official Hikvision AX PRO datasheet.
| Identification | |
|---|---|
| SKU | DS-PDCM15PF-IR |
| MPN | 314300270 |
| EAN / GTIN-13 | 6931847146788 |
| Brand | Hikvision |
| Product Range | AX PRO |
| Product Type | Wireless Alarm Camera Module |
| Detection / Function | |
| Detection Method | Standalone IR camera triggered by AX PRO panel |
| RF & Wireless | |
| RF Frequency | 868 MHz Tri-X two-way |
| Transmission Method | Two-Way RF Wireless |
| Encryption | AES-128 |
| Free-air Range | 1.6 km |
| Frequency Hopping | Supported |
| Anti-Jamming Detection | Supported |
| Power | |
| Battery Type | CR123A x 4 |
| Typical Battery Life | 3 years |
| Low-Battery Reporting | Supported back to hub |
| Mechanical & Environment | |
| Mounting | Wall (1.8 – 2.4 m) |
| Tamper Protection | Front + Rear tamper switches |
| IP Rating | Indoor |
| Operating Temperature | -10 °C to 55 °C |
| Operating Humidity | 10% to 90% non-condensing |
| Compatibility | |
| AX PRO Hubs | DS-PWA64-L-WE, DS-PWA96-M-WE, DS-PWA96-M2H-WE |
| End-User App | Hik-Connect (iOS / Android) |
| Installer Cloud | Hik-ProConnect |
| ARC Reporting | SIA-DC09 / Contact ID via the hub |
| Approvals | |
| Certifications | CE, UKCA, RED, RoHS |
| EN 50131 System Grade | Grade 2 compatible |
Frequently Asked Questions
What is the Hikvision AX PRO DS-PDCM15PF-IR?
A wireless IR camera module that adds visual verification to any zone on an AX PRO hub.
What is visual verification?
When an alarm triggers, the module captures images so you (or a monitoring centre) can confirm a genuine event and reduce false dispatches.
Does it work in the dark?
Yes — built-in IR allows image capture at night.
How does it communicate?
Over Hikvision's two-way 868MHz Tri-X RF with AES-128 encryption, anti-jamming and signal supervision.
Which system does it work with?
The Hikvision AX PRO wireless hub ecosystem.
Do you stock it?
Yes — in stock at Netview CCTV, Leicester, with same-day dispatch for installers.
Documentation — Hikvision AX PRO DS-PDCM15PF-IR
Download the official Hikvision datasheet for the AX PRO DS-PDCM15PF-IR, plus browse related alarm-system categories on netviewcctv.co.uk.
| Document | Format | Link |
|---|---|---|
| DS-PDCM15PF-IR Product Datasheet | Download datasheet | |
| Browse all Hikvision AX PRO Detectors | Web | View AX PRO Detectors |
| Browse all Hikvision AX PRO products | Web | View AX PRO range |
| Browse all Alarm Systems at Netview CCTV | Web | View alarm systems |
| Contact Netview CCTV (trade pricing & support) | Web | Contact our trade team |
