Hikvision DS-PA0103-B IP PoE Powered Horn Speaker - EOL
Out of stock
SKU
DS-PA0103-B
MPN: 304900225EAN: 6941264032373UPC: 6941264032373

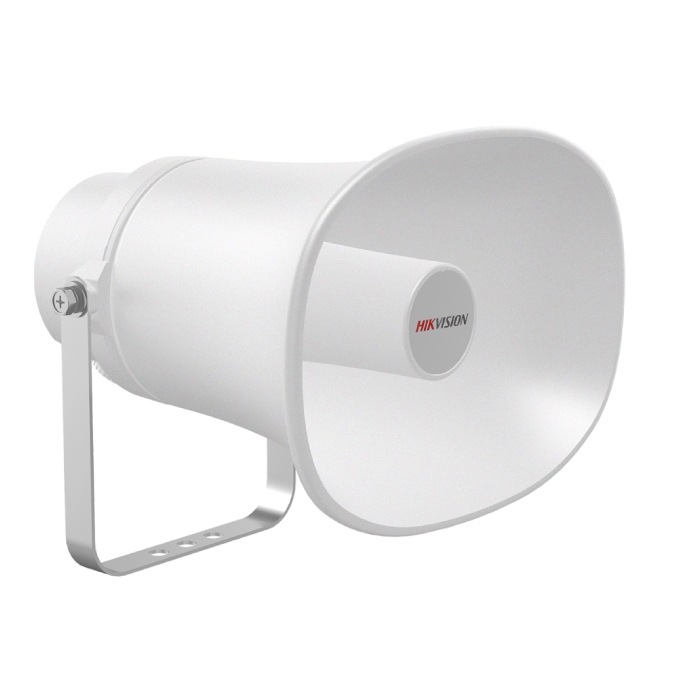

Hikvision DS-PA0103-B IP Horn Speaker
The Hikvision DS-PA0103-B is an IP horn speaker. It is ideal for playing audio data over an existing network connection or for addressing people at the appropriate volume. The system is weatherproof, and optionally an audio signal input. MP3 files can be played back via an SD card (not included).
Feature:
- Ethernet interface
- Integrated SD card slot
- Built-in microphone for recording on SD card
- Power supply via PoE (max.13Watt), optional via power supply 12VDC, 3A (not included)
- Aluminum housing, protection class IPX7, temperature range 0 ° C-55 ° C
- Line input 0.2Vrms (DS-PA0103-B)
- Network broadcast: playing audio file or real-time audio stream
- SD card broadcast: playing audio files from SD card
Software required to configure speaker:
- Hikvision IP Speaker Tool (To add Audio Files to Speaker)
- NA Manager (Network Speaker Manager similar to SADP Tool)
MPN: 304900225EAN: 6941264032373UPC: 6941264032373
| Parameters | |
| Network Interface | 10/100Base-TX self-adaptive network, RJ45 interface |
| Network Protocol | TCP, UDP, RTP, ARP, ICMP, DHCP, DNS, IGMP, HTTP |
| Audio Protocol | MP3, G.711a/u, G.722 |
| Storage | Micro SD Card, up to 32 GB |
| MIC Input | 0.2 Vms |
| Speaker Output | 8 Vms |
| Power Input | PoE (IEEE 802.3af), maximum 13W |
| Power Output | 12 VDC, 1 A; 3.3 VDC, 1 A |
| Approvals | EN 55022 Class B, EN 61000-6-1, EN 61000-6-2, EN 55024, EN 50121-4, IEC 62236-4, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22 Class B, KCC KN22 Class B, KN24, IEC/EN/UL 60950-1, IEC/EN/UL 60950-22, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, NEMA 250 Type 4X, CNS 13438 |
| Color | White |
| Weight | Approx. 1.5 kg (3.31 lb.) |
| Material | Casing: aluminum alloy Rear cover: stainless steel |
| Dimension | With bracket: 242 mm × 182 mm × 338.5 mm (9.53" × 7.17" × 13.33") Without bracket: 242 mm × 182 mm × 250 mm (9.53" × 7.17" × 9.84") |
| Power Consumption | < 1 W (without sound), maximum 13 W (producing sound) |
| Protection Level | IPX7 |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
