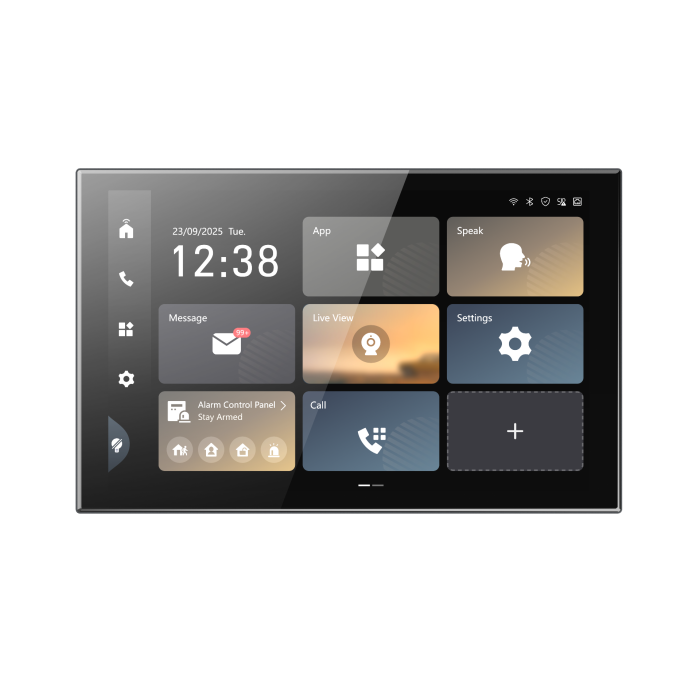

Hikvision DS-KH9570-WTE1/S Indoor Station Android 14, 10-inch IPS Touch Screen, 4GB Ram, 8GB Rom

Overview

The Hikvision DS-KH9570-WTE1/S is the flagship 9 Series Android 14 IP indoor station, designed as a smart-security hub that unifies door-station answer, IP-camera live view, alarm management and home-automation control on a single 10.1-inch IPS touchscreen at 1920 × 1200. A 4-core embedded processor with Android 14, 4 GB RAM and 8 GB ROM keeps the UI smooth, and dual built-in microphones plus dual loudspeakers deliver crisp duplex audio with noise suppression and echo cancellation.

Connectivity covers Wi-Fi 6 (2.4 GHz and 5 GHz), BLE 5.0 and 10/100 Mbps Ethernet. Network protocols include IPv4, SIP v1/v2, HTTPS, RTSP, RTP, SADP, ISAPI and ONVIF. IEEE 802.3at standard PoE (or 12 VDC 2.5 A) powers the unit at up to 24 W. Storage is via micro-SD card up to 256 GB; messaging capacity is 200 captured images, 200 alarm records, 200 unlock records and 200 tamper records. A proximity sensor wakes the screen as you approach. Install via surface mount on any 9 Series-compatible wall plate.

Key Features

• 10.1-inch IPS capacitive touchscreen at 1920 × 1200 resolution — premium clarity
• Android 14 operating system, 4-core processor — smart-home capable
• 4 GB RAM and 8 GB ROM for fluid, responsive UI
• 2 × built-in omnidirectional microphones and 2 × built-in loudspeakers
• Wide audio codec support — G.711A, G.711U, G.722.1, G.726, Opus, AAC, AAC-LD
• Wi-Fi 6 — dual-band 2.4 GHz and 5 GHz for high-throughput, low-latency video
• Bluetooth Low Energy 5.0 for accessory pairing and home-automation interop
• 10/100 Mbps RJ-45 self-adaptive Ethernet with SADP, ISAPI and ONVIF
• SIP v1 (RFC 2543) and SIP v2 (RFC 3261) supported — DTMF via SIP Info
• IEEE 802.3at Standard PoE — single Cat-5e/6 run powers the monitor at up to 24 W
• Links 16 IP cameras + 17 door stations + 15 indoor extensions
• Storage — micro-SD up to 256 GB; 200 captured pictures, 200 alarm/unlock/tamper records
• Proximity sensor (50 cm detection, 25° H/V) — auto wake on approach
• 1 × RS-485 half duplex; 8 reserved alarm inputs; 1 reserved relay (Max. 30 VDC 1 A)
• -10 °C to +50 °C operating range; 246.58 × 155.76 × 23.62 mm; 545 g

Typical Applications

• Premium villas and apartments where the indoor station doubles as a smart-home hub
• Executive offices and high-end commercial reception desks
• Properties already running Wi-Fi 6 mesh — leverages the full 2.4 / 5 GHz bandwidth
• Smart-home integrations requiring an Android-based touchscreen with BLE 5.0

Compatible Hikvision Devices

• Hikvision 2nd-generation IP door stations — DS-KD8003-IME1, DS-KD8003-IME1/Flush, DS-KD9613-FE6, DS-KV6113
• Hikvision IP indoor extensions — DS-KH6110, DS-KH6320, DS-KH8350 series and other KH stations
• Hikvision master stations — DS-KM8301-WT, DS-KM9503-WTE1
• Hikvision PoE+ switches — DS-3E1xxxP, DS-3E0xxxHP-E series (PoE+ 802.3at)
• Hikvision IP cameras for linked live preview — any RTSP/ISAPI/ONVIF-compatible model
• Hik-Connect mobile app (iOS / Android) and iVMS-4200 desktop client
• Hikvision Scenario Control Panel (KC9570) — companion smart-home panel
• DS-KABH8380-T (inclined ceiling) and other 9 Series mounting brackets

What's in the Box

• 1 × DS-KH9570-WTE1/S 10.1-inch Android indoor station
• 1 × surface-mount bracket and screw kit
• 1 × quick start guide

Surface-mount only. Companion accessories: KC9570 Scenario Control Panel and DS-KABH8380-T inclined-ceiling bracket sold separately.
