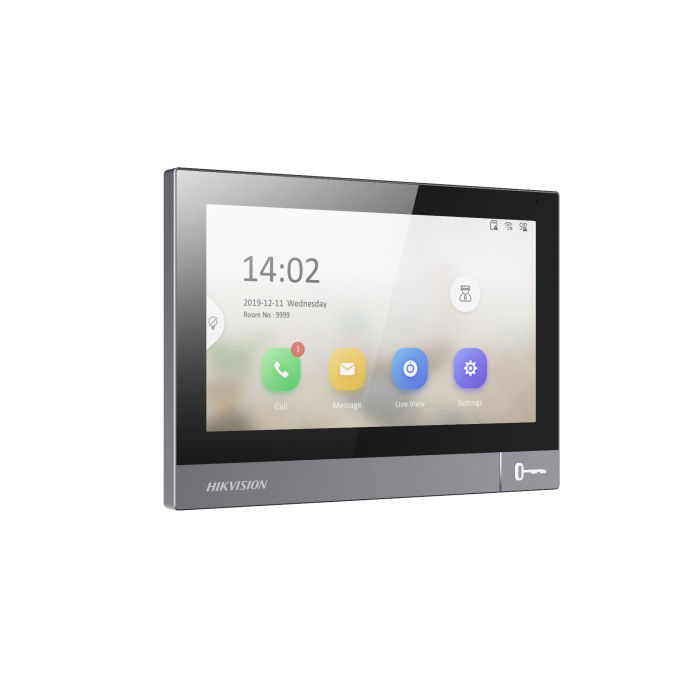

Hikvision DS-KH8381-WTE1 7“ IPS Touch Screen Indoor Station with WIFI
Hikvision DS-KH8381-WTE1 — 7-inch IPS Touch-Screen IP Indoor Station with Wi-Fi
7-inch Wi-Fi IP indoor station with IEEE 802.3at PoE, four lock-control relays and a die-cast aluminium alloy chassis. In stock at Netview CCTV, Leicester — same-day dispatch and trade pricing for installers.
The Hikvision DS-KH8381-WTE1 is a 7-inch IPS touch-screen IP video intercom indoor station with on-board Wi-Fi (802.11 b/g/n) and IEEE 802.3at PoE. The die-cast aluminium chassis houses a 1024 × 600 capacitive touchscreen, dual-band audio with noise suppression and four lock-control relays (Max. 30 VDC 1 A) — enough to drive multiple electric locks from a single station. Power-and-data over one Cat-5e/6 run, plus Hik-Connect remote answer/unlock from any iOS or Android phone.
- 7-inch IPS capacitive touchscreen, 1024 × 600 resolution — die-cast aluminium alloy chassis
- On-board Wi-Fi (2.4 GHz, 802.11 b/g/n) plus 10/100 Mbps RJ-45
- IEEE 802.3at Standard PoE — single Cat-5e/6 run powers monitor and lock
- 4 lock-control relays (Max. 30 VDC 1 A) — drive multiple electric locks from one station
- Hik-Connect app: remote answer, live view, mobile unlock and elevator access control
Read the full installer guide — tiers, the four-layer Trigger → Alert → Response → Record design and in-stock BoMs. Read the guide →
Hikvision DS-KH8381-WTE1 — 7-inch IPS Touch-Screen IP Indoor Station with Wi-Fi
7-inch Wi-Fi IP indoor station with IEEE 802.3at PoE, four lock-control relays and a die-cast aluminium alloy chassis.
Overview
The Hikvision DS-KH8381-WTE1 is the 8 Series IP video intercom indoor station with a 7-inch IPS capacitive touchscreen and on-board Wi-Fi (802.11 b/g/n). Built into a die-cast aluminium-alloy chassis with a one-button door-release control, this model is engineered for homes, offices and commercial intercom systems that want a clean metal-finish indoor monitor without compromising on installer-friendly features.
Powered by IEEE 802.3at standard PoE, the DS-KH8381-WTE1 delivers up to 12 W over a single Cat-5e/6 cable and includes four lock-control relays (Max. 30 VDC 1 A each), 8 alarm inputs, RS-485 and a TF-card slot for snapshot and alarm-record storage. Pair it with any Hikvision 2nd-generation IP door station, link up to 16 IP cameras for live preview, and use the Hik-Connect mobile app to answer calls, view live video and release the door from anywhere. Supports H.265 / H.264 video, advanced audio compression (Opus, AAC-LD, AAC-LC and G.711/G.722.1/G.726), elevator access control and supports flush, surface or table mounting.
Key Features
- 7-inch IPS capacitive touchscreen at 1024 × 600 resolution
- Die-cast integrated aluminium alloy casing — premium metal finish
- On-board Wi-Fi 802.11 b/g/n (2.4 GHz) plus 10/100 Mbps Ethernet
- IEEE 802.3at Standard PoE — 12 W typical, single Cat-5e/6 run
- H.265 and H.264 video codec support for efficient bandwidth use
- Wide audio codec support — G.711u/a, Opus, AAC-LD, AAC-LC, G.726, G.722.1
- 4 lock-control relays (Max. 30 VDC 1 A) for driving multiple electric locks
- 8 alarm inputs and 1 RS-485 (half duplex) interface
- Linked capacity — 16 IP cameras and 16 indoor extensions over the LAN
- TF card slot up to 128 GB for picture/alarm storage
- One-button physical door release for everyday convenience
- Flush, surface or table-top mounting — flexible installation
- Elevator access control for high-rise residential / commercial blocks
- Hik-Connect Android / iOS app — remote answer, live view and door release
- -10 °C to +50 °C operating range; 180.4 × 128.4 × 21.8 mm chassis
Typical Applications
- Residential homes and apartments — single or multi-unit
- Offices and commercial reception areas needing a clean metal-finish monitor
- High-rise developments requiring elevator access control integration
- Retrofit upgrades from legacy 2-wire intercom to full IP Hik-Connect
Compatible Hikvision Devices
- Hikvision 2nd-generation IP door stations — DS-KD8003-IME1, DS-KD8003-IME1/Flush, DS-KD9613-FE6, DS-KV6113, DS-KV8113-WME1
- Hikvision IP indoor extensions — DS-KH6110-WE1, DS-KH6320 series and other KH6/KH8 stations
- Hikvision master stations — DS-KM8301-WT, DS-KM9503-WTE1
- Hikvision PoE+ switches — DS-3E1xxxP, DS-3E0xxxHP-E series (PoE+ 802.3at)
- Hikvision network cameras for linked live preview (any RTSP/ISAPI-compatible model)
- Hik-Connect mobile app (iOS / Android) and iVMS-4200 desktop client
- DS-KABH8380-T / DS-KABH8380-G mounting brackets (ceiling and in-ceiling)
What's in the Box
- 1 × DS-KH8381-WTE1 7-inch IP indoor station
- 1 × surface-mount bracket + screw kit
- 1 × quick start guide
Surface, flush or table mounting supported out of the box. Optional DS-KABH8380-T (inclined ceiling) or DS-KABH8380-G (in-ceiling) brackets available separately.
📄 Download: Hikvision DS-KH8381-WTE1 official datasheet (PDF) — full technical specification and dimension drawings.
Detailed Specifications — Hikvision DS-KH8381-WTE1
Full technical specification for the Hikvision DS-KH8381-WTE1, taken from the official Hikvision datasheet.
| System | |
|---|---|
| Operating System | Embedded Linux |
| ROM | 32 MB |
| RAM | 128 MB |
| Processor | Embedded high-performance processor |
| Display | |
| Screen Size | 7-inch |
| Operation Method | Capacitive touch screen |
| Display Type | Colour IPS |
| Resolution | 1024 × 600 |
| Video | |
| Video Compression | H.265, H.264 |
| Audio | |
| Audio Input | 1 × built-in omnidirectional microphone |
| Audio Output | 1 × built-in loudspeaker |
| Audio Compression | G.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1 |
| Audio Bitrate | 16 / 32 / 64 Kbps |
| Audio Quality | Noise suppression and echo cancellation |
| Volume Adjustment | Adjustable |
| Capacity | |
| Linked IP Cameras | 16 |
| Linked Indoor Extensions | 16 |
| Notice Capacity | 200 |
| Message Capacity | With TF card: 200 pictures + 200 alarm records. Without: 2 MB RAM picture storage + 200 alarm records |
| Network | |
| Network Protocols | TCP/IP, SIP, RTSP |
| Wi-Fi | Wi-Fi 802.11 b/g/n (2.4 GHz) |
| Network Interface | 1 × RJ-45 10/100 Mbps self-adaptive |
| Interfaces | |
| Alarm Input | 8 |
| Lock Control | 4 × relays, Max. 30 VDC 1 A |
| Power Supply Output | Max. 12 VDC 0.5 A |
| RS-485 | 1 × RS-485 (Half duplex) |
| TF Card | Supports TF card up to 128 GB |
| Debugging Port | 1 |
| Relay | 4 |
| Button | 1 × physical button |
| Power & General | |
| Power Supply | IEEE 802.3at, Standard PoE; or 12 VDC 1.5 A |
| Power Consumption | ≤ 12 W |
| Working Temperature | -10 °C to +50 °C (14 °F to 122 °F) |
| Working Humidity | 10% to 90% (non-condensing) |
| Dimensions (W × H × D) | 180.4 mm × 128.4 mm × 21.8 mm (7.10" × 5.06" × 0.86") |
| Weight | 412.2 g (0.909 lb) |
| Material | Die-cast integrated aluminium alloy casing |
| Installation | Flush, surface or table mounting |
| Application Environment | Indoor |
