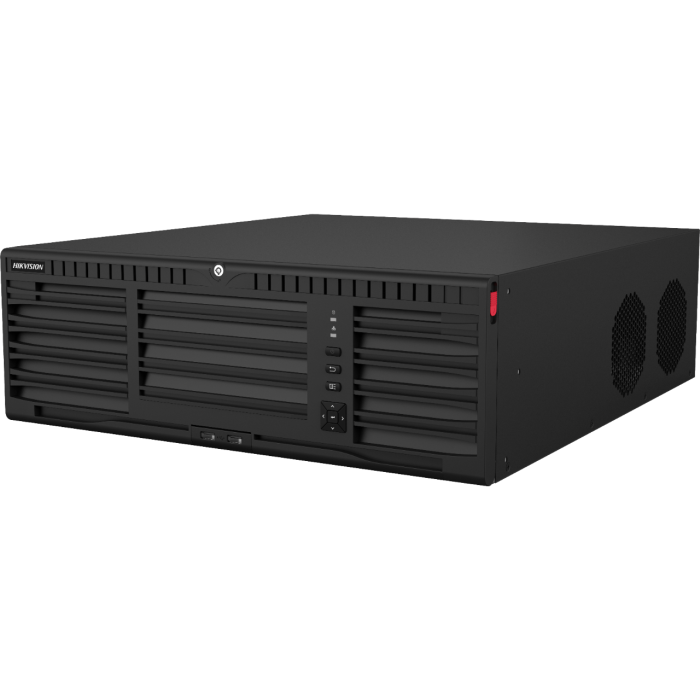

Hikvision DS-9632NXI-I16/VPRO 32 Channel Non-PoE AcuSeek NVR with 16xHDD Bays
Out of stock
The Hikvision DS-9632NXI-I16/VPro is a 32-channel AcuSeek NVRHikvision K/VPro AcuSeek NVR Range: UK Installer Buyer's Guide powered by Hikvision's Guanlan Large-Scale AI Models — the first generation of on-NVR natural-language video search. Search recorded footage using everyday English (“red car near loading bay”, “person in white shirt after 4pm”) and AcuSeekHikvision K/VPro AcuSeek NVR Range: UK Installer Buyer's Guide surfaces matching clips in seconds. Two parallel AI engines (one for face + AcuSearch, one for AcuSeekHikvision K/VPro AcuSeek NVR Range: UK Installer Buyer's Guide) model up to 300,000 targets/day per channel.
Full 32-channel AcuSearch + AcuSeekHikvision K/VPro AcuSeek NVR Range: UK Installer Buyer's Guide coverage, 8-ch facial recognition (16 face libraries × 50,000 faces total), ANPR on all channels. 16 × hot-plug SATA bays for HDDs up to 20 TB each (320 TB total raw), RAID 0/1/5/6/10 (mutex with AI), 1 × eSATA expansion. Incoming 384 Mbps / outgoing 256 Mbps. DecodingWhat is Decoding Capability 20-ch @ 1080p (AI on) or 32-ch @ 1080p (AI off).
Key Features
- 32-channel AcuSeek NVRHikvision K/VPro AcuSeek NVR Range: UK Installer Buyer's Guide — natural-language video search via Hikvision Guanlan AI
- 2 AI engines — 1 for face + AcuSearch, 1 for AcuSeekHikvision K/VPro AcuSeek NVR Range: UK Installer Buyer's Guide; up to 300,000 targets/day per channel
- 8-ch facial recognition — 16 face libraries × 50,000 faces (1 GB face-data capacity)
- ANPR on all 32 channels — vehicle brand / colour / type also captured
- 16 × hot-plug SATA bays (up to 20 TB each, 320 TB total raw) + 1 × eSATA
- RAID 0/1/5/6/10 (mutex with on-NVR AI) — storage redundancy when AI is disabled
- 384 Mbps incoming / 256 Mbps outgoing; 16-ch synchronous playback
- Dual HDMI (4K + 1080p) + dual VGA outputs — multi-monitor video walls
- 2 × Gigabit Ethernet, 16/9 alarm I/O, RS-232 + RS-485
- H.265+ compression saves up to 75% storage; ONVIF profile S/G + ISAPI + SDK
- 3U chassis (442 × 498 × 146 mm), ~12.5 kg without HDD; single PSU
- Hik-Connect, DDNS, Hik-Central, iVMS-4200 supported; UK CE/UKCA certified
Note: RAID and on-NVR AI cannot run simultaneously — choose storage redundancy or on-NVR AI per installation. For mission-critical sites needing both, pair this NVR with a Hik-Central federation or run RAID on a separate DS-9xxx-NI storage NVR. For installations not needing on-NVR AI search, consider the iDS-* DeepinMind range (server-side perimeter / face recognition without AcuSeekHikvision K/VPro AcuSeek NVR Range: UK Installer Buyer's Guide) or the DS-9xxx-NI storage range (RAID + N+M hot spare without AI).
Need help choosing the right Hikvision NVR?
Read the full Hikvision NVR Buyer's GuideHikvision NVR Buyer's Guide 2026: K-Series, VPRO, Ultra, DeepinMind 2026 - K-Series, VPRO/AcuSeekHikvision K/VPro AcuSeek NVR Range: UK Installer Buyer's Guide, Ultra, DeepinMind and HUHI compared by channel count, bandwidth and AI tier.
Hikvision DS-9632NXI-I16/VPro — AcuSeek NVRHikvision K/VPro AcuSeek NVR Range: UK Installer Buyer's Guide with on-NVR natural-language video search
32-channel AcuSeek NVRHikvision K/VPro AcuSeek NVR Range: UK Installer Buyer's Guide with on-NVR Guanlan large-scale AI, natural-language video search, 16 hot-plug HDD bays (up to 320 TB raw), RAID 0/1/5/6/10, dual HDMI 4K + dual VGA outputs.
Overview
The Hikvision DS-9632NXI-I16/VPro is a 32-channel AcuSeek NVRHikvision K/VPro AcuSeek NVR Range: UK Installer Buyer's Guide powered by Hikvision's Guanlan Large-Scale AI Models — the first generation of on-NVR AI to deliver natural-language video search across recorded footage. Search using everyday English: “person wearing a red jacket walking left to right after 4pm yesterday”, “white van parked near the loading bay”, “child running past the front door” — AcuSeekHikvision K/VPro AcuSeek NVR Range: UK Installer Buyer's Guide interprets the query and surfaces matching clips in seconds. Two dedicated AI engines run in parallel: one for facial recognition and AcuSearch, one for AcuSeekHikvision K/VPro AcuSeek NVR Range: UK Installer Buyer's Guide — modeling up to 300,000 targets per day per channel.
Full 32-channel AcuSeekHikvision K/VPro AcuSeek NVR Range: UK Installer Buyer's Guide and AcuSearch coverage with 8-channel facial recognition, 16 face picture libraries holding up to 50,000 faces total (1 GB face-data capacity). H.265+ / H.265 / H.264+ / H.264 video formats supported with H.265+ compression reducing storage by up to 75%. DecodingWhat is Decoding Capability capability 32-ch @ 1080p (AI disabled) or 20-ch @ 1080p (AI enabled). Recording up to 32 MP per channel, with 16-channel synchronous playback. Incoming bandwidth 384 Mbps / outgoing bandwidth 256 Mbps. Per-camera VCA events — line crossing, intrusion, region entrance / exit, scene change, ANPR, people counting — are recorded and searchable.
Storage: 16 × hot-plug SATA HDD bays accepting drives up to 20 TB each (320 TB total raw), with RAID 0/1/5/6/10 for storage redundancy and 1 × eSATA expansion. Note: RAID and on-NVR AI cannot be enabled simultaneously — pick storage redundancy or on-NVR AI based on site requirements. Front panel 2 × USB 2.0, rear panel 2 × USB 3.0 for backup and import. ANR (Automatic Network Replenishment) fills VMS gaps from camera-side SD on network recovery. ANPR is available on all channels, supporting plate-recognition workflows for retail, fleet and access-control sites.
Output: dual independent HDMI (HDMI 1 up to 4K @ 30 Hz, HDMI 2 up to 1080p) plus dual VGA outputs for multi-monitor video walls — HDMI 1 / VGA 1 main, HDMI 2 / VGA 2 auxiliary, each pair carrying its own simultaneous stream. 2-channel RCA audio output + 1-channel two-way audio. 2 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet with Hik-Connect, DDNS, ONVIF compliance and Hik-Central enterprise VMS support. 16 alarm inputs + 9 alarm outputs for siren, strobe and access-control integration; 1 × RS-232 + 1 × RS-485 (full-duplex) serial interfaces. Power: 100–240 VAC, 50/60 Hz, single PSU, max consumption ≤ 50 W (without HDD). 3U chassis 442 × 498 × 146 mm, approx. 12.5 kg (without HDD). Certified CE / CB / REACH / WEEE / UKCA / RCM.
Key Features
- 32-channel AcuSeek NVRHikvision K/VPro AcuSeek NVR Range: UK Installer Buyer's Guide — first-generation on-NVR natural-language video search powered by Hikvision Guanlan Large-Scale AI Models
- Search recordings using everyday English — “red car near loading bay”, “person in white shirt after 4pm”
- 2 AI engines running in parallel — 1 for facial recognition + AcuSearch, 1 for AcuSeekHikvision K/VPro AcuSeek NVR Range: UK Installer Buyer's Guide; up to 300,000 targets/day per channel
- 32-channel AcuSearch coverage — semantic attribute search (clothing colour, vehicle type, behaviour) across all channels
- 8-channel facial recognition — 16 face libraries, up to 50,000 face pictures, 1 GB total face-data capacity
- ANPR on all channels — UK plate format supported (vehicle brand, colour and type also captured)
- 16 × hot-plug SATA HDD bays — drives up to 20 TB each (320 TB total raw), 1 × eSATA expansion
- RAID 0/1/5/6/10 — storage redundancy (note: RAID and AI mutually exclusive)
- H.265+ / H.265 / H.264+ / H.264 compression — H.265+ saves up to 75% storage
- DecodingWhat is Decoding Capability: 32-ch @ 1080p (AI off) / 20-ch @ 1080p (AI on); recording up to 32 MP/ch
- Incoming 384 Mbps / outgoing 256 Mbps bandwidth
- 16-channel synchronous playback, SmartSearch + AcuSearch + AcuSeekHikvision K/VPro AcuSeek NVR Range: UK Installer Buyer's Guide integrated playback workflow
- Dual independent HDMI outputs (HDMI 1 up to 4K @ 30 Hz, HDMI 2 up to 1080p) for video walls
- Dual VGA outputs — HDMI 1 / VGA 1 main + HDMI 2 / VGA 2 auxiliary simultaneous output
- 2-channel RCA audio output + 1-channel two-way audio (RCA, 2.0 Vp-p, 1 KΩ)
- 2 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
- 16 alarm inputs + 9 alarm outputs — siren, strobe, panic-button, access-control integration
- 1 × RS-232 + 1 × RS-485 (full-duplex) serial interfaces
- Per-camera VCA: motion / line crossing / intrusion / region entrance / region exit / scene change / heat map / ANPR / people counting
- POS information overlay on live view + playback, POS-triggered recording and alarm linkage
- ONVIF profile S/G + ISAPI + SDK API; Hik-Connect, DDNS, plug-in-free web access, Hik-Central enterprise VMS
- Front panel: 2 × USB 2.0; rear panel: 2 × USB 3.0
- Single PSU — 100-240 VAC, 50/60 Hz; max consumption ≤ 50 W (without HDD)
- 3U chassis, 442 × 498 × 146 mm; ~12.5 kg without HDD
- Certified CE / CB / REACH / WEEE / UKCA / RCM / IC / LOA
Typical Applications
- Forensic-search-heavy sites where staff regularly need to retrieve specific events from hours/days of recording — retail loss prevention, schools, hospitals, transport hubs
- Sites with up to 32 IP cameras needing AI-on-NVR (no per-camera AI licence cost; AcuSeekHikvision K/VPro AcuSeek NVR Range: UK Installer Buyer's Guide runs entirely on the NVR using its Guanlan AI engines)
- Plate-recognition workflows on all channels — access control, fleet logistics, retail estate, car parks
- Face-recognition deployments needing up to 50,000-face library (1 GB) and 8-ch face capture — access control, VIP detection, watchlists
- Multi-monitor control rooms — dual HDMI + dual VGA simultaneous outputs for main + auxiliary video walls
- Very-high-retention installations needing 12+ months on-site recording (up to 320 TB raw capacity)
Compatible Hikvision Devices
- Hikvision AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide IP cameras — AcuSearch / AcuSeekHikvision K/VPro AcuSeek NVR Range: UK Installer Buyer's Guide are most powerful when paired with AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide-capable cameras (G3 ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026, AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide Darkfighter, AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide T-mount bullets, AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide turrets)
- Hikvision G3 ColorVuHikvision AcuSense vs ColorVu: UK Installer Guide for 2026 IP cameras (turret, T-mount, dome, mini-bullet) — full-colour 24/7 attribute capture for AcuSearch
- Hikvision ANPR IP cameras — plate recognition on the NVR is reinforced by camera-side ANPR for high-speed lanes
- Hikvision PoE switches — DS-3E0xxxP / DS-3E1xxxP / DS-3E2xxxP (this is a non-PoE NVR; cameras need an external PoE switch)
- iVMS-4200 desktop client (Windows / macOS) — centralised management
- Hik-Connect mobile app (iOS / Android) — remote view, playback, AcuSeekHikvision K/VPro AcuSeek NVR Range: UK Installer Buyer's Guide search and push notifications
- Hik-Central Professional — enterprise VMS for multi-site centralised management with AcuSeekHikvision K/VPro AcuSeek NVR Range: UK Installer Buyer's Guide federation
- ONVIF Profile S/G compatible third-party IP cameras — recording supported (AcuSearch/AcuSeekHikvision K/VPro AcuSeek NVR Range: UK Installer Buyer's Guide reduced for non-Hikvision cameras)
- Surveillance-grade HDDs — Seagate SkyHawk / WD Purple recommended (available pre-fitted in -BB bundle variants)
What's in the Box
- 1 × Hikvision DS-9632NXI-I16/VPro NVR
- 1 × power cord
- 1 × USB mouse
- 1 × HDD mounting screws + rail kit
- 1 × quick start guide
- 1 × IR remote control (model dependent)
📄 Download: Hikvision DS-9632NXI-I16/VPro AcuSeek NVR Datasheet (PDF) — full technical specification including I/O diagrams, RAID configuration notes, AcuSeekHikvision K/VPro AcuSeek NVR Range: UK Installer Buyer's Guide engine architecture, AcuSearch language coverage, ANPR country list and approval certificates.
Detailed Specifications — Hikvision DS-9632NXI-I16/VPro
Full technical specification taken from the official Hikvision DS-9632NXI-I16/VPro datasheet.
| Intelligent Analytics (on-NVR AI) | |
|---|---|
| AI by NVR | Facial recognition |
| AI by NVR & Camera | Facial recognition, perimeter protection, video structuralization, AcuSearch, motion detection 2.0, ANPR, people counting, AcuSeek |
| AI Engines | 2 engines — 1 for face picture + AcuSearch, 1 for AcuSeek |
| Face Picture Library | Up to 16 face picture libraries, up to 50,000 face pictures total (each picture ≤ 4 MB, total capacity ≤ 1 GB) |
| Face Picture Comparison | 8-channel |
| Face Capture Performance | 4-channel human face capture (HD network camera; 4-ch 2 MP, 2-ch 4 MP, 1-ch 8 MP; H.264/H.265) |
| AcuSearch Performance | All channels when paired with AcuSense-capable Hikvision cameras with AcuSearch enabled — up to 300,000 targets/day modeling capacity |
| AcuSeek Performance | All channels when paired with AcuSense-capable Hikvision cameras with AcuSearch enabled — up to 300,000 targets/day modeling capacity |
| AcuSeek Search Languages | English, French, Italian, German, Polish, Portuguese, Thai, Russian, Arabic, Turkish, Spanish, Dutch, Romanian, Czech, Swedish, Croatian, Latvian, Ukrainian, Hungarian, Danish, Japanese, Korean, Vietnamese, Indonesian, Brazilian Portuguese, Traditional Chinese |
| ANPR | All channels — UK plate format supported; vehicle brand, plate colour, plate type, vehicle colour and vehicle type captured |
| Video & Audio | |
| IP Video Input | 32-channel |
| Incoming Bandwidth | 384 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| Video Output Mode | HDMI 1 + VGA 1 simultaneous (main); HDMI 2 + VGA 2 simultaneous (auxiliary) |
| HDMI 1 Output | Up to 4K (3840 × 2160) @ 30 Hz, 2K (2560 × 1440) @ 60 Hz, 1080p (1920 × 1080) @ 60 Hz, 720p @ 60 Hz |
| HDMI 2 Output | 1080p (1920 × 1080) @ 60 Hz, 720p (1280 × 720) @ 60 Hz |
| VGA 1 Output | 1080p (1920 × 1080) @ 60 Hz, 720p (1280 × 720) @ 60 Hz (main) |
| VGA 2 Output | 1080p (1920 × 1080) @ 60 Hz, 720p (1280 × 720) @ 60 Hz (auxiliary) |
| CVBS Output | NA |
| Audio Output | 2-channel, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-channel, RCA (2.0 Vp-p, 1 KΩ) |
| Decoding & Playback | |
| Decoding Format | H.265+ / H.265 / H.264+ / H.264 |
| Recording Resolution | 32 MP / 24 MP / 16 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF (width/height ≤ 8192 px, total ≤ 32 MP) |
| NVR supports up to | 4-channel of > 12 MP IP video input |
| Synchronous Playback | 16-channel |
| Live View Window Division | 1 / 2 / 4 / 6 / 8 / 9 / 16 / 25 / 36 |
| Aux Port Window Division | 1 / 2 / 4 / 6 / 8 / 9 / 16 / 25 / 36 |
| Decoding Capability | Enable AI by NVR: 20-ch @ 1080p (30 fps); Disable AI by NVR: 32-ch @ 1080p (30 fps) |
| Dual-Stream Recording | Supported |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw / G.711alaw / G.722 / G.726 / AAC / MP2L2 / PCM |
| Network | |
| Network Interface | 2 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet |
| Remote Connection | 128 |
| Network Protocols | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF, OTAP |
| API | ONVIF (profile S/G); SDK; ISAPI |
| Compatible Browser | IE 11, Chrome V57, Firefox V52, Safari V12, Edge V89 or later |
| Storage & RAID | |
| SATA Bays | 16 × SATA — hot-plug supported |
| Max HDD Capacity | 20 TB per HDD (320 TB total raw) |
| eSATA | 1 × eSATA interface for external storage expansion |
| RAID Type | RAID 0 / 1 / 5 / 6 / 10 |
| RAID + AI | The RAID function and on-NVR AI functions cannot be enabled simultaneously — choose storage redundancy or on-NVR AI per site requirement |
| Event & Smart Function | |
| VCA Events Recorded | Motion / line crossing / intrusion / region entrance / region exit / scene change / heat map / ANPR / people counting (per-camera) |
| AcuSense & AcuSearch | Camera-side AcuSense events recorded transparently; AcuSearch performs semantic attribute search across 32-ch on NVR |
| AcuSeek | Natural-language video search across 32-ch on NVR using Hikvision Guanlan large-scale AI |
| POS Function | POS information overlay on live view + playback, POS-triggered recording and alarm |
| Interfaces | |
| USB Interface | Front panel: 2 × USB 2.0; rear panel: 2 × USB 3.0 |
| Alarm I/O | 16 alarm input + 9 alarm output |
| Serial Interface | 1 × RS-232 + 1 × RS-485 (full-duplex) |
| Ctrl 12V Output | Controllable 12 VDC, 1 A power output for external alarm device (controlled by alarm output 9) |
| DC 12V Output | 12 VDC, 1 A power output |
| General | |
| Power Supply | 100-240 VAC, 50/60 Hz, single power supply |
| Power Consumption | ≤ 50 W (without HDD) |
| Chassis | 3U chassis |
| Dimensions (W × D × H) | 442 × 498 × 146 mm |
| Weight | ≤ 12.5 kg (without HDD) |
| Operating Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Operating Humidity | 10% to 90% (non-condensing) |
| Approvals | CE, CB, REACH, WEEE, UKCA, RCM, IC, LOA, KC — EN 55032, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 50130-4 |
Frequently Asked Questions
What is special about the Hikvision DS-9632NXI-I16/VPro?
It is a storage-grade AcuSeek NVR powered by Hikvision's Guanlan Large-Scale AI Models, with on-NVR natural-language video search — find footage by typing everyday English like "red car near loading bay".
How many channels and what resolution?
32 channels at up to 32MP per channel.
How much storage does it hold?
16 hot-plug HDD bays for very high capacity, with RAID support.
How does the AI search work?
Two parallel AI engines run face/AcuSearch and natural-language search, surfacing matching clips in seconds.
Does it have built-in PoE?
No — cameras connect via an external PoE switch.
How do I view it remotely?
Via the free Hik-Connect app and HikCentral, plus ONVIF for third-party cameras.
Documentation — Hikvision DS-9632NXI-I16/VPro AcuSeek NVR
Download the official Hikvision datasheet, plus quick-start and configuration resources for the DS-9632NXI-I16/VPro AcuSeek Network Video Recorder.
| Document | Format | Link |
|---|---|---|
| DS-9632NXI-I16/VPro Product Datasheet | Download datasheet | |
| Hikvision AcuSeek NVR (DS-9xxx-NXI/VPro) Series Overview | Web | Hikvision NVR product range |
| Configuring AcuSeek & AcuSearch on Hikvision NVR | Web | Hikvision support & knowledge base |
