Hikvision 2-Wire HD Video Intercom
Hikvision AX PRO Wireless Alarm System

1xHDMI DS-6901UDI(B) 4ch@8MP Hikvision 4K Decoder

Login to Buy
In stock

(THIS LISTING is to purchase the DS-6901UDI Decoder)

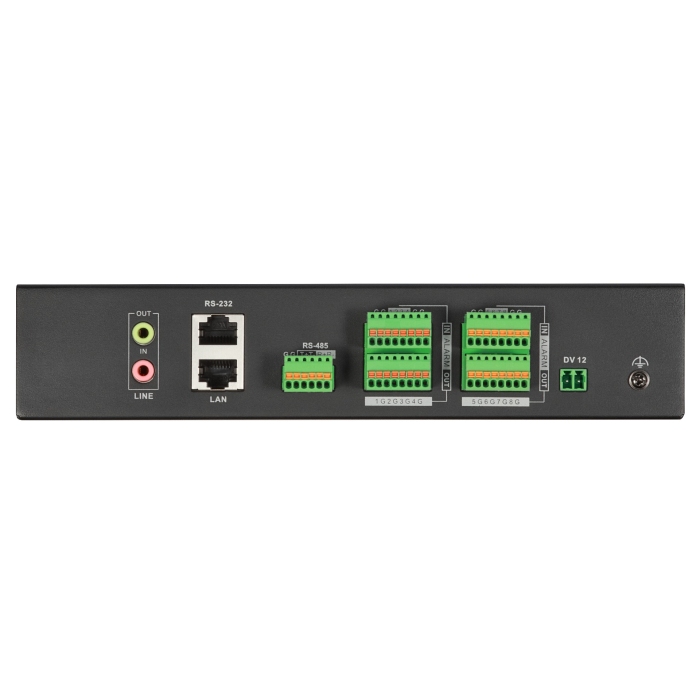

Hikvision DS-6901UDI 4K Decoder with 1xHDMI out

Hikvision DS-6900UDI Series Decoders:
These Decoders are equipped with powerful capabilities and can manage a flexible display of IP cameras on multiple screens and LCD video walls. Designed for the high-definition video monitoring systems, DS-6900UDI Decoders are developed on the basis of embedded hardware platform, ensuring high reliability and stability of system running. DS-6900UDI Series Decoders are capable of simultaneous decoding video for 8-ch@24MP, 16-ch@12MP, 32-ch@8MP, 48-ch@5MP, 80-ch@3MP, 128-ch@1080p simultaneous decoding, and outputting decoded video via BNC, VGA, or HDMI interfaces, and it also supports multiple video stream formats like H.265, H.264+, Hik264, H.264 and MPEG4. The decoded video can be displayed on video wall or large screens.

    • Powerful decoding capability up to 128-ch 1080p
    • Multiple output interfaces: HDMI, VGA, BNC
    • Various video viewing functions: window splicing, cross-window, window division, window roaming
    • H.265+/H.265, H.264+/H.264, Hik264, MPEG4 and MJPEG video compression
    • DS-6901UDI provides HDMI,VGA,and BNC output interfaces.
    • DS-6904UDI,DS-6908UDI,DS-6910UDI,DS-6912UDI,DS-6916UDI provide HDMI(adaptable to DVI-D) and BNC output interfaces.
    • Up to 4K (3840×2160@30Hz) via HDMI output interfaces(only for even interface).
    • Up to 16-ch decoding at 12 MP resolution (DS-6916UDI).
    • H.265+/H.265,H.264+/H.264,Hik264,MPEG4 and MJPEG video compression.
    • PS,RTP,TS,ES,HIK encapsulation formats.
    • Three encoding levels:baseline,main,and high-profile.
    • G.722,G711A,G726,G711U,MPEG2-L2,and AAC audio compression.
    • Two decoding modes:active decoding and passive decoding.
    • Remote video files` decoding output.
    • Supports window opening and window roaming.
    • Supports two-way audio via client software.
    • Supports multi-screen control with PC installed with RSC server.
    • Supports Wi-Fi module access to display the signal from IOS/Android mobile phone or pad on video all/
    • Wi-Fi can be enabled via the Web browser or client software.You can get stream and decode the video on the video wall when Wi-Fi is enabled if no wired network can be accessed.
    • Gets stream and decodes via URL and RTSP from encoding devices.
    • Displays the decoded video stream on the video wallby directly linking cameras or by stream media forwarding.
    • You can configure what the video wall shows when decoding ends and streaming fails via the Web browser and client software.
    • Configurable LED width and height parameters when the LED is connected.
    • Regular and irregular virtual screen configurable to display multiple signal sources and get rid of the restriction of physical screen.
    • Accessible by 2.4 MP DeepinView camera.
    • Accessible by thermal network camera and you can view the temperature measurement,dynamic fire source detection,ship detection and VCA information in live view and playback.
    • You can enable or disable the smart information for the thermal network camera.
    • Remote PTZ control via transparent channel.
    • Two-way audio.
    • Port aggregation technology(Ethernet Channel)

Models Available

  • 1xHDMI DS-6901UDI supports 2ch@12MP, 4ch@8MP, 6ch@5MP, 10ch@3MP, 16ch@1080p, simultaneous decoding * THIS LISTING
  • 4xHDMI DS-6904UDI supports 4-ch@12MP, 8-ch@8MP, 12-ch@5MP, 20-ch@3MP, 32-ch@1080p simultaneous decoding
  • 8xHDMIDS-6908UDI supports 8-ch@12MP, 16-ch@8MP, 24-ch@5MP, 40-ch@3MP, 64-ch@1080p simultaneous decoding
  • 10xHDMI DS-6910UDI supports 10-ch@12MP, 20-ch@8MP, 30-ch@5MP, 50-ch@3MP, 80-ch@1080p simultaneous decoding
  • 12xHDMI DS-6912UDI supports 12-ch@12MP, 24-ch@8MP, 36-ch@5MP, 60-ch@3MP, 96-ch@1080p simultaneous decoding
  • 16xHDMI DS-6916UDI supports 16-ch@12MP, 32-ch@8MP, 48-ch@5MP, 80-ch@3MP, 128-ch@1080p simultaneous decoding
