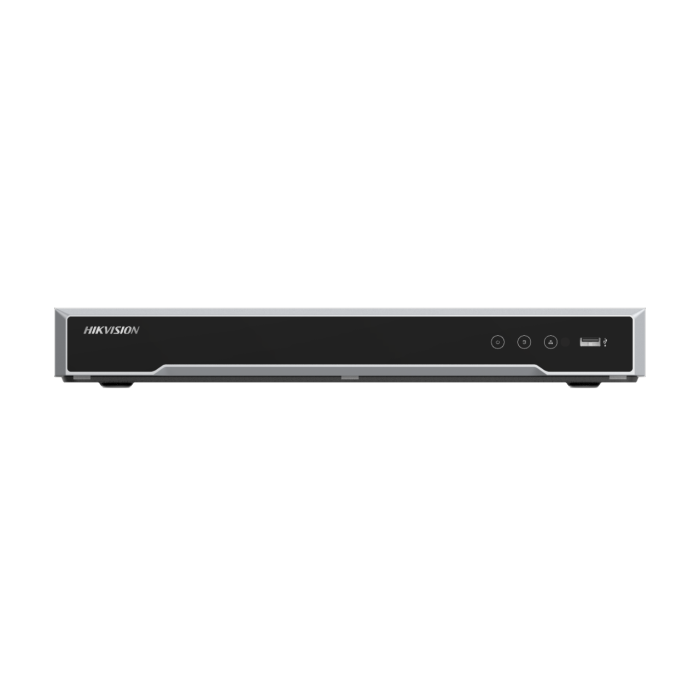

DS-6708HUHI-K Hikvision 8 Channel Encoder 5MP TVI & Analogue Cameras
In stock
SKU
DS-6708HUHI-K
Hikvision DS-6708HUHI-K 8 Channel Encoder
5MP TVI, AHD, CVI, IP & Analogue cameras
- Converts up to 8x TVI, CVI or AHD cameras to work on IP system
- Analog cameras can be connected
- Efficient H.265+ compression technology
- Encoding ability up to 5MP@12 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- 1 or 2 HDDs can be used for storag
External Interface
- Network Interface1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
- Two-Way Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1st audio input)
- Serial InterfaceRS-485 (half-duplex); RS-232
- Alarm In/Out8/4
Video/Audio Input/Output
- Video Input8-ch,BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDTVI Input8MP, 5MP, 4MP, 3MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
- AHD Input5MP, 4MP, 1080p25, 1080p30, 720p25, 720p30
- HDCVI Input4MP, 1080p25, 1080p30, 720p25, 720p30
- CVBS InputPAL/NTSC
- Audio Input4-ch, RCA (2.0 Vp-p, 1 KΩ)
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Synchronous Playback8-ch
Video/Audio Encoding
- Video CompressionH.265+/H.265/H.264+/H.264
- Audio CompressionG.711u
- Main Stream8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
- Frame RateMain stream:8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps,1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF/CIF@25fps (P)/30fps (N)
- Video Bit Rate32 Kbps to 10 Mbps
- Audio Bit Rate64 Kbps
- Dual StreamSupport
Storage
- CapacityUp to 8 TB capacity for each disk
General
- Weight≤ 1.78 kg (3.9 lb)
- Power Supply12 VDC
- Working Temperature-10 °C to +55 °C (+144 °F to +131 °F)
- Working Humidity10% to 90%
- Consumption≤ 20W
- (W × D × H)380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
Network Management
- Network ProtocolsTCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS, ONVIF profile S
