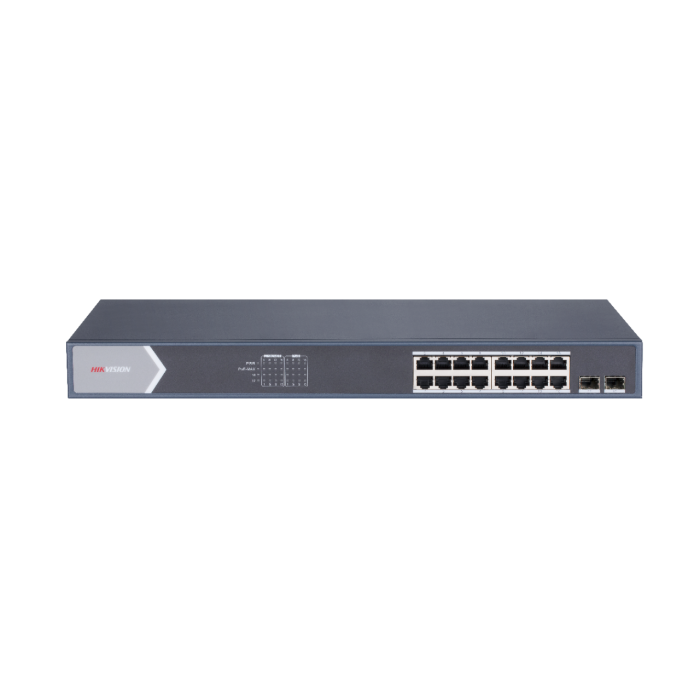

Hikvision 16-Port DS-3E1518P-SI Gigabit PoE Switch with 2x Gigabit Fiber Ports
In stock
SKU
DS-3E1518P-SI
MPN: 301802030EAN: 6941264087434UPC: 6941264087434
Hikvision DS-3E1518P-SI 16-Port Gigabit Smart PoE Switch
Smart managed switches are developed by Hikvision, featuring in easy management and maintenance. You can easily deploy, monitor and expand your surveillance
system anytime and anywhere with our software platforms. You can view the network topology, monitor the health of the network and receive device alarms in
real time, which greatly reduces the cost of network operation and maintenance
- 16 × Gigabit PoE ports, and 2 × Gigabit Fiber optical ports.
- IEEE 802.3at/af standard for PoE ports.
- Network topology management, alarm push, network health monitor.
- 6KV surge protection for PoE ports.
- AF/AT camera can reach up to 300 m in extend mode.
- PoE watchdog to auto detect and restart the cameras that do not respond.
- Various layer 2 management protocols such as STP/RSTP, VLAN, link aggregation, SNMP, QoS and so on.
- Total PoE Power budget 225W
- Switching Capacity 36Gbps
MPN: 301802030EAN: 6941264087434UPC: 6941264087434
Network Parameters
- Port Number 16 × Gigabit PoE ports, and 2 × Gigabit fiber optical ports
- Port Type RJ45 port, full duplex, MDI/MDI-X adaptive
- Working Mode
Standard mode (default)
Extend mode
- Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
- Forwarding Mode Store-and-forward switching
- MAC Address Tabl e8 K
- Internal Cache 4.1 Mbits
- Switching Capacity 36 Gbps
- Packet Forwarding Rate2 6.784 Mpps
PoE Power Supply
- PoE Standard IEEE 802.3af, IEEE 802.3at
- PoE Power Pin End-span: 1/2(-), 3/6(+)
- PoE PortPorts 1 to 16
- Max. Port Power 30 W
- PoE Power Budget 225 W
Software Function
- Port Configuration Port rate configuration, flow control, and ports enabling
- Device Maintenance Remote upgrade, default parameters recovery, logs viewing, basic network parameters configuration, import and export configuration, time sync
- Link Aggregation Static link aggregation supported
- Long RangeUp to 300 m transmission
- PoE Configuration
PoE watchdog: Ports 1 to 16 auto detect and restart the cameras that do not respond.
PoE enabling: Support
- Storm Control Storm control of unknown unicast, multicast and broadcast
- Port Mirroring Support
- QoS WRR and SP scheduling and port priority
- VLAN 4094 VLANs
- STP STP and RSTP protocols
- Port Isolation Ports in isolation group cannot communicate with each other.
- LLDP LLDP protocol supported for port configuration, global configuration and neighbor discovery
- Port Rate-Limiting Rate-limiting for ingress and egress ports
- SNMP SNMPv1 and SNMPv2c supported for obtaining node information of the system and interfaces
General
- Dimension (W × H × D)440 mm × 220.8 mm × 44 mm (17.32” × 8.69” × 1.73”)
- Storage Temperature -40°C to 85°C (-40°F to 185°F)
- Gross Weight 3.31 kg (7.30 lb)
- Net Weight 2.735 kg (6.03 lb)
- Power Consumption In Idle 25 W
- Shell Metal material
- Operating Temperature -10°C to 55°C (14°F to 131°F)
- Operating Humidity 5% to 95% (no condensation)
- Power Supply 100 to 240 VAC, 50/60 Hz, Max. 4 A. 250 W
- Max. Power Consumption 250 W
- Relative Humidity 5% to 95% (no condensation)
Approval
- EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS/NZS CISPR 32: 2015)
- SafetyUL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
- ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
