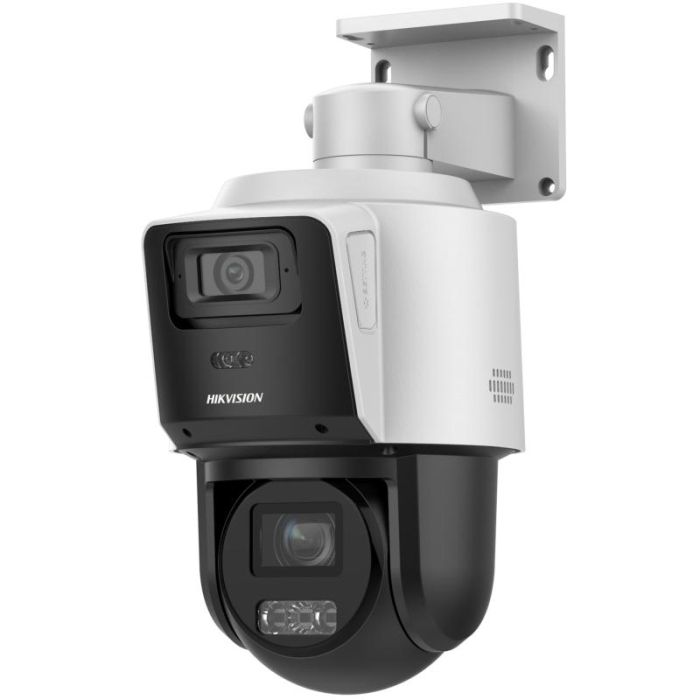

Hikvision DS-2SE3C410MWG-E/14 4MP + 4MP 10x Zoom DarkFighter AcuSense 3-inch TandemVu PTZ Camera 80m IR + White Light
The Hikvision DS-2SE3C410MWG-E/14 4MP + 4MP 10x Zoom DarkFighter AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide 3-inch TandemVu PTZ Camera 80m IR + White Light is a 4MP + 4MP 3-inch TandemVu PTZ IP camera with TandemVu / DarkFighter / AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide, 10x optical zoom and 80 m IR night vision. Hikvision model name: TandemVu 4MP+4MP 10X POE PTZ Network Camera.
Genuine Hikvision product, managed with Hik-Connect, iVMS-4200 and HikCentral. UK stock with same-day dispatch and trade pricing from Netview CCTV Leicester — authorised Hikvision wholesale distributor.
Key Features
- 4MP + 4MP (2560 × 1440) resolution, 1/2.8" progressive scan CMOS sensor
- TandemVu - a fixed overview channel and a PTZ detail channel in one unit
- DarkFighter ultra-low-light imaging
- 10x optical zoom and 16x digital zoom for close-up views over large areas
- Image tools: WDR, HLC, BLC, 3D DNR, defog, regional exposure and regional focus
- AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide deep learning classifies human and vehicle targets, cutting false alarms
- 0° to 350° pan, -5° to 90° tilt; 300 presets, 8 patrols
- IP66 weatherproof
- MicroSD slot up to 512 GB
- H.265+ / H.265 / H.264+ / H.264 compression
- Power: PoE+ (802.3at) switch / injector, or 12 VDC PSU
- Managed via Hik-Connect, iVMS-4200 and HikCentral; ONVIF Profile S/G/T
Hikvision DS-2SE3C410MWG-E/14 4MP + 4MP 10x Zoom DarkFighter AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide 3-inch TandemVu PTZ Camera 80m IR + White Light — IP PTZ Camera
4MP + 4MP 3-inch TandemVu PTZ IP camera with TandemVu / DarkFighter / AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide, 10x optical zoom and 80 m IR night vision. Hikvision: TandemVu 4MP+4MP 10X POE PTZ Network Camera.
Overview
The Hikvision DS-2SE3C410MWG-E/14 4MP + 4MP 10x Zoom DarkFighter AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide 3-inch TandemVu PTZ Camera 80m IR + White Light is a 4MP + 4MP 3-inch TandemVu PTZ IP camera with TandemVu / DarkFighter / AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide, 10x optical zoom and 80 m IR night vision. Its 10x optical zoom (5.76 to 57.6 mm) brings distant subjects in for identification while the pan-tilt mechanism (0° to 350° pan, -5° to 90° tilt) covers the whole scene from a single mounting point. It sees in colour down to 0.01 lux and in black-and-white to 0.005 lux (0 lux with the built-in illuminator). 120 dB wide dynamic range handles scenes with strong backlight. AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide deep-learning analytics classify people and vehicles so alarms are not triggered by animals, foliage or weather. Managed with Hik-Connect, iVMS-4200 and HikCentral and compatible with Hikvision NVRs and ONVIF systems. Same-day dispatch from Netview CCTV Leicester — authorised Hikvision wholesale distributor — with trade pricing on stocked product.
Key Features
- 4MP + 4MP (2560 × 1440) resolution, 1/2.8" progressive scan CMOS sensor
- TandemVu - a fixed overview channel and a PTZ detail channel in one unit
- DarkFighter ultra-low-light imaging
- 10x optical zoom and 16x digital zoom for close-up views over large areas
- Image tools: WDR, HLC, BLC, 3D DNR, defog, regional exposure and regional focus
- AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide deep learning classifies human and vehicle targets, cutting false alarms
- 0° to 350° pan, -5° to 90° tilt; 300 presets, 8 patrols
- IP66 weatherproof
- MicroSD slot up to 512 GB
- H.265+ / H.265 / H.264+ / H.264 compression
- Power: PoE+ (802.3at) switch / injector, or 12 VDC PSU
- Managed via Hik-Connect, iVMS-4200 and HikCentral; ONVIF Profile S/G/T
Typical Applications
- Car parks, forecourts and yards - one PTZ covers what several fixed cameras would
- Perimeters and open sites - long-range zoom for identification
- Operator-monitored sites - joystick / keyboard control and preset patrols
- Night-time surveillance with long-range IR illumination
- Trade installs needing same-day stock - Netview CCTV Leicester ships Hikvision from UK stock
Compatible Hikvision Devices
- Hikvision NVRs (AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide, VPro, K and M series) and HikCentral
- Hik-Connect app (iOS / Android)
- iVMS-4200 management software
- Hikvision DS-1200KI / DS-1600KI PTZ keyboards for joystick control
- ONVIF-compliant recorders and VMS (Profile S, G, T)
- PoE+ (802.3at) switches and injectors or a 12 VDC PSU
- Hikvision PTZHikvision PTZ Camera Installer Guide 2026 wall, corner, pole and pendant mounts (DS-1602ZJ / DS-1604ZJ / DS-1691ZJ range)
What's in the Box
- 1 × Hikvision DS-2SE3C410MWG-E/14 4MP + 4MP 10x Zoom DarkFighter AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide 3-inch TandemVu PTZ Camera 80m IR + White Light
- 1 × mounting / fixing kit (where applicable)
- 1 × quick start guide
Detailed Specifications — Hikvision DS-2SE3C410MWG-E/14 4MP + 4MP 10x Zoom DarkFighter AcuSense 3-inch TandemVu PTZ Camera 80m IR + White Light
Specifications as published by Hikvision (19-10-2026). Shipping weight may differ from the unit weight shown.
| Identification | |
|---|---|
| SKU | DS-2SE3C410MWG-E/14(2.8MM) |
| MPN | DS-2SE3C410MWG-E/14(2.8mm) |
| EAN | 6942160466491 |
| Brand | Hikvision |
| Hikvision product name | TandemVu 4MP+4MP 10X POE PTZ Network Camera |
| Product Type | IP PTZ Camera |
| Camera | |
| Image Sensor | [Bullet channel]: 1/2.8" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS |
| Min. Illumination | [Bullet channel]: Color: 0.01 Lux @ (F1.6, AGC ON), B/W: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR; [PTZ channel]: Color: 0.01 Lux @ (F1.86, AGC ON), B/W: 0.005Lux @ (F1.86, AGC ON), 0 Lux with IR |
| Shutter Speed | 1 s to 1/30,000 s |
| Slow Shutter | yes |
| Day & Night | ICR |
| Zoom | [PTZ channel] 10 × optical, 16 × digital |
| Max. Resolution | [Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440 |
| Lens | |
| Focus | auto,manual,semi-auto |
| Focal Length | [Bullet channel]: 2.8 mm; [PTZ channel]: 5.76 to 57.6 mm, 10 × optical |
| Zoom Speed | [PTZ channel]: approx. 3.3 s |
| FOV | [Bullet channel] horizontal field of view: 114.9°, vertical field of view: 62.4°, diagonal field of view: 136.4°, [PTZ channel] horizontal field of view: 50° to 7.5°, vertical field of view: 31° to 4°, diagonal field of view: 58.8° to 8.5° |
| Aperture | [Bullet channel]: F1.6; [PTZ channel]: F1.86 to F2.65 |
| Illuminator | |
| Supplement Light Type | [Bullet channel] Hybrid (IR and White Light), [PTZ channel] IR |
| Smart Supplement Light | Yes |
| Supplement Light Range | [PTZ channel]: IR Distance: up to 80 m; [Bullet channel]: IR Distance: up to 30 m; White Light Distance: 30 m |
| PTZ | |
| Movement Range (Pan) | 0° to 350° |
| Movement Range (Tilt) | [Bullet channel] 7° to 17° (manually adjust), [PTZ channel] -5° to 90° |
| Pan Speed | pan speed: configurable from 0.1° to 30°/s; preset speed: 30°/s |
| Tilt Speed | tilt speed: configurable from 0.1° to 30°/s, preset speed 30°/s |
| Proportional Pan | yes |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Power-off Memory | yes |
| Park Action | preset,patrol scan |
| 3D Positioning | yes |
| PTZ Status Display | yes |
| Preset Freezing | yes |
| Scheduled Task | dome reboot,preset,patrol scan,dome adjust,aux output |
| Video | |
| Region of Interest (ROI) | 1 fixed regions for main stream |
| Main Stream | [Bullet channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) [PTZ channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub-Stream | [Bullet channel]: 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) [PTZ channel]: 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Third Stream | [Bullet channel]: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) [PTZ channel]: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | H.265,H.264,MJPEG |
| Video Bit Rate | 32 kbps to 16384 kbps |
| H.264 Type | main profile,baseline profile,high profile |
| H.265 Type | main profile |
| Scalable Video Coding (SVC) | yes |
| Audio | |
| Audio Compression | G.711,G.722.1,G.726,MP2L2,PCM,MP3,AAC |
| Audio Bit Rate | MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps; AAC : 16 kbps, 32 kbps, 64 kbps; MP3: 8 kbps, 16 kbps, 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps |
| Audio Sampling Rate | MP2L2: 16 kHz,AAC-LC: 16 kHz,PCM: 8 kHz, 16 kHz,MP3: 8 kHz, 16 kHz |
| Environment Noise Filtering | yes |
| Network | |
| API | ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
| Network Storage | NAS (NFS, SMB/ CIFS),ANR, ANR |
| Protocols | TCP/IP,SMTP,RTSP,FTP,WebSockets,IGMP,WebSocket,Qos,RTCP,HTTPS,PPPoE,SNMP,NTP,RTP,UDP,DNS,HTTP,DHCP,Bonjour,802.1x,IPv4/IPv6,DDNS,ICMP,UPnP |
| Simultaneous Live View | 20 |
| User/Host | 32 |
| Security | 802.1X authenticated access,MAC address binding,Authenticated username and password,IP address filter,HTTPS encryption |
| Client | iVMS-4200,Hik-Connect |
| Web Browser | IE8+, Chrome31 to 44, Firefox30 to 51, Safari8.0+ |
| Image | |
| Image Settings | sharpness, saturation, brightness, contrast |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Defog | Digital defog |
| Day/Night Switch | day, night, auto, scheduled-switch |
| Image Enhancement | BLC,HLC,3D DNR |
| Privacy Mask | [Bullet channel] 24 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks |
| Regional Focus | [Bullet channel] No, [PTZ channel] Yes |
| Regional Exposure | [Bullet channel] No, [PTZ channel] Yes |
| Image Parameters Switch | Yes |
| Interface | |
| Built-in Microphone | 1 built-in microphone |
| Built-in Speaker | 1 built-in speaker |
| Ethernet Interface | RJ45, self-adaptive 10M/100M Ethernet port |
| On-board Storage | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 512 GB |
| Reset | yes |
| Event | |
| Basic Event | Motion detection,video tampering alarm,exception,alarm input and output |
| Smart Event | Line crossing detection,intrusion detection,region entrance detection,region exiting detection,audio exception detection |
| Linkage | [Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan) |
| General | |
| General Function | mirror,watermark,IP address filter,password protection |
| Power | 12 VDC, max. 13.5 W,PoE+ |
| Operating Condition | -30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing) |
| Material | PC |
| Dimension | 311.5 mm × 223.5 mm × 156 mm (12.26" × 8.80" × 6.14") |
| Weight | Approx. 1.37 kg (3.02 lb.) |
| Approval | |
| Protection | IP66 Standard, Surge Protection and Voltage Transient Protection |
Frequently Asked Questions
What zoom does the Hikvision DS-2SE3C410MWG-E/14(2.8MM) have?
10x optical zoom (5.76 to 57.6 mm) plus 16x digital zoom.
What is the night-vision range?
80 m IR (IR illuminator).
Does it cope with strong backlight?
Yes — 120 dB wide dynamic range, plus digital defog.
Does it reduce false alarms?
Yes — deep-learning analytics classify people and vehicles.
How is it powered?
12 VDC, max. 13.5 W,PoE+.
Is it suitable for outdoor use?
Yes — IP66; operating range -30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing).
Does it record locally?
Yes — Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 512 GB, plus NAS and NVR recording.
Can I control it with a joystick?
Yes — from a Hikvision NVR, iVMS-4200, Hik-Connect or a DS-1200KI / DS-1600KI network keyboard.
Which recorders is it compatible with?
All Hikvision NVRs, and third-party systems via ONVIF (Profile S, G, T).
