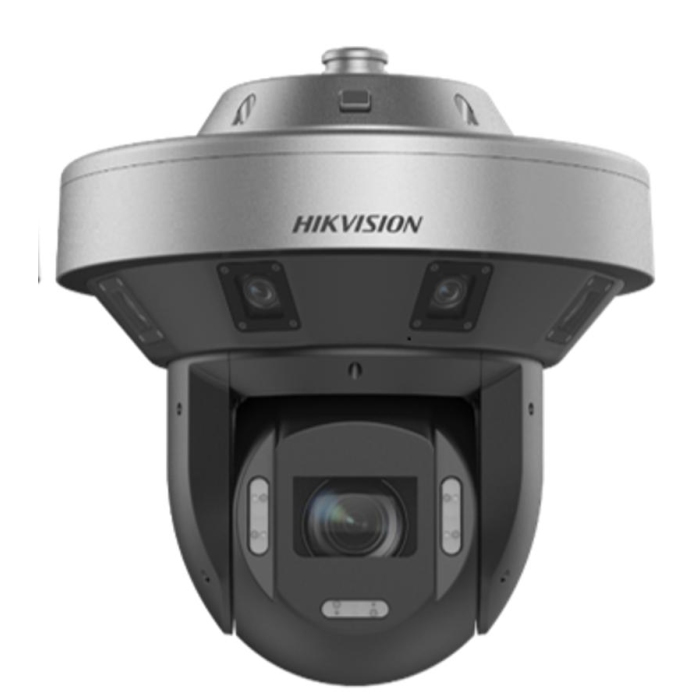

Hikvision DS-2DP8A440IXG1-LEF/416 16MP 40x Zoom DarkFighter PanoVu Panoramic PTZ Camera 300m IR
The Hikvision DS-2DP8A440IXG1-LEF/416 16MPHikvision 16MP vs 12MP Turret: When to Spec the DS-2CD23166G3 Over the DS-2CD23126G3 40x Zoom DarkFighter PanoVu Panoramic PTZ Camera 300m IR is a 16MPHikvision 16MP vs 12MP Turret: When to Spec the DS-2CD23166G3 Over the DS-2CD23126G3 PanoVu Panoramic PTZ IP camera with PanoVu / DarkFighter, 40x optical zoom and 300 m IR night vision. Hikvision model name: 16MPHikvision 16MP vs 12MP Turret: When to Spec the DS-2CD23166G3 Over the DS-2CD23126G3 180° Panoramic & PTZ Camera.
Genuine Hikvision product, managed with Hik-Connect, iVMS-4200 and HikCentral. UK stock with same-day dispatch and trade pricing from Netview CCTV Leicester — authorised Hikvision wholesale distributor.
Key Features
- 16MPHikvision 16MP vs 12MP Turret: When to Spec the DS-2CD23166G3 Over the DS-2CD23126G3 (5520×2400) resolution, 1/1.8" progressive scan CMOS sensor
- Excellent low-light performance with DarkFighter 2.0 technology
- 40x optical zoom and 16x digital zoom for close-up views over large areas
- Up to 300 m IR night vision
- Click anywhere on the panoramic view and the PTZ channel zooms to the detail automatically
- Continuous, stable manual tracking, auto-tracking and panorama tracking
- Automatic switching between multiple tracked targets
- 360° pan, -15° to 90° tilt; 300 presets, 8 patrols, 4 pattern scans
- IP67 weatherproof / IK10 vandal-resistant
- MicroSD slot up to 512 GB
- Alarm I/O: 7 inputs, 2 outputs; audio in/out
- H.265+ / H.265 / H.264+ / H.264 compression
- Power: PoE++ (802.3bt) 60 W switch / injector, or 36 VDC PSU
- Managed via Hik-Connect, iVMS-4200 and HikCentral; ONVIF Profile S/G/T
Hikvision DS-2DP8A440IXG1-LEF/416 16MPHikvision 16MP vs 12MP Turret: When to Spec the DS-2CD23166G3 Over the DS-2CD23126G3 40x Zoom DarkFighter PanoVu Panoramic PTZ Camera 300m IR — IP PTZ Camera
16MPHikvision 16MP vs 12MP Turret: When to Spec the DS-2CD23166G3 Over the DS-2CD23126G3 PanoVu Panoramic PTZ IP camera with PanoVu / DarkFighter, 40x optical zoom and 300 m IR night vision. Hikvision: 16MPHikvision 16MP vs 12MP Turret: When to Spec the DS-2CD23166G3 Over the DS-2CD23126G3 180° Panoramic & PTZ Camera.
Overview
The Hikvision DS-2DP8A440IXG1-LEF/416 16MPHikvision 16MP vs 12MP Turret: When to Spec the DS-2CD23166G3 Over the DS-2CD23126G3 40x Zoom DarkFighter PanoVu Panoramic PTZ Camera 300m IR is a 16MPHikvision 16MP vs 12MP Turret: When to Spec the DS-2CD23166G3 Over the DS-2CD23126G3 PanoVu Panoramic PTZ IP camera with PanoVu / DarkFighter, 40x optical zoom and 300 m IR night vision. Its 40x optical zoom (6 to 240 mm) brings distant subjects in for identification while the pan-tilt mechanism (360° pan, -15° to 90° (auto flip) tilt) covers the whole scene from a single mounting point. 120 dB wide dynamic range handles scenes with strong backlight. Smart tracking (manual tracking, auto-tracking, panorama tracking. support patrol tracking among multiple detection scenes) follows a moving target automatically. Managed with Hik-Connect, iVMS-4200 and HikCentral and compatible with Hikvision NVRs and ONVIF systems. Same-day dispatch from Netview CCTV Leicester — authorised Hikvision wholesale distributor — with trade pricing on stocked product.
Key Features
- 16MPHikvision 16MP vs 12MP Turret: When to Spec the DS-2CD23166G3 Over the DS-2CD23126G3 (5520×2400) resolution, 1/1.8" progressive scan CMOS sensor
- Excellent low-light performance with DarkFighter 2.0 technology
- 40x optical zoom and 16x digital zoom for close-up views over large areas
- Up to 300 m IR night vision
- Click anywhere on the panoramic view and the PTZ channel zooms to the detail automatically
- Continuous, stable manual tracking, auto-tracking and panorama tracking
- Automatic switching between multiple tracked targets
- 360° pan, -15° to 90° tilt; 300 presets, 8 patrols, 4 pattern scans
- IP67 weatherproof / IK10 vandal-resistant
- MicroSD slot up to 512 GB
- Alarm I/O: 7 inputs, 2 outputs; audio in/out
- H.265+ / H.265 / H.264+ / H.264 compression
- Power: PoE++ (802.3bt) 60 W switch / injector, or 36 VDC PSU
- Managed via Hik-Connect, iVMS-4200 and HikCentral; ONVIF Profile S/G/T
Typical Applications
- Car parks, forecourts and yards - one PTZ covers what several fixed cameras would
- Perimeters and open sites - long-range zoom for identification
- Operator-monitored sites - joystick / keyboard control and preset patrols
- Night-time surveillance with long-range IR illumination
- Trade installs needing same-day stock - Netview CCTV Leicester ships Hikvision from UK stock
Compatible Hikvision Devices
- Hikvision NVRs (AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide, VPro, K and M series) and HikCentral
- Hik-Connect app (iOS / Android)
- iVMS-4200 management software
- Hikvision DS-1200KI / DS-1600KI PTZ keyboards for joystick control
- ONVIF-compliant recorders and VMS (Profile S, G, T)
- PoE++ (802.3bt) switches and injectors (60 W) or a 36 VDC PSU
- Hikvision PTZHikvision PTZ Camera Installer Guide 2026 wall, corner, pole and pendant mounts (DS-1602ZJ / DS-1604ZJ / DS-1691ZJ range)
What's in the Box
- 1 × Hikvision DS-2DP8A440IXG1-LEF/416 16MPHikvision 16MP vs 12MP Turret: When to Spec the DS-2CD23166G3 Over the DS-2CD23126G3 40x Zoom DarkFighter PanoVu Panoramic PTZ Camera 300m IR
- 1 × mounting / fixing kit (where applicable)
- 1 × quick start guide
Detailed Specifications — Hikvision DS-2DP8A440IXG1-LEF/416 16MP 40x Zoom DarkFighter PanoVu Panoramic PTZ Camera 300m IR
Specifications as published by Hikvision (19-10-2026). Shipping weight may differ from the unit weight shown.
| Identification | |
|---|---|
| SKU | DS-2DP8A440IXG1-LEF/416(F0)(B) |
| MPN | DS-2DP8A440IXG1-LEF/416(F0)(B) |
| EAN | 6942640512380 |
| Brand | Hikvision |
| Hikvision product name | 16MP 180° Panoramic & PTZ Camera |
| Product Type | IP PTZ Camera |
| Camera | |
| Image Sensor | [Panoramic channel]: 1/1.8" progressive scan CMOS, [PTZ channel]: 1/1.8" progressive scan CMOS |
| Max. Resolution | 5520×2400 |
| Min. Illumination | [Panoramic channel] Color: 0.0005 Lux (F1.0, AGC ON), B/W: 0.0001 Lux (F1.0, AGC ON); [PTZ channel]: 0.0005 Lux (F1.2, AGC ON), B/W: 0.0001 Lux (F1.2, AGC ON), 0 Lux with IR |
| Shutter Speed | 1 s to 1/30000 s |
| Day & Night | IR cut filter |
| Zoom | [PTZ channel] 40x optical, 16x digital |
| Slow Shutter | Yes |
| Lens | |
| Focal Length | [Panoramic channel] 2 mm, [PTZ channel] 6 to 240 mm |
| FOV | [Panoramic channel] Horizontal FOV 180°, vertical FOV 110°；[PTZ channel]Horizontal FOV 56.6° to 1.8°, vertical FOV 33.7° to 1.0°, diagonal FOV 63.4° to 2.0° |
| Focus | Auto, semi-auto, manual, rapid focus |
| Aperture | [Panoramic channel] Max. F1.0, [PTZ channel] Max. F1.2 |
| Zoom Speed | [PTZ channel] Approx. 5.6 s |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | IR distance: up to 300 m |
| Smart Supplement Light | Yes |
| PTZ | |
| Movement Range (Pan) | 360° |
| Movement Range (Tilt) | -15° to 90° (auto flip) |
| Pan Speed | Pan speed: configurable from 0.1° to 500°/s, preset speed: 500°/s |
| Tilt Speed | Tilt speed: configurable from 0.1° to 350°/s, preset speed 350°/s |
| Proportional Pan | [Panoramic channel]: no; [PTZ channel]: yes |
| Presets | 300 |
| Preset Freezing | Yes |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan |
| Park Action | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Scheduled Task | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output |
| Power-off Memory | Yes |
| Video | |
| Main Stream | [Panoramic channel] 50 Hz: 25 fps (5520 × 2400, 4096 × 1800, 3840 × 1680, 2784 × 1200) 60 Hz: 30 fps (5520 × 2400, 4096 × 1800, 3840 × 1680, 2784 × 1200) [PTZ channel] 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub-Stream | [Panoramic channel] 50 Hz: 25 fps (2048 × 896, 1280 × 560, 704 × 320) 60 Hz: 30 fps (2048 × 896, 1280 × 560, 704 × 320) [PTZ channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | [Panoramic channel] No, [PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 240) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG |
| Audio | |
| Audio Compression | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM |
| Audio Sampling Rate | PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; AAC: 16 kHz, 32 kHz, 48 kHz |
| Network | |
| Protocols | IPv4/IPv6,HTTP,HTTPS,802.1X,QoS,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SRTP |
| Simultaneous Live View | Up to 20 channels |
| API | ISAPI,EZVIZ,Open Network Video Interface (Profile S, Profile G, Profile T, Profile M),ISUP,OTAP,SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, operator, and user |
| Security | Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter |
| Network Storage | NAS (NFS, SMB/CIFS), ANR |
| Client | iVMS-4200, HikCentral Pro, Hik-Connect |
| Web Browser | IE10-11, Chrome 57+, Firefox 52+, Safari 12+ |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Day/Night Switch | Day, night, auto, scheduled-switch |
| Wide Dynamic Range (WDR) | [Panoramic channel] no, [PTZ channel] 120 dB |
| SNR | ≥ 55 dB |
| Defog | [Panoramic channel]: no; [PTZ channel]: optical defog |
| Image Stabilization | EIS (Built-in gyroscope to improve EIS performance) |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | Programmable polygon privacy masks (8 for panoramic channel, 24 for PTZ channel), mask color or mosaic configurable |
| Regional Focus | Yes |
| Regional Exposure | Yes |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M/1000M self-adaptive Ethernet port |
| On-board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Audio | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
| Alarm | 7 alarm inputs, 2 alarm outputs |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Reset | Yes |
| Fiber Optical | 1 FC interface, built-in fiber module, 1000M, TX1310/RX1550 nm wavelength, single module fiber, up to 20 km transmission distance |
| Event | |
| Smart Event | [Panoramic channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection [PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection, loitering detection, people gathering detection, fast moving detection, parking detection, unattended baggage detection, object removal detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan) |
| Smart Tracking | Manual tracking, auto-tracking, panorama tracking. Support patrol tracking among multiple detection scenes |
| Deep Learning Function | |
| People Density | [Panoramic channel]: yes ,[PTZ channel]: no |
| Multi-Target-Type Detection | [PTZ channel] Supports simultaneous detection and capture of human body, face and vehicle |
| Congestion Alarm | Yes |
| General | |
| Power | 36 VDC ± 20%, max. 135 W,including max. 12 W for IR,PoE(802.3bt) 42.5-57V| 2.12A |
| Dimension | Ø427.6 mm × 425.9 mm (Ø16.8" × 16.7") |
| Weight | 14.6kg |
| Material | ADC12 |
| Operating Condition | -40°C to 70°C (-40°F to 158 °F). Humidity 90% or less (non-condensing) |
| Wiper | No |
| Demist | Yes |
| Approval | |
| Safety | CB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 Standard, Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5, IK10 |
Frequently Asked Questions
What zoom does the Hikvision DS-2DP8A440IXG1-LEF/416(F0)(B) have?
40x optical zoom (6 to 240 mm) plus 16x digital zoom.
What is the night-vision range?
300 m IR (IR illuminator).
Does it cope with strong backlight?
Yes — 120 dB wide dynamic range, plus [panoramic channel]: no; [ptz channel]: optical defog.
Can it track a moving target automatically?
Yes — Manual tracking, auto-tracking, panorama tracking. Support patrol tracking among multiple detection scenes.
How is it powered?
36 VDC ± 20%, max. 135 W,including max. 12 W for IR,PoE(802.3bt) 42.5-57V| 2.12A.
Is it suitable for outdoor use?
Yes — IP67 and IK10 vandal-resistant; operating range -40°C to 70°C (-40°F to 158 °F). Humidity 90% or less (non-condensing).
Does it record locally?
Yes — Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB, plus NAS and NVR recording.
What alarm and audio connections does it have?
Alarm: 7 alarm inputs, 2 alarm outputs. Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω.
Can I control it with a joystick?
Yes — from a Hikvision NVR, iVMS-4200, Hik-Connect or a DS-1200KI / DS-1600KI network keyboard.
Which recorders is it compatible with?
All Hikvision NVRs, and third-party systems via ONVIF (Profile S, G, T).
Documentation — Hikvision DS-2DP8A440IXG1-LEF/416 16MP 40x Zoom DarkFighter PanoVu Panoramic PTZ Camera 300m IR
Official Hikvision documents for this model and related Netview CCTV pages.
| Document | Format | Link |
|---|---|---|
| Hikvision DS-2DP8A440IXG1-LEF/416(F0)(B) Data Sheet (official PDF) | Download | |
| Hikvision DS-2DP8A440IXG1-LEF/416(F0)(B) User Manual (official PDF) | Download | |
| Hikvision DS-2DP8A440IXG1-LEF/416(F0)(B) product page | Web | View on hikvision.com |
| Hikvision PTZ Camera Installer Guide 2026 | Web | Read the guide |
| Browse all Hikvision IP PTZ Cameras | Web | View IP PTZ Cameras |
| Contact Netview CCTV (trade pricing & support) | Web | Contact our trade team |
Netview CCTV — authorised Hikvision wholesale distributor (Leicester). Trade pricing: 0116 3800 838 or [email protected].
