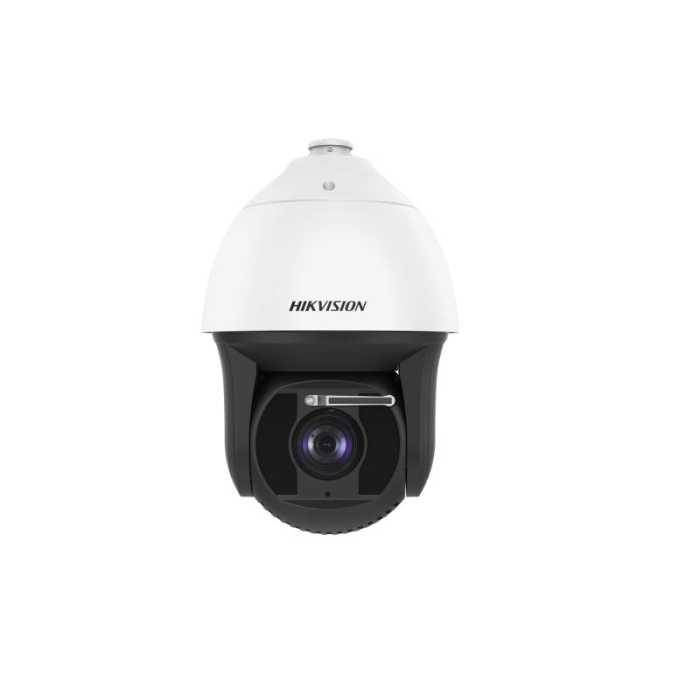

Hikvision DS-2DF8242I5X-AELW 2MP 42x Zoom DarkFighter 8-inch Speed Dome Camera 500m laser
The Hikvision DS-2DF8242I5X-AELW 2MP 42x Zoom DarkFighter 8-inch Speed Dome Camera 500m laser is a 2MP 8-inch Speed Dome IP camera with DarkFighter / Laser, 42x optical zoom and 500 m laser night vision. Hikvision model name: 8-inch 2 MP 42X DarkFighter Laser Network Speed Dome.
Genuine Hikvision product, managed with Hik-Connect, iVMS-4200 and HikCentral. UK stock with same-day dispatch and trade pricing from Netview CCTV Leicester — authorised Hikvision wholesale distributor.
Key Features
- 2MP (1920 × 1080) resolution, 1/1.8" progressive scan CMOS sensor
- DarkFighter ultra-low-light imaging
- 42x optical zoom and 16x digital zoom for close-up views over large areas
- Up to 500 m laser night vision
- IP67 weatherproof
- Face capture - detects, grades and selects the best face image in motion
- Road traffic detection and vehicle attribute capture
- 360° pan, -20° to 90° tilt; 300 presets, 8 patrols, 4 pattern scans
- Built-in wiper
- MicroSD slot up to 256 GB
- Alarm I/O: 7 inputs, 2 outputs; audio in/out
- H.265+ / H.265 / H.264+ / H.264 compression
- Power: Hi-PoE injector / switch, or 24 VAC PSU
- Managed via Hik-Connect, iVMS-4200 and HikCentral; ONVIF Profile S/G/T
Hikvision DS-2DF8242I5X-AELW 2MP 42x Zoom DarkFighter 8-inch Speed Dome Camera 500m laser — IP PTZ Camera
2MP 8-inch Speed Dome IP camera with DarkFighter / Laser, 42x optical zoom and 500 m laser night vision. Hikvision: 8-inch 2 MP 42X DarkFighter Laser Network Speed Dome.
Overview
The Hikvision DS-2DF8242I5X-AELW 2MP 42x Zoom DarkFighter 8-inch Speed Dome Camera 500m laser is a 2MP 8-inch Speed Dome IP camera with DarkFighter / Laser, 42x optical zoom and 500 m laser night vision. Its 42x optical zoom (6.0 mm to 252 mm) brings distant subjects in for identification while the pan-tilt mechanism (360° pan, -20° to 90° (auto flip) tilt) covers the whole scene from a single mounting point. It sees in colour down to 0.001 lux and in black-and-white to 0.0005 lux (0 lux with the built-in illuminator). 140 dB wide dynamic range handles scenes with strong backlight. Laser illumination reaches 500 m, far beyond conventional IR, for long-range night surveillance. Smart tracking (manual tracking, auto-tracking) follows a moving target automatically. Managed with Hik-Connect, iVMS-4200 and HikCentral and compatible with Hikvision NVRs and ONVIF systems. Same-day dispatch from Netview CCTV Leicester — authorised Hikvision wholesale distributor — with trade pricing on stocked product.
Key Features
- 2MP (1920 × 1080) resolution, 1/1.8" progressive scan CMOS sensor
- DarkFighter ultra-low-light imaging
- 42x optical zoom and 16x digital zoom for close-up views over large areas
- Up to 500 m laser night vision
- IP67 weatherproof
- Face capture - detects, grades and selects the best face image in motion
- Road traffic detection and vehicle attribute capture
- 360° pan, -20° to 90° tilt; 300 presets, 8 patrols, 4 pattern scans
- Built-in wiper
- MicroSD slot up to 256 GB
- Alarm I/O: 7 inputs, 2 outputs; audio in/out
- H.265+ / H.265 / H.264+ / H.264 compression
- Power: Hi-PoE injector / switch, or 24 VAC PSU
- Managed via Hik-Connect, iVMS-4200 and HikCentral; ONVIF Profile S/G/T
Typical Applications
- Car parks, forecourts and yards - one PTZ covers what several fixed cameras would
- Perimeters and open sites - long-range zoom for identification
- Operator-monitored sites - joystick / keyboard control and preset patrols
- Ports, quarries, highways and critical infrastructure - 500 m-class night range
- Trade installs needing same-day stock - Netview CCTV Leicester ships Hikvision from UK stock
Compatible Hikvision Devices
- Hikvision NVRs (AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide, VPro, K and M series) and HikCentral
- Hik-Connect app (iOS / Android)
- iVMS-4200 management software
- Hikvision DS-1200KI / DS-1600KI PTZ keyboards for joystick control
- ONVIF-compliant recorders and VMS (Profile S, G, T)
- Hikvision Hi-PoE injectors / switches (DS-1H range) or a 24 VAC PSU
- Hikvision PTZHikvision PTZ Camera Installer Guide 2026 wall, corner, pole and pendant mounts (DS-1602ZJ / DS-1604ZJ / DS-1691ZJ range)
What's in the Box
- 1 × Hikvision DS-2DF8242I5X-AELW 2MP 42x Zoom DarkFighter 8-inch Speed Dome Camera 500m laser
- 1 × mounting / fixing kit (where applicable)
- 1 × quick start guide
Detailed Specifications — Hikvision DS-2DF8242I5X-AELW 2MP 42x Zoom DarkFighter 8-inch Speed Dome Camera 500m laser
Specifications as published by Hikvision (20-10-2026). Shipping weight may differ from the unit weight shown.
| Identification | |
|---|---|
| SKU | DS-2DF8242I5X-AELW(T5) |
| MPN | DS-2DF8242I5X-AELW(T5) |
| Brand | Hikvision |
| Hikvision product name | 8-inch 2 MP 42X DarkFighter Laser Network Speed Dome |
| Product Type | IP PTZ Camera |
| Camera | |
| Image Sensor | 1/1.8" progressive scan CMOS |
| Min. Illumination | Color: 0.001 Lux @ (F1.2, AGC ON), B/W: 0.0005 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/1 s to 1/30,000 s |
| Day & Night | IR cut filter |
| Zoom | 42 × optical, 16 × digital |
| Max. Resolution | 1920 × 1080 |
| Lens | |
| Focus | Auto, semi-auto, manual, rapid focus |
| Focal Length | 6.0 mm to 252 mm |
| Zoom Speed | Approx. 4.5 s (optical, wide-tele) |
| FOV | Horizontal field of view: 56.6° to 1.7° (wide-tele), Vertical field of view: 33.7° to 0.9° (wide-tele), Diagonal field of view: 63.4° to 1.9° (wide-tele) |
| Aperture | Max. F1.2 |
| Illuminator | |
| Supplement Light Type | laser |
| Supplement Light Range | Up to 500 m |
| Smart Supplement Light | Yes |
| PTZ | |
| Movement Range (Pan) | 360° |
| Movement Range (Tilt) | -20° to 90° (auto flip) |
| Pan Speed | Pan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s |
| Tilt Speed | Tilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s |
| Proportional Pan | Yes |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan |
| Power-off Memory | Yes |
| Park Action | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Preset Freezing | Yes |
| Scheduled Task | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output |
| Video | |
| Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 8 fixed regions for each stream |
| Audio | |
| Audio Compression | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32~192 Kbps (MP2L2) |
| Network | |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour |
| API | ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T) |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users. 3 levels: Administrator, Operator and User |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address) |
| Client | HikCentral, iVMS-4200, Hik-Connect |
| Web Browser | IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+ |
| Image | |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Image Enhancement | BLC, HLC, 3D DNR |
| Wide Dynamic Range (WDR) | 140 dB WDR |
| Image Stabilization | Yes. Built-in gyroscope to improve EIS performance. |
| Regional Exposure | Yes |
| Regional Focus | Yes |
| Privacy Mask | Up to 24 masks, polygon region, mosaic mask, mask color configurable |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port; Hi-PoE |
| On-board Storage | Built-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC, up to 256 GB |
| Alarm | 7 inputs, 2 outputs |
| Audio | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
| Video Output | 1.0V[p-p]/75Ω, PAL, NTSC, BNC connector |
| RS-485 | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Event | |
| Linkage | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,and PTZ actions (such as preset, patrol scan, pattern scan) |
| Basic Event | Motion detection, video tampering alarm, alarm input and output |
| Smart Event | Line crossing detection, region entrance detection, parking detection, unattended baggage detection, object removal detection, intrusion detection, region exiting detection, vandal-proof alarm, audio exception detection |
| Smart Tracking | Manual tracking, auto-tracking |
| Deep Learning Function | |
| Face Capture | Detects up to 30 faces simultaneously. Supports detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) |
| Road Traffic and Vehicle Detection | |
| Road Traffic | Support vehicle detection (license plate number,vehicle model, and vehicle color recognition) |
| General | |
| General Function | Mirror, password protection, watermark, IP address filter |
| Power | 24 VAC (Max. 60 W, including max. 18 W for IR and max. 6 W for heater), Hi-PoE (Max. 50 W, including max. 18 W for IR and max. 6 W for heater) |
| Operating Condition | Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95% |
| Wiper | Yes |
| Dimension | ⌀ 266.6 mm × 410 mm (⌀ 10.50" × 16.14") |
| Weight | Approx. 8 kg (17.64 lb.) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Approval | |
| EMC | FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2019); KC (KN 32: 2015, KN 35: 2015) |
| Safety | CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2017), BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (SANS IEC60950-1) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 Standard,Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5 |
Frequently Asked Questions
What zoom does the Hikvision DS-2DF8242I5X-AELW(T5) have?
42x optical zoom (6.0 mm to 252 mm) plus 16x digital zoom.
What is the night-vision range?
500 m laser (laser illuminator).
Does it cope with strong backlight?
Yes — 140 dB wide dynamic range.
Does it reduce false alarms?
Yes — deep-learning analytics classify people and vehicles; detects up to 30 faces simultaneously.
Can it track a moving target automatically?
Yes — Manual tracking, auto-tracking.
How is it powered?
24 VAC (Max. 60 W, including max. 18 W for IR and max. 6 W for heater), Hi-PoE (Max. 50 W, including max. 18 W for IR and max. 6 W for heater).
Is it suitable for outdoor use?
Yes — IP67; operating range Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%.
Does it record locally?
Yes — Built-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC, up to 256 GB, plus NAS and NVR recording.
What alarm and audio connections does it have?
Alarm: 7 inputs, 2 outputs. Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω.
Can I control it with a joystick?
Yes — from a Hikvision NVR, iVMS-4200, Hik-Connect or a DS-1200KI / DS-1600KI network keyboard.
Which recorders is it compatible with?
All Hikvision NVRs, and third-party systems via ONVIF (Profile S, G, T).
Documentation — Hikvision DS-2DF8242I5X-AELW 2MP 42x Zoom DarkFighter 8-inch Speed Dome Camera 500m laser
Official Hikvision documents for this model and related Netview CCTV pages.
| Document | Format | Link |
|---|---|---|
| Hikvision DS-2DF8242I5X-AELW(T5) Data Sheet (official PDF) | Download | |
| Hikvision DS-2DF8242I5X-AELW(T5) Quick Start Guide (official PDF) | Download | |
| Hikvision DS-2DF8242I5X-AELW(T5) User Manual (official PDF) | Download | |
| Hikvision DS-2DF8242I5X-AELW(T5) product page | Web | View on hikvision.com |
| Hikvision PTZ Camera Installer Guide 2026 | Web | Read the guide |
| Browse all Hikvision IP PTZ Cameras | Web | View IP PTZ Cameras |
| Contact Netview CCTV (trade pricing & support) | Web | Contact our trade team |
