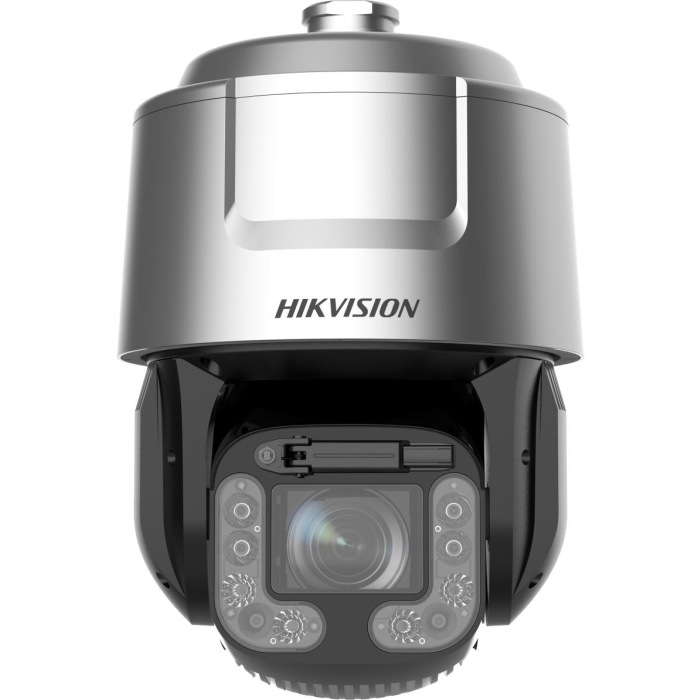

Hikvision DS-2DF7C432MXG1-WR 4MP 32x Zoom DarkFighter 7-inch Speed Dome Camera 200m IR + White Light
The Hikvision DS-2DF7C432MXG1-WR 4MP 32x Zoom DarkFighter 7-inch Speed Dome Camera 200m IR + White Light is a 4MP 7-inch Speed Dome IP camera with DarkFighter, 32x optical zoom and 200 m IR night vision. Hikvision model name: 7C Series 4MP 32X Realtime Low Consumption Darkfighter Network Speed Dome.
Genuine Hikvision product, managed with Hik-Connect, iVMS-4200 and HikCentral. UK stock with same-day dispatch and trade pricing from Netview CCTV Leicester — authorised Hikvision wholesale distributor.
Key Features
- 4MP (2688 × 1520) resolution, 1/1.8" progressive scan CMOS sensor
- DarkFighter 2.0 ultra-low-light imaging
- 150 dB WDR for clear images against strong backlight
- 32x optical zoom and 16x digital zoom for close-up views over large areas
- Up to 200 m IR night vision
- IP66 weatherproof
- 360° pan, -15° to 90° tilt; 300 presets, 8 patrols, 4 pattern scans
- Hybrid IR + white light illumination - IR for covert night viewing, white light for colour video and deterrence when an event is detected
- Built-in wiper and heater
- MicroSD slot up to 256 GB
- Alarm I/O: 7 inputs, 2 outputs; audio in/out
- H.265+ / H.265 / H.264+ / H.264 compression
- Power: 12 VDC PSU (or the Hikvision solar / battery kit)
- Managed via Hik-Connect, iVMS-4200 and HikCentral; ONVIF Profile S/G/T
Hikvision DS-2DF7C432MXG1-WR 4MP 32x Zoom DarkFighter 7-inch Speed Dome Camera 200m IR + White Light — IP PTZ Camera
4MP 7-inch Speed Dome IP camera with DarkFighter, 32x optical zoom and 200 m IR night vision. Hikvision: 7C Series 4MP 32X Realtime Low Consumption Darkfighter Network Speed Dome.
Overview
The Hikvision DS-2DF7C432MXG1-WR 4MP 32x Zoom DarkFighter 7-inch Speed Dome Camera 200m IR + White Light is a 4MP 7-inch Speed Dome IP camera with DarkFighter, 32x optical zoom and 200 m IR night vision. Its 32x optical zoom (6.0 mm to 192 mm) brings distant subjects in for identification while the pan-tilt mechanism (360° pan, -15° to 90° tilt) covers the whole scene from a single mounting point. It sees in colour down to 0.005 lux and in black-and-white to 0.001 lux (0 lux with the built-in illuminator). 150 dB wide dynamic range handles scenes with strong backlight. Smart tracking (manual tracking, auto-tracking) follows a moving target automatically. Managed with Hik-Connect, iVMS-4200 and HikCentral and compatible with Hikvision NVRs and ONVIF systems. Same-day dispatch from Netview CCTV Leicester — authorised Hikvision wholesale distributor — with trade pricing on stocked product.
Key Features
- 4MP (2688 × 1520) resolution, 1/1.8" progressive scan CMOS sensor
- DarkFighter 2.0 ultra-low-light imaging
- 150 dB WDR for clear images against strong backlight
- 32x optical zoom and 16x digital zoom for close-up views over large areas
- Up to 200 m IR night vision
- IP66 weatherproof
- 360° pan, -15° to 90° tilt; 300 presets, 8 patrols, 4 pattern scans
- Hybrid IR + white light illumination - IR for covert night viewing, white light for colour video and deterrence when an event is detected
- Built-in wiper and heater
- MicroSD slot up to 256 GB
- Alarm I/O: 7 inputs, 2 outputs; audio in/out
- H.265+ / H.265 / H.264+ / H.264 compression
- Power: 12 VDC PSU (or the Hikvision solar / battery kit)
- Managed via Hik-Connect, iVMS-4200 and HikCentral; ONVIF Profile S/G/T
Typical Applications
- Car parks, forecourts and yards - one PTZ covers what several fixed cameras would
- Perimeters and open sites - long-range zoom for identification
- Operator-monitored sites - joystick / keyboard control and preset patrols
- Night-time surveillance with long-range IR illumination
- Trade installs needing same-day stock - Netview CCTV Leicester ships Hikvision from UK stock
Compatible Hikvision Devices
- Hikvision NVRs (AcuSenseHikvision AcuSense NVR Range 2026: Sizing Guide, VPro, K and M series) and HikCentral
- Hik-Connect app (iOS / Android)
- iVMS-4200 management software
- Hikvision DS-1200KI / DS-1600KI PTZ keyboards for joystick control
- ONVIF-compliant recorders and VMS (Profile S, G, T)
- 12 VDC power supply, or the Hikvision solar panel + battery kit
- Hikvision PTZHikvision PTZ Camera Installer Guide 2026 wall, corner, pole and pendant mounts (DS-1602ZJ / DS-1604ZJ / DS-1691ZJ range)
What's in the Box
- 1 × Hikvision DS-2DF7C432MXG1-WR 4MP 32x Zoom DarkFighter 7-inch Speed Dome Camera 200m IR + White Light
- 1 × mounting / fixing kit (where applicable)
- 1 × quick start guide
Detailed Specifications — Hikvision DS-2DF7C432MXG1-WR 4MP 32x Zoom DarkFighter 7-inch Speed Dome Camera 200m IR + White Light
Specifications as published by Hikvision (19-10-2026). Shipping weight may differ from the unit weight shown.
| Identification | |
|---|---|
| SKU | DS-2DF7C432MXG1-WR |
| MPN | DS-2DF7C432MXG1-WR |
| EAN | 6936422114046 |
| Brand | Hikvision |
| Hikvision product name | 7C Series 4MP 32X Realtime Low Consumption Darkfighter Network Speed Dome |
| Product Type | IP PTZ Camera |
| Camera | |
| Image Sensor | 1/1.8" progressive scan CMOS |
| Min. Illumination | Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with light |
| Shutter Speed | 1/1 s to 1/30,000 s |
| Slow Shutter | Yes |
| Day & Night | IR cut filter |
| Zoom | 32x optical, 16x digital |
| Max. Resolution | 2688 × 1520 |
| Lens | |
| Focus | Auto, semi-auto, manual, rapid focus |
| Focal Length | 6.0 mm to 192 mm |
| Zoom Speed | Approx. 5 s |
| FOV | Horizontal field of view: 60.2° to 1.6° (wide-tele), Vertical field of view: 35.2° to 0.9° (wide-tele), Diagonal field of view: 67.4° to 2.6° (wide-tele) |
| Aperture | Max. F1.5 |
| Illuminator | |
| Supplement Light Type | Hybrid |
| Supplement Light Range | IR Distance: up to 200 m, White Light Distance: up to 30 m |
| Smart Supplement Light | Yes |
| PTZ | |
| Movement Range (Pan) | 360° |
| Movement Range (Tilt) | -15° to 90°,auto flip |
| Pan Speed | Pan speed: configurable from 0.1° to 130°/s; preset speed: 130°/s |
| Tilt Speed | Tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s |
| Proportional Pan | Yes |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan |
| Power-off Memory | Yes |
| Park Action | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Preset Freezing | Yes |
| Scheduled Task | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output |
| Video | |
| Main Stream | 50 Hz: 25fps（2688 × 1520 , 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720） 60 Hz: 30fps（2688 × 1520 , 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720） |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 50 Hz: 25 fps（1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288） 60 Hz: 30 fps（1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240） |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16384 Kbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 8 fixed regions for each stream |
| Target Cropping | No |
| Audio | |
| Audio Compression | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2) |
| Audio Sampling Rate | MP2L2: 16kHz, 32kHz, 48kHz,AAC-LC: 16kHz, 32kHz, 48kHz,PCM: 8kHz, 16kHz, 32kHz, 48kHz,MP3: 8kHz, 16KHz, 32KHz, 48KHz |
| Environment Noise Filtering | Yes |
| Network | |
| Smooth Streaming | Yes |
| Network Storage | NAS (NFS, SMB/ CIFS), ANR |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour |
| API | ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M), OTAP |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users. 3 levels: Administrator, Operator and User |
| Security | Password protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log,TLS 1.3,host authentication (MAC address),TPM 2.0 (FIPS 140-2 level 2) |
| Client | HikCentral, iVMS-4200, Hik-Connect |
| Web Browser | IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+ |
| Wireless (Mobile Communication) | |
| SIM | No |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Wide Dynamic Range (WDR) | 150 dB |
| Day/Night Switch | Day, night, auto, scheduled-switch |
| Image Enhancement | BLC, HLC, 3D DNR |
| Defog | Optical defog |
| Image Stabilization | Yes. Built-in gyroscope to improve EIS performance. |
| Regional Exposure | Yes |
| Regional Focus | Yes |
| Privacy Mask | Up to 24 masks, polygon region, mosaic mask, mask color configurable |
| SNR | ≥ 52 dB |
| Supplement Detection | |
| Gyroscope | Yes |
| Satellite Positioning | No |
| Compass | No |
| Interface | |
| Reset | Yes |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-board Storage | Built-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC, up to 256 GB |
| Alarm | 7 inputs, 2 outputs |
| Audio | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
| Video Output | No |
| RS-485 | Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Event | |
| Basic Event | Motion detection,video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),alarm input and output,vandal-proof alam,audio exception detection,unattended baggage detection, object removal detection |
| Linkage | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,and PTZ actions (such as preset, patrol scan, pattern scan) |
| Deep Learning Function | |
| Perimeter Protection | Line crossing detection, region entrance detection, intrusion detection, region exiting detection |
| Linkage and Tracking | |
| Smart Tracking | Manual tracking, auto-tracking |
| General | |
| Vandal-proof Alarm | No |
| Heater | Yes |
| Wiper | Yes |
| De-icing | No |
| Demist | Yes |
| General Function | Mirror, password protection, watermark, IP address filter |
| Power | 12 VDC, 3.33 A. Max. 20 W (including max. 3.5 W for heater and max. 4.2 W for supplement light). Average power consumption for real-time live view in daylight: 5 W. Average power consumption for real-time live view at night: 7 W. |
| Operating Condition | Temperature: -30°C to 65°C (-22°F to 149°F), Humidity: ≤ 95% |
| Dimension | Ø 218.4 mm × 324.2 mm (Ø 8.6" × 12.76") |
| Weight | Approx. 4.2 kg (9.26 lb.) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Approval | |
| EMC | CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); |
| Safety | CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014+A11:2017) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP66 (IEC 60529-2013), 6000V Lightning Protection, Surge Protection and Voltage Transient Protection |
Frequently Asked Questions
What zoom does the Hikvision DS-2DF7C432MXG1-WR have?
32x optical zoom (6.0 mm to 192 mm) plus 16x digital zoom.
What is the night-vision range?
200 m IR (hybrid IR + white light illuminator).
Does it cope with strong backlight?
Yes — 150 dB wide dynamic range, plus optical defog.
Can it track a moving target automatically?
Yes — Manual tracking, auto-tracking.
How is it powered?
12 VDC, 3.33 A. Max. 20 W (including max. 3.5 W for heater and max. 4.2 W for supplement light). Average power consumption for real-time live view in daylight: 5 W. Average power consumption for real-time live view at night: 7 W..
Is it suitable for outdoor use?
Yes — IP66; operating range Temperature: -30°C to 65°C (-22°F to 149°F), Humidity: ≤ 95%.
Does it record locally?
Yes — Built-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC, up to 256 GB, plus NAS and NVR recording.
What alarm and audio connections does it have?
Alarm: 7 inputs, 2 outputs. Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω.
Can I control it with a joystick?
Yes — from a Hikvision NVR, iVMS-4200, Hik-Connect or a DS-1200KI / DS-1600KI network keyboard.
Which recorders is it compatible with?
All Hikvision NVRs, and third-party systems via ONVIF (Profile S, G, T).
Documentation — Hikvision DS-2DF7C432MXG1-WR 4MP 32x Zoom DarkFighter 7-inch Speed Dome Camera 200m IR + White Light
Official Hikvision documents for this model and related Netview CCTV pages.
| Document | Format | Link |
|---|---|---|
| Hikvision DS-2DF7C432MXG1-WR Data Sheet (official PDF) | Download | |
| Hikvision DS-2DF7C432MXG1-WR Quick Start Guide (official PDF) | Download | |
| Hikvision DS-2DF7C432MXG1-WR product page | Web | View on hikvision.com |
| Hikvision PTZ Camera Installer Guide 2026 | Web | Read the guide |
| Browse all Hikvision IP PTZ Cameras | Web | View IP PTZ Cameras |
| Contact Netview CCTV (trade pricing & support) | Web | Contact our trade team |
Netview CCTV — authorised Hikvision wholesale distributor (Leicester). Trade pricing: 0116 3800 838 or [email protected].
